19” RACK MOUNT ENCLOSURE WITH DETACHABLE PANELS - AUPR series
CATEGORY：Aluminum enclosure,19” rack mount enclosure, 19 inch rack case, Rack mounting enclosure, Rack mount chassis

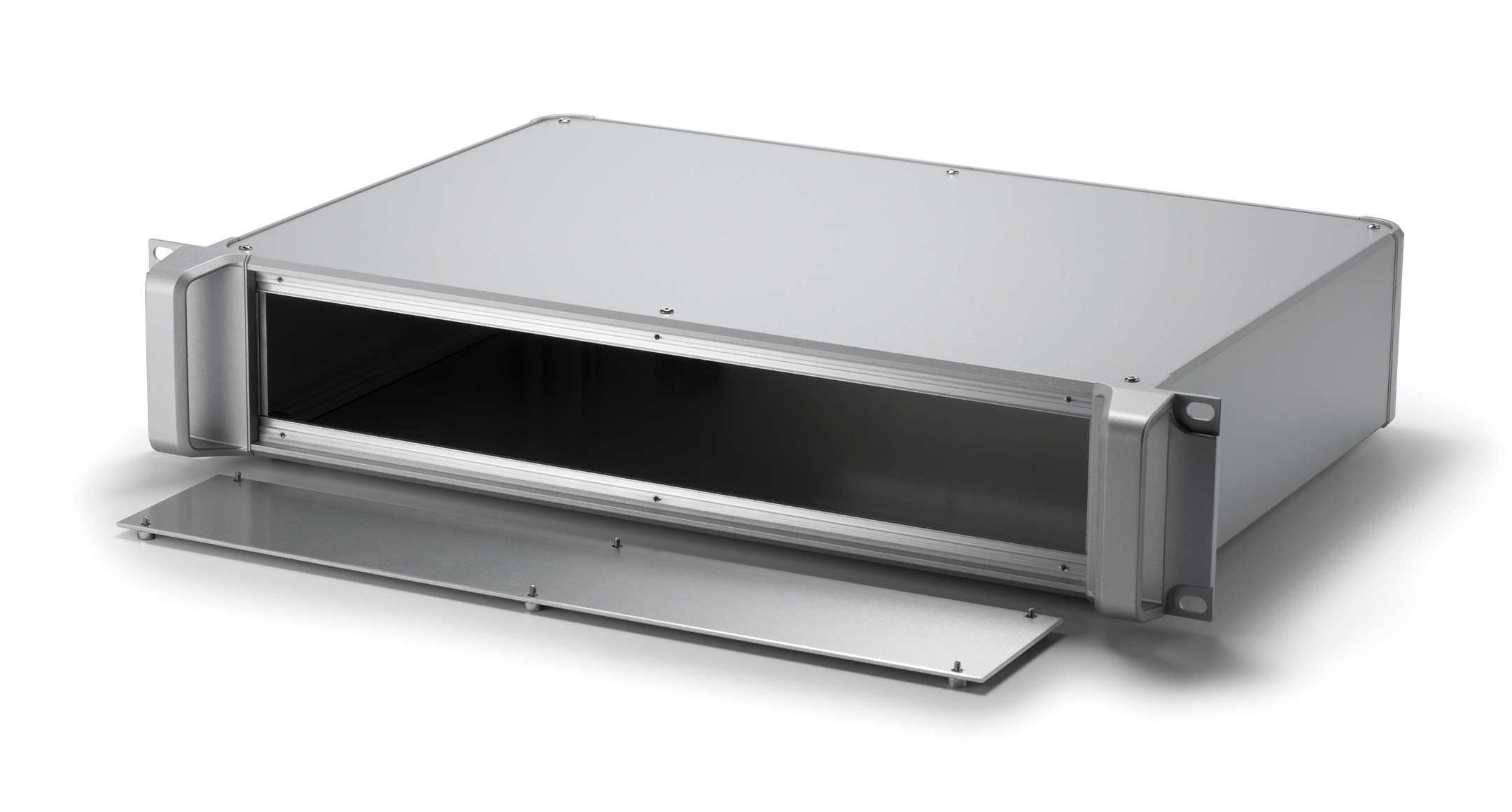

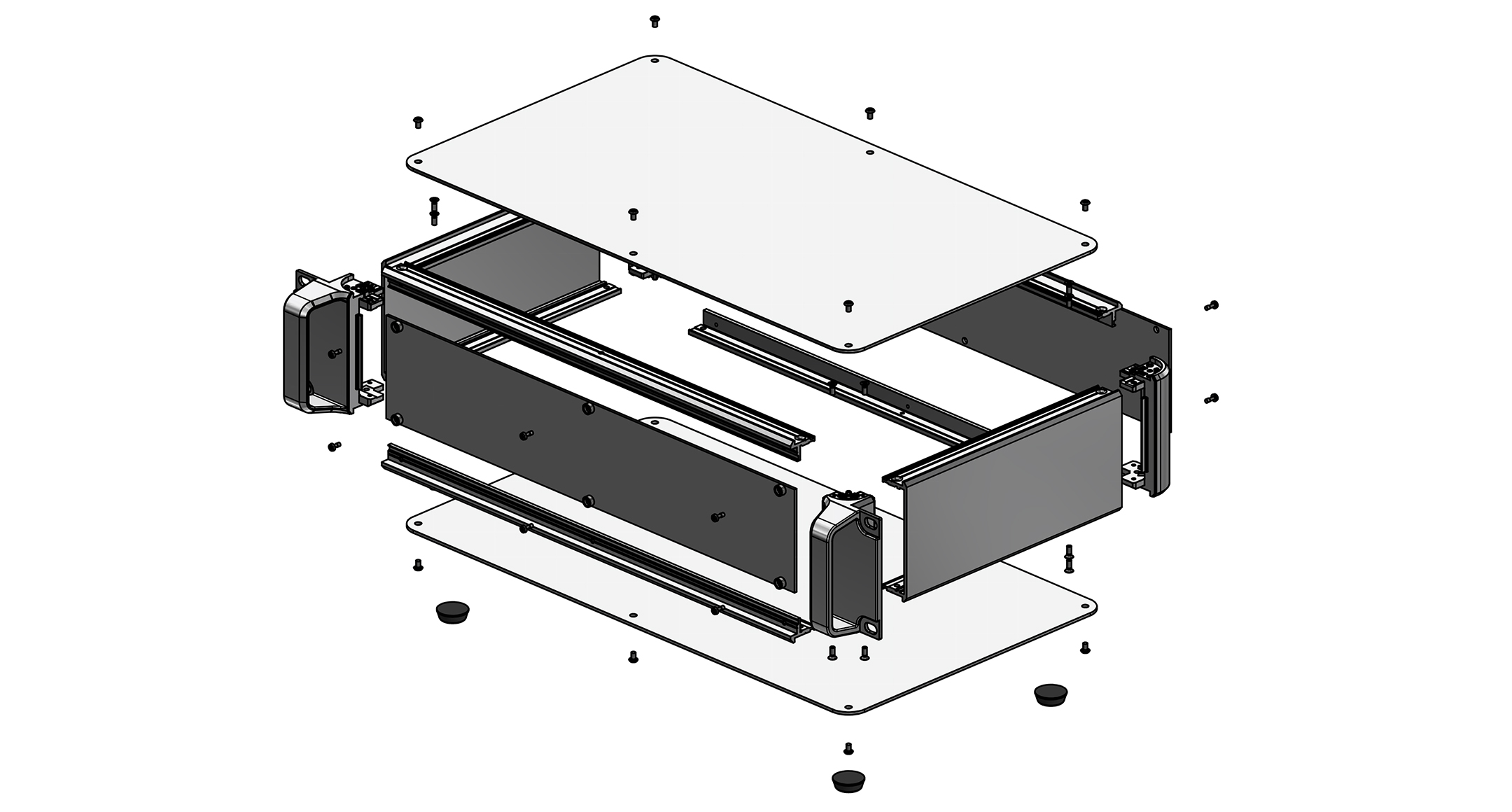

19” rack mount enclosure with detachable panels.
The inner surface is unfinished, allowing the enclosure to be conductive.

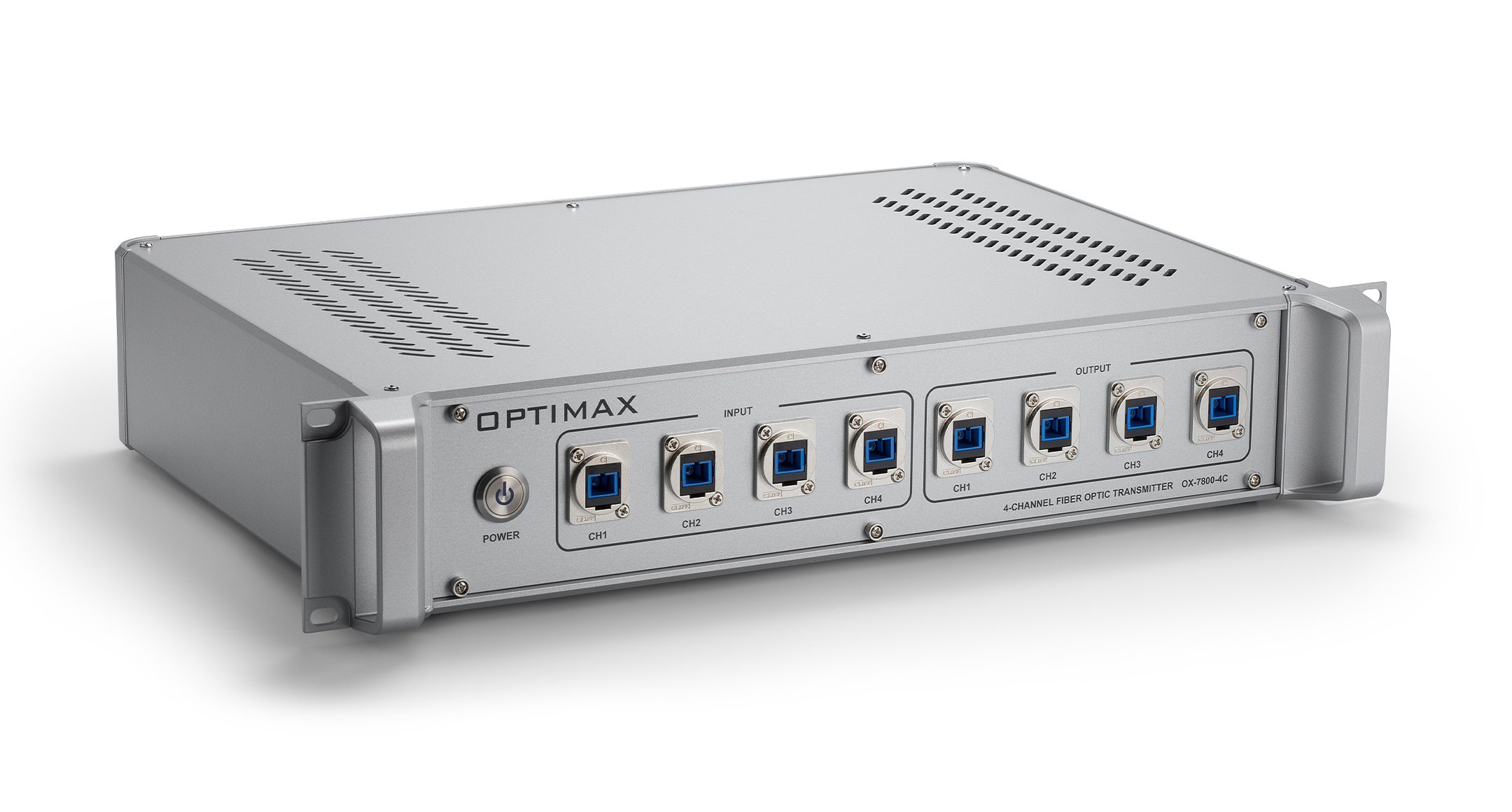

Suitable for use as audio/visual equipment, communication equipment, rack mount computers, measuring instruments and others.
A large selection of 21 different sizes in 2 different colors to choose from.
Screw is selectable Plus head or Hex head.
The inner surface is unfinished, allowing the enclosure to be conductive.
Suitable for use as audio/visual equipment, communication equipment, rack mount computers, measuring instruments and others.
A large selection of 21 different sizes in 2 different colors to choose from.
Screw is selectable Plus head or Hex head.

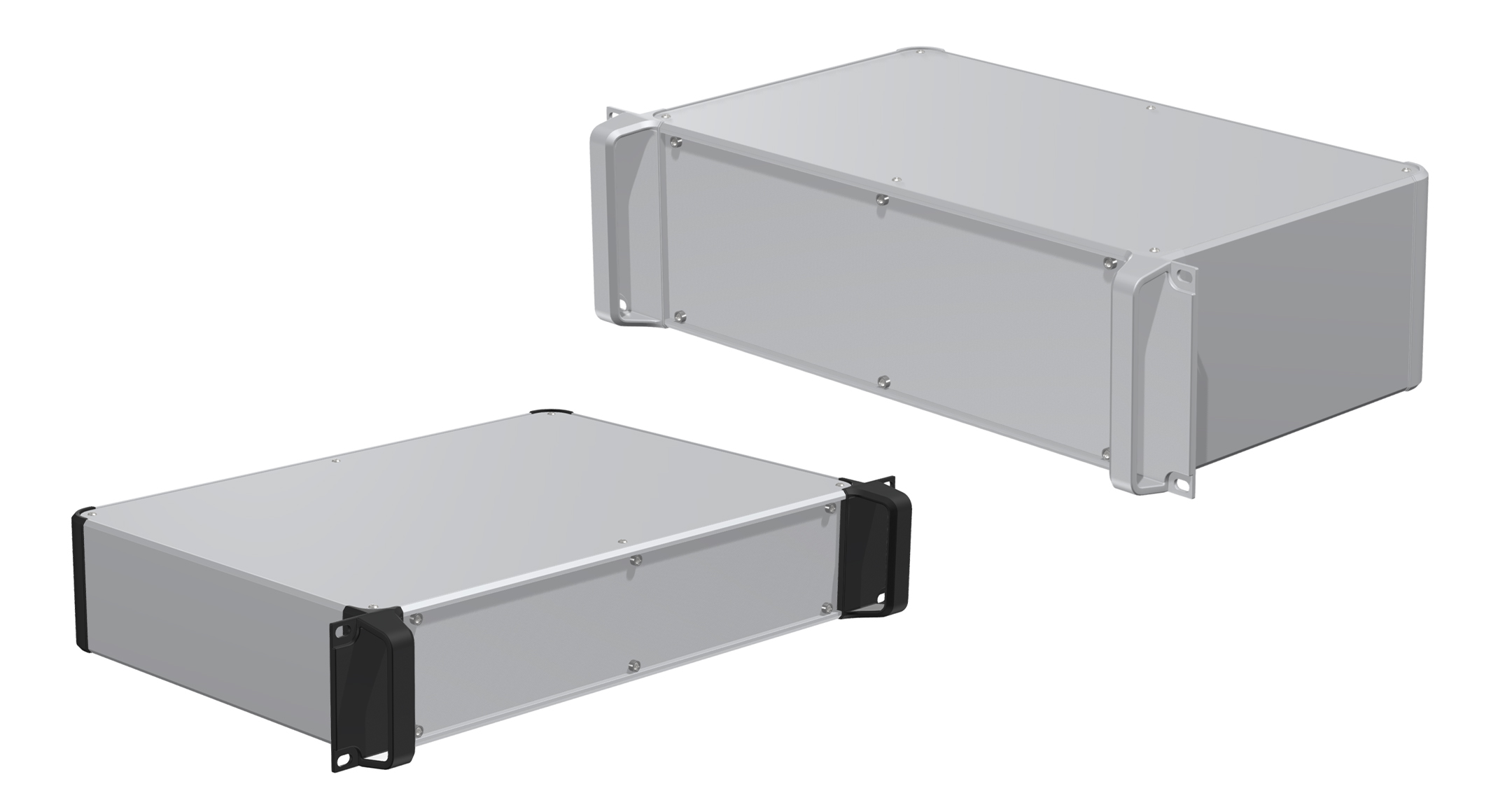

COLOR TYPE
SSSilver/Silver(Handle・Corner block)

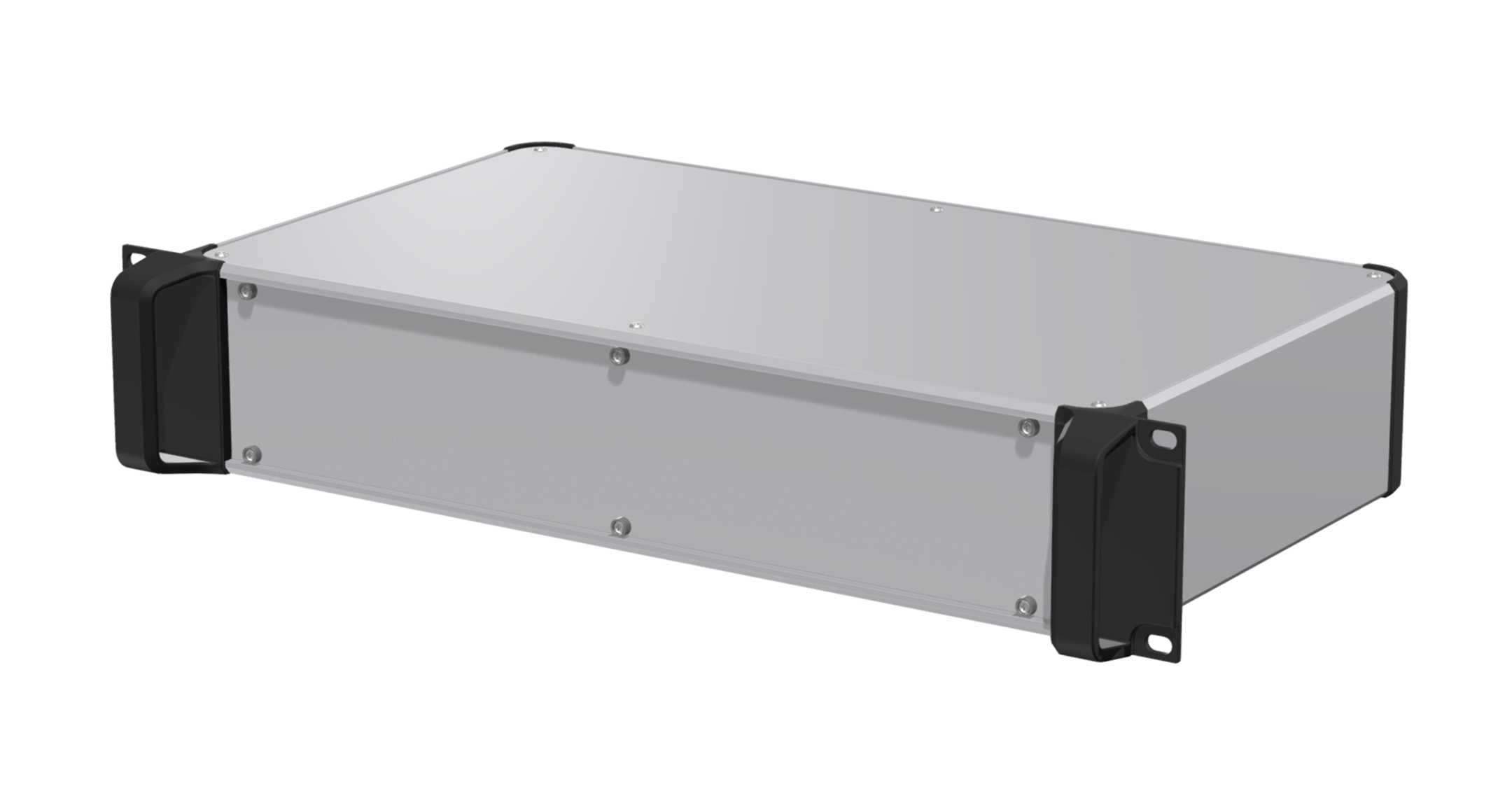

SBSilver/Black(Handle・Corner block)
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Internal dimensions | Weight (kg) | DXF | DWG | STP | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | ||||||
| AUPR88-43-16□-□□ | 430 | 88 | 160 | 423 | 81 | 146 | 2.1 | ||||
| AUPR88-43-20□-□□ | 430 | 88 | 200 | 423 | 81 | 186 | 2.3 | ||||
| AUPR88-43-25□-□□ | 430 | 88 | 250 | 423 | 81 | 236 | 2.6 | ||||
| AUPR88-43-30□-□□ | 430 | 88 | 300 | 423 | 81 | 286 | 2.9 | ||||
| AUPR88-43-36□-□□ | 430 | 88 | 360 | 423 | 81 | 346 | 3.3 | ||||
| AUPR88-43-43□-□□ | 430 | 88 | 430 | 423 | 81 | 416 | 3.7 | ||||
| AUPR88-43-50□-□□ | 430 | 88 | 500 | 423 | 81 | 486 | 4.2 | ||||
| AUPR133-43-16□-□□ | 430 | 132.5 | 160 | 422 | 125.5 | 146 | 2.5 | ||||
| AUPR133-43-20□-□□ | 430 | 132.5 | 200 | 422 | 125.5 | 186 | 2.7 | ||||
| AUPR133-43-25□-□□ | 430 | 132.5 | 250 | 422 | 125.5 | 236 | 3.1 | ||||
| AUPR133-43-30□-□□ | 430 | 132.5 | 300 | 422 | 125.5 | 286 | 3.5 | ||||
| AUPR133-43-36□-□□ | 430 | 132.5 | 360 | 422 | 125.5 | 346 | 3.9 | ||||
| AUPR133-43-43□-□□ | 430 | 132.5 | 430 | 422 | 125.5 | 416 | 4.4 | ||||
| AUPR133-43-50□-□□ | 430 | 132.5 | 500 | 422 | 125.5 | 486 | 4.9 | ||||
| AUPR177-43-16□-□□ | 430 | 177 | 160 | 422 | 170 | 146 | 2.8 | ||||
| AUPR177-43-20□-□□ | 430 | 177 | 200 | 422 | 170 | 186 | 3.1 | ||||
| AUPR177-43-25□-□□ | 430 | 177 | 250 | 422 | 170 | 236 | 3.5 | ||||
| AUPR177-43-30□-□□ | 430 | 177 | 300 | 422 | 170 | 286 | 3.9 | ||||
| AUPR177-43-36□-□□ | 430 | 177 | 360 | 422 | 170 | 346 | 4.4 | ||||
| AUPR177-43-43□-□□ | 430 | 177 | 430 | 422 | 170 | 416 | 5 | ||||
| AUPR177-43-50□-□□ | 430 | 177 | 500 | 422 | 170 | 486 | 5.5 | ||||
| Mounting plate (Option) | DXF | DWG | STP | |
|---|---|---|---|---|
| AUC43-20 | DXF | DWG | ||
| AUC43-25 | DXF | DWG | ||
| AUC43-30 | DXF | DWG | ||
| AUC43-36 | DXF | DWG | ||
| AUC43-43 | DXF | DWG | ||
| AUC43-50 | DXF | DWG | ||
| AUC43-20 | DXF | DWG | ||
| AUC43-25 | DXF | DWG | ||
| AUC43-30 | DXF | DWG | ||
| AUC43-36 | DXF | DWG | ||
| AUC43-43 | DXF | DWG | ||
| AUC43-50 | DXF | DWG | ||
| AUC43-20 | DXF | DWG | ||
| AUC43-25 | DXF | DWG | ||
| AUC43-30 | DXF | DWG | ||
| AUC43-36 | DXF | DWG | ||
| AUC43-43 | DXF | DWG | ||
| AUC43-50 | DXF | DWG |
OPTIONAL PARTS
