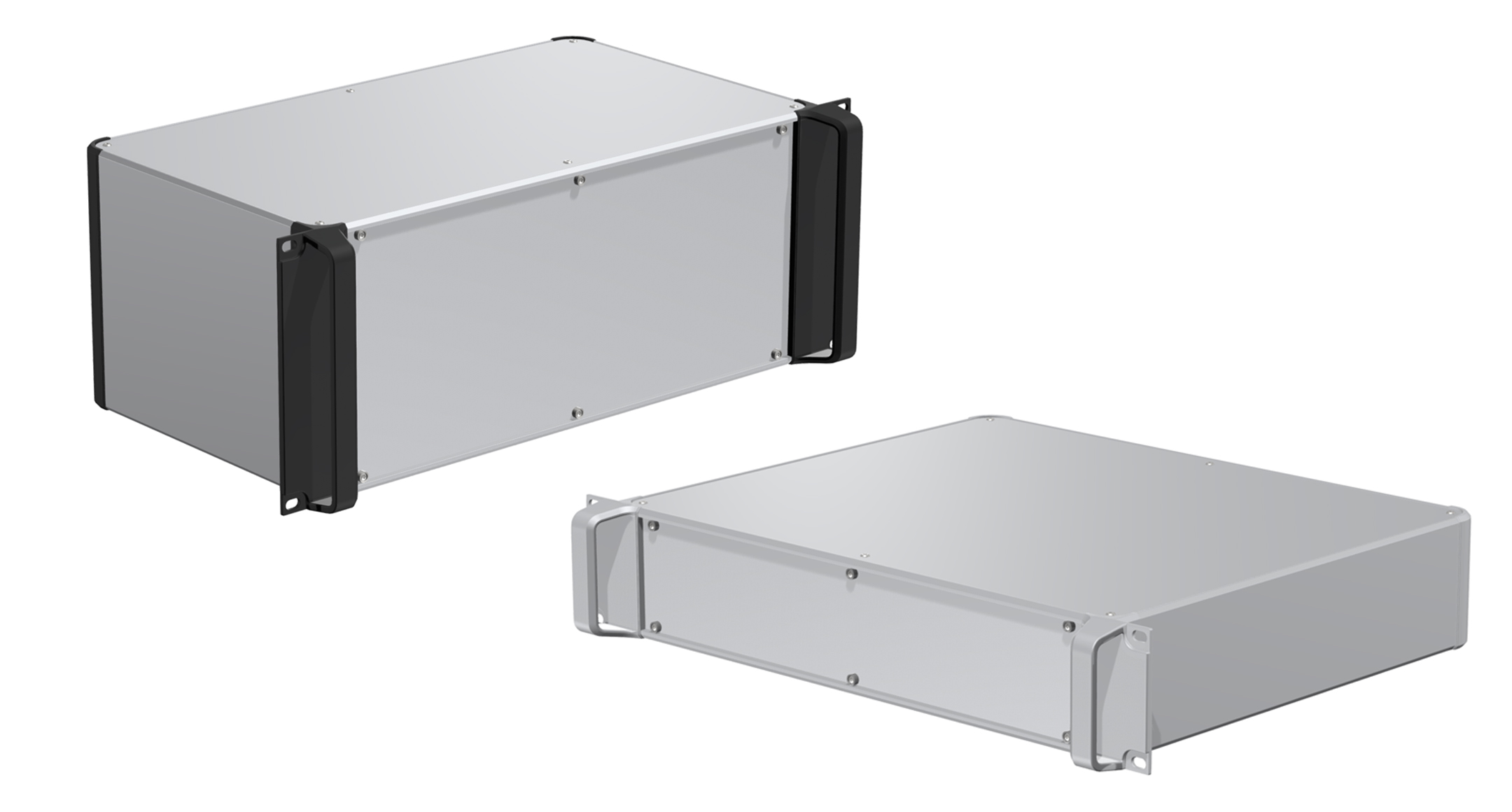

EMC SHIELDED 19” ENCLOSURE WITH DETACHABLE PANELS - AUPRE series
CATEGORY：Aluminum enclosure, 19” rack mount enclosure, Aluminum chassis, EMC/EMI shielding enclosure, Instrument enclosure, Universal enclosure, Rack mounting enclosure
EMC shielded 19” enclosure with handles.

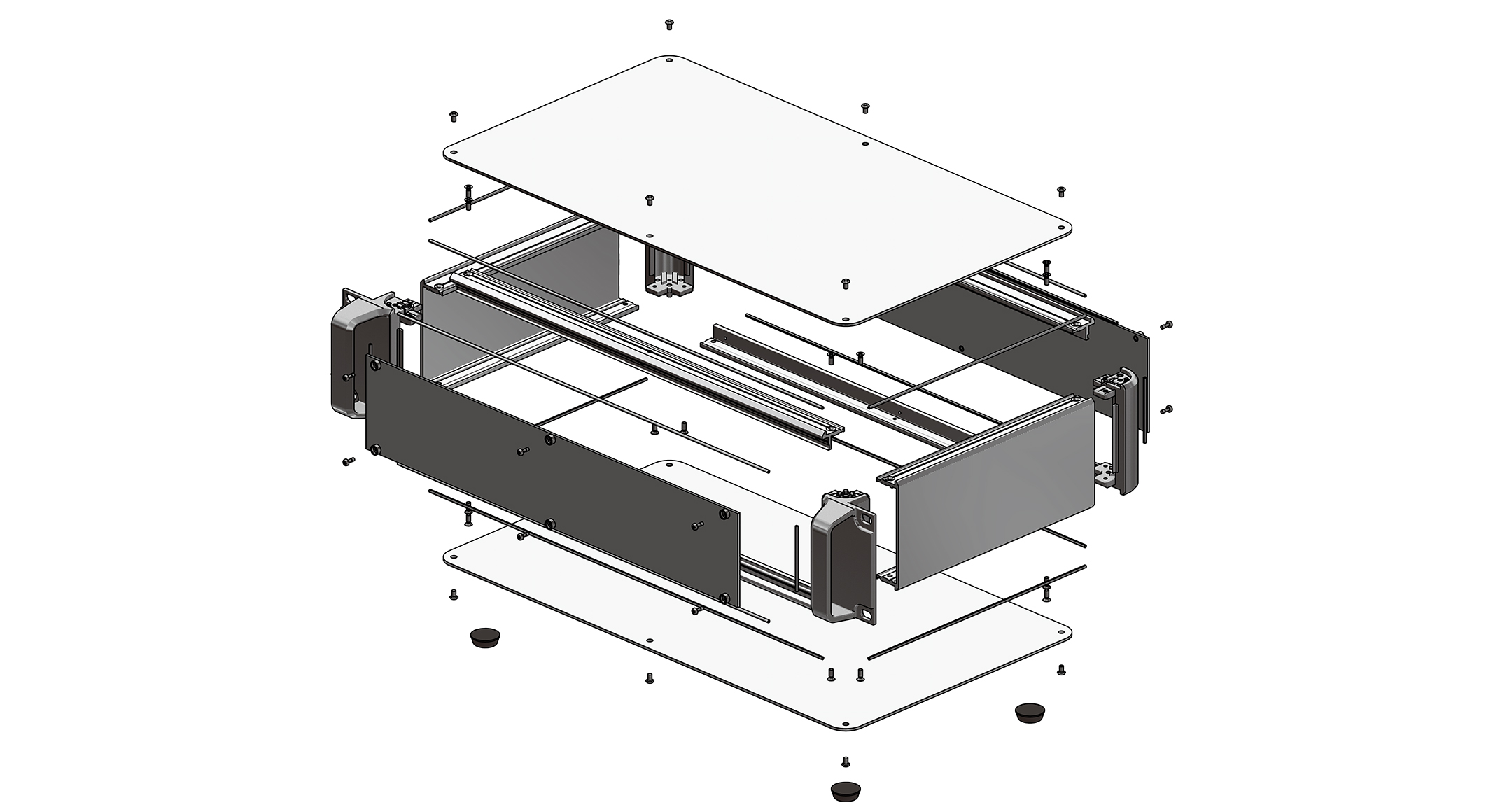

Detachable front/rear panels and Captive screws allow for easy maintenance
as there is little risk of the screws dropping out and getting lost.

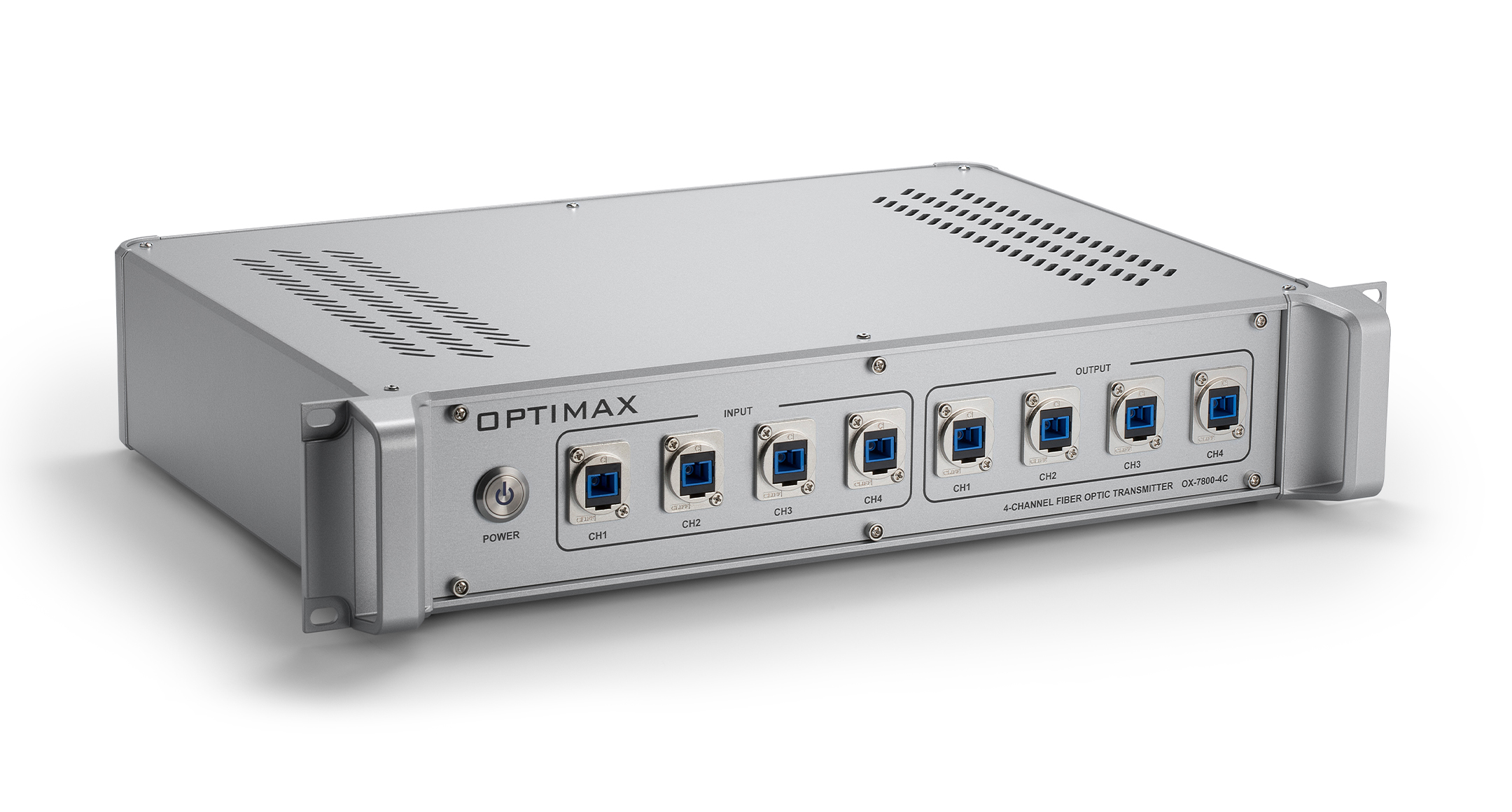

Suitable for use as audio/visual equipment, communication equipment, rack mount computers, measuring instruments and others.
A large selection of 21 different sizes in 2 different colors to choose from.
Screw is selectable Plus head or Hex head.
Detachable front/rear panels and Captive screws allow for easy maintenance
as there is little risk of the screws dropping out and getting lost.
Suitable for use as audio/visual equipment, communication equipment, rack mount computers, measuring instruments and others.
A large selection of 21 different sizes in 2 different colors to choose from.
Screw is selectable Plus head or Hex head.
COLOR TYPE

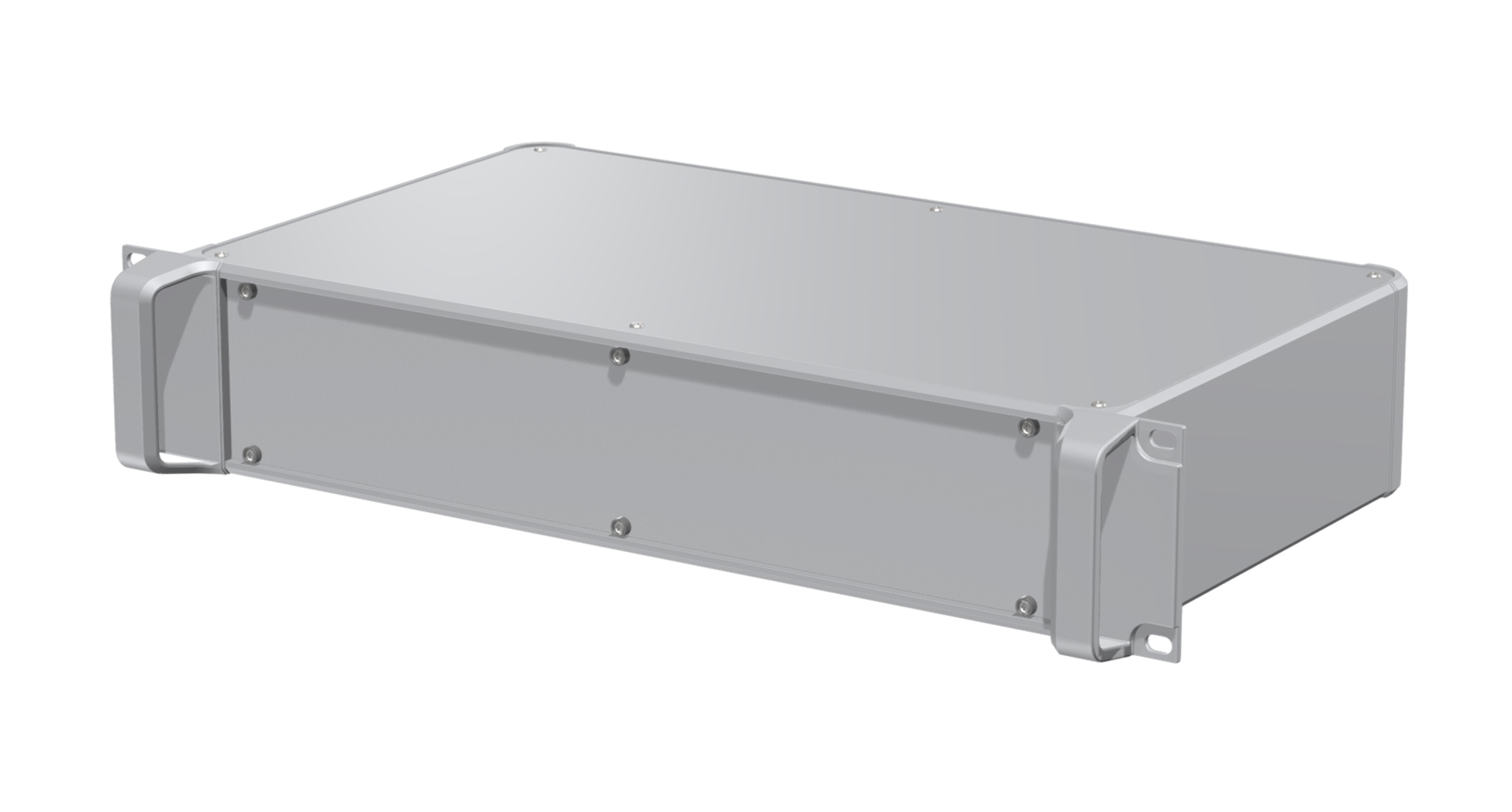

SSSilver / Silver(Handle・Corner block)

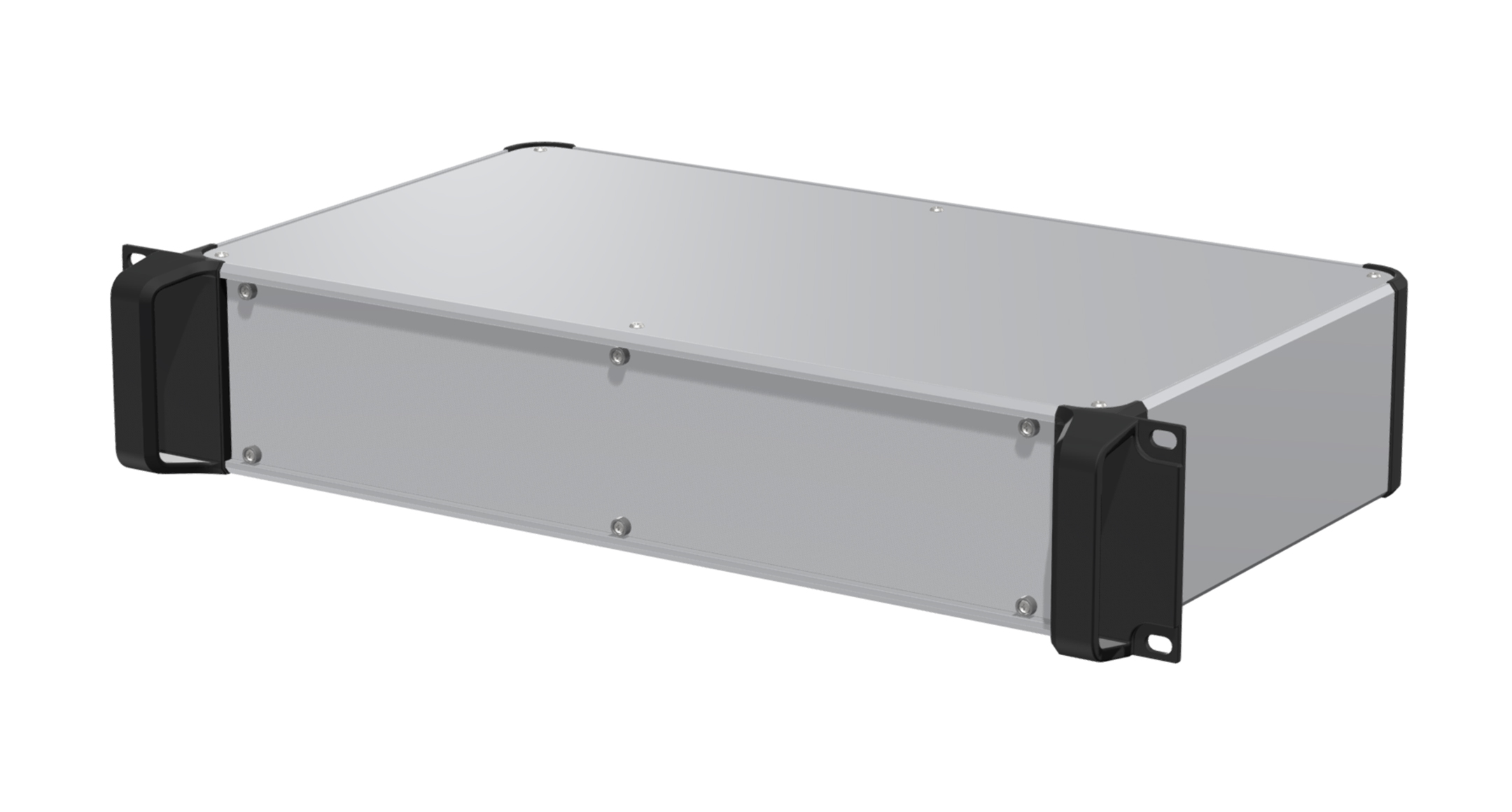

SBSilver / Black(Handle・Corner block)
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Internal dimensions | Weight (kg) | DXF | DWG | STP | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | ||||||
| AUPRE88-43-16□-□□ | 430 | 88 | 160 | 423 | 81 | 146 | 2.1 | ||||
| AUPRE88-43-20□-□□ | 430 | 88 | 200 | 423 | 81 | 186 | 2.3 | ||||
| AUPRE88-43-25□-□□ | 430 | 88 | 250 | 423 | 81 | 236 | 2.6 | ||||
| AUPRE88-43-30□-□□ | 430 | 88 | 300 | 423 | 81 | 286 | 2.9 | ||||
| AUPRE88-43-36□-□□ | 430 | 88 | 360 | 423 | 81 | 346 | 3.3 | ||||
| AUPRE88-43-43□-□□ | 430 | 88 | 430 | 423 | 81 | 416 | 3.7 | ||||
| AUPRE88-43-50□-□□ | 430 | 88 | 500 | 423 | 81 | 486 | 4.2 | ||||
| AUPRE133-43-16□-□□ | 430 | 132.5 | 160 | 422 | 125.5 | 146 | 2.5 | ||||
| AUPRE133-43-20□-□□ | 430 | 132.5 | 200 | 422 | 125.5 | 186 | 2.8 | ||||
| AUPRE133-43-25□-□□ | 430 | 132.5 | 250 | 422 | 125.5 | 236 | 3.1 | ||||
| AUPRE133-43-30□-□□ | 430 | 132.5 | 300 | 422 | 125.5 | 286 | 3.5 | ||||
| AUPRE133-43-36□-□□ | 430 | 132.5 | 360 | 422 | 125.5 | 346 | 3.9 | ||||
| AUPRE133-43-43□-□□ | 430 | 132.5 | 430 | 422 | 125.5 | 416 | 4.4 | ||||
| AUPRE133-43-50□-□□ | 430 | 132.5 | 500 | 422 | 125.5 | 486 | 4.9 | ||||
| AUPRE177-43-16□-□□ | 430 | 177 | 160 | 422 | 170 | 146 | 2.8 | ||||
| AUPRE177-43-20□-□□ | 430 | 177 | 200 | 422 | 170 | 186 | 3.1 | ||||
| AUPRE177-43-25□-□□ | 430 | 177 | 250 | 422 | 170 | 236 | 3.5 | ||||
| AUPRE177-43-30□-□□ | 430 | 177 | 300 | 422 | 170 | 286 | 3.9 | ||||
| AUPRE177-43-36□-□□ | 430 | 177 | 360 | 422 | 170 | 346 | 4.4 | ||||
| AUPRE177-43-43□-□□ | 430 | 177 | 430 | 422 | 170 | 416 | 5 | ||||
| AUPRE177-43-50□-□□ | 430 | 177 | 500 | 422 | 170 | 486 | 5.5 | ||||
| Mounting plate (Option) | DXF | DWG | STP | |
|---|---|---|---|---|
| AUC43-20 | DXF | DWG | ||
| AUC43-25 | DXF | DWG | ||
| AUC43-30 | DXF | DWG | ||
| AUC43-36 | DXF | DWG | ||
| AUC43-43 | DXF | DWG | ||
| AUC43-50 | DXF | DWG | ||
| AUC43-20 | DXF | DWG | ||
| AUC43-25 | DXF | DWG | ||
| AUC43-30 | DXF | DWG | ||
| AUC43-36 | DXF | DWG | ||
| AUC43-43 | DXF | DWG | ||
| AUC43-50 | DXF | DWG | ||
| AUC43-20 | DXF | DWG | ||
| AUC43-25 | DXF | DWG | ||
| AUC43-30 | DXF | DWG | ||
| AUC43-36 | DXF | DWG | ||
| AUC43-43 | DXF | DWG | ||
| AUC43-50 | DXF | DWG |
OPTIONAL PARTS
