JUNCTION BOXES・TERMINAL BLOCK BOXES
JUNCTION BOXES・TERMINAL BLOCK BOXES -PDFCATEGORY： JUNCTION BOX・TERMINAL BLOCK BOX・WIRING BOX・DISTRIBUTION BOX・ELECTRICAL ENCLOSURE
Waterproof junction box made of plastic and diecast aluminum.
Box and terminals are combined in these models for wiring work.
IP65 protection class for sure protection for industrial wiring, relay for motors or sensors.

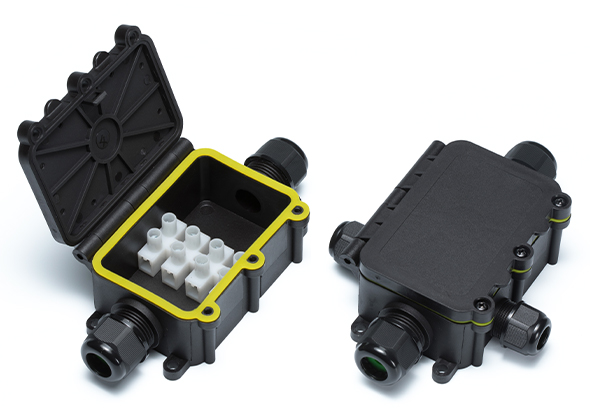

- IP68 HIGH PERFORMANCE WATERPROOF JUNCTION BOX WG series
- IP68 high performance waterproof junction box.
- Protected from immersion 24 hours at 1m depth.
- Made of UV-resistant ASA material.
- Perfect solution for use as outdoor electrical junction box.
- NEW PRODUCT
- TERMINAL BLOCK WTB series
- Compatible terminal blocks with WG・WGV series.
- Electrical Rating 600V 35A
- Operating Temp. Range -40℃ ~ +90℃
- 3P, 6P, 7P, 10P are available.
- NEW PRODUCT
- TERMINAL BLOCK JUNCTION BOX - TMC series
- Integrated junction box of cable glands and terminal block.
- IP65 protection class with high oil resistant PBT material.
- Terminal block spec : 250V 15A
- 3, 4, and 6 pole types are available.
- TERMINAL BLOCK JUNCTION BOX - TMB series
- Junction box with built-in terminal block.
- Made of flame-resistant ABS plastic (UL94V-0).
- Terminal block spec : 400V 17.5A
- 4, 6, 10, 15, 20, and 10P×2 pole types are available.
- IP67 JUNCTION BOX with KNOCKOUTS - SPCM series
- Waterproof polycarbonate junction box with knockouts.
- Protection class : IP67 (equivalent to NEMA6 rating)
- For junction box, control box, and wireless network devices.
- 21 different sizes with 2 different cover types.
- IP67 POLYCARBONATE ENCLOSURE - SPCP series
- Waterproof polycarbonate enclosure for severe environment.
- Protection class : IP67 (equivalent to NEMA6 rating)
- For controller, network devices, outdoor measuring instrument.
- 28 different sizes with 2 different cover types.
- TERMINAL BLOCK - STB series
- Double level terminal block for SPCM・SPCP series.
- Electrical Rating : 300V 30A
- 12 different models in 2P ～ 10P are available.
- DIECAST ALUMINIUM TERMINAL JUNCTION BOX - TMA series
- Diecast aluminium terminal junction box.
- IP65 waterproof class and impact resistant enclosure.
- Terminal block spec : 400V 17.5A
- 6, 9, 15, 20, and 30 pole types are available.
- IP67 NETWORK PLASTIC BOX - WP series
- IP67 waterproof plastic enclosure.
- Easy pole mounting with optional mounting bracket.
- Suiteble for wireless instruments, LoRa WAN, and access points.
- 24 different selectable sizes are available.
- NEW SIZE
- IP67 DIECAST ALUMINUM BOX BDN series
- IP67 waterproof diecast aluminium enclosure.
- Tough and robust for heavy-duty use.
- Gray powder coated and unfinished models are available.
- 8 different sizes available.
- IP68 WATER PROTECTION CABLE GLAND - AG series
- High water protection IP68 cable gland.
- Tough and heat resistant PA6FG material. (-20°C to +100°C)
- Wide selection for M8 ~ M50 thread
- Selectable in 15 sizes. (Φ2.5mm ~ Φ42 mm cable.)
- POLYAMIDE CABLE GLAND - RM series
- Low cost cable glands made from polyamide material.
- Wide selection, for M8 ~ M63 and Φ1mm ~ Φ44 mm cable.
- Protection class : IP67
- High oil resistant NBR rubber sealing and O-ring.
- WEATHERPROOF CABLE GLAND - RMW series
- Weatherproof cable glands for long-term outdoor use.
- High degradation resistant silicone sealing insert and O-ring.
- Protection class : IP67
- Thread size M8 ~ M50, Cable range Φ1mm ~ Φ38 mm.
- IP68 METAL CABLE GLAND - AGM series
- High water protection IP68 metal cable gland.
- Protection class: IP68 1bar / 30min
- Wide selection, for M6 ~ M50 and PG7 ~ PG16.
- Suitable in 19 sizes. (Φ2 mm ~ Φ42 mm cable)
- STRAIN RELIEF CABLE GLAND - AGSP series
- Stain relief cable gland. (Spiral cable gland.)
- Protection class : IP67
- 4 sizes for M12・M16・M20. (φ3.5mm～φ12mm cable)
- Available in light gray and black colors.
- STRAIN RELIEF CABLE GLAND - RSP series
- Strain relief cable gland for protecting cables.
- Protecting class : IP67
- 4 sizes for M12・M16・M20・M25 in light gray and black.
- Cable range : φ3.5mm～φ16mm
- DIN RAIL - FDR series
- 35mm aluminium DIN rail.
- For installation of terminal blocks, circuit breakers, or devices.
- Available in 53 different lengths.

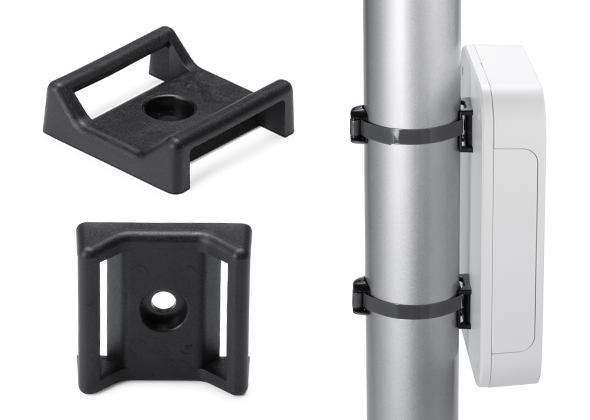

- POLE MOUNTING BRACKET for WG・WGV
- Pole mount bracket for WG・WGV series.
- Hole milling is not required when installing the mount bracket.
- Please use with SNB・PKB pole mounting belt.
- NEW PRODUCT
- DIN-RAIL TERMINAL BLOCK END STOPPER - TKR series
- Stopper bracket for use with 35mm DIN-rail.
- Can be used to fix terminal blocks or modules.
