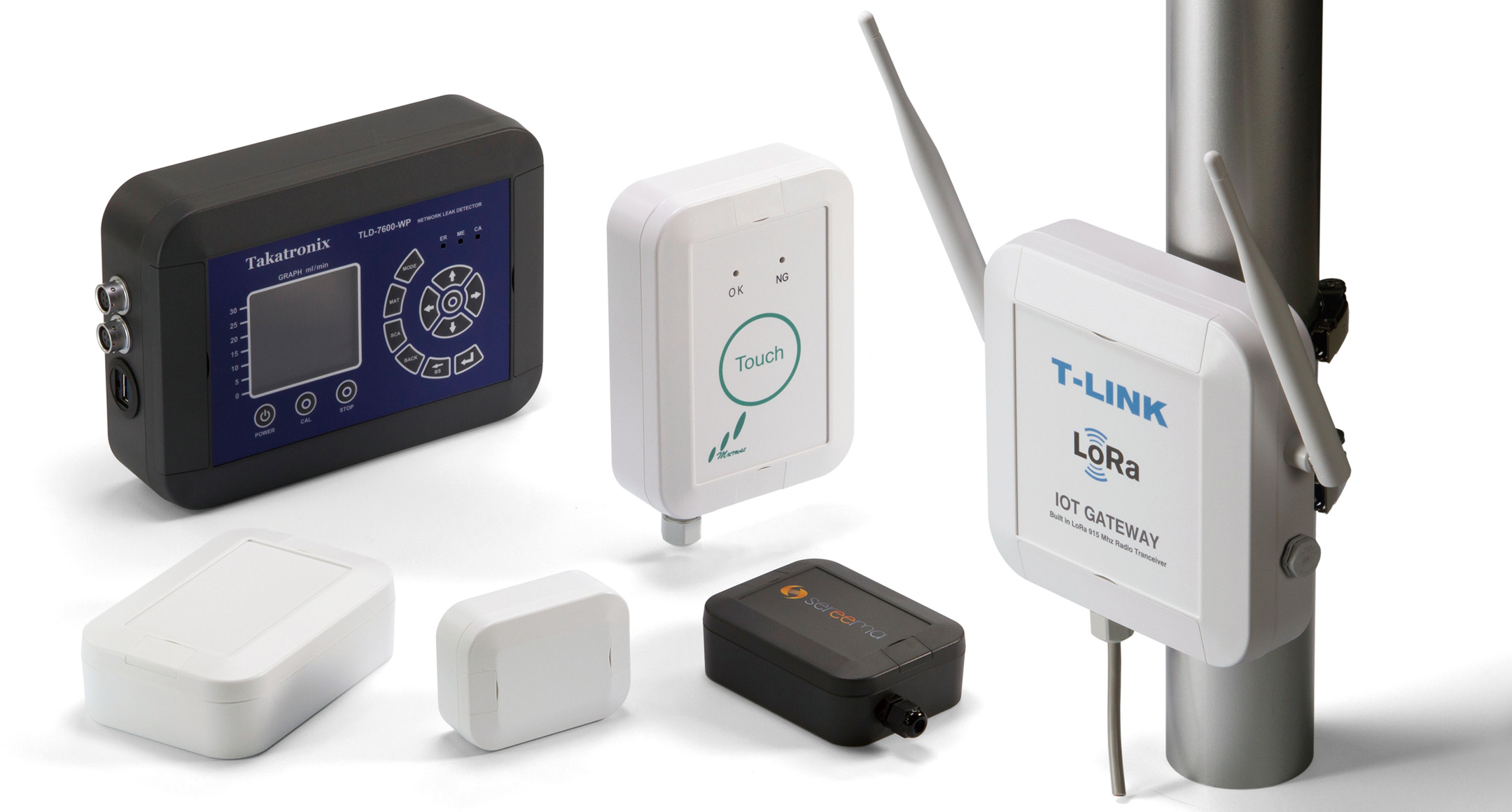

CATEGORY：IP67 waterproof plastic enclosure, NEMA 6P enclosure, UV-protect enclosure, Pole mount enclosure, Access point enclosure, IOT gateway enclosure, LoRaWAN enclosure

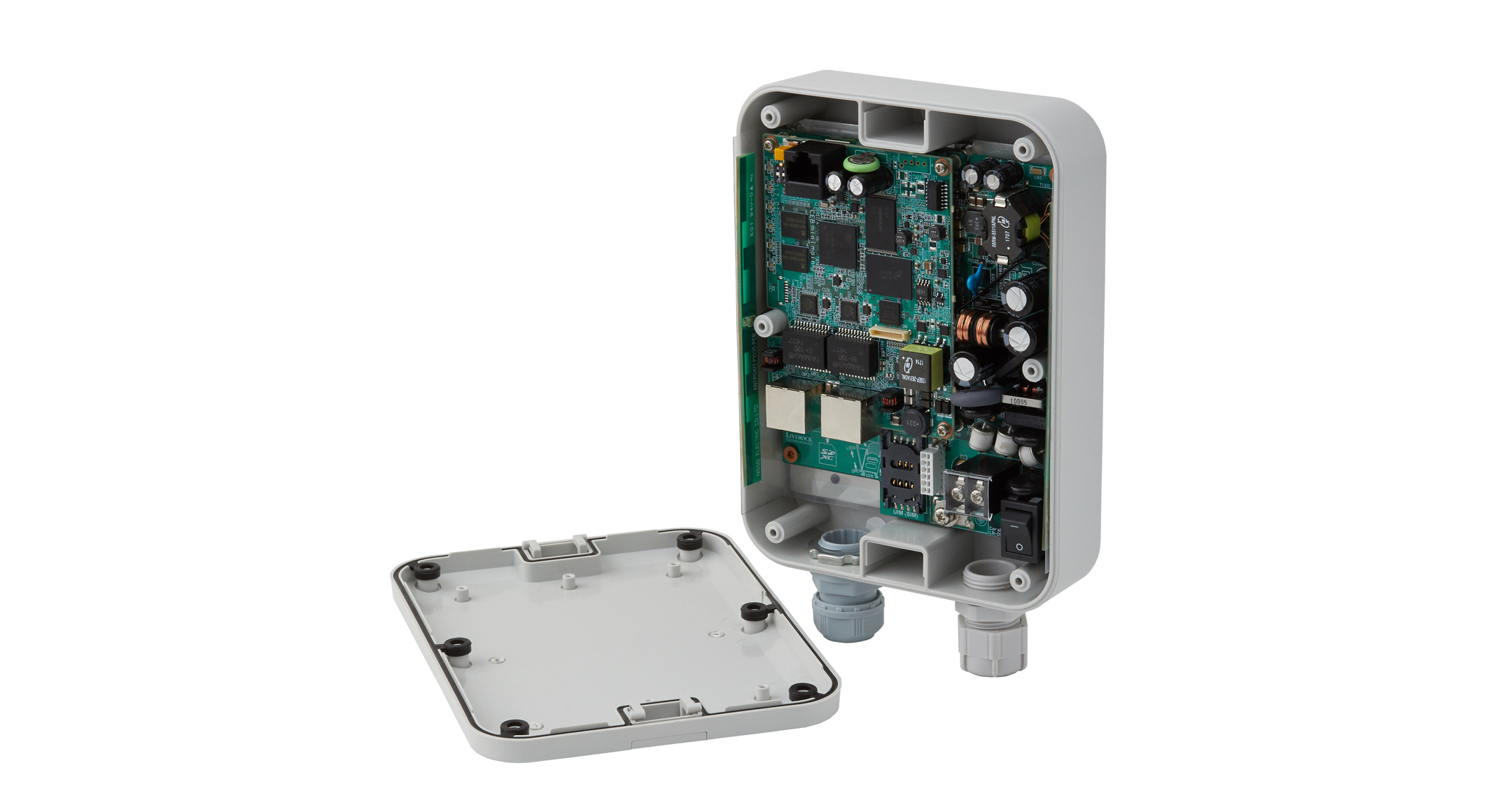

IP67 waterproof plastic enclosure.

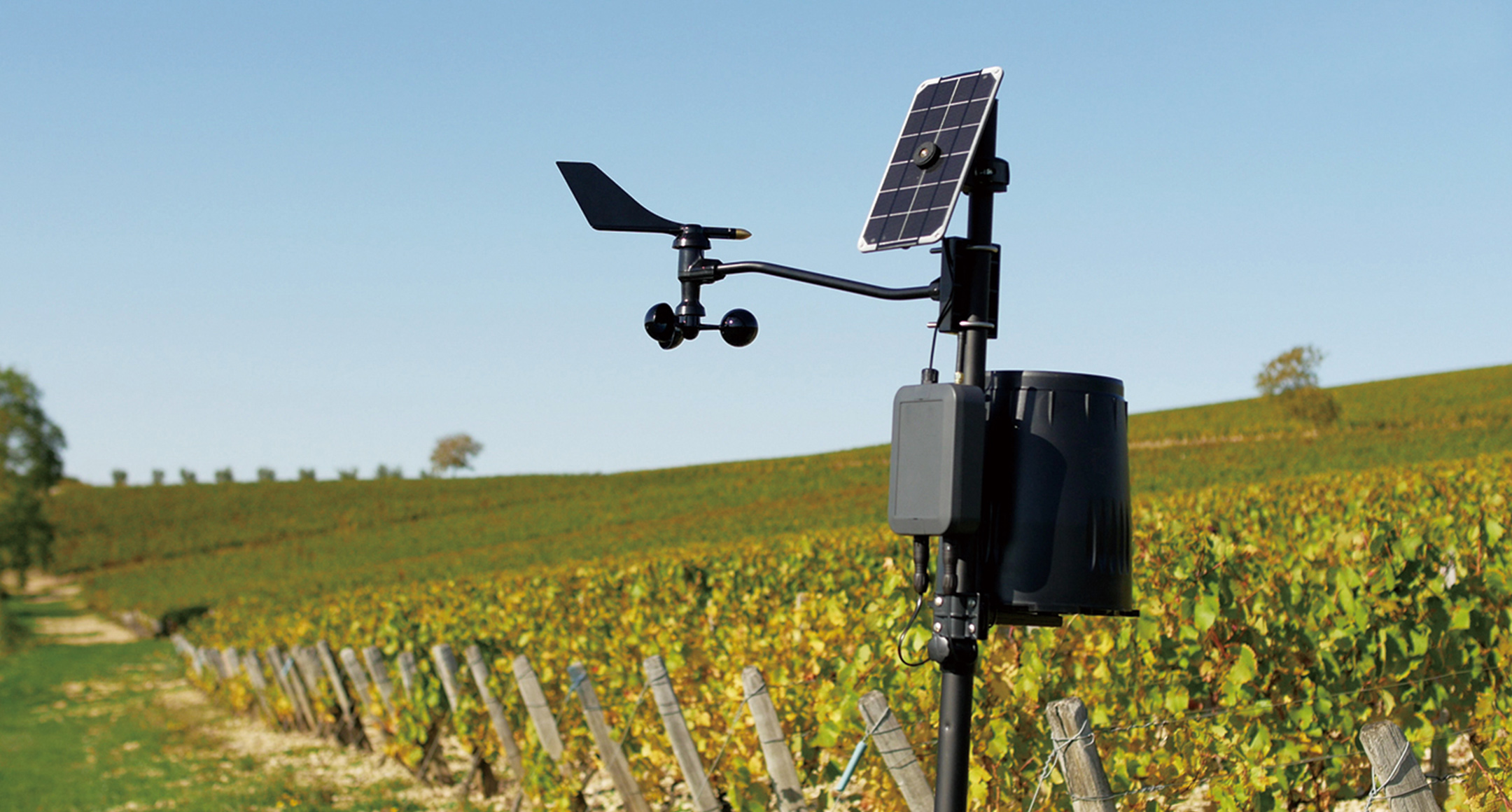

IP67 protection class allows the unit to be used outdoors while protecting the internal components from dust and water.

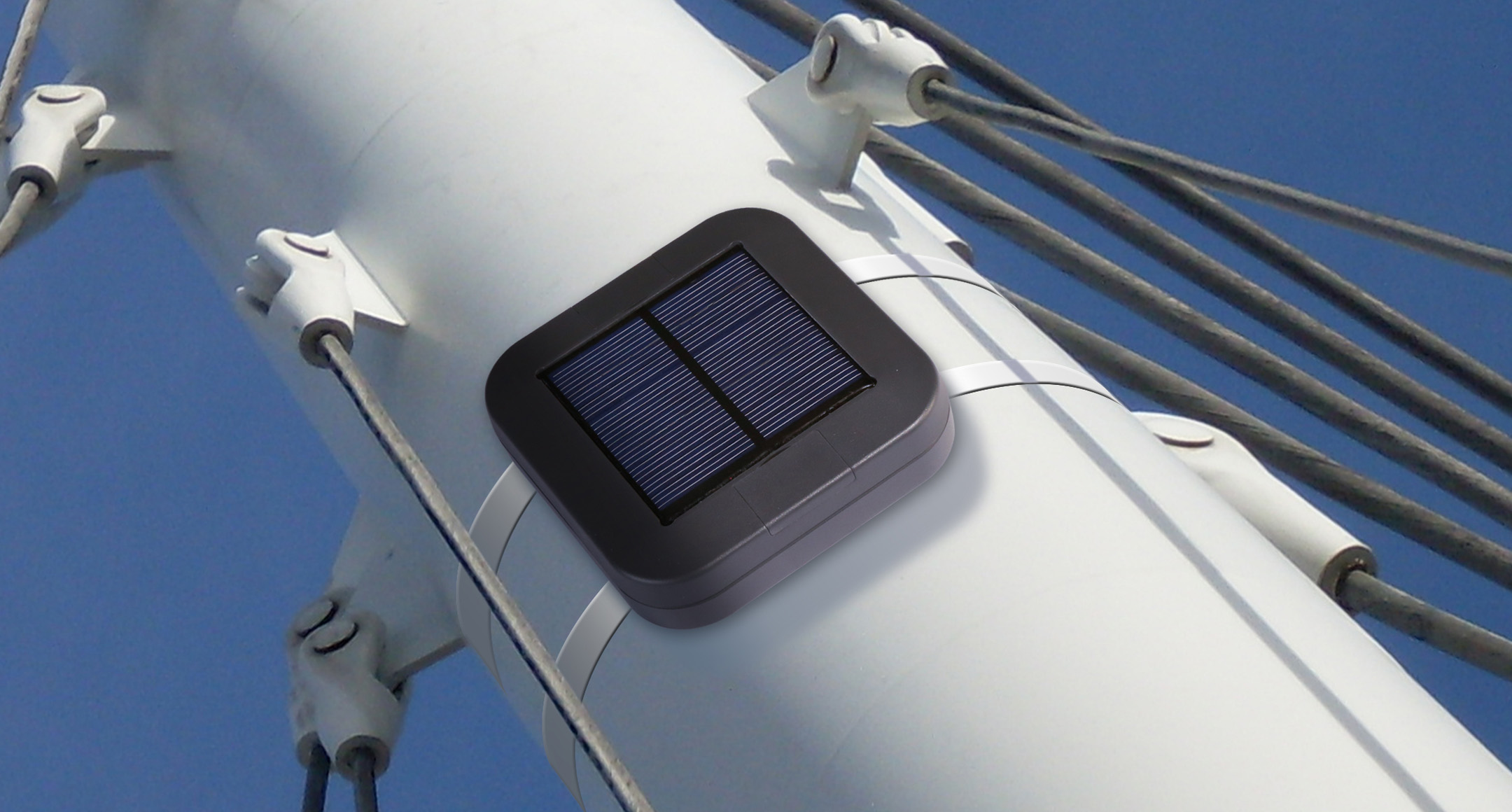

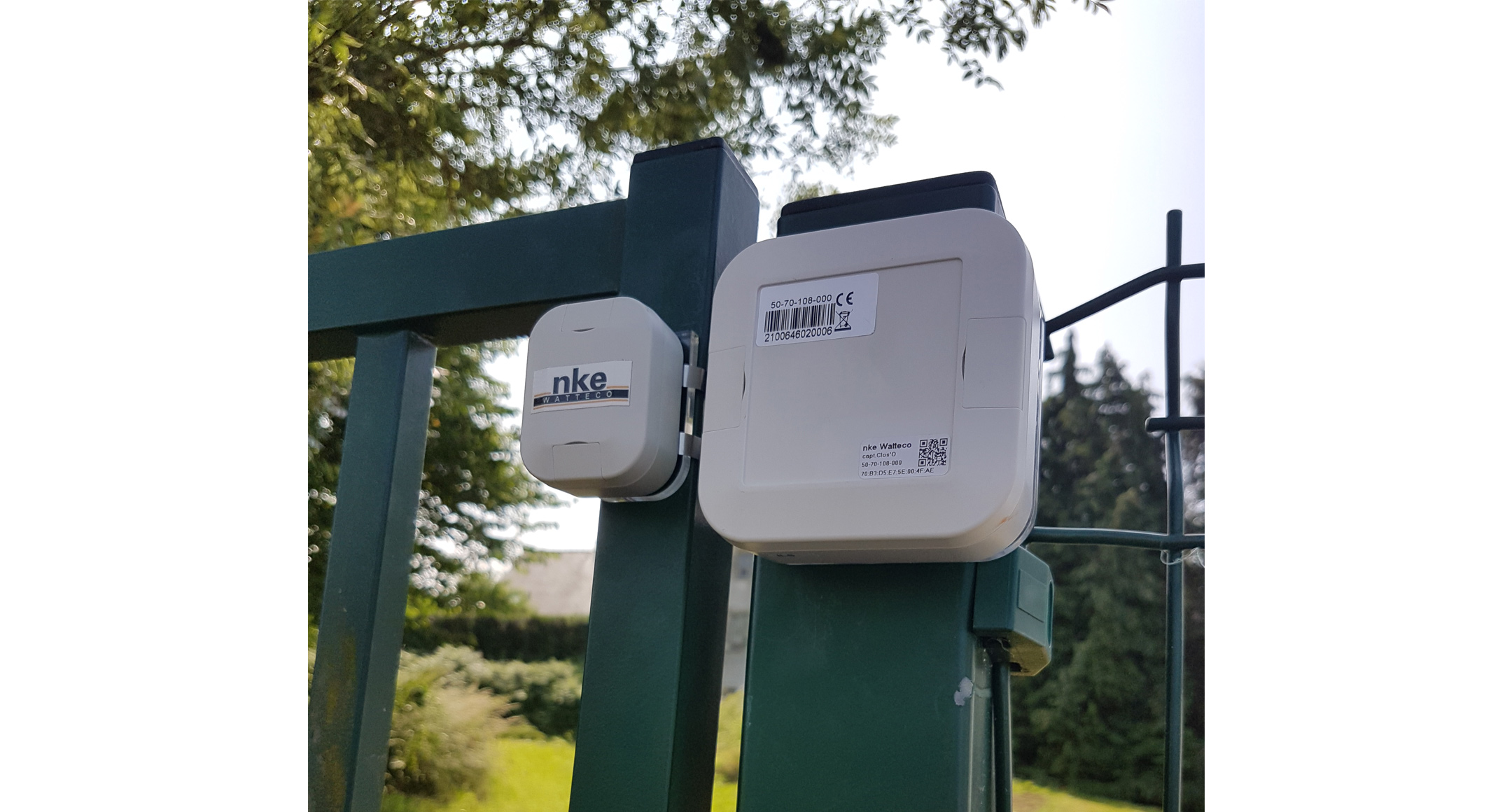

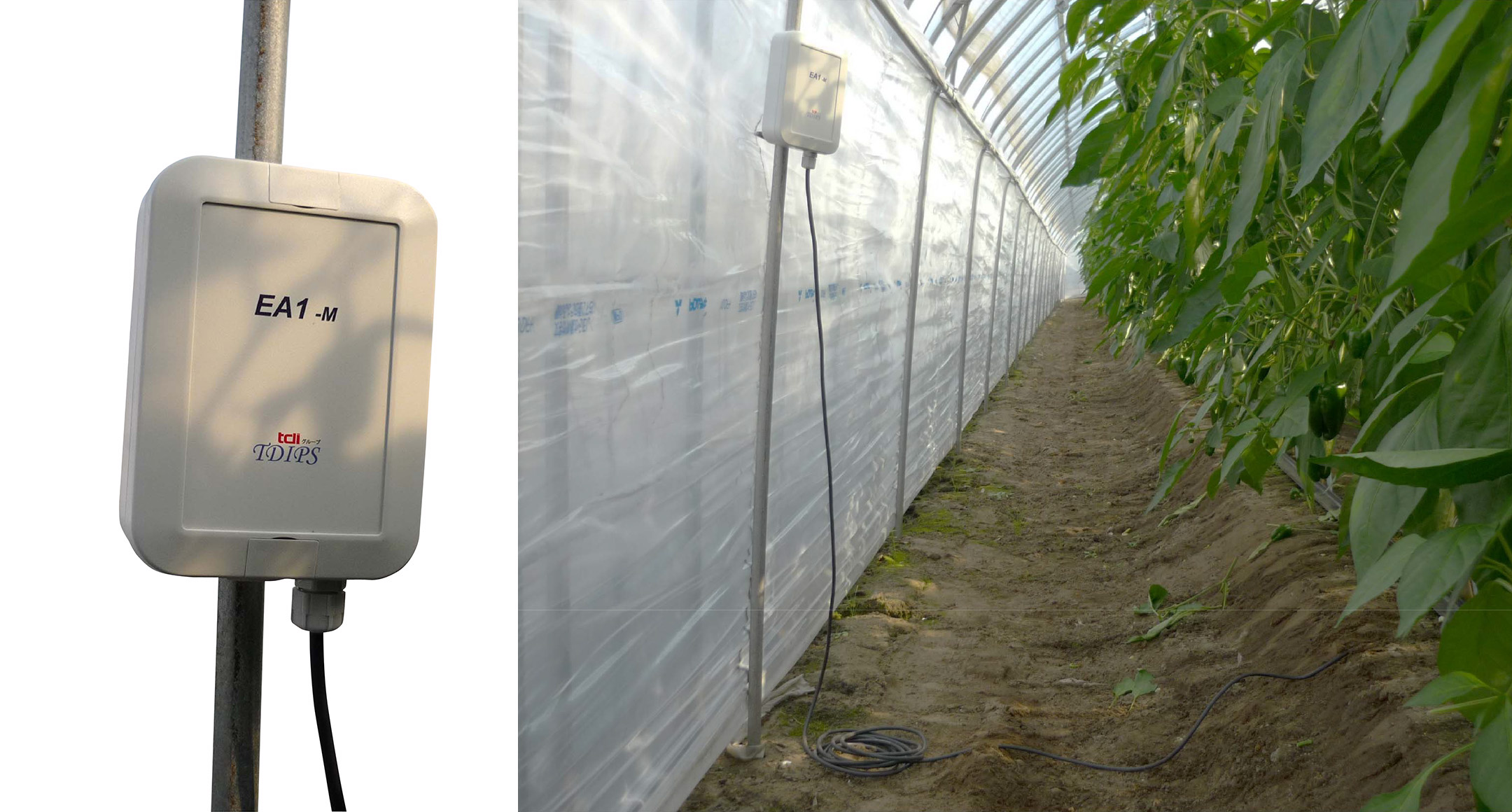

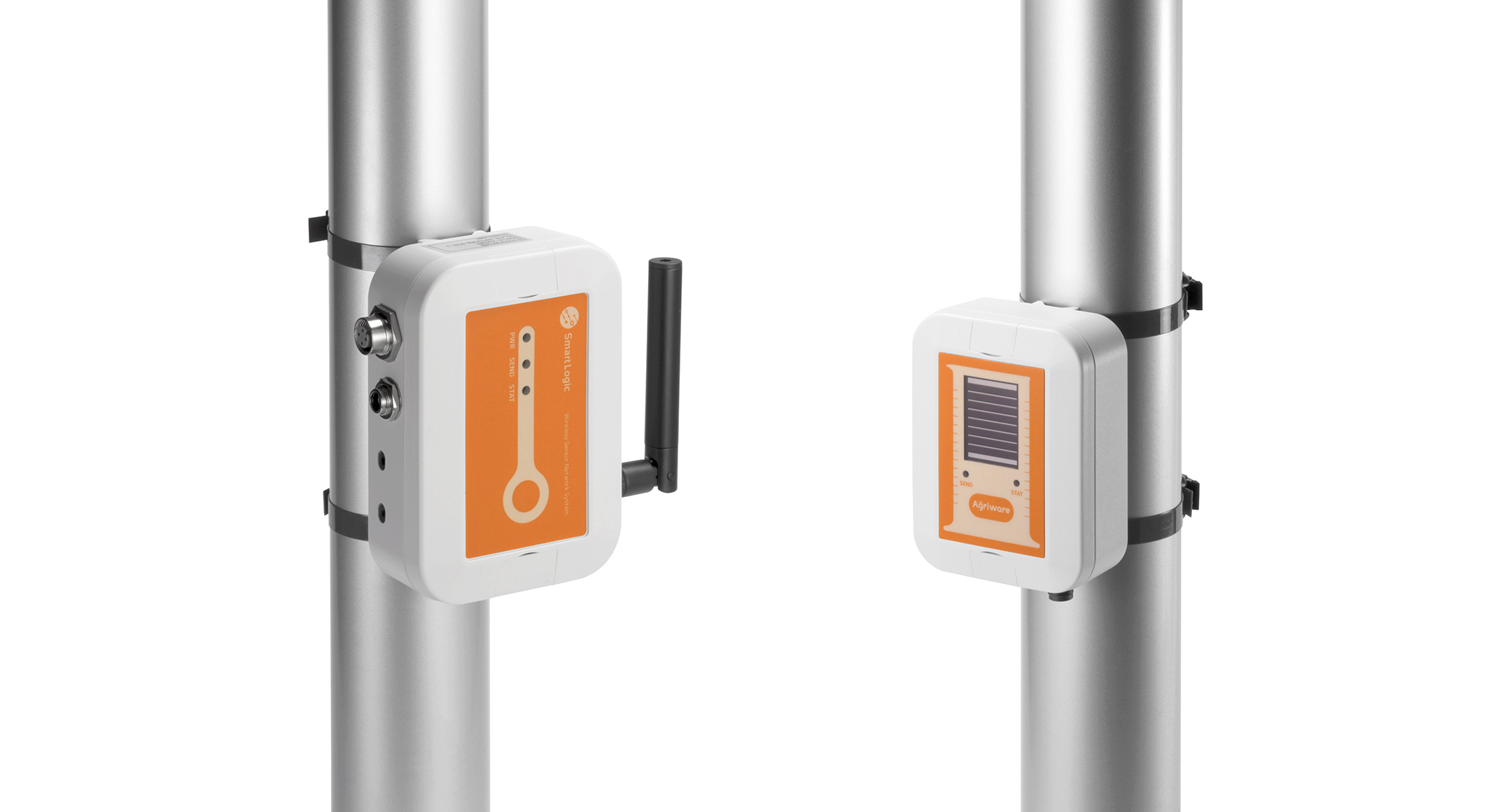

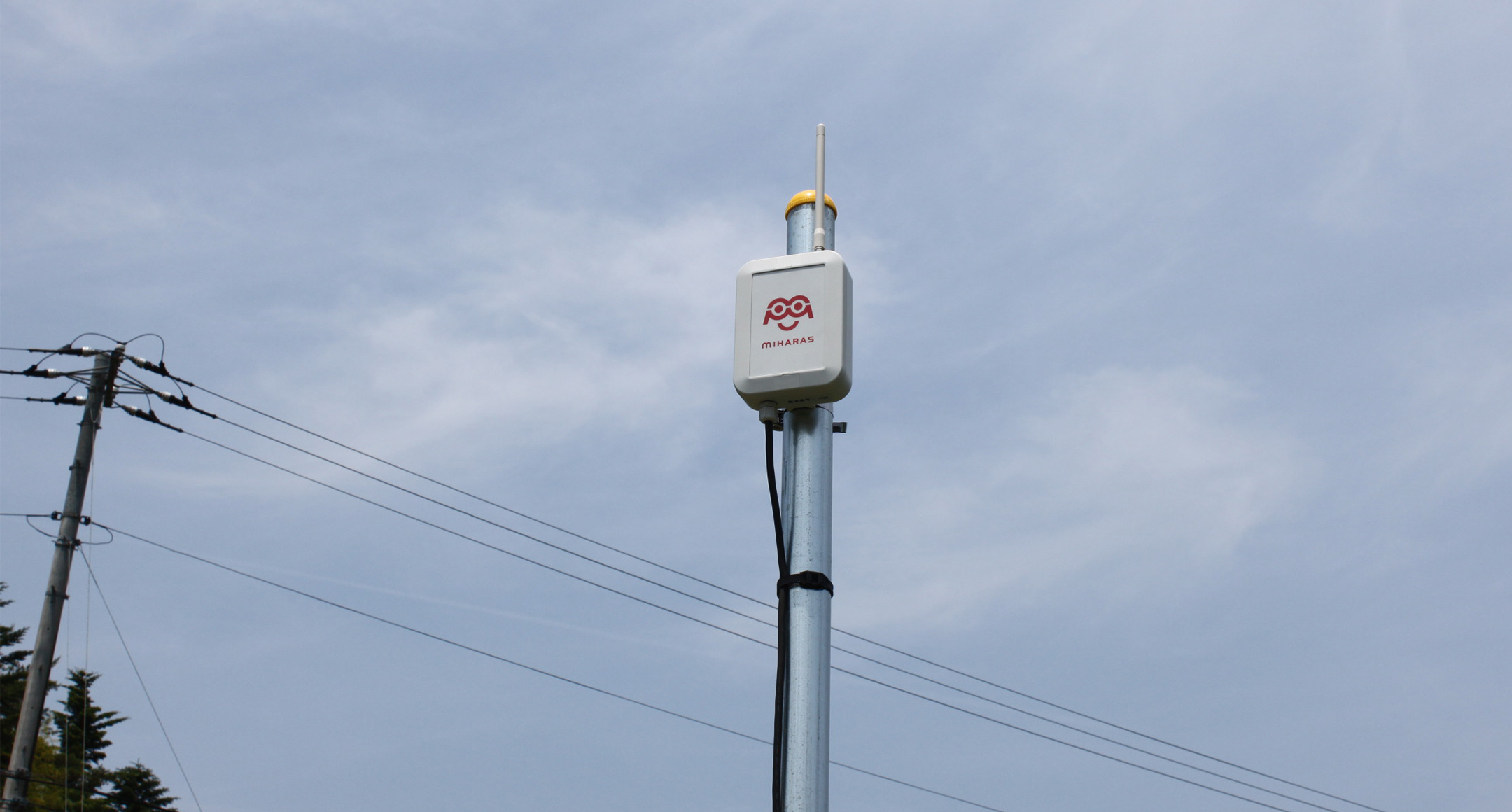

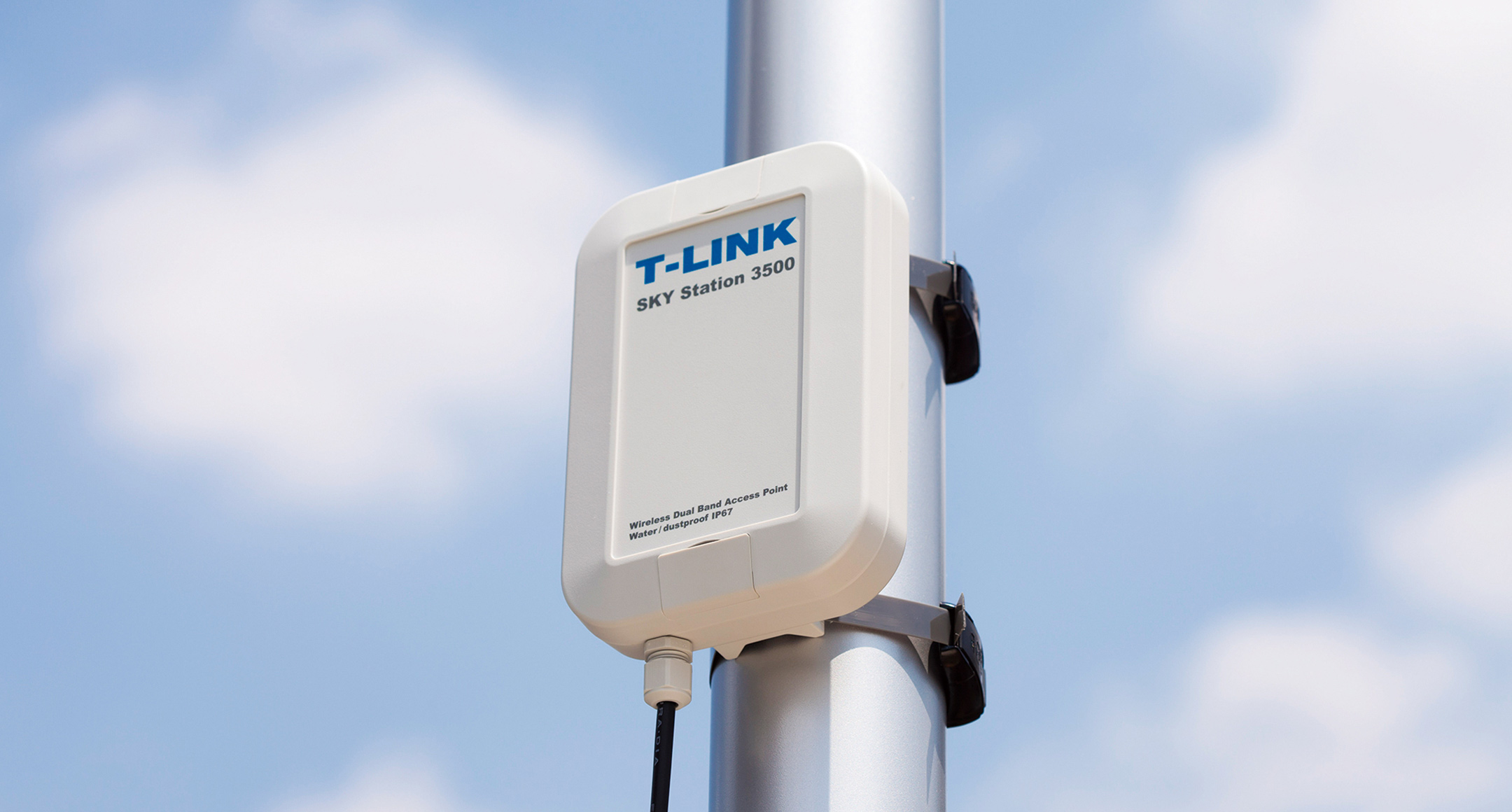

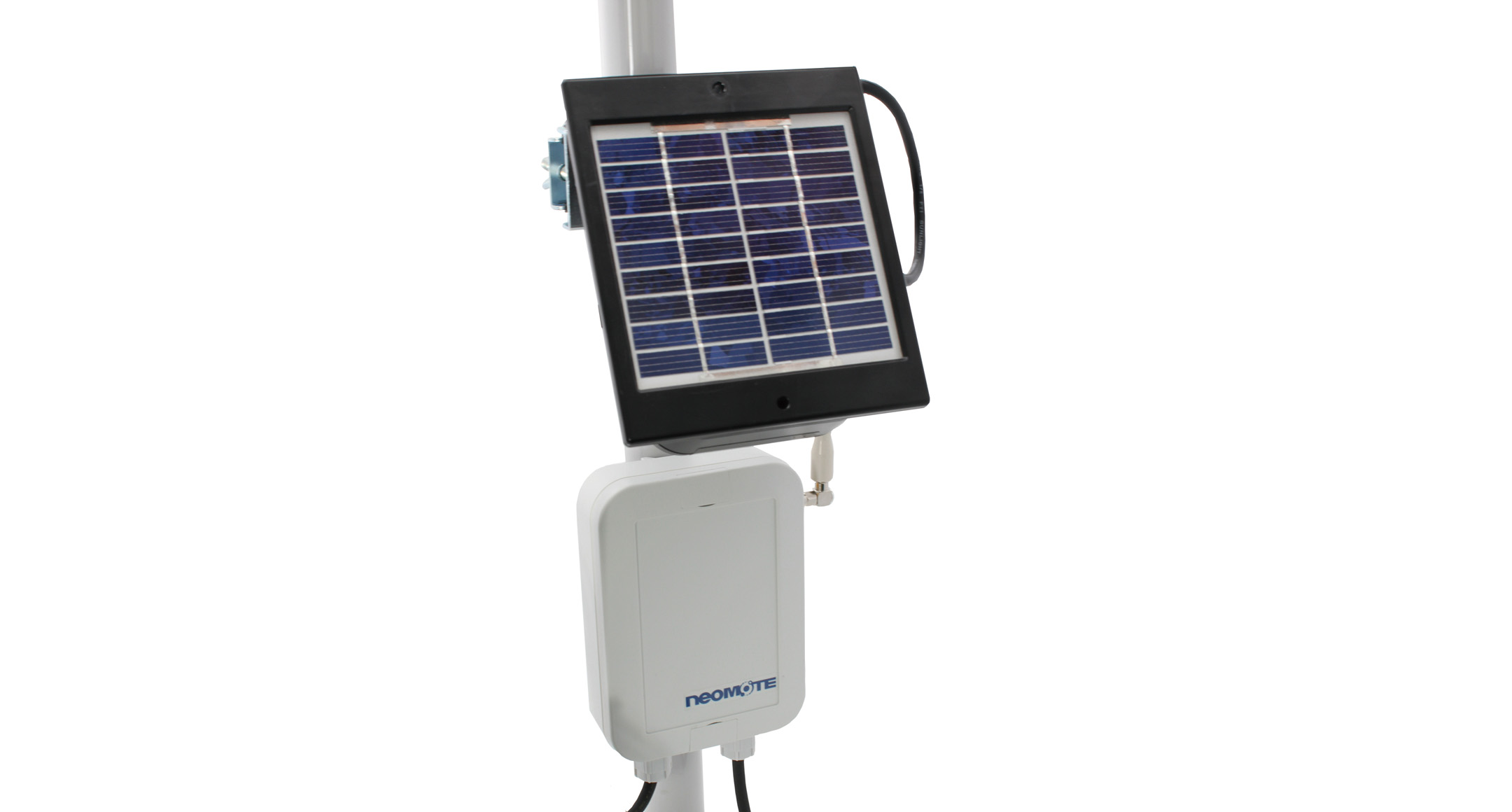

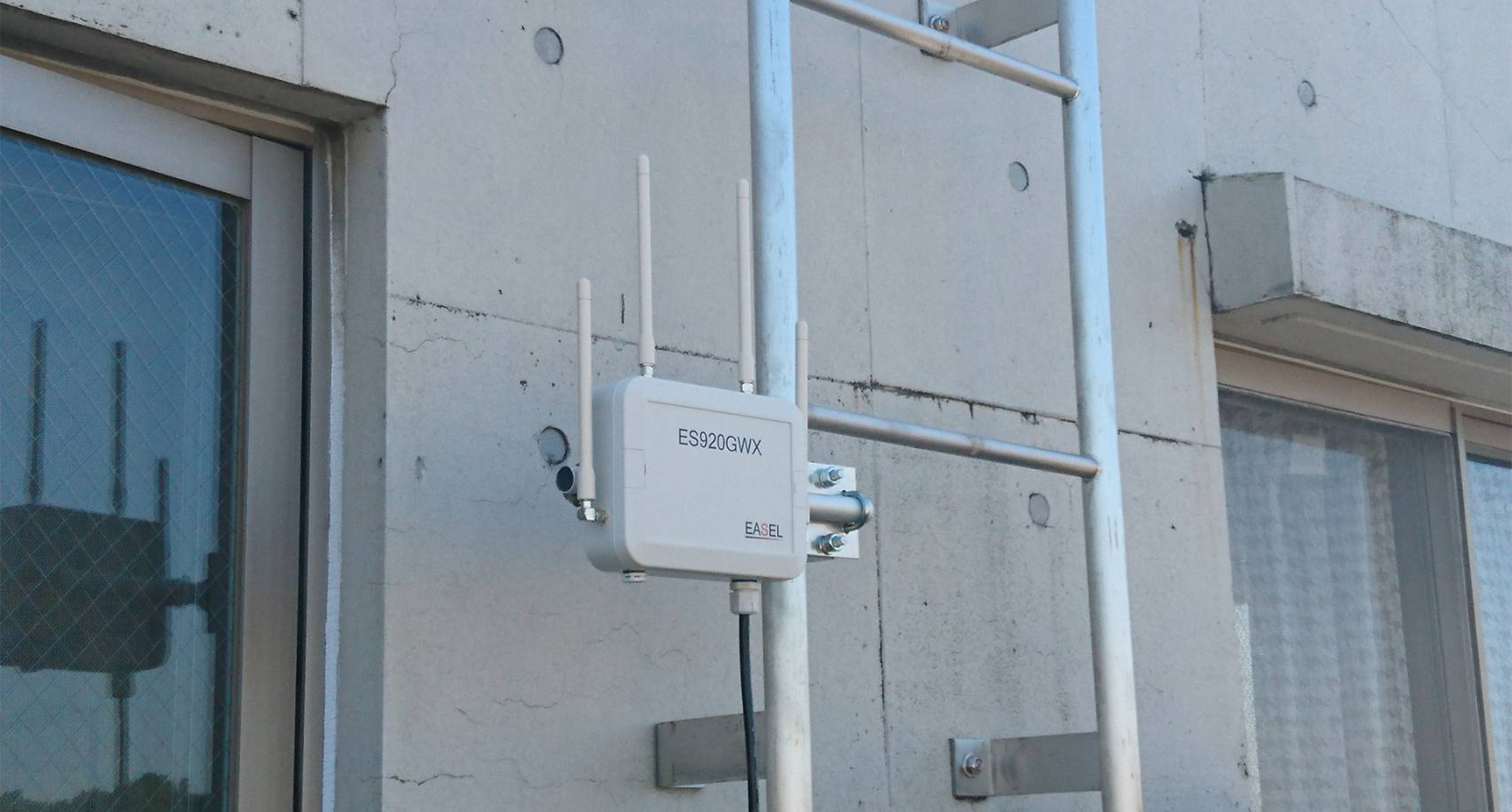

Pole mounting is possible via an optional pole mounting bracket accessory.
【Available in 2 types】

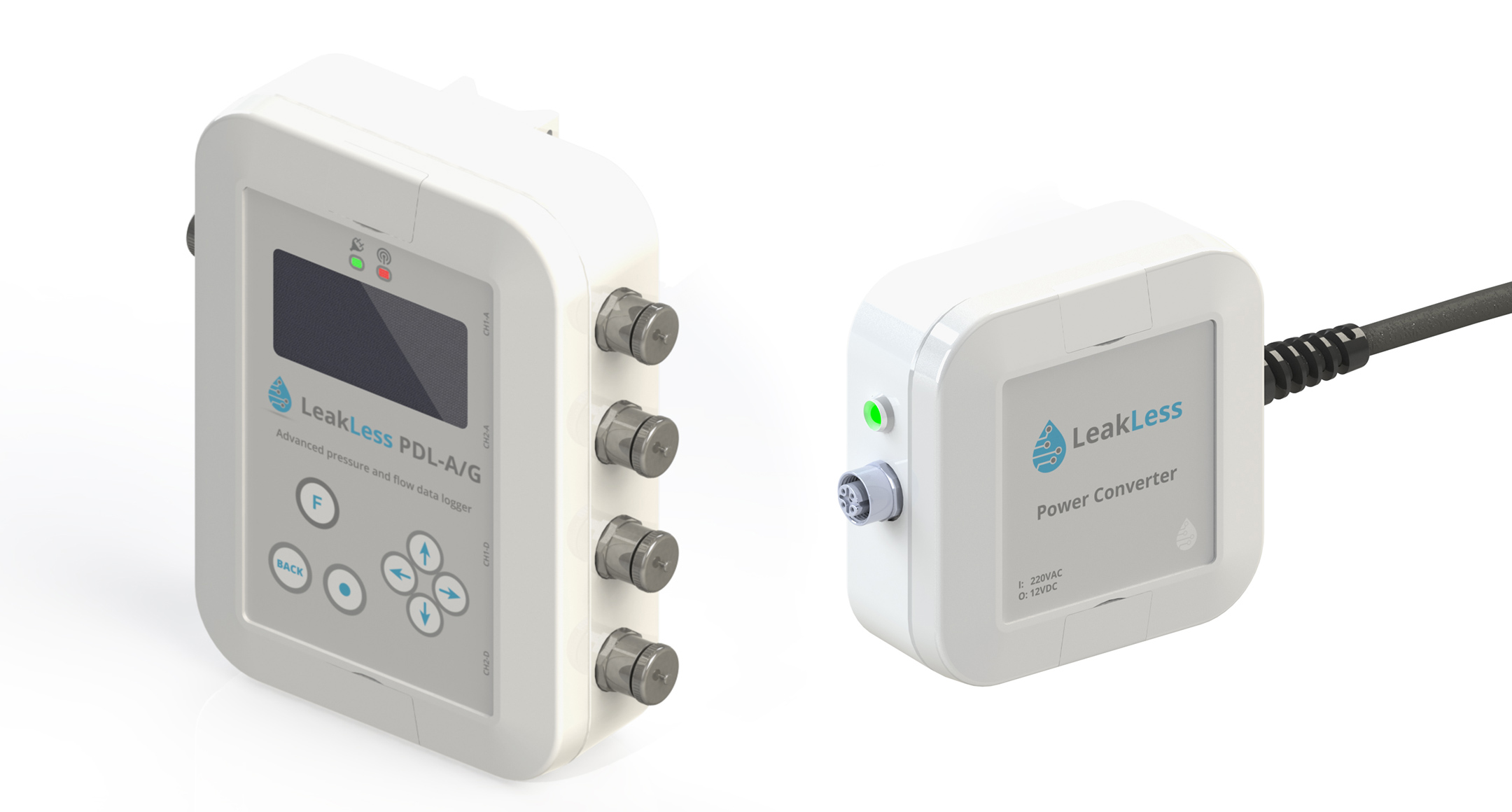

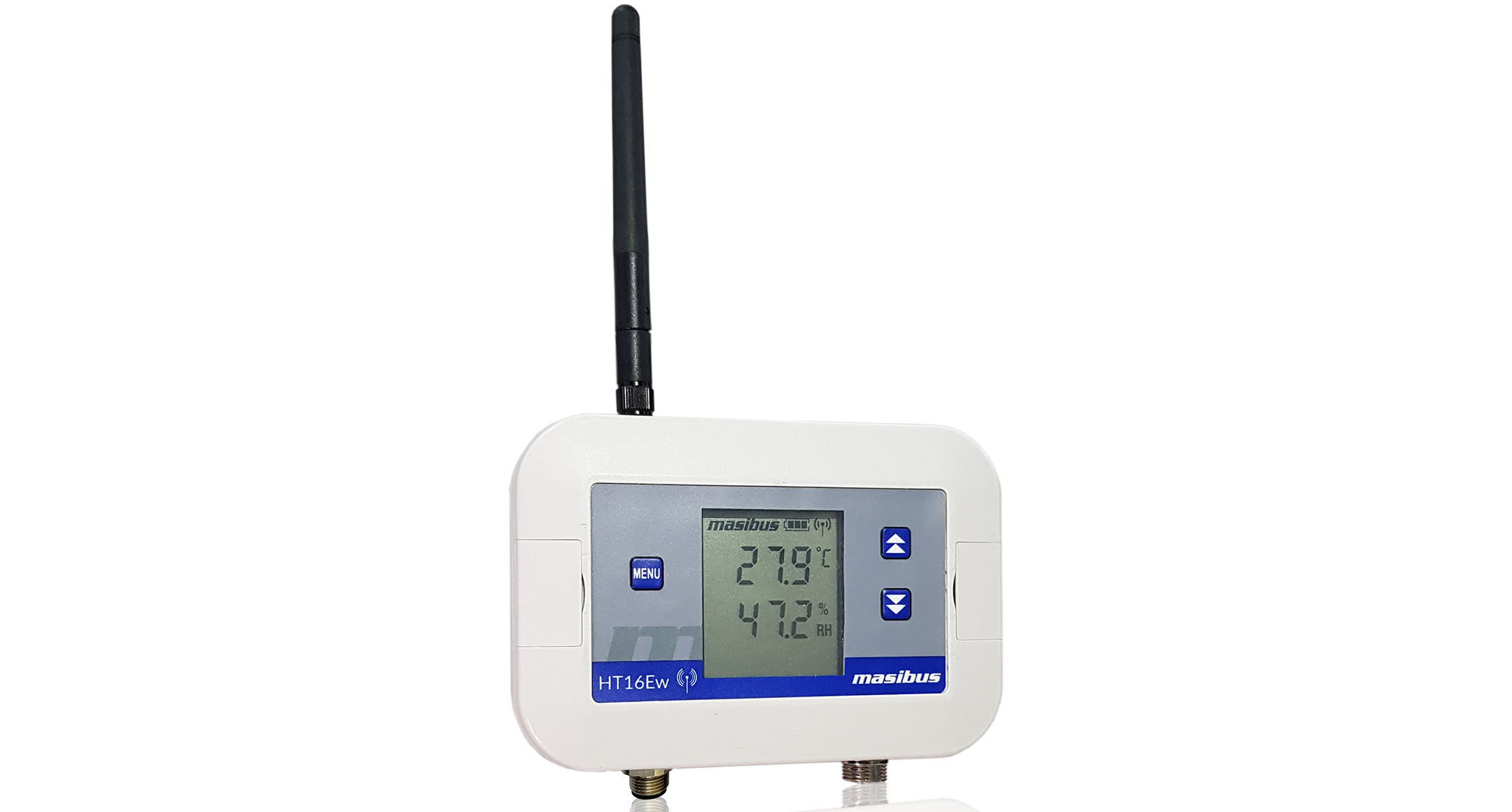

White gray color : UV-resistant ASA plastic

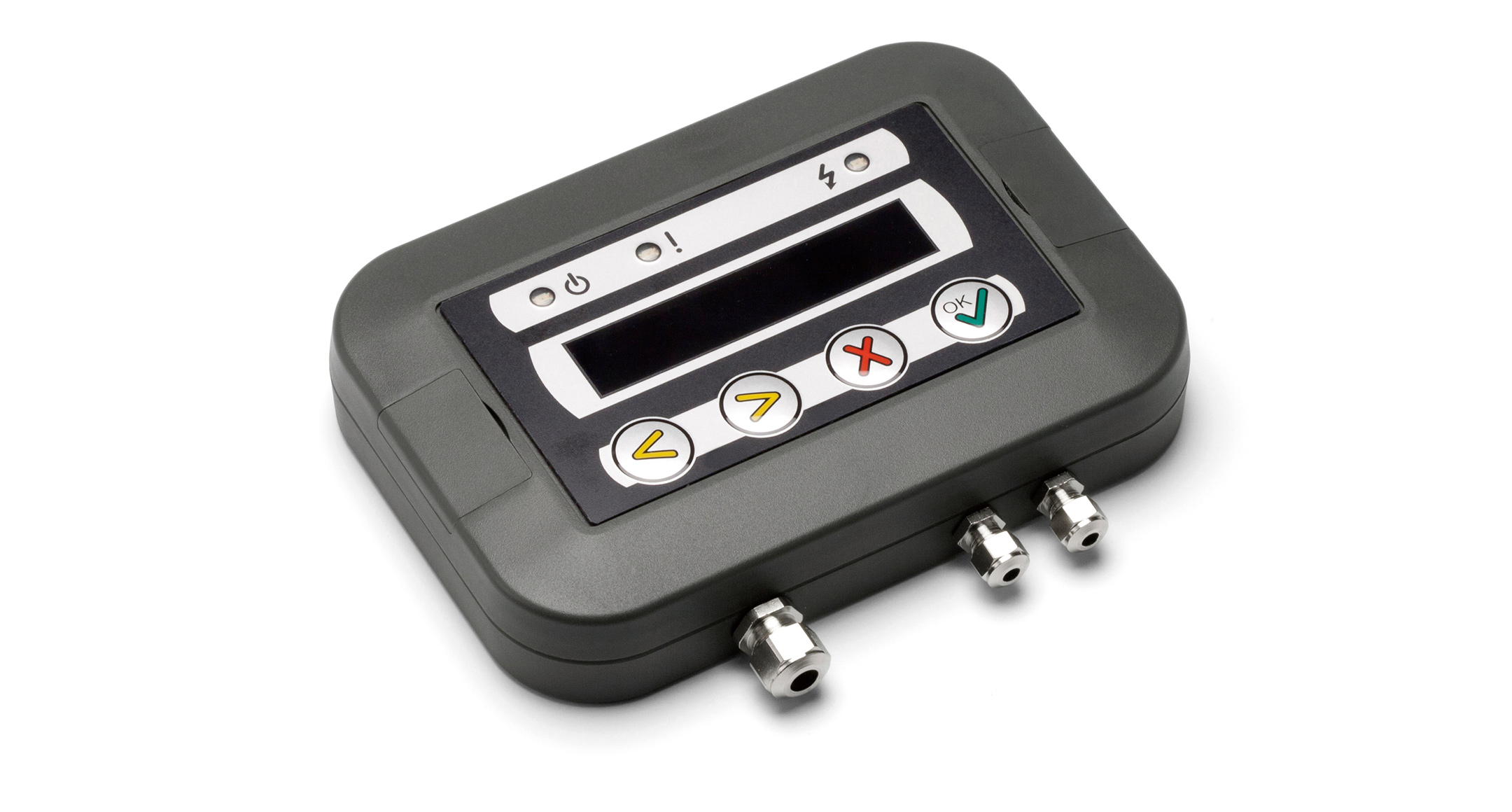

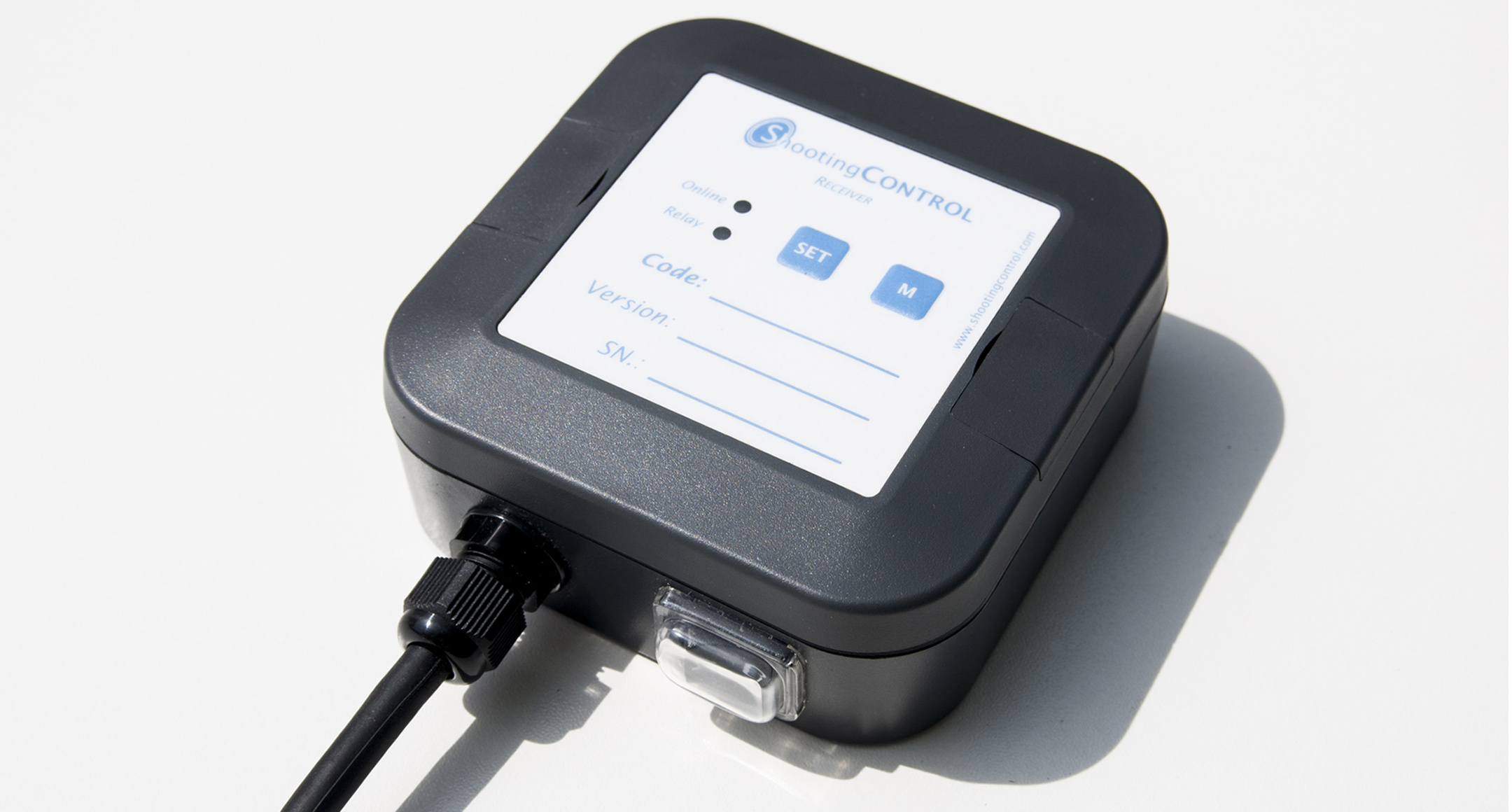

Charcoal gray color : Flame-resistant ABS plastic (UL94V-0)

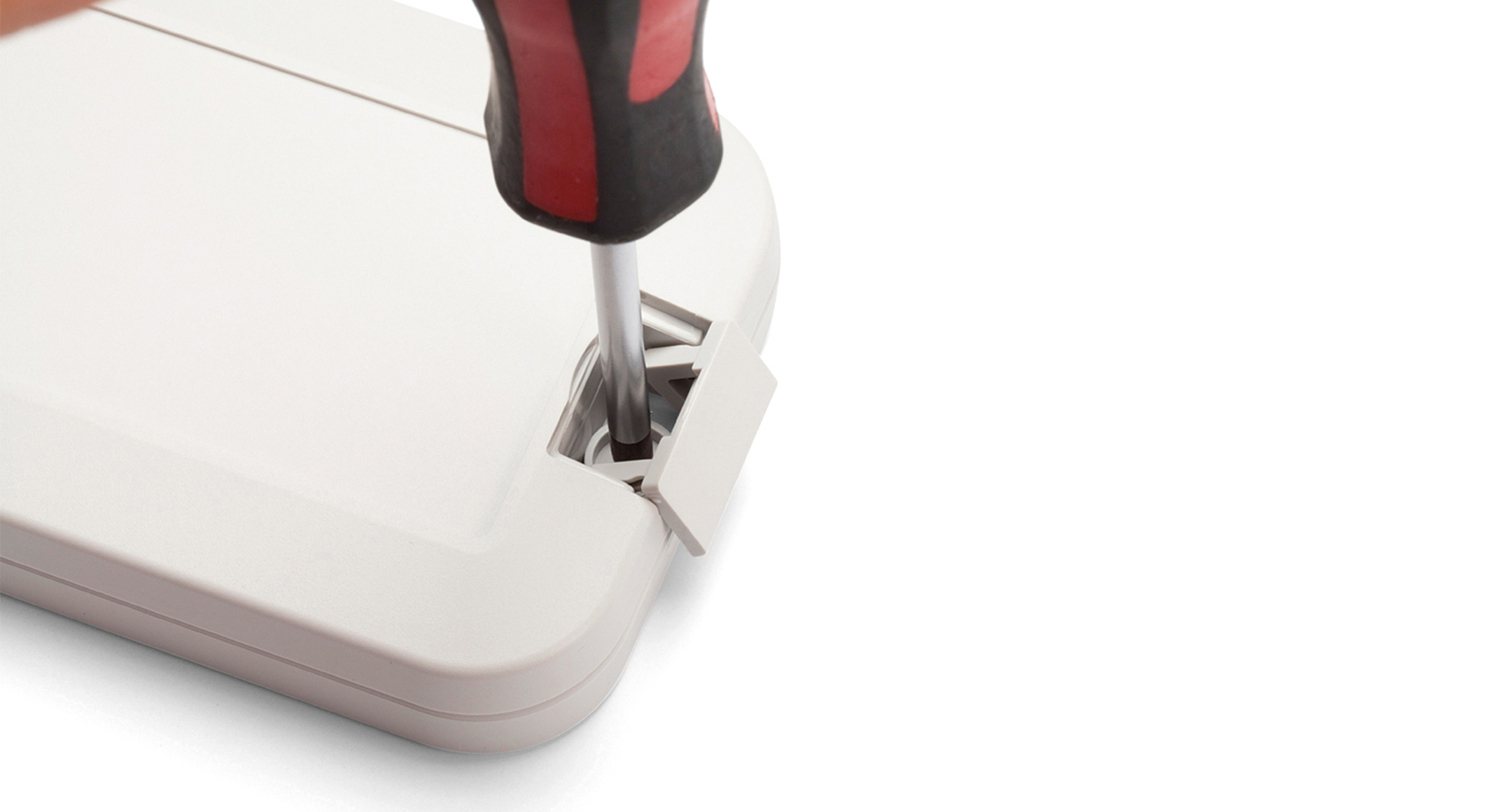

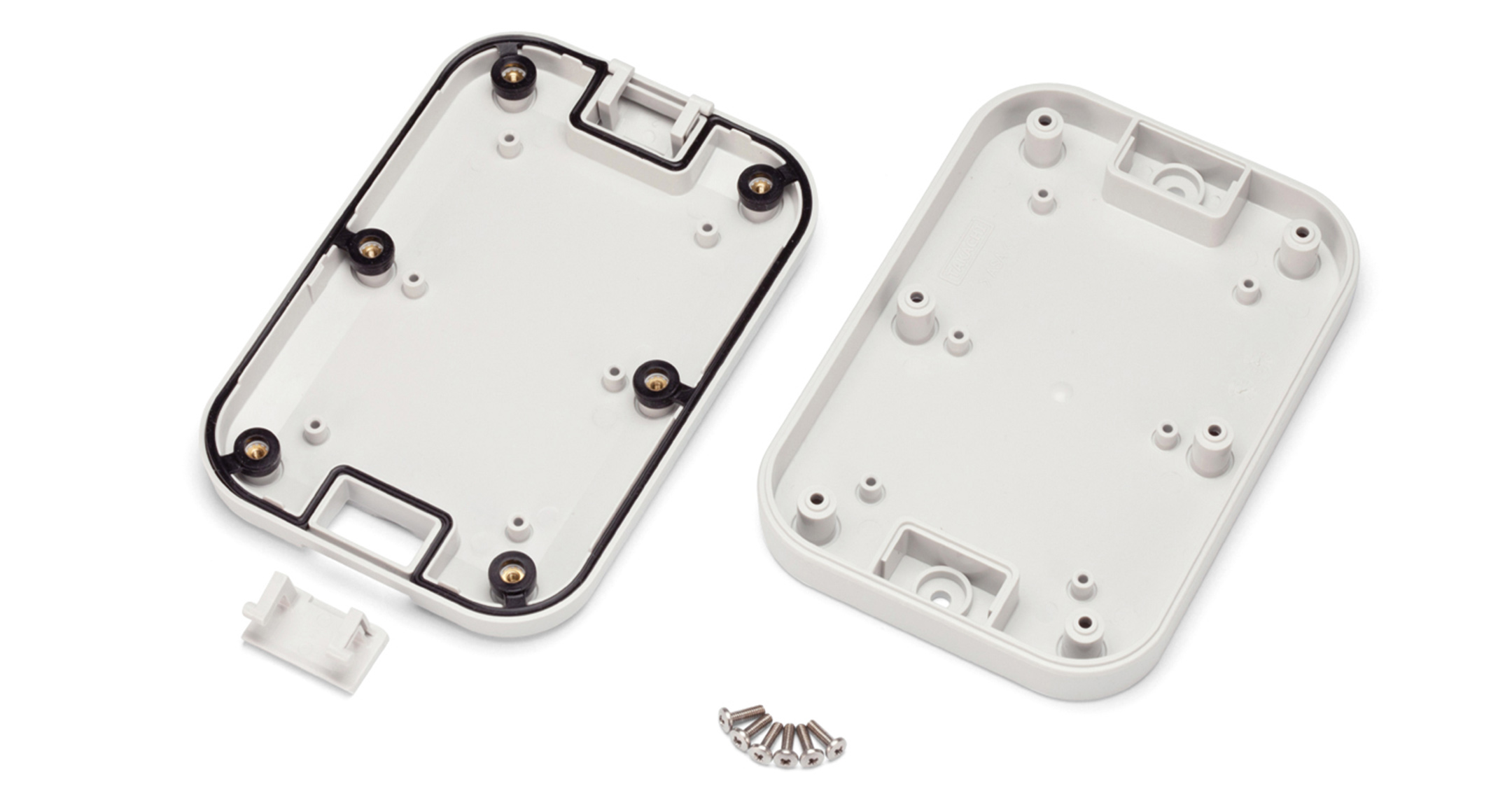

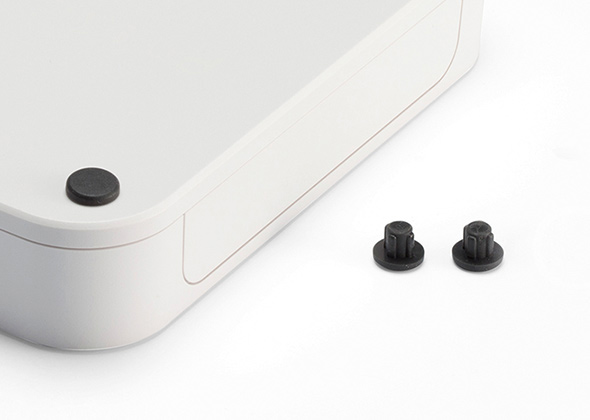

24 different selectable sizes are available. Mount on walls or brackets by simply opening the blind lids.
Protection class : IP67 (NEMA 6P rating)
Operating temperature : ASA -30℃ ~ +60℃ ・ Flame-resistant ABS -10℃ ~ +50℃
IP67 protection class allows the unit to be used outdoors while protecting the internal components from dust and water.
Pole mounting is possible via an optional pole mounting bracket accessory.
【Available in 2 types】
White gray color : UV-resistant ASA plastic
Charcoal gray color : Flame-resistant ABS plastic (UL94V-0)
24 different selectable sizes are available. Mount on walls or brackets by simply opening the blind lids.
Protection class : IP67 (NEMA 6P rating)
Operating temperature : ASA -30℃ ~ +60℃ ・ Flame-resistant ABS -10℃ ~ +50℃
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Internal dimensions | material | Color | Weight (g) | 3D PDF | DXF | DWG | STP | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | |||||||||
| WP5-7-2 C | 52 | 18 | 65 | 46 | 13 | 37 | ABS（UL94V-0） | Charcoal gray | 31.5 | 3D PDF | DXF | DWG | ||
| WP5-7-2 G | 52 | 18 | 65 | 46 | 13 | 37 | ASA（UL94HB） | White gray | 31.5 | 3D PDF | DXF | DWG | ||
| WP5-7-3 C | 52 | 27 | 65 | 45 | 22 | 36.5 | ABS（UL94V-0） | Charcoal gray | 39.5 | 3D PDF | DXF | DWG | ||
| WP5-7-3 G | 52 | 27 | 65 | 45 | 22 | 36.5 | ASA（UL94HB） | White gray | 39.5 | 3D PDF | DXF | DWG | ||
| WP6-8-2 C | 60 | 20 | 80 | 53.5 | 14.7 | 52 | ABS（UL94V-0） | Charcoal gray | 41.5 | 3D PDF | DXF | DWG | ||
| WP6-8-2 G | 60 | 20 | 80 | 53.5 | 14.7 | 52 | ASA（UL94HB） | White gray | 41.5 | 3D PDF | DXF | DWG | ||
| WP6-8-3 C | 60 | 30 | 80 | 53 | 24.7 | 51 | ABS（UL94V-0） | Charcoal gray | 49 | 3D PDF | DXF | DWG | ||
| WP6-8-3 G | 60 | 30 | 80 | 53 | 24.7 | 51 | ASA（UL94HB） | White gray | 49 | 3D PDF | DXF | DWG | ||
| WP8-8-2 C | 75 | 22 | 75 | 67 | 16.4 | 42 | ABS（UL94V-0） | Charcoal gray | 57.5 | 3D PDF | DXF | DWG | ||
| WP8-8-2 G | 75 | 22 | 75 | 67 | 16.4 | 42 | ASA（UL94HB） | White gray | 57.5 | 3D PDF | DXF | DWG | ||
| WP8-8-4 C | 75 | 35 | 75 | 66 | 29.4 | 42 | ABS（UL94V-0） | Charcoal gray | 88.5 | 3D PDF | DXF | DWG | ||
| WP8-8-4 G | 75 | 35 | 75 | 66 | 29.4 | 42 | ASA（UL94HB） | White gray | 88.5 | 3D PDF | DXF | DWG | ||
| WP8-10-2 C | 75 | 22 | 100 | 67 | 16 | 67 | ABS（UL94V-0） | Charcoal gray | 74 | 3D PDF | DXF | DWG | ||
| WP8-10-2 G | 75 | 22 | 100 | 67 | 16 | 67 | ASA（UL94HB） | White gray | 74 | 3D PDF | DXF | DWG | ||
| WP8-10-4 C | 75 | 35 | 100 | 66 | 29 | 67 | ABS（UL94V-0） | Charcoal gray | 95 | 3D PDF | DXF | DWG | ||
| WP8-10-4 G | 75 | 35 | 100 | 66 | 29 | 67 | ASA（UL94HB） | White gray | 95 | 3D PDF | DXF | DWG | ||
| WP9-13-3 C | 90 | 25 | 130 | 81 | 18 | 91 | ABS（UL94V-0） | Charcoal gray | 113 | 3D PDF | DXF | DWG | ||
| WP9-13-3 G | 90 | 25 | 130 | 81 | 18 | 91 | ASA（UL94HB） | White gray | 113 | 3D PDF | DXF | DWG | ||
| WP9-13-4 C | 90 | 40 | 130 | 81 | 33 | 91 | ABS（UL94V-0） | Charcoal gray | 141 | 3D PDF | DXF | DWG | ||
| WP9-13-4 G | 90 | 40 | 130 | 81 | 33 | 91 | ASA（UL94HB） | White gray | 141 | 3D PDF | DXF | DWG | ||
| WP10-10-3 C | 100 | 25 | 100 | 90 | 18 | 61 | ABS（UL94V-0） | Charcoal gray | 96 | 3D PDF | DXF | DWG | ||
| WP10-10-3 G | 100 | 25 | 100 | 90 | 18 | 61 | ASA（UL94HB） | White gray | 96 | 3D PDF | DXF | DWG | ||
| WP10-10-4 C | 100 | 40 | 100 | 90 | 33 | 61 | ABS（UL94V-0） | Charcoal gray | 121 | 3D PDF | DXF | DWG | ||
| WP10-10-4 G | 100 | 40 | 100 | 90 | 33 | 61 | ASA（UL94HB） | White gray | 121 | 3D PDF | DXF | DWG | ||
| WP11-15-3 C | 110 | 27 | 150 | 100 | 20 | 110 | ABS（UL94V-0） | Charcoal gray | 153 | 3D PDF | DXF | DWG | ||
| WP11-15-3 G | 110 | 27 | 150 | 100 | 20 | 110 | ASA（UL94HB） | White gray | 153 | 3D PDF | DXF | DWG | ||
| WP11-15-4 C | 110 | 40 | 150 | 100 | 33 | 110 | ABS（UL94V-0） | Charcoal gray | 181 | 3D PDF | DXF | DWG | ||
| WP11-15-4 G | 110 | 40 | 150 | 100 | 33 | 110 | ASA（UL94HB） | White gray | 181 | 3D PDF | DXF | DWG | ||
| WP13-18-3 C | 130 | 30 | 175 | 120 | 23 | 135 | ABS（UL94V-0） | Charcoal gray | 225 | 3D PDF | DXF | DWG | ||
| WP13-18-3 G | 130 | 30 | 175 | 120 | 23 | 135 | ASA（UL94HB） | White gray | 225 | 3D PDF | DXF | DWG | ||
| WP13-18-5 C | 130 | 45 | 175 | 120 | 38 | 135 | ABS（UL94V-0） | Charcoal gray | 266 | 3D PDF | DXF | DWG | ||
| WP13-18-5 G | 130 | 45 | 175 | 120 | 38 | 135 | ASA（UL94HB） | White gray | 266 | 3D PDF | DXF | DWG | ||
| WP15-15-4 C | 150 | 40 | 150 | 141 | 33.5 | 100 | ABS（UL94V-0） | Charcoal gray | 239 | 3D PDF | DXF | DWG | ||
| WP15-15-4 G | 150 | 40 | 150 | 141 | 33.5 | 100 | ASA（UL94HB） | White gray | 239 | 3D PDF | DXF | DWG | ||
| WP15-15-6 C | 150 | 55 | 150 | 140 | 48.5 | 100 | ABS（UL94V-0） | Charcoal gray | 282.5 | 3D PDF | DXF | DWG | ||
| WP15-15-6 G | 150 | 55 | 150 | 140 | 48.5 | 100 | ASA（UL94HB） | White gray | 282.5 | 3D PDF | DXF | DWG | ||
| WP15-21-4 C | 150 | 40 | 210 | 141 | 33.5 | 160 | ABS（UL94V-0） | Charcoal gray | 323 | 3D PDF | DXF | DWG | ||
| WP15-21-4 G | 150 | 40 | 210 | 141 | 33.5 | 160 | ASA（UL94HB） | White gray | 323 | 3D PDF | DXF | DWG | ||
| WP15-21-6 C | 150 | 55 | 210 | 140 | 48.5 | 160 | ABS（UL94V-0） | Charcoal gray | 367.5 | 3D PDF | DXF | DWG | ||
| WP15-21-6 G | 150 | 55 | 210 | 140 | 48.5 | 160 | ASA（UL94HB） | White gray | 367.5 | 3D PDF | DXF | DWG | ||
| WP20-20-5 C | 200 | 45 | 200 | 190 | 38.5 | 150 | ABS（UL94V-0） | Charcoal gray | 434 | 3D PDF | DXF | DWG | ||
| WP20-20-5 G | 200 | 45 | 200 | 190 | 38.5 | 150 | ASA（UL94HB） | White gray | 434 | 3D PDF | DXF | DWG | ||
| WP20-20-7 C | 200 | 65 | 200 | 189 | 58.5 | 149 | ABS（UL94V-0） | Charcoal gray | 505 | 3D PDF | DXF | DWG | ||
| WP20-20-7 G | 200 | 65 | 200 | 189 | 58.5 | 149 | ASA（UL94HB） | White gray | 505 | 3D PDF | DXF | DWG | ||
| WP20-28-5 C | 200 | 45 | 280 | 190 | 38.5 | 230 | ABS（UL94V-0） | Charcoal gray | 557.5 | 3D PDF | DXF | DWG | ||
| WP20-28-5 G | 200 | 45 | 280 | 190 | 38.5 | 230 | ASA（UL94HB） | White gray | 557.5 | 3D PDF | DXF | DWG | ||
| WP20-28-7 C | 200 | 65 | 280 | 189 | 58.5 | 229 | ABS（UL94V-0） | Charcoal gray | 646 | 3D PDF | DXF | DWG | ||
| WP20-28-7 G | 200 | 65 | 280 | 189 | 58.5 | 229 | ASA（UL94HB） | White gray | 646 | 3D PDF | DXF | DWG | ||
SAMPLE REQUEST FORM
This product series is available as a free sample.
