19” RACK MOUNT ENCLOSURE - AUXR series
CATEGORY：Aluminum enclosure,19” rack mount enclosure, 19 inch rack case, Rack mounting enclosure, Rack mount chassis

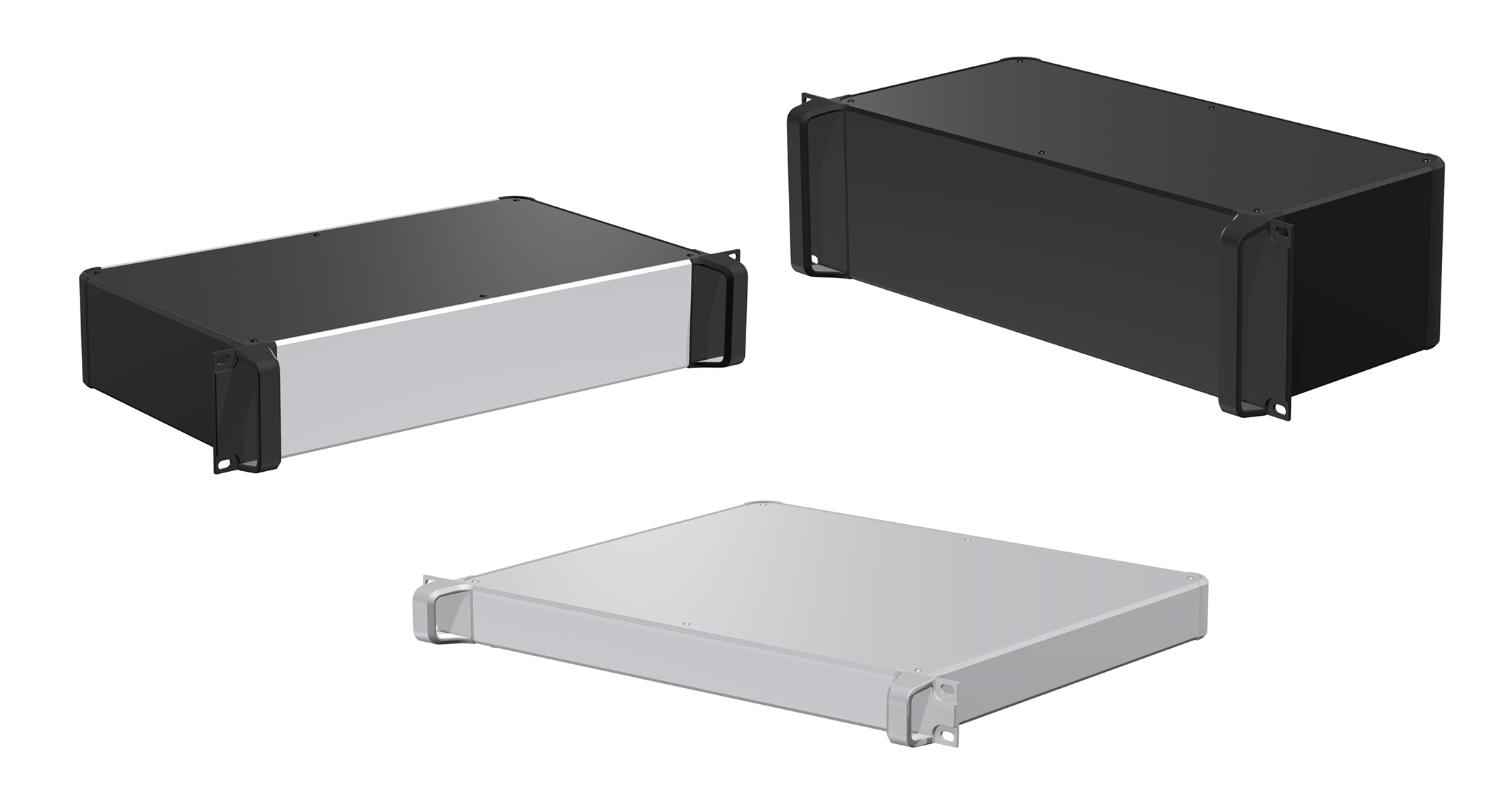

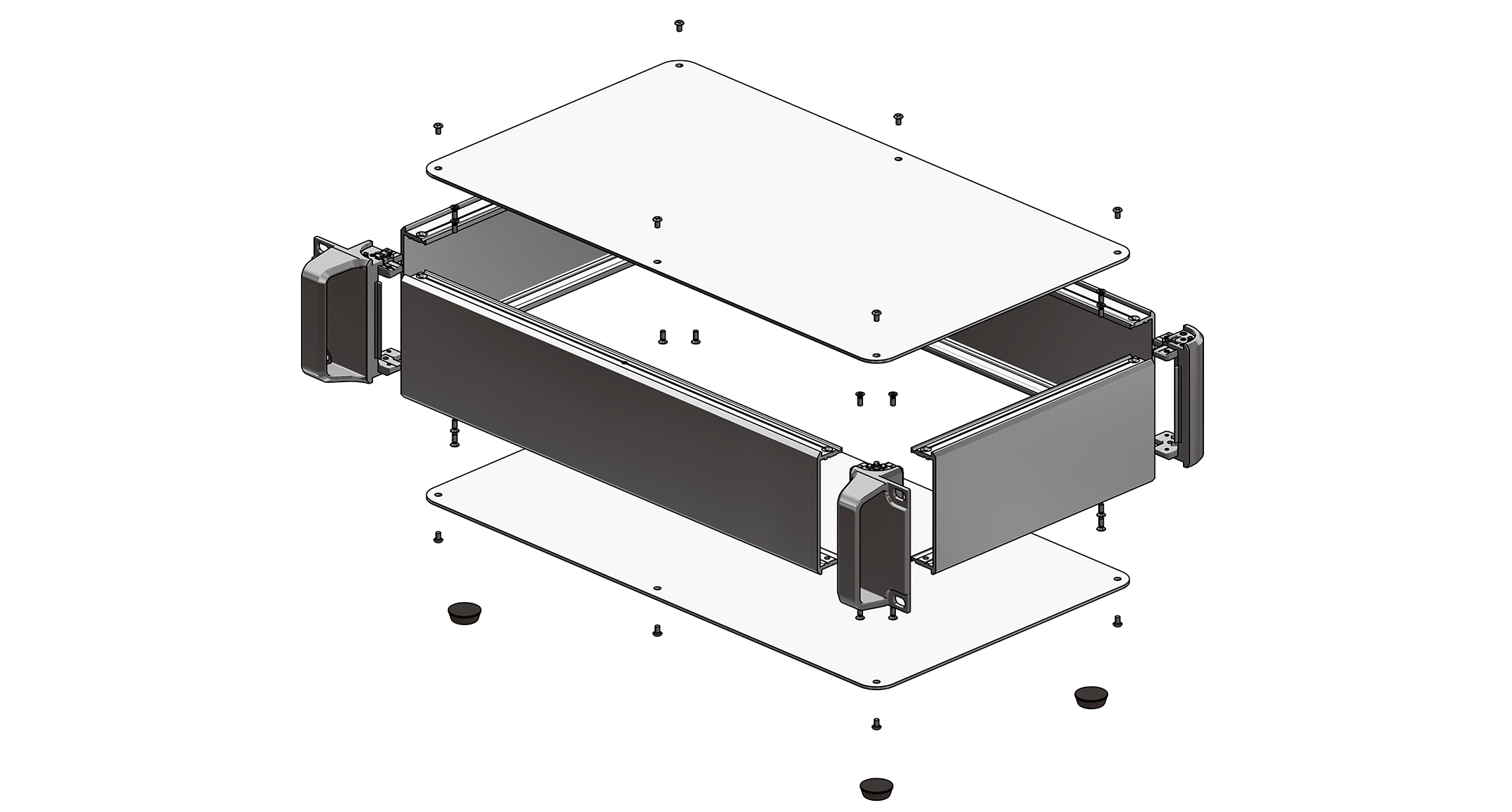

19” Rack Mount Enclosure with 4 extruded aluminium frames.
Flat and rugged design rack mounting aluminium case with handles.

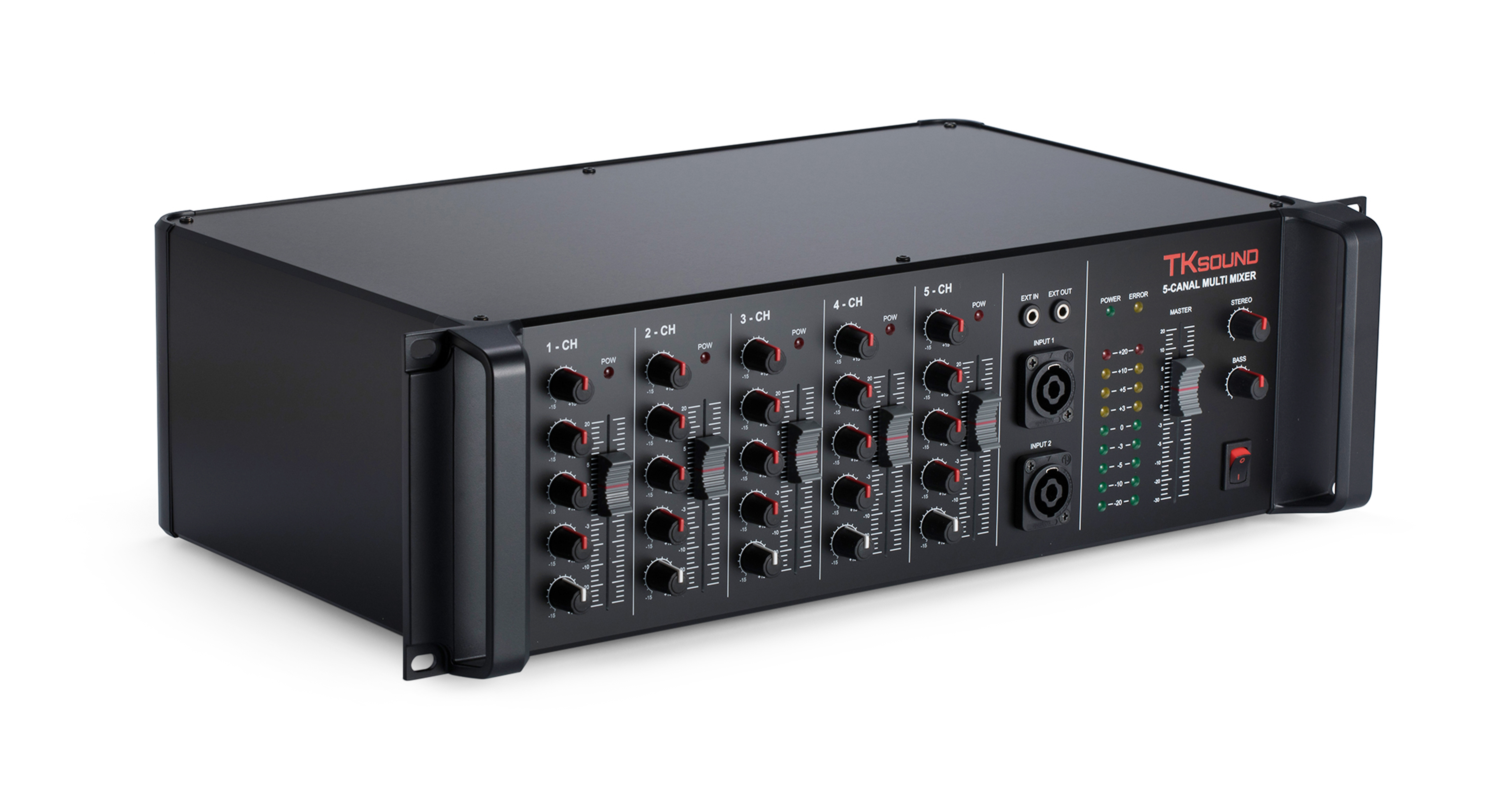

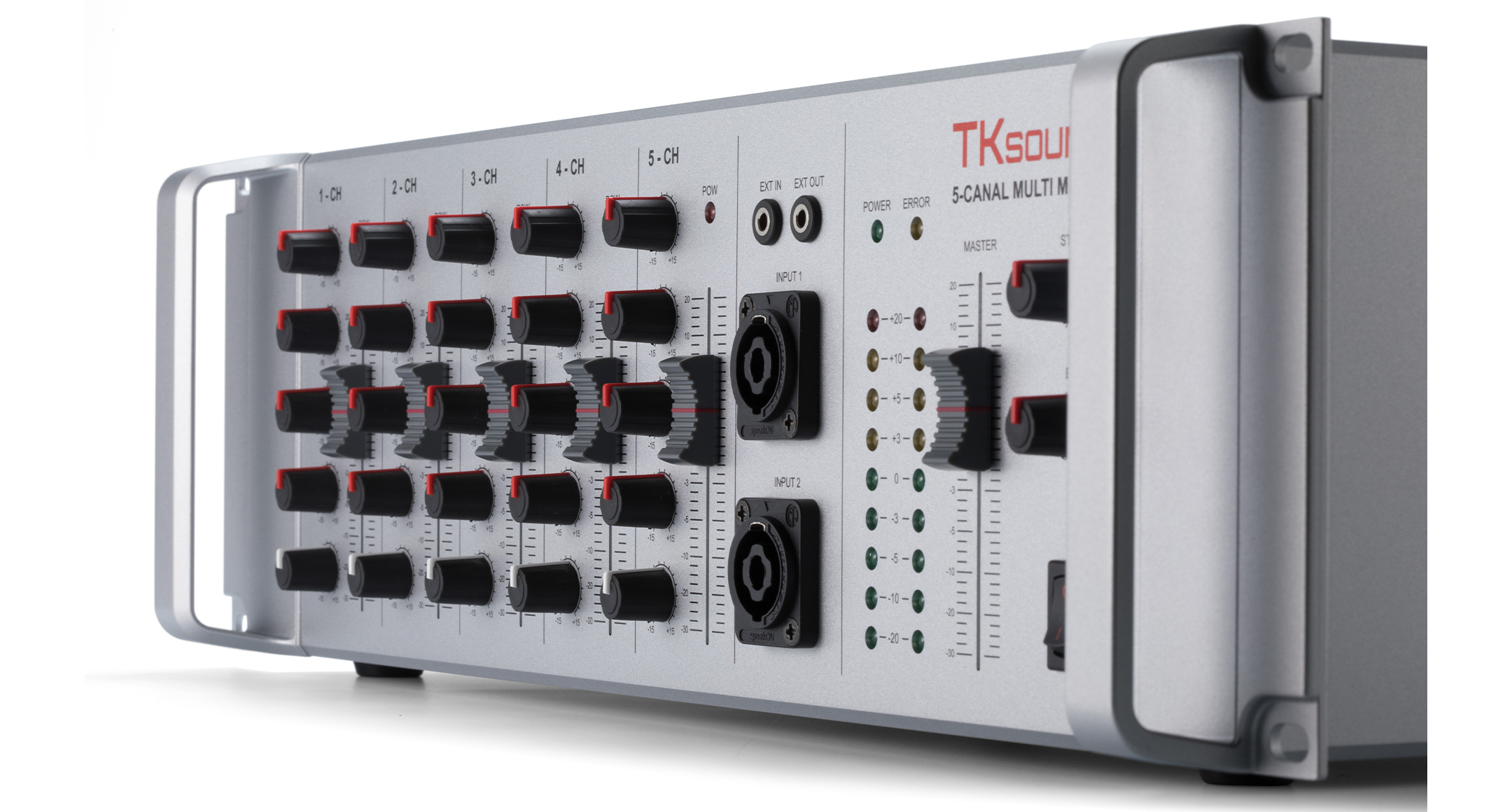

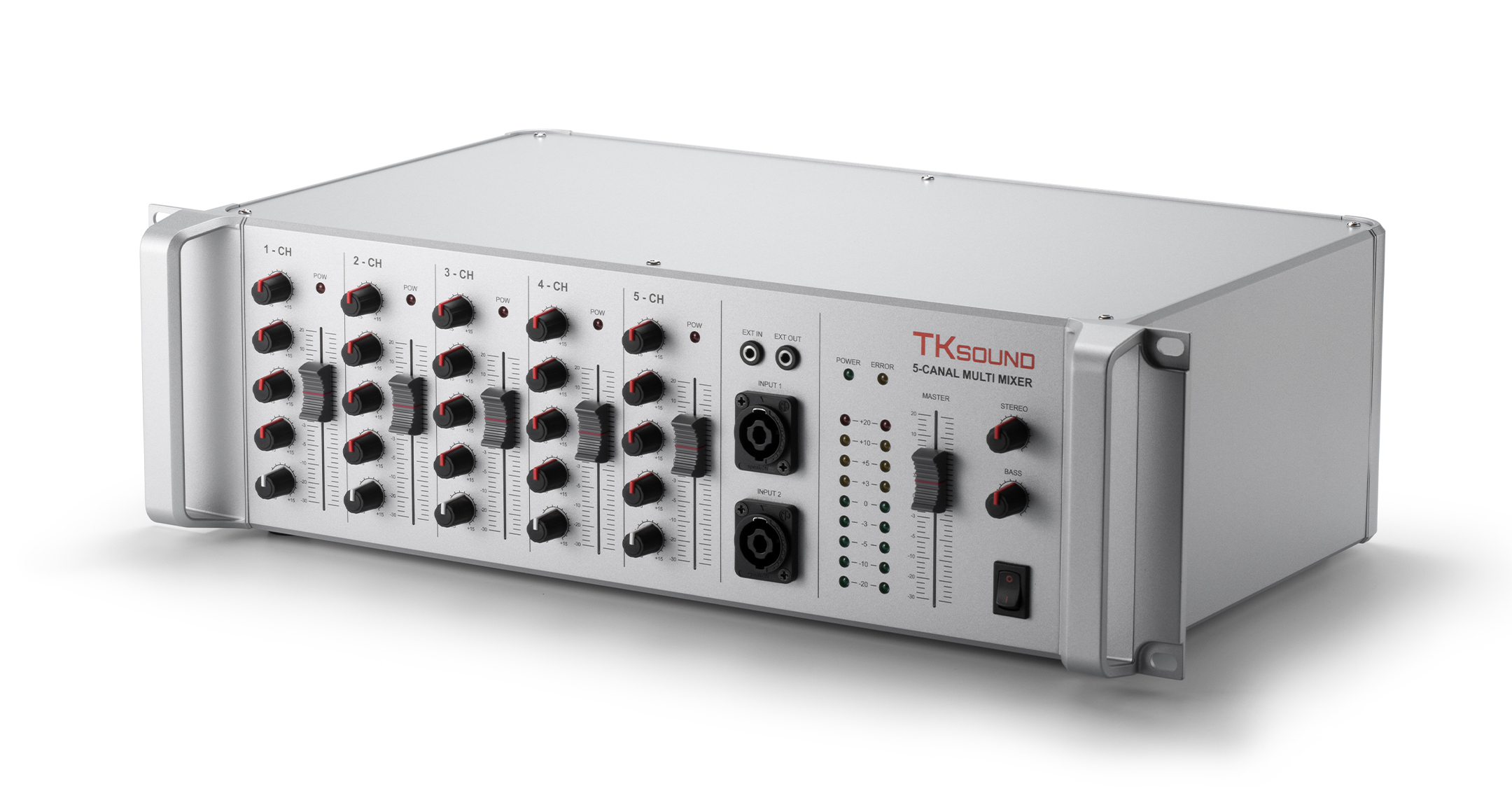

Suitable for use as audio/visual equipment, communication equipment, rack mount computers, measuring instruments and others.
A wide selection of 28 different sizes in 4 different colors to choose from.
Screw is selectable Plus head or Hex head.
Flat and rugged design rack mounting aluminium case with handles.
Suitable for use as audio/visual equipment, communication equipment, rack mount computers, measuring instruments and others.
A wide selection of 28 different sizes in 4 different colors to choose from.
Screw is selectable Plus head or Hex head.
COLOR TYPE

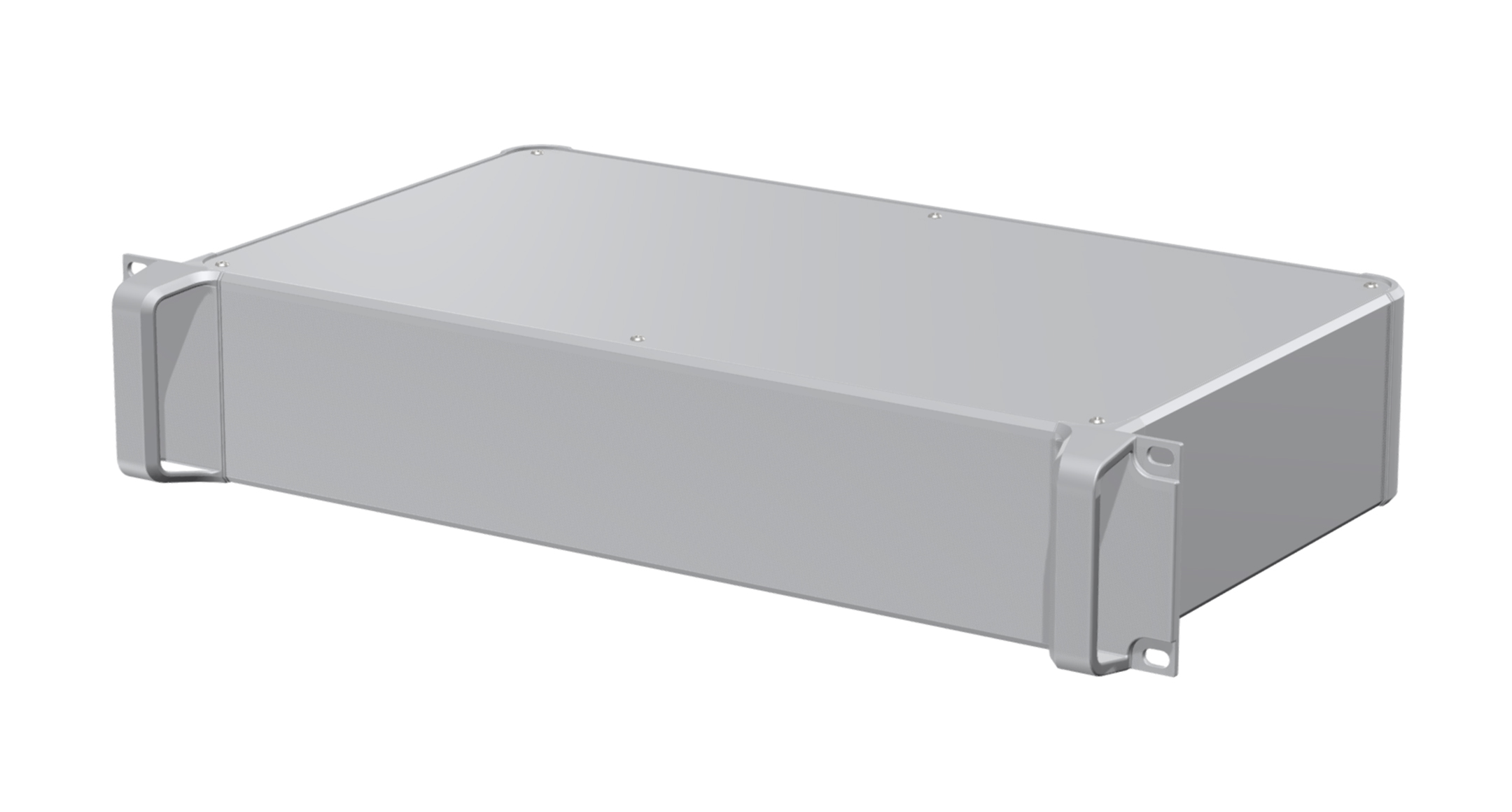

SSSilver

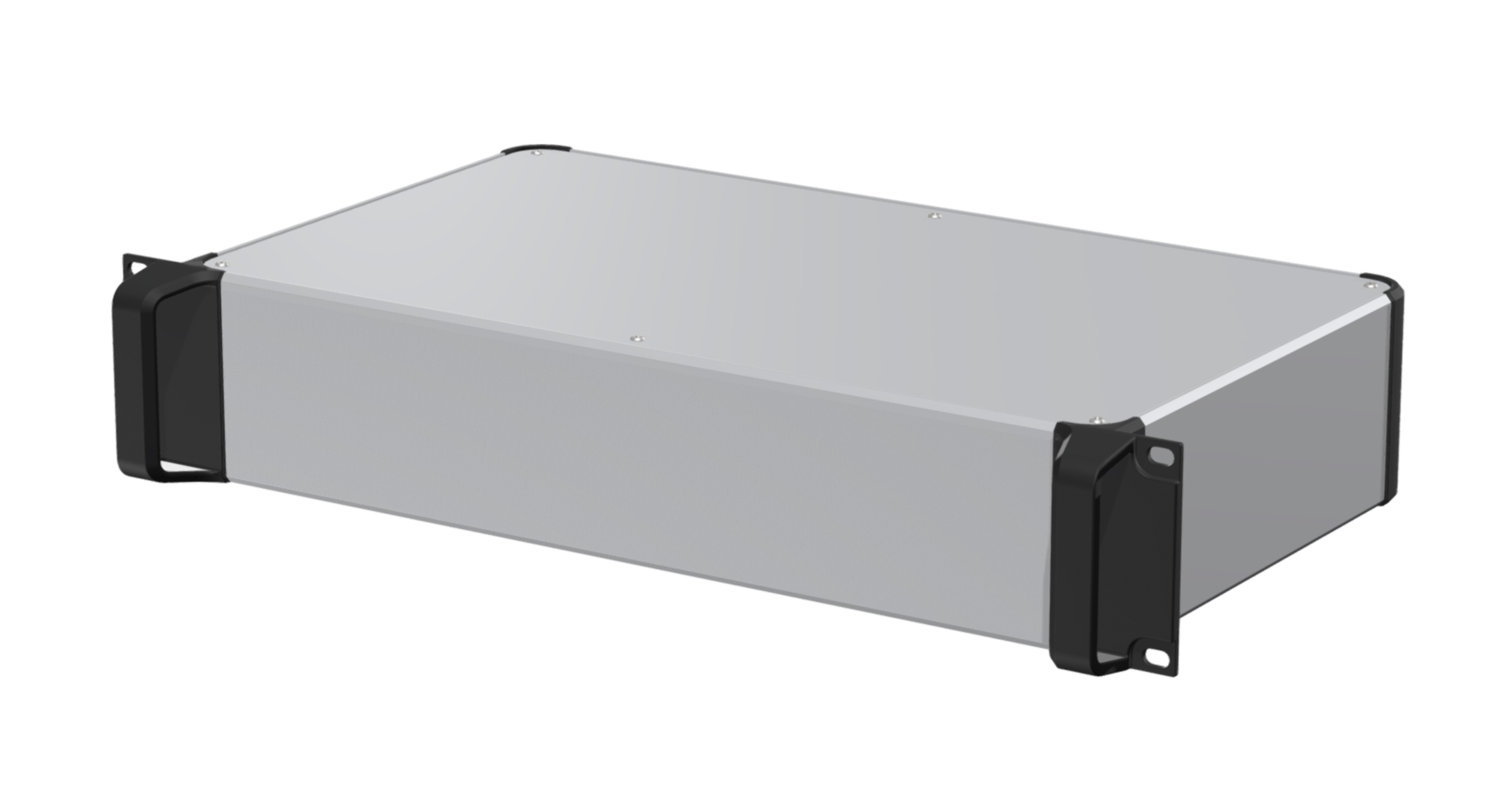

SBCover・Frame Silver / Handle・Corner block Black

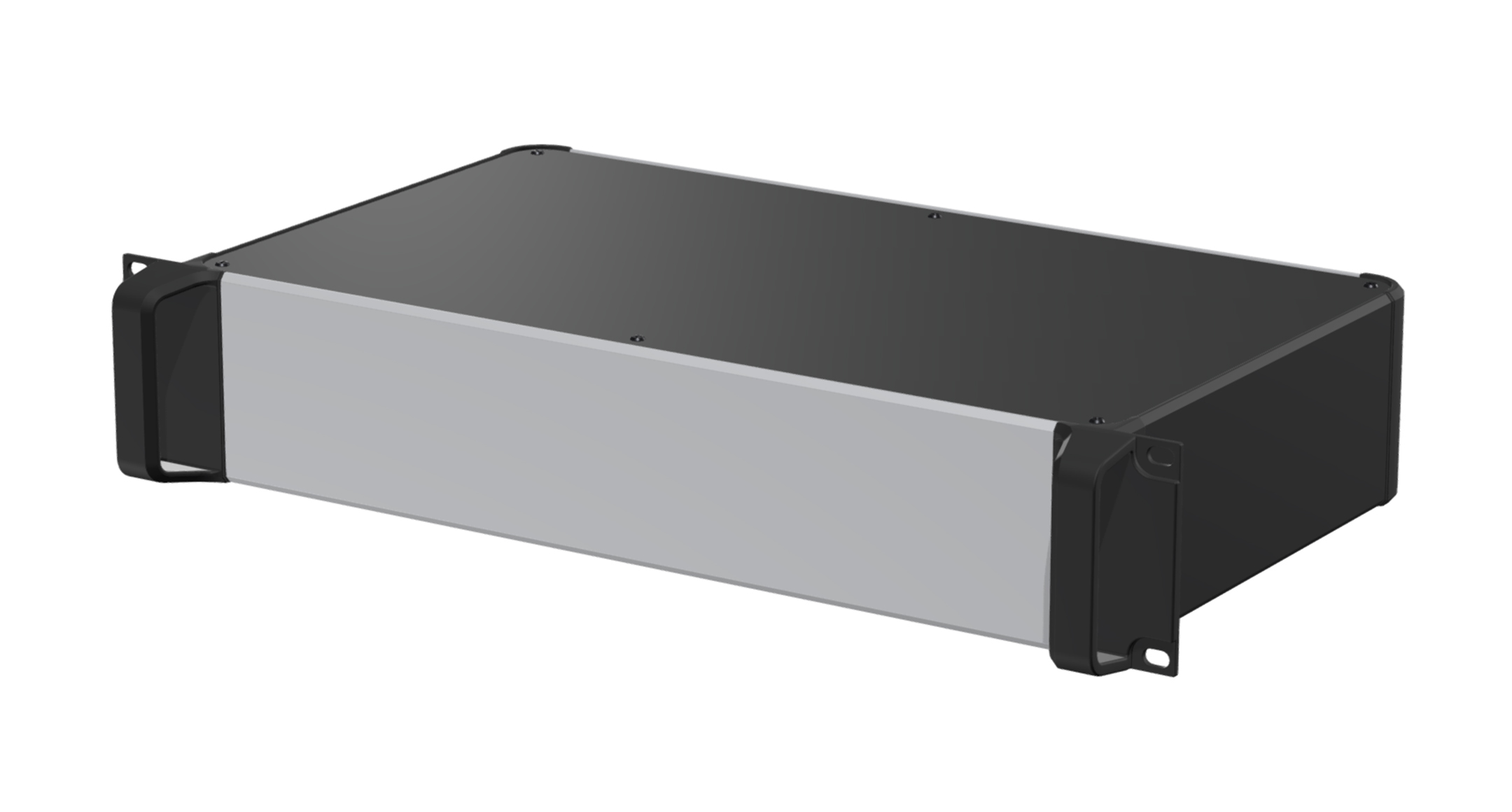

BSFrame Silver / Handle・Cover・Corner block Black

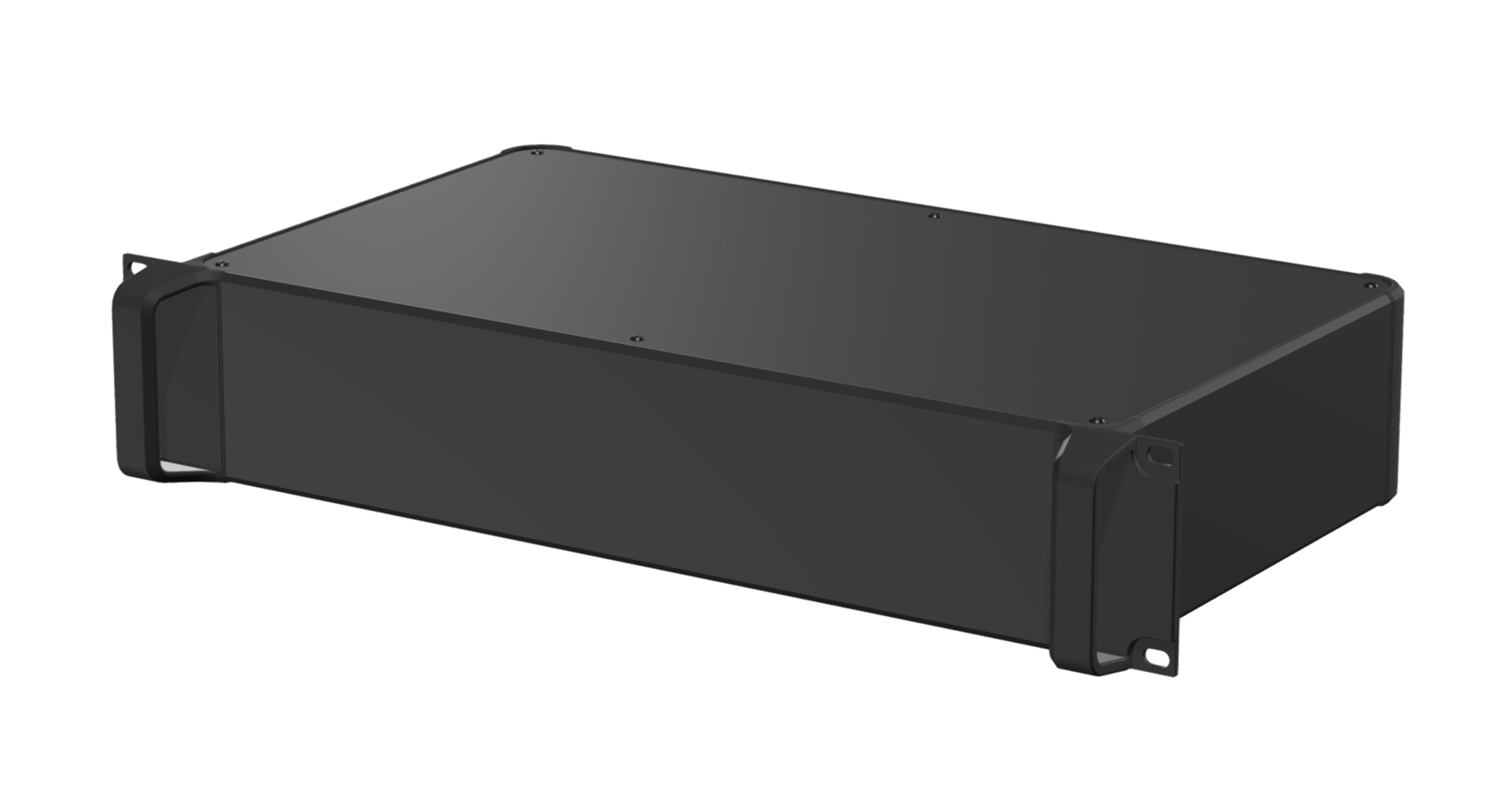

BBBlack
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Internal dimensions | Weight (kg) | DXF | DWG | STP | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | ||||||
| AUXR44-43-16□-□□ | 430 | 44 | 160 | 423 | 37 | 153 | 1.6 | ||||
| AUXR44-43-20□-□□ | 430 | 44 | 200 | 423 | 37 | 193 | 1.8 | ||||
| AUXR44-43-25□-□□ | 430 | 44 | 250 | 423 | 37 | 243 | 2.1 | ||||
| AUXR44-43-30□-□□ | 430 | 44 | 300 | 423 | 37 | 293 | 2.4 | ||||
| AUXR44-43-36□-□□ | 430 | 44 | 360 | 423 | 37 | 353 | 2.7 | ||||
| AUXR44-43-43□-□□ | 430 | 44 | 430 | 423 | 37 | 423 | 3.1 | ||||
| AUXR44-43-50□-□□ | 430 | 44 | 500 | 423 | 37 | 493 | 3.5 | ||||
| AUXR88-43-16□-□□ | 430 | 88 | 160 | 423 | 81 | 153 | 2 | ||||
| AUXR88-43-20□-□□ | 430 | 88 | 200 | 423 | 81 | 193 | 2.3 | ||||
| AUXR88-43-25□-□□ | 430 | 88 | 250 | 423 | 81 | 243 | 2.6 | ||||
| AUXR88-43-30□-□□ | 430 | 88 | 300 | 423 | 81 | 293 | 2.9 | ||||
| AUXR88-43-36□-□□ | 430 | 88 | 360 | 423 | 81 | 353 | 3.3 | ||||
| AUXR88-43-43□-□□ | 430 | 88 | 430 | 423 | 81 | 423 | 3.7 | ||||
| AUXR88-43-50□-□□ | 430 | 88 | 500 | 423 | 81 | 493 | 4.2 | ||||
| AUXR133-43-16□-□□ | 430 | 132.5 | 160 | 422 | 125.5 | 152 | 2.6 | ||||
| AUXR133-43-20□-□□ | 430 | 132.5 | 200 | 422 | 125.5 | 192 | 2.9 | ||||
| AUXR133-43-25□-□□ | 430 | 132.5 | 250 | 422 | 125.5 | 242 | 3.2 | ||||
| AUXR133-43-30□-□□ | 430 | 132.5 | 300 | 422 | 125.5 | 292 | 3.6 | ||||
| AUXR133-43-36□-□□ | 430 | 132.5 | 360 | 422 | 125.5 | 352 | 4 | ||||
| AUXR133-43-43□-□□ | 430 | 132.5 | 430 | 422 | 125.5 | 422 | 4.6 | ||||
| AUXR133-43-50□-□□ | 430 | 132.5 | 500 | 422 | 125.5 | 492 | 5.1 | ||||
| AUXR177-43-16□-□□ | 430 | 177 | 160 | 422 | 170 | 152 | 3 | ||||
| AUXR177-43-20□-□□ | 430 | 177 | 200 | 422 | 170 | 192 | 3.4 | ||||
| AUXR177-43-25□-□□ | 430 | 177 | 250 | 422 | 170 | 242 | 3.8 | ||||
| AUXR177-43-30□-□□ | 430 | 177 | 300 | 422 | 170 | 292 | 4.2 | ||||
| AUXR177-43-36□-□□ | 430 | 177 | 360 | 422 | 170 | 352 | 4.6 | ||||
| AUXR177-43-43□-□□ | 430 | 177 | 430 | 422 | 170 | 422 | 5.2 | ||||
| AUXR177-43-50□-□□ | 430 | 177 | 500 | 422 | 170 | 492 | 5.7 | ||||
| Mounting plate (Option) | DXF | DWG | STP | |
|---|---|---|---|---|
| AUC43-20 | DXF | DWG | ||
| AUC43-25 | DXF | DWG | ||
| AUC43-30 | DXF | DWG | ||
| AUC43-36 | DXF | DWG | ||
| AUC43-43 | DXF | DWG | ||
| AUC43-50 | DXF | DWG | ||
| AUC43-20 | DXF | DWG | ||
| AUC43-25 | DXF | DWG | ||
| AUC43-30 | DXF | DWG | ||
| AUC43-36 | DXF | DWG | ||
| AUC43-43 | DXF | DWG | ||
| AUC43-50 | DXF | DWG | ||
| AUC43-20 | DXF | DWG | ||
| AUC43-25 | DXF | DWG | ||
| AUC43-30 | DXF | DWG | ||
| AUC43-36 | DXF | DWG | ||
| AUC43-43 | DXF | DWG | ||
| AUC43-50 | DXF | DWG | ||
| AUC43-20 | DXF | DWG | ||
| AUC43-25 | DXF | DWG | ||
| AUC43-30 | DXF | DWG | ||
| AUC43-36 | DXF | DWG | ||
| AUC43-43 | DXF | DWG | ||
| AUC43-50 | DXF | DWG |
OPTIONAL PARTS
