19” RACK MOUNT ENCLOSURE - AUR series
CATEGORY：19” rack mount enclosure, 19 inch rack case, Rack mounting enclosure, Rack mount chassis

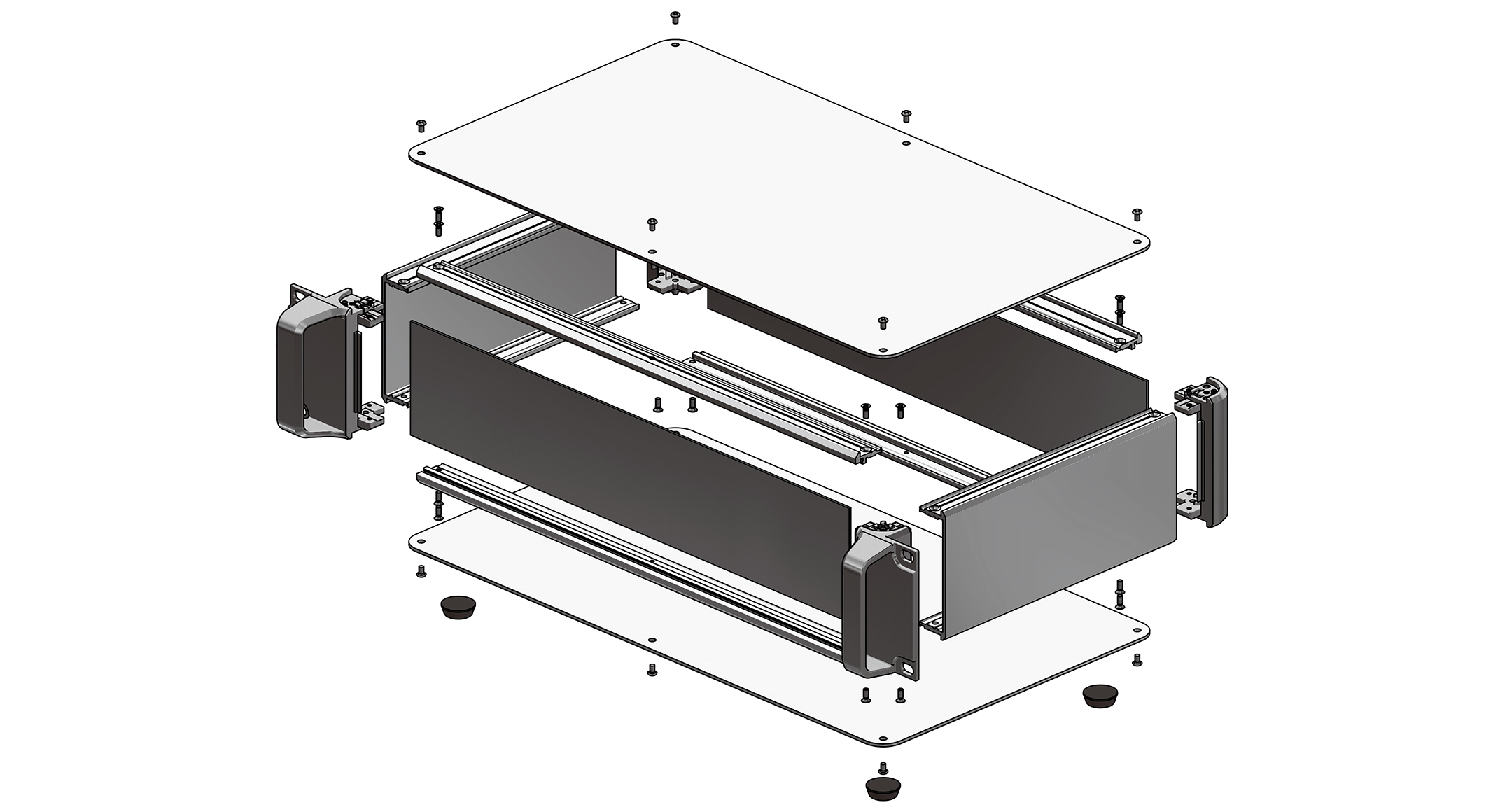

19” rack mount enclosure with insertion type front/rear panels, giving it a beautiful appearance.
Suitable for use as audio/visual equipment, communication equipment, rack mount computers, measuring instruments and others.

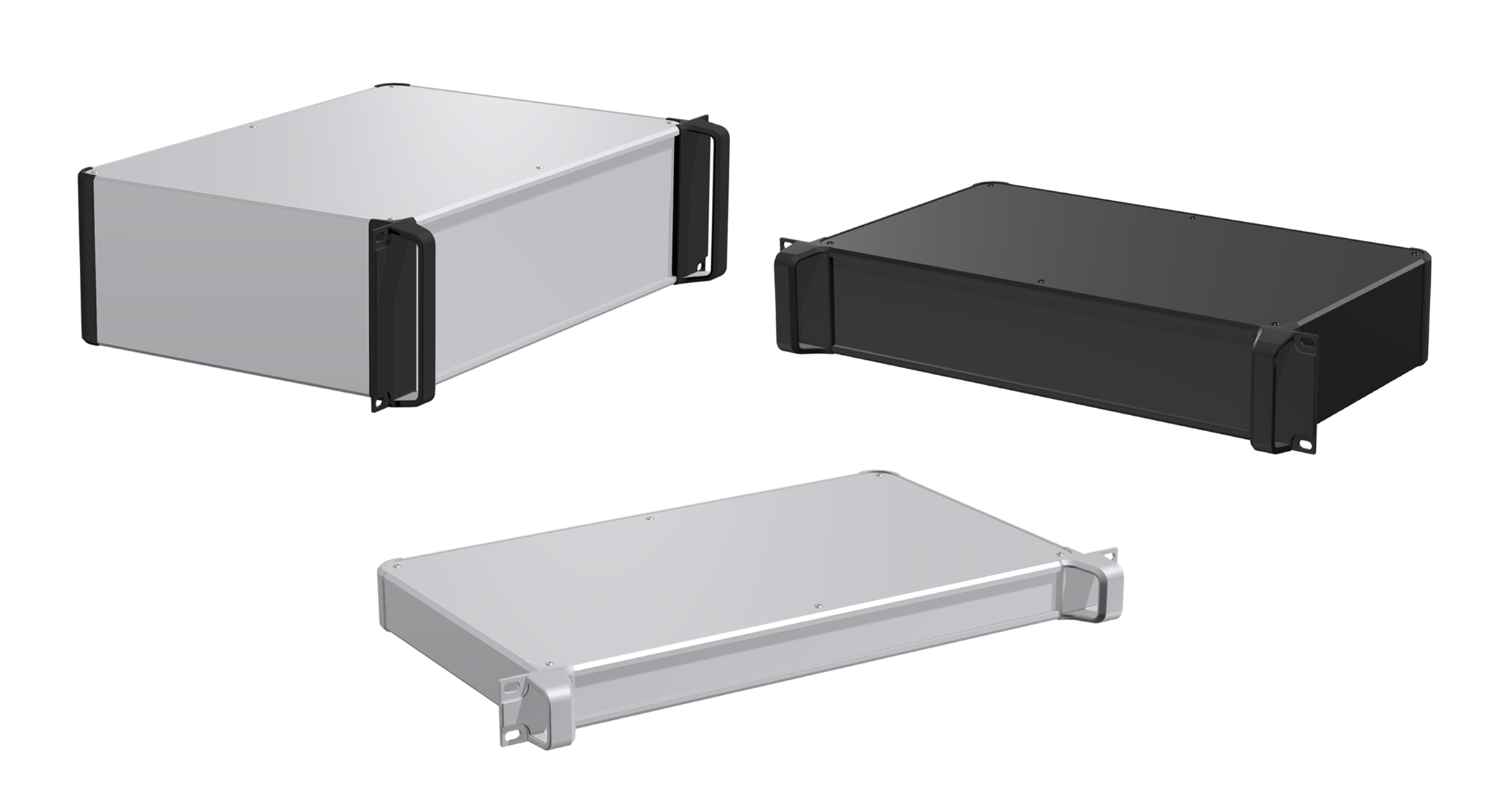

A large selection of 28 different sizes in 4 different colors to choose from.

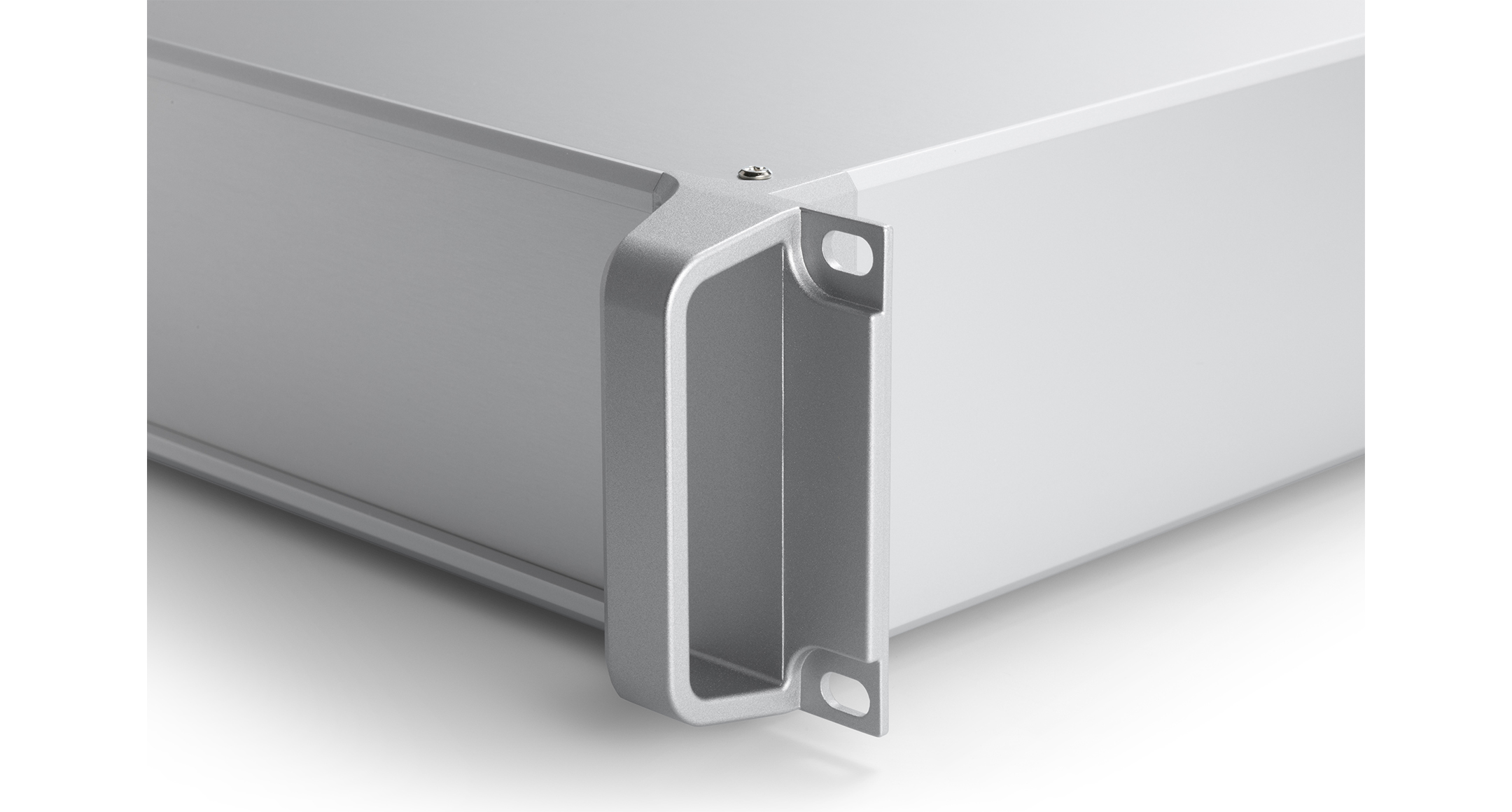

Screw is selectable Plus head or Hex head.
Suitable for use as audio/visual equipment, communication equipment, rack mount computers, measuring instruments and others.
A large selection of 28 different sizes in 4 different colors to choose from.
Screw is selectable Plus head or Hex head.
COLOR TYPE

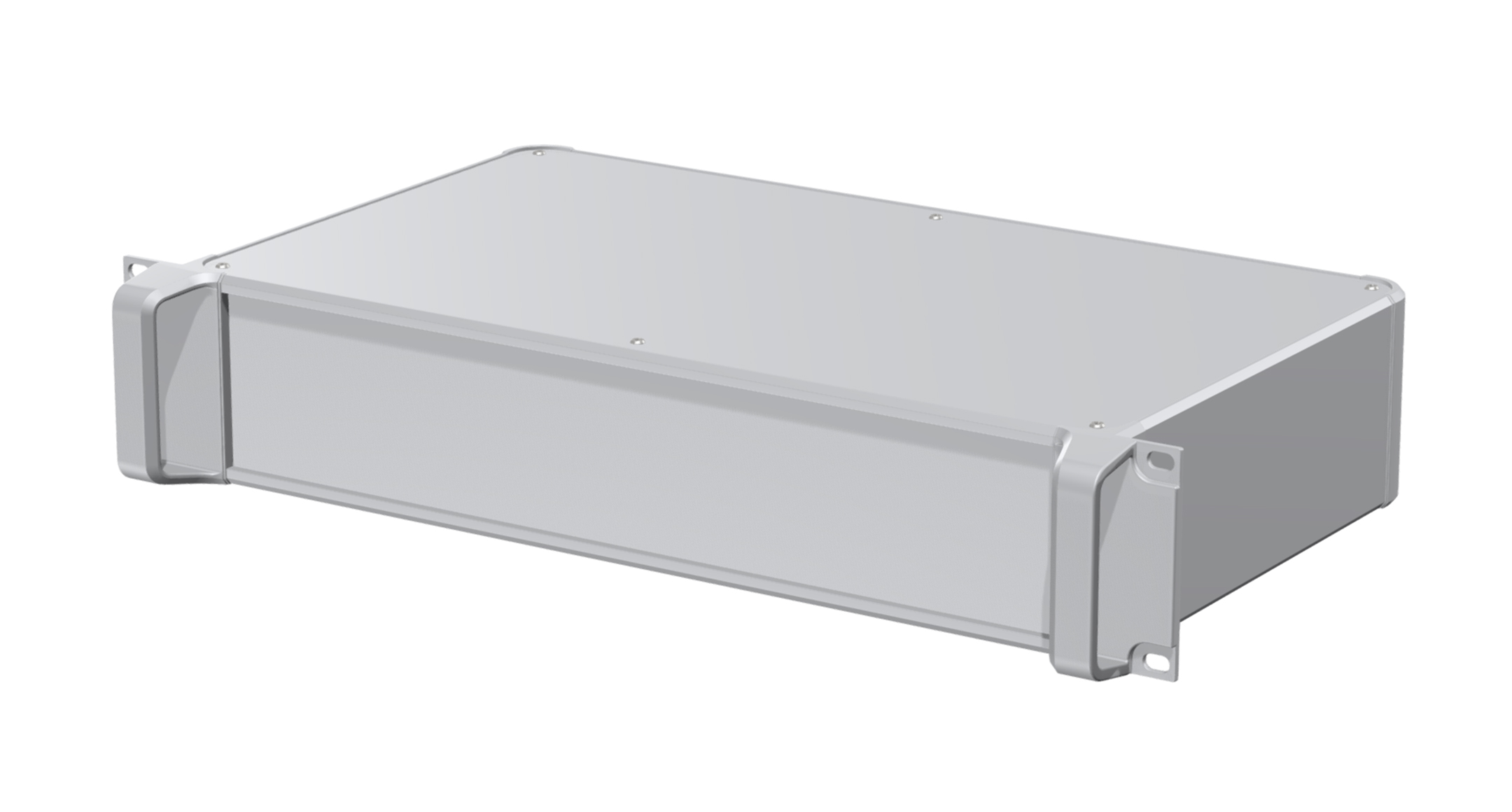

SSSilver

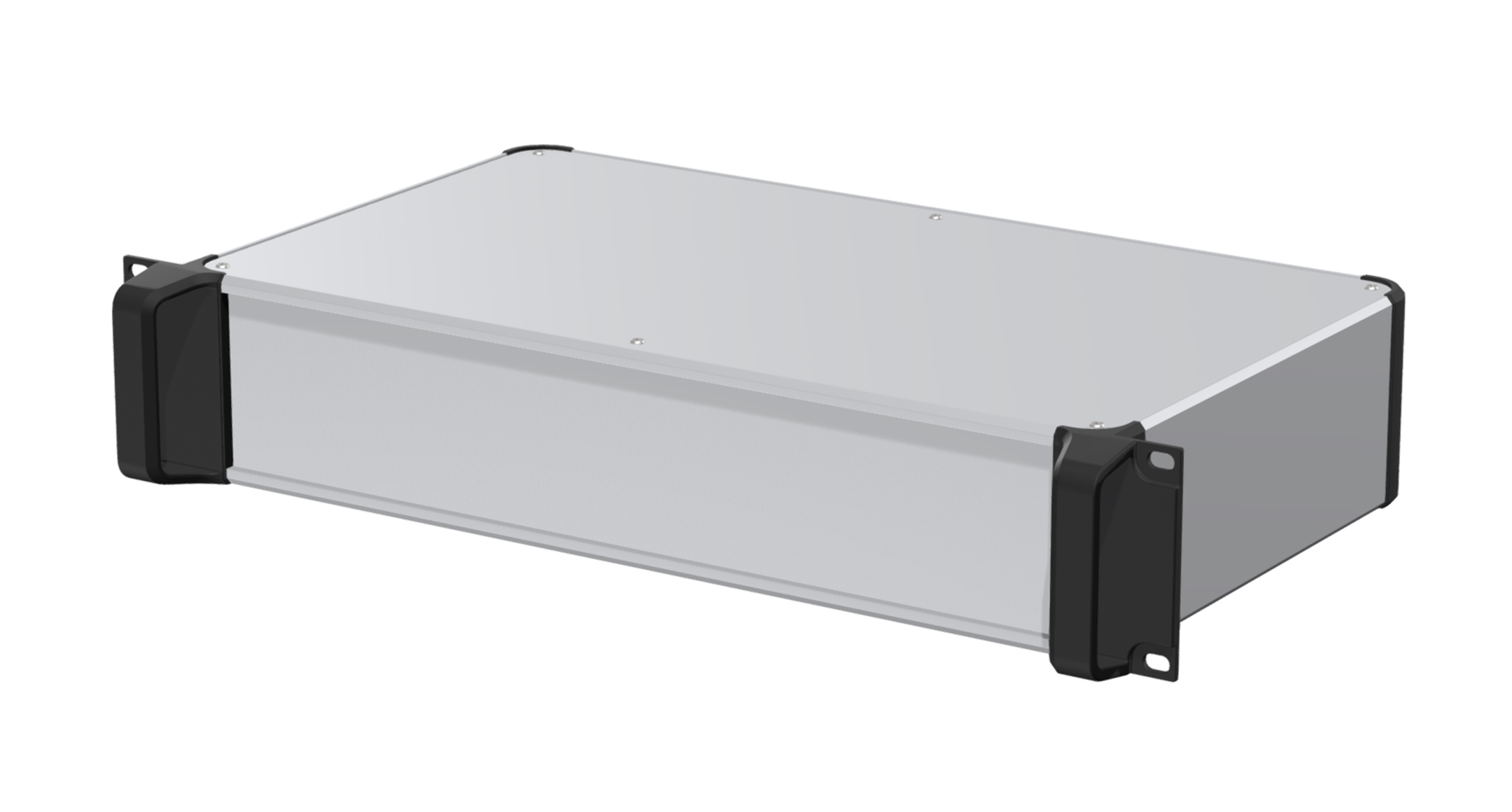

SBCovers・Panels・Frame Silver / Handle・Corner block Black

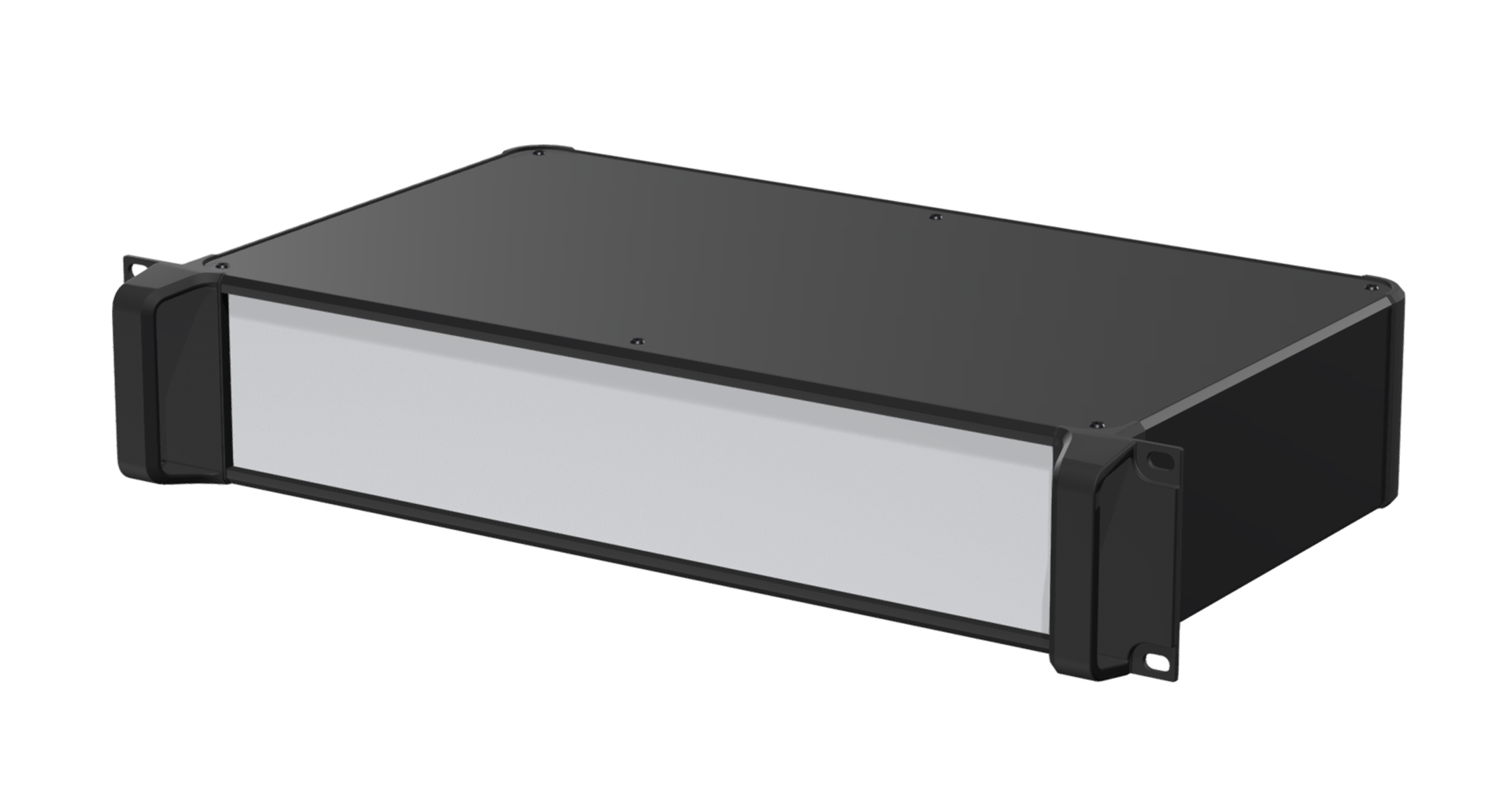

BSCovers・Panels・ Handle・Corner block Black / Panels Silver

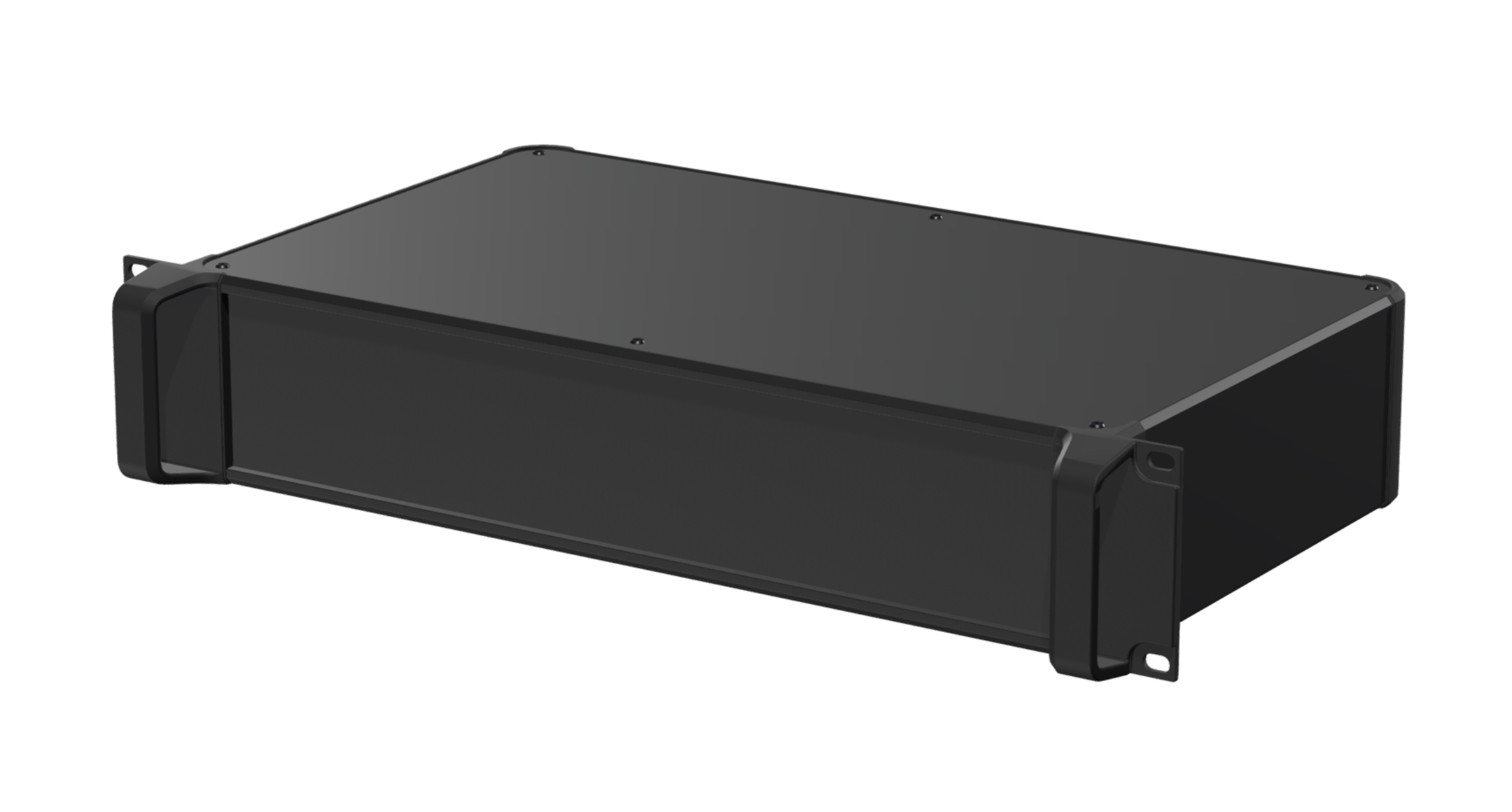

BBBlack
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Internal dimensions | Weight (kg) | DXF | DWG | STP | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | ||||||
| AUR44-43-16□-□□ | 430 | 44 | 160 | 423 | 37 | 146 | 1.5 | ||||
| AUR44-43-20□-□□ | 430 | 44 | 200 | 423 | 37 | 186 | 1.8 | ||||
| AUR44-43-25□-□□ | 430 | 44 | 250 | 423 | 37 | 236 | 2 | ||||
| AUR44-43-30□-□□ | 430 | 44 | 300 | 423 | 37 | 286 | 2.3 | ||||
| AUR44-43-36□-□□ | 430 | 44 | 360 | 423 | 37 | 346 | 2.7 | ||||
| AUR44-43-43□-□□ | 430 | 44 | 430 | 423 | 37 | 416 | 3.1 | ||||
| AUR44-43-50□-□□ | 430 | 44 | 500 | 423 | 37 | 486 | 3.5 | ||||
| AUR88-43-16□-□□ | 430 | 88 | 160 | 423 | 81 | 146 | 1.9 | ||||
| AUR88-43-20□-□□ | 430 | 88 | 200 | 423 | 81 | 186 | 2.1 | ||||
| AUR88-43-25□-□□ | 430 | 88 | 250 | 423 | 81 | 236 | 2.5 | ||||
| AUR88-43-30□-□□ | 430 | 88 | 300 | 423 | 81 | 286 | 2.8 | ||||
| AUR88-43-36□-□□ | 430 | 88 | 360 | 423 | 81 | 346 | 3.2 | ||||
| AUR88-43-43□-□□ | 430 | 88 | 430 | 423 | 81 | 416 | 3.6 | ||||
| AUR88-43-50□-□□ | 430 | 88 | 500 | 423 | 81 | 486 | 4.1 | ||||
| AUR133-43-16□-□□ | 430 | 132.5 | 160 | 422 | 125.5 | 146 | 2.3 | ||||
| AUR133-43-20□-□□ | 430 | 132.5 | 200 | 422 | 125.5 | 186 | 2.6 | ||||
| AUR133-43-25□-□□ | 430 | 132.5 | 250 | 422 | 125.5 | 236 | 2.9 | ||||
| AUR133-43-30□-□□ | 430 | 132.5 | 300 | 422 | 125.5 | 286 | 3.3 | ||||
| AUR133-43-36□-□□ | 430 | 132.5 | 360 | 422 | 125.5 | 346 | 3.7 | ||||
| AUR133-43-43□-□□ | 430 | 132.5 | 430 | 422 | 125.5 | 416 | 4.2 | ||||
| AUR133-43-50□-□□ | 430 | 132.5 | 500 | 422 | 125.5 | 486 | 4.7 | ||||
| AUR177-43-16□-□□ | 430 | 177 | 160 | 422 | 170 | 146 | 2.6 | ||||
| AUR177-43-20□-□□ | 430 | 177 | 200 | 422 | 170 | 186 | 2.9 | ||||
| AUR177-43-25□-□□ | 430 | 177 | 250 | 422 | 170 | 236 | 3.3 | ||||
| AUR177-43-30□-□□ | 430 | 177 | 300 | 422 | 170 | 286 | 3.7 | ||||
| AUR177-43-36□-□□ | 430 | 177 | 360 | 422 | 170 | 346 | 4.2 | ||||
| AUR177-43-43□-□□ | 430 | 177 | 430 | 422 | 170 | 416 | 4.7 | ||||
| AUR177-43-50□-□□ | 430 | 177 | 500 | 422 | 170 | 486 | 5.3 | ||||
| Mounting plate (Option) | DXF | DWG | STP | |
|---|---|---|---|---|
| AUC43-20 | DXF | DWG | ||
| AUC43-25 | DXF | DWG | ||
| AUC43-30 | DXF | DWG | ||
| AUC43-36 | DXF | DWG | ||
| AUC43-43 | DXF | DWG | ||
| AUC43-50 | DXF | DWG | ||
| AUC43-20 | DXF | DWG | ||
| AUC43-25 | DXF | DWG | ||
| AUC43-30 | DXF | DWG | ||
| AUC43-36 | DXF | DWG | ||
| AUC43-43 | DXF | DWG | ||
| AUC43-50 | DXF | DWG | ||
| AUC43-20 | DXF | DWG | ||
| AUC43-25 | DXF | DWG | ||
| AUC43-30 | DXF | DWG | ||
| AUC43-36 | DXF | DWG | ||
| AUC43-43 | DXF | DWG | ||
| AUC43-50 | DXF | DWG | ||
| AUC43-20 | DXF | DWG | ||
| AUC43-25 | DXF | DWG | ||
| AUC43-30 | DXF | DWG | ||
| AUC43-36 | DXF | DWG | ||
| AUC43-43 | DXF | DWG | ||
| AUC43-50 | DXF | DWG |
OPTIONAL PARTS
