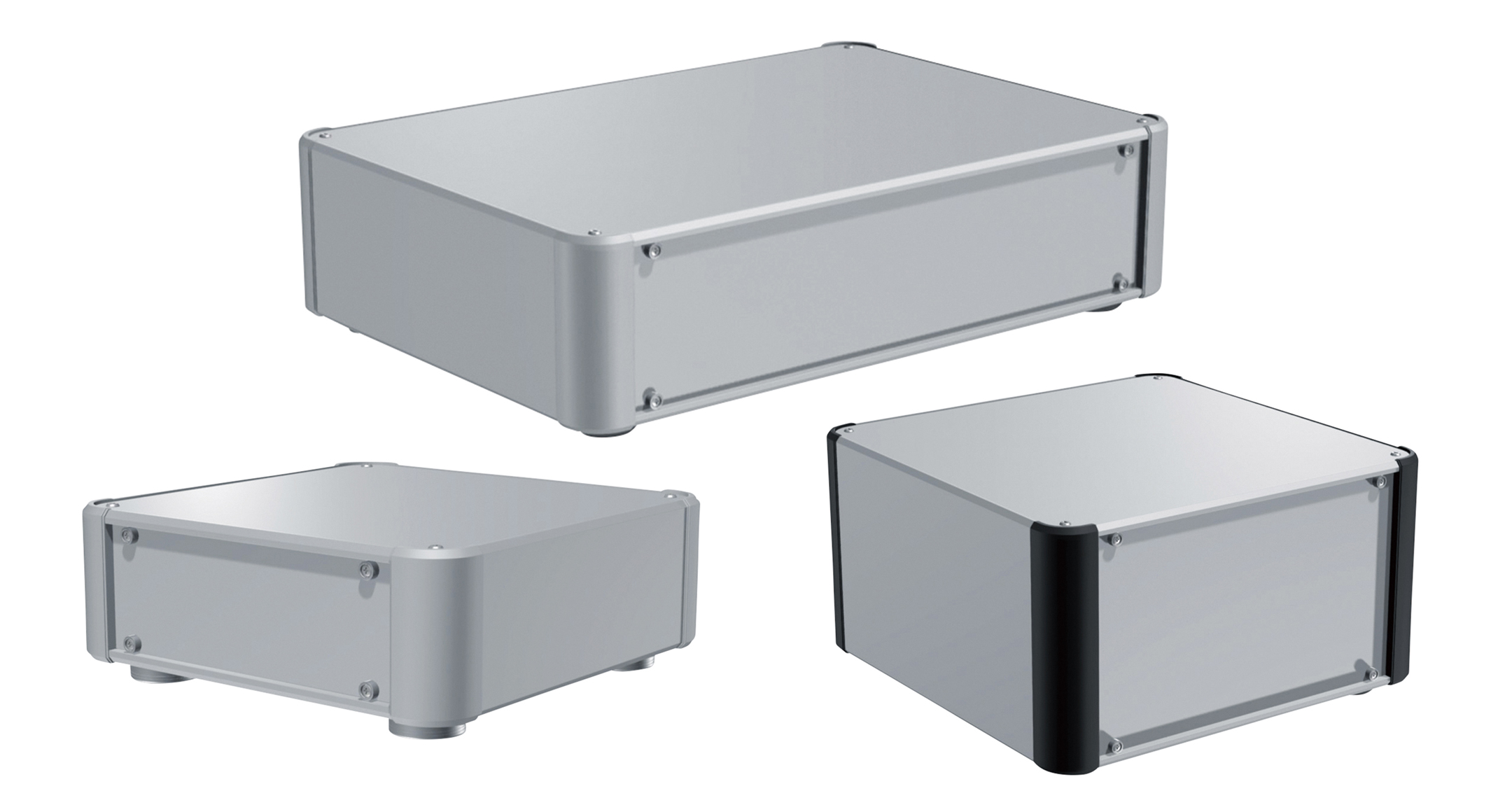

ALUMINIUM ENCLOSURE with DETACHABLE PANELS - AUP series


AUP Series -PDF

CATEGORY：Aluminum enclosure, Aluminum chassis, Desktop enclosure, Instrument enclosure, Metal enclosure, Universal enclosure

ALUMINIUM ENCLOSURE with DETACHABLE PANELS - AUP series
ALUMINIUM ENCLOSURE with DETACHABLE PANELS - AUP series
ALUMINIUM ENCLOSURE with DETACHABLE PANELS - AUP series
ALUMINIUM ENCLOSURE with DETACHABLE PANELS - AUP series
ALUMINIUM ENCLOSURE with DETACHABLE PANELS - AUP series1
ALUMINIUM ENCLOSURE with DETACHABLE PANELS - AUP series2
ALUMINIUM ENCLOSURE with DETACHABLE PANELS - AUP series3
ALUMINIUM ENCLOSURE with DETACHABLE PANELS - AUP series4
Simple and luxurious design aluminium enclosure.

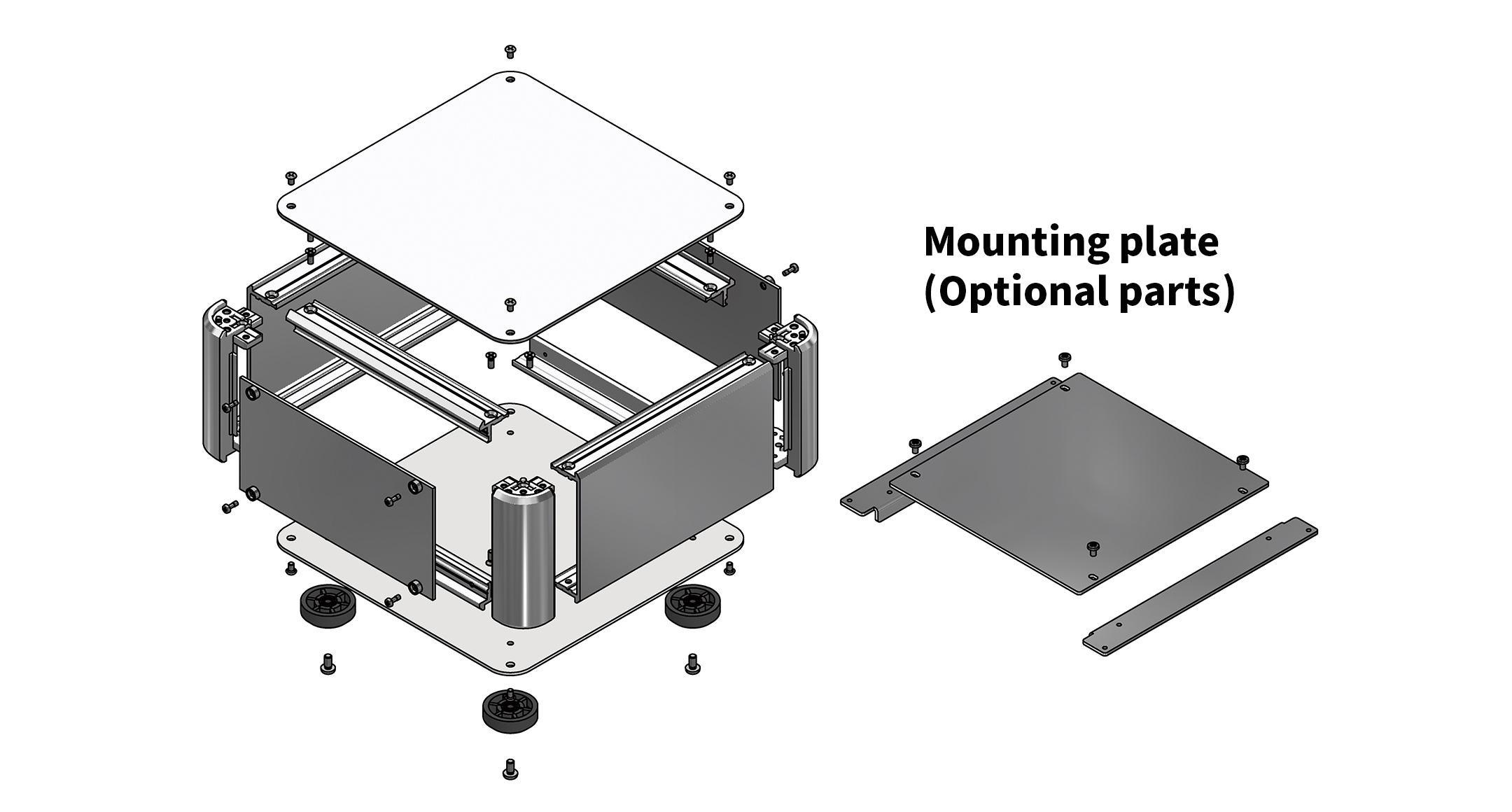

Front / rear panel is easily detachable.
Captive screws allow for ease of maintenance as there is little risk of the screws dropping out and getting lost.
The inner surface is unfinished, allowing the enclosure to be conductive.

A large selection of 172 different sizes.

COLOR TYPE

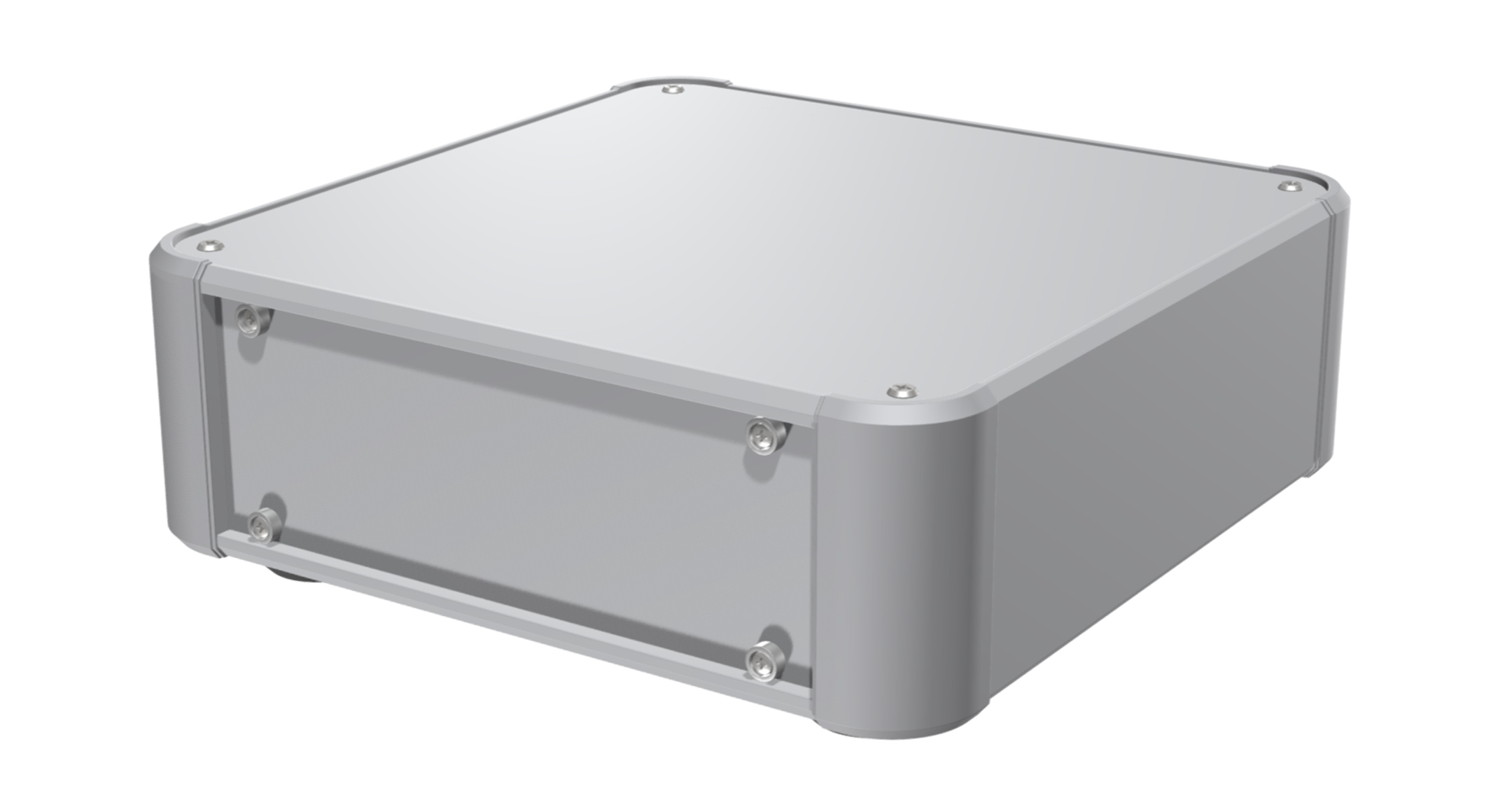

SSSilver

ALUMINIUM ENCLOSURE with DETACHABLE PANELS - AUP series:Silver

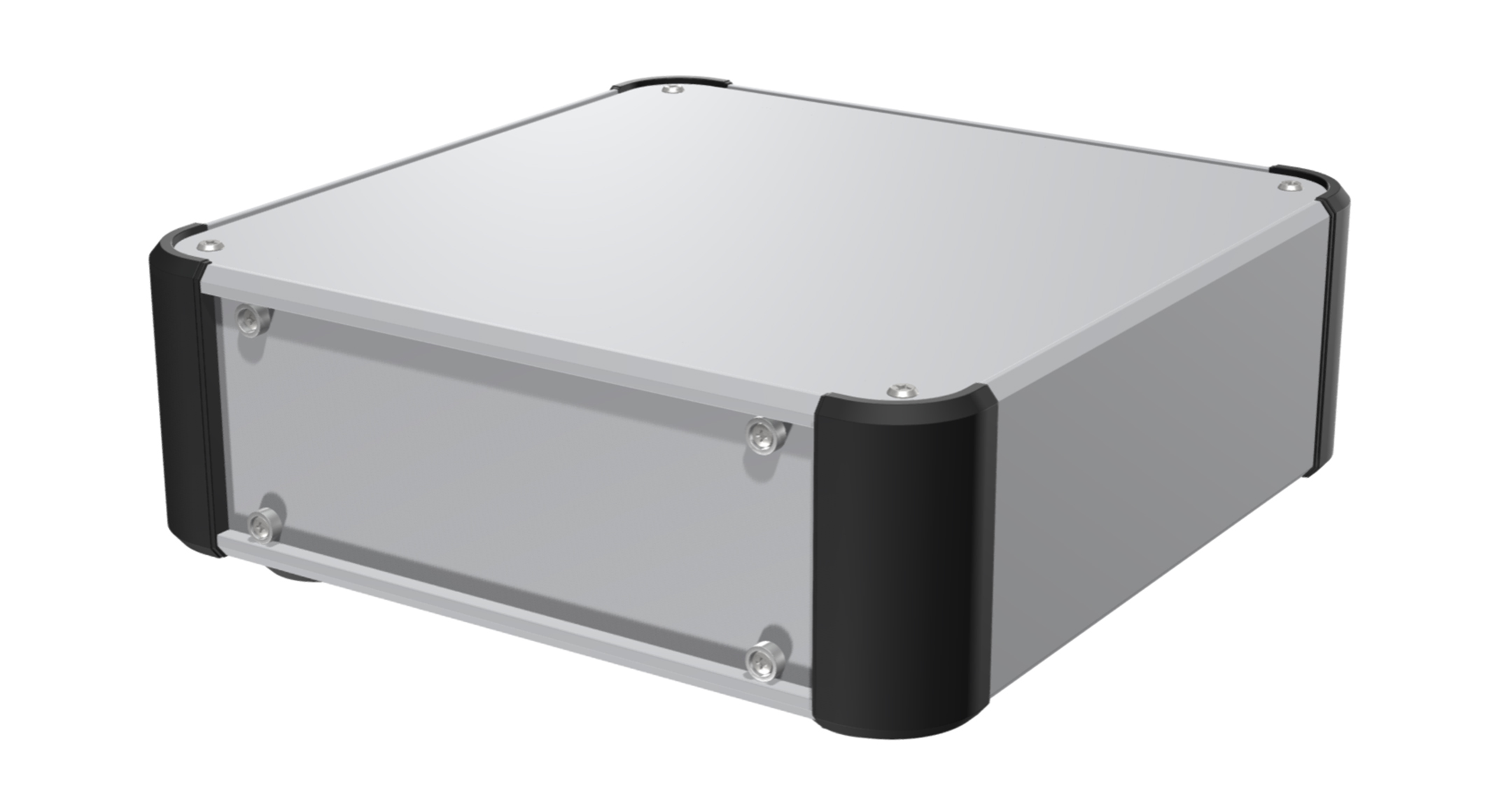

SBSilver / Black

ALUMINIUM ENCLOSURE with DETACHABLE PANELS - AUP series:Silver / Black
ALUMINIUM ENCLOSURE with DETACHABLE PANELS - AUP series:Silver
ALUMINIUM ENCLOSURE with DETACHABLE PANELS - AUP series:Silver / Black

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Feet Weight (kg) PDF DXF DWG STP
W H D w h d
AUP66-16-16A□-□□ 160 66 160 153 59 146 Aluminium feet 0.9
AUP66-16-16R□-□□ 160 66 160 153 59 146 Rubber feet 0.9
AUP66-16-20A□-□□ 160 66 200 153 59 186 Aluminium feet 1
AUP66-16-20R□-□□ 160 66 200 153 59 186 Rubber feet 1
AUP66-16-25A□-□□ 160 66 250 153 59 236 Aluminium feet 1.2
AUP66-16-25R□-□□ 160 66 250 153 59 236 Rubber feet 1.2
AUP66-16-30A□-□□ 160 66 300 153 59 286 Aluminium feet 1.3
AUP66-16-30R□-□□ 160 66 300 153 59 286 Rubber feet 1.3
AUP66-16-36A□-□□ 160 66 360 153 59 346 Aluminium feet 1.5
AUP66-16-36R□-□□ 160 66 360 153 59 346 Rubber feet 1.5
AUP66-16-43A□-□□ 160 66 430 153 59 416 Aluminium feet 1.7
AUP66-16-43R□-□□ 160 66 430 153 59 416 Rubber feet 1.7
AUP66-20-16A□-□□ 200 66 160 193 59 146 Aluminium feet 1
AUP66-20-16R□-□□ 200 66 160 193 59 146 Rubber feet 1
AUP66-20-20A□-□□ 200 66 200 193 59 186 Aluminium feet 1.2
AUP66-20-20R□-□□ 200 66 200 193 59 186 Rubber feet 1.2
AUP66-20-25A□-□□ 200 66 250 193 59 236 Aluminium feet 1.4
AUP66-20-25R□-□□ 200 66 250 193 59 236 Rubber feet 1.4
AUP66-20-30A□-□□ 200 66 300 193 59 286 Aluminium feet 1.5
AUP66-20-30R□-□□ 200 66 300 193 59 286 Rubber feet 1.5
AUP66-20-36A□-□□ 200 66 360 193 59 346 Aluminium feet 1.7
AUP66-20-36R□-□□ 200 66 360 193 59 346 Rubber feet 1.7
AUP66-20-43A□-□□ 200 66 430 193 59 416 Aluminium feet 2
AUP66-20-43R□-□□ 200 66 430 193 59 416 Rubber feet 2
AUP66-25-16A□-□□ 250 66 160 243 59 146 Aluminium feet 1.2
AUP66-25-16R□-□□ 250 66 160 243 59 146 Rubber feet 1.2
AUP66-25-20A□-□□ 250 66 200 243 59 186 Aluminium feet 1.4
AUP66-25-20R□-□□ 250 66 200 243 59 186 Rubber feet 1.4
AUP66-25-25A□-□□ 250 66 250 243 59 236 Aluminium feet 1.6
AUP66-25-25R□-□□ 250 66 250 243 59 236 Rubber feet 1.6
AUP66-25-30A□-□□ 250 66 300 243 59 286 Aluminium feet 1.8
AUP66-25-30R□-□□ 250 66 300 243 59 286 Rubber feet 1.8
AUP66-25-36A□-□□ 250 66 360 243 59 346 Aluminium feet 2
AUP66-25-36R□-□□ 250 66 360 243 59 346 Rubber feet 2
AUP66-25-43A□-□□ 250 66 430 243 59 416 Aluminium feet 2.3
AUP66-25-43R□-□□ 250 66 430 243 59 416 Rubber feet 2.3
AUP66-30-16A□-□□ 300 66 160 293 59 146 Aluminium feet 1.4
AUP66-30-16R□-□□ 300 66 160 293 59 146 Rubber feet 1.4
AUP66-30-20A□-□□ 300 66 200 293 59 186 Aluminium feet 1.5
AUP66-30-20R□-□□ 300 66 200 293 59 186 Rubber feet 1.5
AUP66-30-25A□-□□ 300 66 250 293 59 236 Aluminium feet 1.8
AUP66-30-25R□-□□ 300 66 250 293 59 236 Rubber feet 1.8
AUP66-30-30A□-□□ 300 66 300 293 59 286 Aluminium feet 2
AUP66-30-30R□-□□ 300 66 300 293 59 286 Rubber feet 2
AUP66-30-36A□-□□ 300 66 360 293 59 346 Aluminium feet 2.3
AUP66-30-36R□-□□ 300 66 360 293 59 346 Rubber feet 2.3
AUP66-30-43A□-□□ 300 66 430 293 59 416 Aluminium feet 2.6
AUP66-30-43R□-□□ 300 66 430 293 59 416 Rubber feet 2.6
AUP66-30-50A□-□□ 300 66 500 293 59 486 Aluminium feet 3
AUP66-30-50R□-□□ 300 66 500 293 59 486 Rubber feet 3
AUP66-36-16A□-□□ 360 66 160 353 59 146 Aluminium feet 1.6
AUP66-36-16R□-□□ 360 66 160 353 59 146 Rubber feet 1.6
AUP66-36-20A□-□□ 360 66 200 353 59 186 Aluminium feet 1.8
AUP66-36-20R□-□□ 360 66 200 353 59 186 Rubber feet 1.8
AUP66-36-25A□-□□ 360 66 250 353 59 236 Aluminium feet 2
AUP66-36-25R□-□□ 360 66 250 353 59 236 Rubber feet 2
AUP66-36-30A□-□□ 360 66 300 353 59 286 Aluminium feet 2.3
AUP66-36-30R□-□□ 360 66 300 353 59 286 Rubber feet 2.3
AUP66-36-36A□-□□ 360 66 360 353 59 346 Aluminium feet 2.6
AUP66-36-36R□-□□ 360 66 360 353 59 346 Rubber feet 2.6
AUP66-36-43A□-□□ 360 66 430 353 59 416 Aluminium feet 3
AUP66-36-43R□-□□ 360 66 430 353 59 416 Rubber feet 3
AUP66-36-50A□-□□ 360 66 500 353 59 486 Aluminium feet 3.4
AUP66-36-50R□-□□ 360 66 500 353 59 486 Rubber feet 3.4
AUP66-43-16A□-□□ 430 66 160 423 59 146 Aluminium feet 1.8
AUP66-43-16R□-□□ 430 66 160 423 59 146 Rubber feet 1.8
AUP66-43-20A□-□□ 430 66 200 423 59 186 Aluminium feet 2.1
AUP66-43-20R□-□□ 430 66 200 423 59 186 Rubber feet 2.1
AUP66-43-25A□-□□ 430 66 250 423 59 236 Aluminium feet 2.4
AUP66-43-25R□-□□ 430 66 250 423 59 236 Rubber feet 2.4
AUP66-43-30A□-□□ 430 66 300 423 59 286 Aluminium feet 2.7
AUP66-43-30R□-□□ 430 66 300 423 59 286 Rubber feet 2.7
AUP66-43-36A□-□□ 430 66 360 423 59 346 Aluminium feet 3
AUP66-43-36R□-□□ 430 66 360 423 59 346 Rubber feet 3
AUP66-43-43A□-□□ 430 66 430 423 59 416 Aluminium feet 3.4
AUP66-43-43R□-□□ 430 66 430 423 59 416 Rubber feet 3.4
AUP66-43-50A□-□□ 430 66 500 423 59 486 Aluminium feet 3.9
AUP66-43-50R□-□□ 430 66 500 423 59 486 Rubber feet 3.9
AUP66-50-30A□-□□ 500 66 300 493 59 286 Aluminium feet 3
AUP66-50-30R□-□□ 500 66 300 493 59 286 Rubber feet 3
AUP66-50-36A□-□□ 500 66 360 493 59 346 Aluminium feet 3.4
AUP66-50-36R□-□□ 500 66 360 493 59 346 Rubber feet 3.4
AUP66-50-43A□-□□ 500 66 430 493 59 416 Aluminium feet 3.9
AUP66-50-43R□-□□ 500 66 430 493 59 416 Rubber feet 3.9
AUP66-50-50A□-□□ 500 66 500 493 59 486 Aluminium feet 4.3
AUP66-50-50R□-□□ 500 66 500 493 59 486 Rubber feet 4.3
AUP88-16-16A□-□□ 160 88 160 153 81 146 Aluminium feet 1
AUP88-16-16R□-□□ 160 88 160 153 81 146 Rubber feet 1
AUP88-16-20A□-□□ 160 88 200 153 81 186 Aluminium feet 1.2
AUP88-16-20R□-□□ 160 88 200 153 81 186 Rubber feet 1.2
AUP88-16-25A□-□□ 160 88 250 153 81 236 Aluminium feet 1.3
AUP88-16-25R□-□□ 160 88 250 153 81 236 Rubber feet 1.3
AUP88-16-30A□-□□ 160 88 300 153 81 286 Aluminium feet 1.5
AUP88-16-30R□-□□ 160 88 300 153 81 286 Rubber feet 1.5
AUP88-16-36A□-□□ 160 88 360 153 81 346 Aluminium feet 1.7
AUP88-16-36R□-□□ 160 88 360 153 81 346 Rubber feet 1.7
AUP88-16-43A□-□□ 160 88 430 153 81 416 Aluminium feet 2
AUP88-16-43R□-□□ 160 88 430 153 81 416 Rubber feet 2
AUP88-20-16A□-□□ 200 88 160 193 81 146 Aluminium feet 1.2
AUP88-20-16R□-□□ 200 88 160 193 81 146 Rubber feet 1.2
AUP88-20-20A□-□□ 200 88 200 193 81 186 Aluminium feet 1.3
AUP88-20-20R□-□□ 200 88 200 193 81 186 Rubber feet 1.3
AUP88-20-25A□-□□ 200 88 250 193 81 236 Aluminium feet 1.5
AUP88-20-25R□-□□ 200 88 250 193 81 236 Rubber feet 1.5
AUP88-20-30A□-□□ 200 88 300 193 81 286 Aluminium feet 1.7
AUP88-20-30R□-□□ 200 88 300 193 81 286 Rubber feet 1.7
AUP88-20-36A□-□□ 200 88 360 193 81 346 Aluminium feet 1.9
AUP88-20-36R□-□□ 200 88 360 193 81 346 Rubber feet 1.9
AUP88-20-43A□-□□ 200 88 430 193 81 416 Aluminium feet 2.2
AUP88-20-43R□-□□ 200 88 430 193 81 416 Rubber feet 2.2
AUP88-25-16A□-□□ 250 88 160 243 81 146 Aluminium feet 1.3
AUP88-25-16R□-□□ 250 88 160 243 81 146 Rubber feet 1.3
AUP88-25-20A□-□□ 250 88 200 243 81 186 Aluminium feet 1.5
AUP88-25-20R□-□□ 250 88 200 243 81 186 Rubber feet 1.5
AUP88-25-25A□-□□ 250 88 250 243 81 236 Aluminium feet 1.7
AUP88-25-25R□-□□ 250 88 250 243 81 236 Rubber feet 1.7
AUP88-25-30A□-□□ 250 88 300 243 81 286 Aluminium feet 1.9
AUP88-25-30R□-□□ 250 88 300 243 81 286 Rubber feet 1.9
AUP88-25-36A□-□□ 250 88 360 243 81 346 Aluminium feet 2.2
AUP88-25-36R□-□□ 250 88 360 243 81 346 Rubber feet 2.2
AUP88-25-43A□-□□ 250 88 430 243 81 416 Aluminium feet 2.5
AUP88-25-43R□-□□ 250 88 430 243 81 416 Rubber feet 2.5
AUP88-30-16A□-□□ 300 88 160 293 81 146 Aluminium feet 1.5
AUP88-30-16R□-□□ 300 88 160 293 81 146 Rubber feet 1.5
AUP88-30-20A□-□□ 300 88 200 293 81 186 Aluminium feet 1.7
AUP88-30-20R□-□□ 300 88 200 293 81 186 Rubber feet 1.7
AUP88-30-25A□-□□ 300 88 250 293 81 236 Aluminium feet 1.9
AUP88-30-25R□-□□ 300 88 250 293 81 236 Rubber feet 1.9
AUP88-30-30A□-□□ 300 88 300 293 81 286 Aluminium feet 2.2
AUP88-30-30R□-□□ 300 88 300 293 81 286 Rubber feet 2.2
AUP88-30-36A□-□□ 300 88 360 293 81 346 Aluminium feet 2.5
AUP88-30-36R□-□□ 300 88 360 293 81 346 Rubber feet 2.5
AUP88-30-43A□-□□ 300 88 430 293 81 416 Aluminium feet 2.9
AUP88-30-43R□-□□ 300 88 430 293 81 416 Rubber feet 2.9
AUP88-30-50A□-□□ 300 88 500 293 81 486 Aluminium feet 3.2
AUP88-30-50R□-□□ 300 88 500 293 81 486 Rubber feet 3.2
AUP88-36-16A□-□□ 360 88 160 353 81 146 Aluminium feet 1.7
AUP88-36-16R□-□□ 360 88 160 353 81 146 Rubber feet 1.7
AUP88-36-20A□-□□ 360 88 200 353 81 186 Aluminium feet 1.9
AUP88-36-20R□-□□ 360 88 200 353 81 186 Rubber feet 1.9
AUP88-36-25A□-□□ 360 88 250 353 81 236 Aluminium feet 2.2
AUP88-36-25R□-□□ 360 88 250 353 81 236 Rubber feet 2.2
AUP88-36-30A□-□□ 360 88 300 353 81 286 Aluminium feet 2.5
AUP88-36-30R□-□□ 360 88 300 353 81 286 Rubber feet 2.5
AUP88-36-36A□-□□ 360 88 360 353 81 346 Aluminium feet 2.8
AUP88-36-36R□-□□ 360 88 360 353 81 346 Rubber feet 2.8
AUP88-36-43A□-□□ 360 88 430 353 81 416 Aluminium feet 3.2
AUP88-36-43R□-□□ 360 88 430 353 81 416 Rubber feet 3.2
AUP88-36-50A□-□□ 360 88 500 353 81 486 Aluminium feet 3.6
AUP88-36-50R□-□□ 360 88 500 353 81 486 Rubber feet 3.6
AUP88-43-16A□-□□ 430 88 160 423 81 146 Aluminium feet 2
AUP88-43-16R□-□□ 430 88 160 423 81 146 Rubber feet 2
AUP88-43-20A□-□□ 430 88 200 423 81 186 Aluminium feet 2.2
AUP88-43-20R□-□□ 430 88 200 423 81 186 Rubber feet 2.2
AUP88-43-25A□-□□ 430 88 250 423 81 236 Aluminium feet 2.5
AUP88-43-25R□-□□ 430 88 250 423 81 236 Rubber feet 2.5
AUP88-43-30A□-□□ 430 88 300 423 81 286 Aluminium feet 2.9
AUP88-43-30R□-□□ 430 88 300 423 81 286 Rubber feet 2.9
AUP88-43-36A□-□□ 430 88 360 423 81 346 Aluminium feet 3.2
AUP88-43-36R□-□□ 430 88 360 423 81 346 Rubber feet 3.2
AUP88-43-43A□-□□ 430 88 430 423 81 416 Aluminium feet 3.7
AUP88-43-43R□-□□ 430 88 430 423 81 416 Rubber feet 3.7
AUP88-43-50A□-□□ 430 88 500 423 81 486 Aluminium feet 4.1
AUP88-43-50R□-□□ 430 88 500 423 81 486 Rubber feet 4.1
AUP88-50-30A□-□□ 500 88 300 493 81 286 Aluminium feet 3.2
AUP88-50-30R□-□□ 500 88 300 493 81 286 Rubber feet 3.2
AUP88-50-36A□-□□ 500 88 360 493 81 346 Aluminium feet 3.6
AUP88-50-36R□-□□ 500 88 360 493 81 346 Rubber feet 3.6
AUP88-50-43A□-□□ 500 88 430 493 81 416 Aluminium feet 4.1
AUP88-50-43R□-□□ 500 88 430 493 81 416 Rubber feet 4.1
AUP88-50-50A□-□□ 500 88 500 493 81 486 Aluminium feet 4.6
AUP88-50-50R□-□□ 500 88 500 493 81 486 Rubber feet 4.6
AUP133-16-16A□-□□ 160 132.5 160 152 125.5 146 Aluminium feet 1.3
AUP133-16-16R□-□□ 160 132.5 160 152 125.5 146 Rubber feet 1.3
AUP133-16-20A□-□□ 160 132.5 200 152 125.5 186 Aluminium feet 1.4
AUP133-16-20R□-□□ 160 132.5 200 152 125.5 186 Rubber feet 1.4
AUP133-16-25A□-□□ 160 132.5 250 152 125.5 236 Aluminium feet 1.7
AUP133-16-25R□-□□ 160 132.5 250 152 125.5 236 Rubber feet 1.7
AUP133-16-30A□-□□ 160 132.5 300 152 125.5 286 Aluminium feet 1.9
AUP133-16-30R□-□□ 160 132.5 300 152 125.5 286 Rubber feet 1.9
AUP133-16-36A□-□□ 160 132.5 360 152 125.5 346 Aluminium feet 2.2
AUP133-16-36R□-□□ 160 132.5 360 152 125.5 346 Rubber feet 2.2
AUP133-16-43A□-□□ 160 132.5 430 152 125.5 416 Aluminium feet 2.5
AUP133-16-43R□-□□ 160 132.5 430 152 125.5 416 Rubber feet 2.5
AUP133-20-16A□-□□ 200 132.5 160 192 125.5 146 Aluminium feet 1.4
AUP133-20-16R□-□□ 200 132.5 160 192 125.5 146 Rubber feet 1.4
AUP133-20-20A□-□□ 200 132.5 200 192 125.5 186 Aluminium feet 1.6
AUP133-20-20R□-□□ 200 132.5 200 192 125.5 186 Rubber feet 1.6
AUP133-20-25A□-□□ 200 132.5 250 192 125.5 236 Aluminium feet 1.8
AUP133-20-25R□-□□ 200 132.5 250 192 125.5 236 Rubber feet 1.8
AUP133-20-30A□-□□ 200 132.5 300 192 125.5 286 Aluminium feet 2.1
AUP133-20-30R□-□□ 200 132.5 300 192 125.5 286 Rubber feet 2.1
AUP133-20-36A□-□□ 200 132.5 360 192 125.5 346 Aluminium feet 2.4
AUP133-20-36R□-□□ 200 132.5 360 192 125.5 346 Rubber feet 2.4
AUP133-20-43A□-□□ 200 132.5 430 192 125.5 416 Aluminium feet 2.7
AUP133-20-43R□-□□ 200 132.5 430 192 125.5 416 Rubber feet 2.7
AUP133-25-16A□-□□ 250 132.5 160 242 125.5 146 Aluminium feet 1.6
AUP133-25-16R□-□□ 250 132.5 160 242 125.5 146 Rubber feet 1.6
AUP133-25-20A□-□□ 250 132.5 200 242 125.5 186 Aluminium feet 1.8
AUP133-25-20R□-□□ 250 132.5 200 242 125.5 186 Rubber feet 1.8
AUP133-25-25A□-□□ 250 132.5 250 242 125.5 236 Aluminium feet 2.1
AUP133-25-25R□-□□ 250 132.5 250 242 125.5 236 Rubber feet 2.1
AUP133-25-30A□-□□ 250 132.5 300 242 125.5 286 Aluminium feet 2.4
AUP133-25-30R□-□□ 250 132.5 300 242 125.5 286 Rubber feet 2.4
AUP133-25-36A□-□□ 250 132.5 360 242 125.5 346 Aluminium feet 2.7
AUP133-25-36R□-□□ 250 132.5 360 242 125.5 346 Rubber feet 2.7
AUP133-25-43A□-□□ 250 132.5 430 242 125.5 416 Aluminium feet 3.1
AUP133-25-43R□-□□ 250 132.5 430 242 125.5 416 Rubber feet 3.1
AUP133-30-16A□-□□ 300 132.5 160 292 125.5 146 Aluminium feet 1.8
AUP133-30-16R□-□□ 300 132.5 160 292 125.5 146 Rubber feet 1.8
AUP133-30-20A□-□□ 300 132.5 200 292 125.5 186 Aluminium feet 2
AUP133-30-20R□-□□ 300 132.5 200 292 125.5 186 Rubber feet 2
AUP133-30-25A□-□□ 300 132.5 250 292 125.5 236 Aluminium feet 2.3
AUP133-30-25R□-□□ 300 132.5 250 292 125.5 236 Rubber feet 2.3
AUP133-30-30A□-□□ 300 132.5 300 292 125.5 286 Aluminium feet 2.6
AUP133-30-30R□-□□ 300 132.5 300 292 125.5 286 Rubber feet 2.6
AUP133-30-36A□-□□ 300 132.5 360 292 125.5 346 Aluminium feet 3
AUP133-30-36R□-□□ 300 132.5 360 292 125.5 346 Rubber feet 3
AUP133-30-43A□-□□ 300 132.5 430 292 125.5 416 Aluminium feet 3.4
AUP133-30-43R□-□□ 300 132.5 430 292 125.5 416 Rubber feet 3.4
AUP133-30-50A□-□□ 300 132.5 500 292 125.5 486 Aluminium feet 3.8
AUP133-30-50R□-□□ 300 132.5 500 292 125.5 486 Rubber feet 3.8
AUP133-36-16A□-□□ 360 132.5 160 352 125.5 146 Aluminium feet 2.1
AUP133-36-16R□-□□ 360 132.5 160 352 125.5 146 Rubber feet 2.1
AUP133-36-20A□-□□ 360 132.5 200 352 125.5 186 Aluminium feet 2.3
AUP133-36-20R□-□□ 360 132.5 200 352 125.5 186 Rubber feet 2.3
AUP133-36-25A□-□□ 360 132.5 250 352 125.5 236 Aluminium feet 2.6
AUP133-36-25R□-□□ 360 132.5 250 352 125.5 236 Rubber feet 2.6
AUP133-36-30A□-□□ 360 132.5 300 352 125.5 286 Aluminium feet 3
AUP133-36-30R□-□□ 360 132.5 300 352 125.5 286 Rubber feet 3
AUP133-36-36A□-□□ 360 132.5 360 352 125.5 346 Aluminium feet 3.3
AUP133-36-36R□-□□ 360 132.5 360 352 125.5 346 Rubber feet 3.3
AUP133-36-43A□-□□ 360 132.5 430 352 125.5 416 Aluminium feet 3.8
AUP133-36-43R□-□□ 360 132.5 430 352 125.5 416 Rubber feet 3.8
AUP133-36-50A□-□□ 360 132.5 500 352 125.5 486 Aluminium feet 4.3
AUP133-36-50R□-□□ 360 132.5 500 352 125.5 486 Rubber feet 4.3
AUP133-43-16A□-□□ 430 132.5 160 422 125.5 146 Aluminium feet 2.4
AUP133-43-16R□-□□ 430 132.5 160 422 125.5 146 Rubber feet 2.4
AUP133-43-20A□-□□ 430 132.5 200 422 125.5 186 Aluminium feet 2.6
AUP133-43-20R□-□□ 430 132.5 200 422 125.5 186 Rubber feet 2.6
AUP133-43-25A□-□□ 430 132.5 250 422 125.5 236 Aluminium feet 3
AUP133-43-25R□-□□ 430 132.5 250 422 125.5 236 Rubber feet 3
AUP133-43-30A□-□□ 430 132.5 300 422 125.5 286 Aluminium feet 3.4
AUP133-43-30R□-□□ 430 132.5 300 422 125.5 286 Rubber feet 3.4
AUP133-43-36A□-□□ 430 132.5 360 422 125.5 346 Aluminium feet 3.8
AUP133-43-36R□-□□ 430 132.5 360 422 125.5 346 Rubber feet 3.8
AUP133-43-43A□-□□ 430 132.5 430 422 125.5 416 Aluminium feet 4.3
AUP133-43-43R□-□□ 430 132.5 430 422 125.5 416 Rubber feet 4.3
AUP133-43-50A□-□□ 430 132.5 500 422 125.5 486 Aluminium feet 4.8
AUP133-43-50R□-□□ 430 132.5 500 422 125.5 486 Rubber feet 4.8
AUP133-50-30A□-□□ 500 132.5 300 492 125.5 286 Aluminium feet 3.8
AUP133-50-30R□-□□ 500 132.5 300 492 125.5 286 Rubber feet 3.8
AUP133-50-36A□-□□ 500 132.5 360 492 125.5 346 Aluminium feet 4.2
AUP133-50-36R□-□□ 500 132.5 360 492 125.5 346 Rubber feet 4.2
AUP133-50-43A□-□□ 500 132.5 430 492 125.5 416 Aluminium feet 4.8
AUP133-50-43R□-□□ 500 132.5 430 492 125.5 416 Rubber feet 4.8
AUP133-50-50A□-□□ 500 132.5 500 492 125.5 486 Aluminium feet 5.3
AUP133-50-50R□-□□ 500 132.5 500 492 125.5 486 Rubber feet 5.3
AUP177-16-16A□-□□ 160 177 160 152 170 146 Aluminium feet 1.4
AUP177-16-16R□-□□ 160 177 160 152 170 146 Rubber feet 1.4
AUP177-16-20A□-□□ 160 177 200 152 170 186 Aluminium feet 1.6
AUP177-16-20R□-□□ 160 177 200 152 170 186 Rubber feet 1.6
AUP177-16-25A□-□□ 160 177 250 152 170 236 Aluminium feet 1.9
AUP177-16-25R□-□□ 160 177 250 152 170 236 Rubber feet 1.9
AUP177-16-30A□-□□ 160 177 300 152 170 286 Aluminium feet 2.1
AUP177-16-30R□-□□ 160 177 300 152 170 286 Rubber feet 2.1
AUP177-16-36A□-□□ 160 177 360 152 170 346 Aluminium feet 2.4
AUP177-16-36R□-□□ 160 177 360 152 170 346 Rubber feet 2.4
AUP177-16-43A□-□□ 160 177 430 152 170 416 Aluminium feet 2.8
AUP177-16-43R□-□□ 160 177 430 152 170 416 Rubber feet 2.8
AUP177-20-16A□-□□ 200 177 160 192 170 146 Aluminium feet 1.6
AUP177-20-16R□-□□ 200 177 160 192 170 146 Rubber feet 1.6
AUP177-20-20A□-□□ 200 177 200 192 170 186 Aluminium feet 1.8
AUP177-20-20R□-□□ 200 177 200 192 170 186 Rubber feet 1.8
AUP177-20-25A□-□□ 200 177 250 192 170 236 Aluminium feet 2.1
AUP177-20-25R□-□□ 200 177 250 192 170 236 Rubber feet 2.1
AUP177-20-30A□-□□ 200 177 300 192 170 286 Aluminium feet 2.4
AUP177-20-30R□-□□ 200 177 300 192 170 286 Rubber feet 2.4
AUP177-20-36A□-□□ 200 177 360 192 170 346 Aluminium feet 2.7
AUP177-20-36R□-□□ 200 177 360 192 170 346 Rubber feet 2.7
AUP177-20-43A□-□□ 200 177 430 192 170 416 Aluminium feet 3.1
AUP177-20-43R□-□□ 200 177 430 192 170 416 Rubber feet 3.1
AUP177-25-16A□-□□ 250 177 160 242 170 146 Aluminium feet 1.8
AUP177-25-16R□-□□ 250 177 160 242 170 146 Rubber feet 1.8
AUP177-25-20A□-□□ 250 177 200 242 170 186 Aluminium feet 2.1
AUP177-25-20R□-□□ 250 177 200 242 170 186 Rubber feet 2.1
AUP177-25-25A□-□□ 250 177 250 242 170 236 Aluminium feet 2.4
AUP177-25-25R□-□□ 250 177 250 242 170 236 Rubber feet 2.4
AUP177-25-30A□-□□ 250 177 300 242 170 286 Aluminium feet 2.7
AUP177-25-30R□-□□ 250 177 300 242 170 286 Rubber feet 2.7
AUP177-25-36A□-□□ 250 177 360 242 170 346 Aluminium feet 3
AUP177-25-36R□-□□ 250 177 360 242 170 346 Rubber feet 3
AUP177-25-43A□-□□ 250 177 430 242 170 416 Aluminium feet 3.5
AUP177-25-43R□-□□ 250 177 430 242 170 416 Rubber feet 3.5
AUP177-30-16A□-□□ 300 177 160 292 170 146 Aluminium feet 2
AUP177-30-16R□-□□ 300 177 160 292 170 146 Rubber feet 2
AUP177-30-20A□-□□ 300 177 200 292 170 186 Aluminium feet 2.3
AUP177-30-20R□-□□ 300 177 200 292 170 186 Rubber feet 2.3
AUP177-30-25A□-□□ 300 177 250 292 170 236 Aluminium feet 2.6
AUP177-30-25R□-□□ 300 177 250 292 170 236 Rubber feet 2.6
AUP177-30-30A□-□□ 300 177 300 292 170 286 Aluminium feet 3
AUP177-30-30R□-□□ 300 177 300 292 170 286 Rubber feet 3
AUP177-30-36A□-□□ 300 177 360 292 170 346 Aluminium feet 3.3
AUP177-30-36R□-□□ 300 177 360 292 170 346 Rubber feet 3.3
AUP177-30-43A□-□□ 300 177 430 292 170 416 Aluminium feet 3.8
AUP177-30-43R□-□□ 300 177 430 292 170 416 Rubber feet 3.8
AUP177-30-50A□-□□ 300 177 500 292 170 486 Aluminium feet 4.3
AUP177-30-50R□-□□ 300 177 500 292 170 486 Rubber feet 4.3
AUP177-36-16A□-□□ 360 177 160 352 170 146 Aluminium feet 2.3
AUP177-36-16R□-□□ 360 177 160 352 170 146 Rubber feet 2.3
AUP177-36-20A□-□□ 360 177 200 352 170 186 Aluminium feet 2.6
AUP177-36-20R□-□□ 360 177 200 352 170 186 Rubber feet 2.6
AUP177-36-25A□-□□ 360 177 250 352 170 236 Aluminium feet 3
AUP177-36-25R□-□□ 360 177 250 352 170 236 Rubber feet 3
AUP177-36-30A□-□□ 360 177 300 352 170 286 Aluminium feet 3.3
AUP177-36-30R□-□□ 360 177 300 352 170 286 Rubber feet 3.3
AUP177-36-36A□-□□ 360 177 360 352 170 346 Aluminium feet 3.7
AUP177-36-36R□-□□ 360 177 360 352 170 346 Rubber feet 3.7
AUP177-36-43A□-□□ 360 177 430 352 170 416 Aluminium feet 4.3
AUP177-36-43R□-□□ 360 177 430 352 170 416 Rubber feet 4.3
AUP177-36-50A□-□□ 360 177 500 352 170 486 Aluminium feet 4.8
AUP177-36-50R□-□□ 360 177 500 352 170 486 Rubber feet 4.8
AUP177-43-16A□-□□ 430 177 160 422 170 146 Aluminium feet 2.6
AUP177-43-16R□-□□ 430 177 160 422 170 146 Rubber feet 2.6
AUP177-43-20A□-□□ 430 177 200 422 170 186 Aluminium feet 3
AUP177-43-20R□-□□ 430 177 200 422 170 186 Rubber feet 3
AUP177-43-25A□-□□ 430 177 250 422 170 236 Aluminium feet 3.4
AUP177-43-25R□-□□ 430 177 250 422 170 236 Rubber feet 3.4
AUP177-43-30A□-□□ 430 177 300 422 170 286 Aluminium feet 3.8
AUP177-43-30R□-□□ 430 177 300 422 170 286 Rubber feet 3.8
AUP177-43-36A□-□□ 430 177 360 422 170 346 Aluminium feet 4.2
AUP177-43-36R□-□□ 430 177 360 422 170 346 Rubber feet 4.2
AUP177-43-43A□-□□ 430 177 430 422 170 416 Aluminium feet 4.8
AUP177-43-43R□-□□ 430 177 430 422 170 416 Rubber feet 4.8
AUP177-43-50A□-□□ 430 177 500 422 170 486 Aluminium feet 5.4
AUP177-43-50R□-□□ 430 177 500 422 170 486 Rubber feet 5.4
AUP177-50-30A□-□□ 500 177 300 492 170 286 Aluminium feet 4.2
AUP177-50-30R□-□□ 500 177 300 492 170 286 Rubber feet 4.2
AUP177-50-36A□-□□ 500 177 360 492 170 346 Aluminium feet 4.7
AUP177-50-36R□-□□ 500 177 360 492 170 346 Rubber feet 4.7
AUP177-50-43A□-□□ 500 177 430 492 170 416 Aluminium feet 5.3
AUP177-50-43R□-□□ 500 177 430 492 170 416 Rubber feet 5.3
AUP177-50-50A□-□□ 500 177 500 492 170 486 Aluminium feet 5.9
AUP177-50-50R□-□□ 500 177 500 492 170 486 Rubber feet 5.9
Mounting plate (Option) PDF DXF DWG STP
AUC16-16 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC16-20 PDF DXF DWG
AUC16-20 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC20-43 PDF DXF DWG
AUC20-43 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC16-20 PDF DXF DWG
AUC16-20 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC20-43 PDF DXF DWG
AUC20-43 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC16-20 PDF DXF DWG
AUC16-20 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC20-43 PDF DXF DWG
AUC20-43 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC16-20 PDF DXF DWG
AUC16-20 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC20-43 PDF DXF DWG
AUC20-43 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC50-50 PDF DXF DWG

OPTIONAL PARTS

１
MOUNTING PLATE for AU□ series (for AU・AUG・AUGE・AUP・AUPE・AUX・AUXE)
DETAILS
１
CORNER GUARD for AU□ series (for AU・AUP・AUPE・AUX・AUXE)
DETAILS
１
ELASTOMER CARRYING HANDLE - FM200 series
DETAILS
１
TILT LEG - TLW series
DETAILS
１
MONITOR ARM for AU□ series - MAR series
DETAILS

SIMILAR PRODUCT

１
EMC SHIELDED ENCLOSURE with DETACHABLE PANELS - AUPE series
DETAILS
１
ALUMINIUM ENCLOSURE - AU series
DETAILS
１
EMC SHIELDED RUGGED ENCLOSURE - AUGE series
DETAILS
１
EXTRUDED ALUMINIUM ENCLOSURE - EX series
DETAILS
１
CUSTOM SIZED EXTRUDED ALUMINUM ENCLOSURE - EXS series
DETAILS
１
METAL DESKTOP ENCLOSURE - MS series
DETAILS

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

Fiber laser cutting

DETAILS

CNC punch pressing

DETAILS

High speed CNC milling

DETAILS

Clinching standoff pressing

DETAILS

Digital inkjet printing

DETAILS

Graphic overlay making

DETAILS
