EMC SHIELDED RUGGED ENCLOSURE - AUGE series


AUGE Series -PDF

CATEGORY：Rugged enclosure, Robust enclosure, EMC/EMI shielding enclosure, Protective case, Instrument enclosure

EMC SHIELDED RUGGED ENCLOSURE - AUGE series
EMC SHIELDED RUGGED ENCLOSURE - AUGE series
EMC SHIELDED RUGGED ENCLOSURE - AUGE series
EMC SHIELDED RUGGED ENCLOSURE - AUGE series
EMC SHIELDED RUGGED ENCLOSURE - AUGE series
EMC SHIELDED RUGGED ENCLOSURE - AUGE series
EMC SHIELDED RUGGED ENCLOSURE - AUGE series
EMC SHIELDED RUGGED ENCLOSURE - AUGE series1
EMC SHIELDED RUGGED ENCLOSURE - AUGE series2
EMC SHIELDED RUGGED ENCLOSURE - AUGE series3
EMC SHIELDED RUGGED ENCLOSURE - AUGE series4
EMC SHIELDED RUGGED ENCLOSURE - AUGE series5
EMC SHIELDED RUGGED ENCLOSURE - AUGE series6
EMC SHIELDED RUGGED ENCLOSURE - AUGE series7

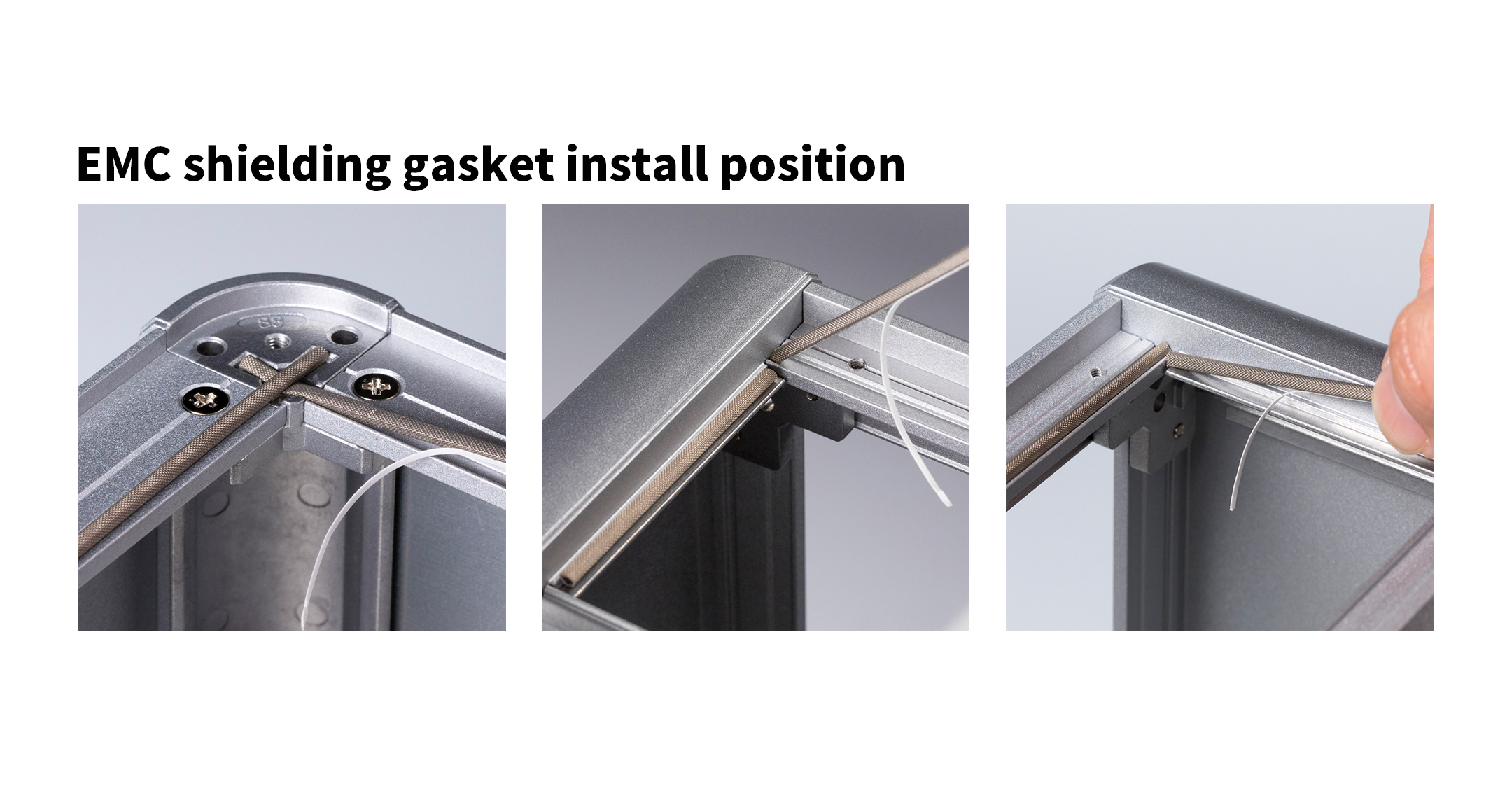

Shielding gasket allows the enclosure to be EMC shielded.

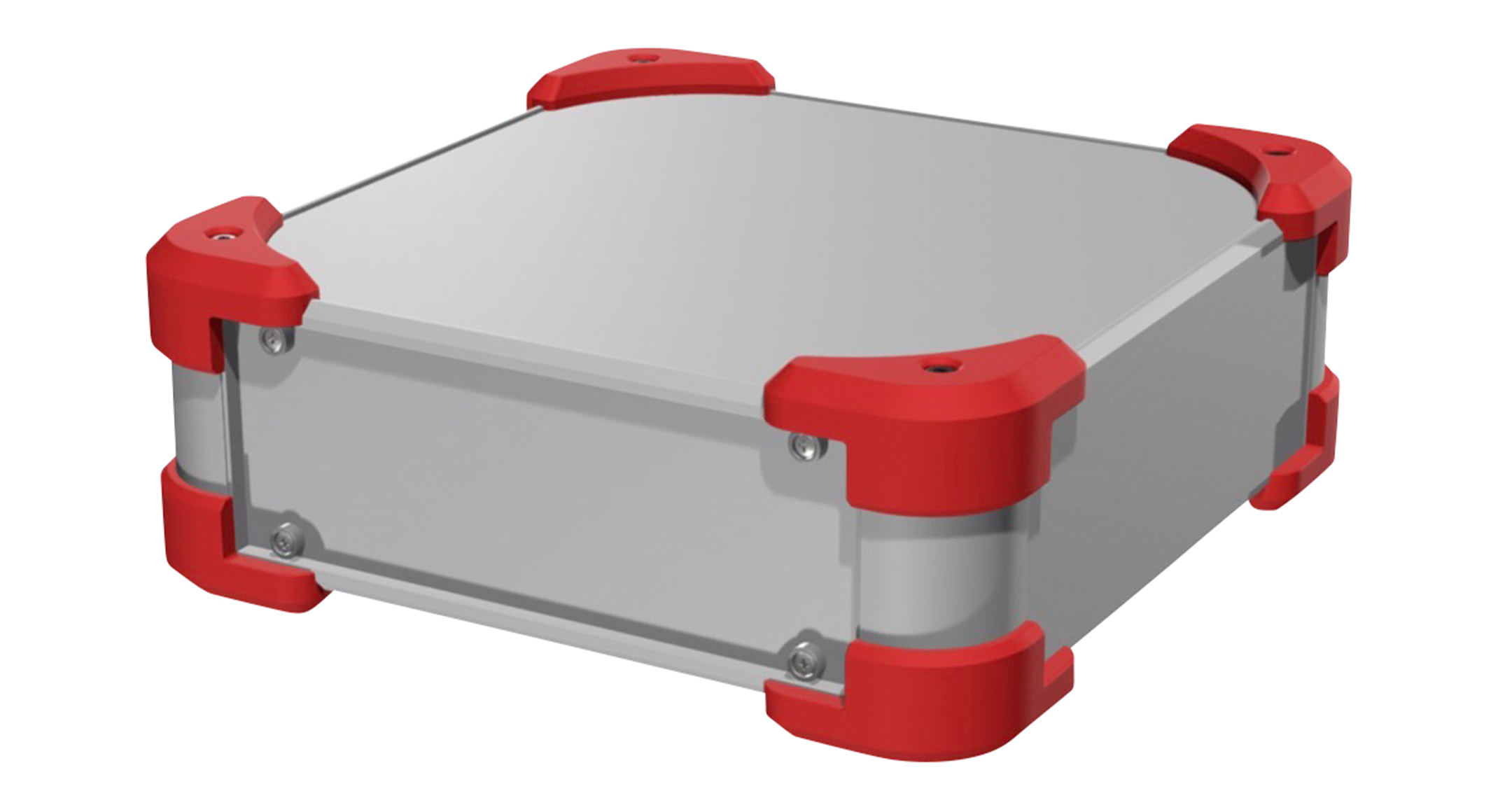

Rugged designed EMC shielded aluminium enclosure with TPE (Elastomer) corner guards.
Corner guards also act as non-slip rubber feet.

Suitable to be used as an easy maintenance desktop case due to its detachable front/rear panels.
Captive screws allow for ease of maintenance as there is little risk of the screws dropping out and getting lost.

A large selection of 177 different sizes.
A total of 4 selectable color combinations with a silver anodized body and 4 corner guard colors - Black, Gray, Navy and Red.

COLOR TYPE

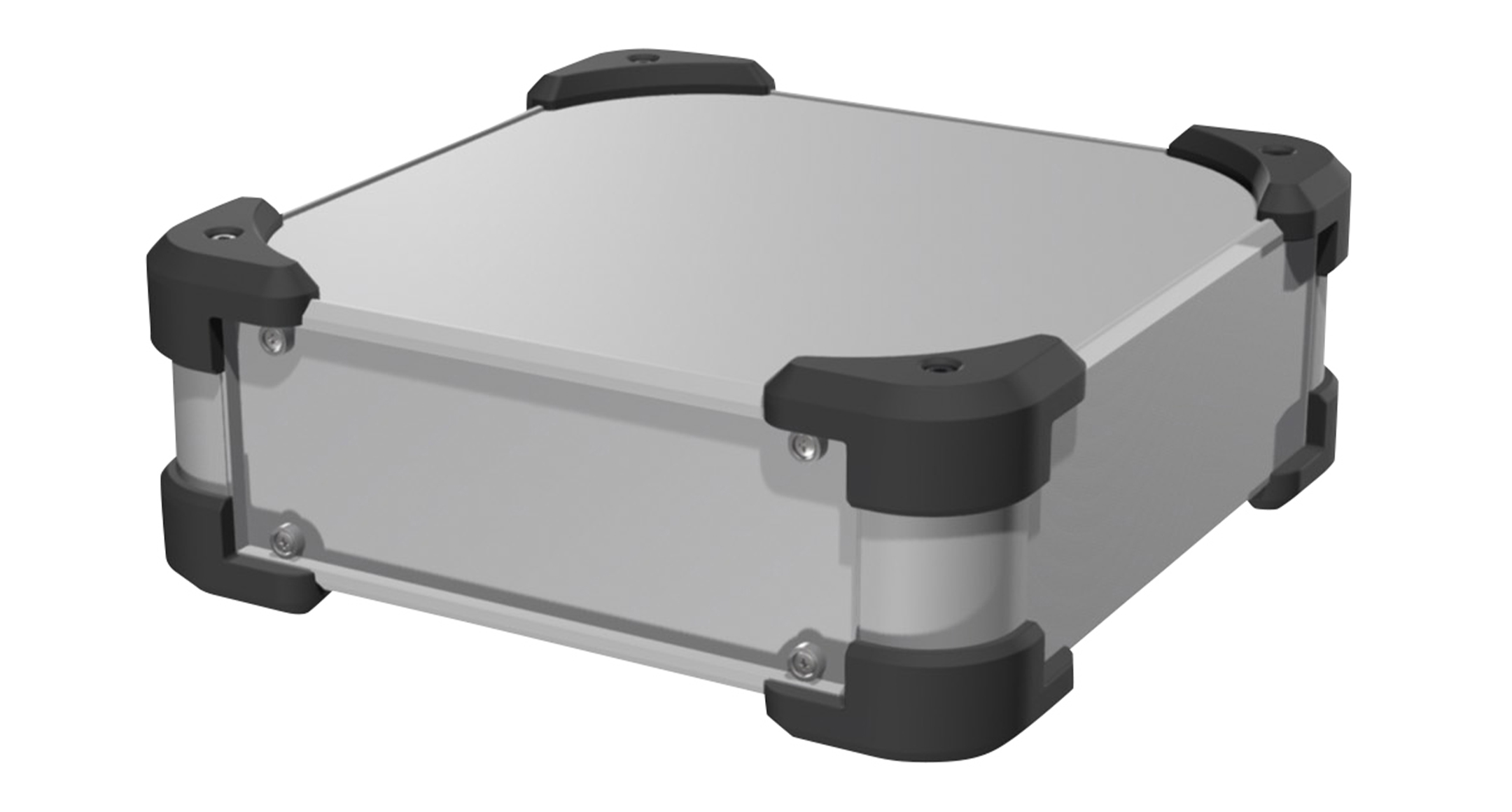

SBSilver / Black(Similar to PANTONE ProcessBlack C)

EMC SHIELDED RUGGED ENCLOSURE - AUGE series:Silver / Black(Similar to PANTONE ProcessBlack C)

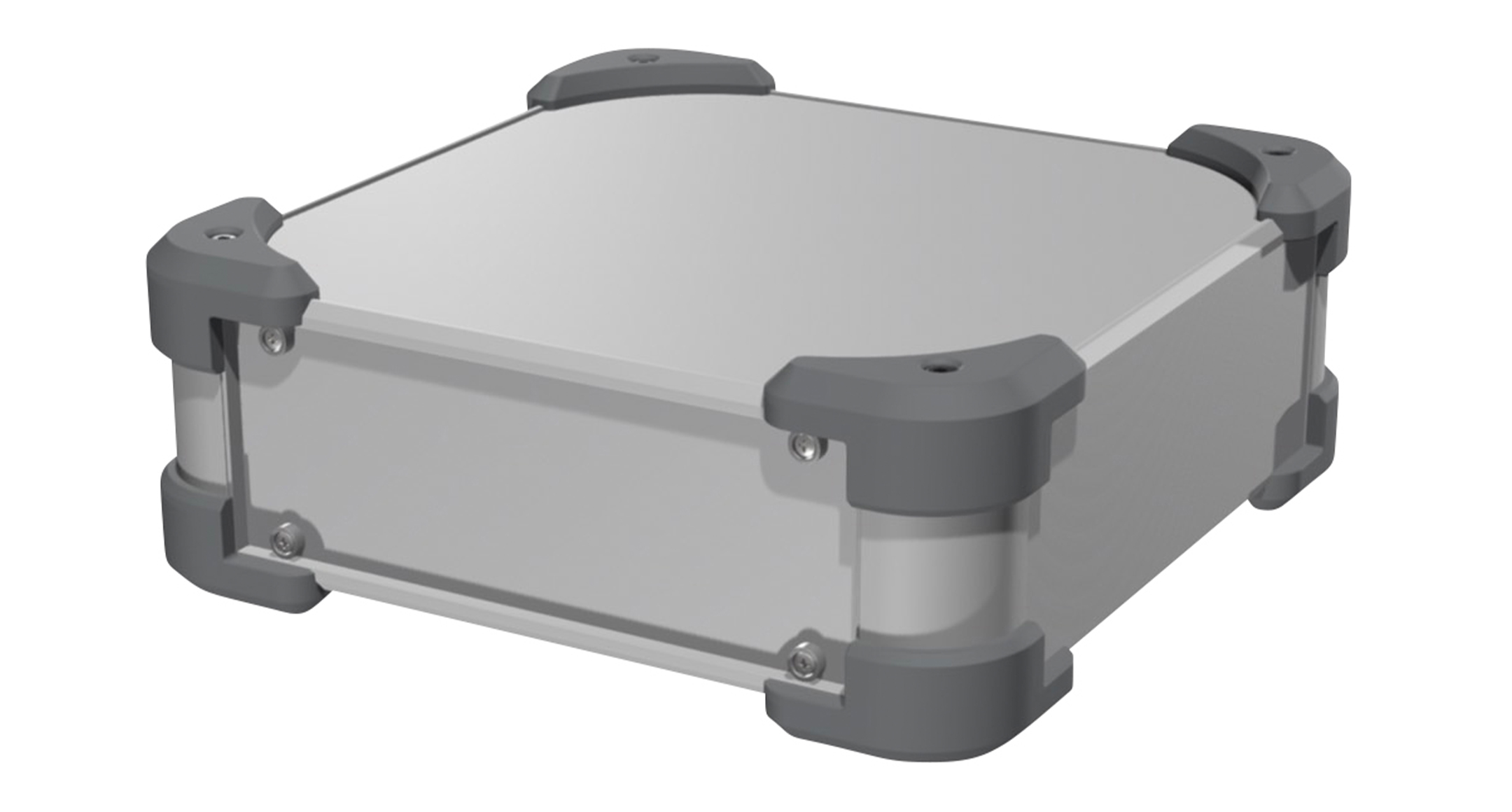

SGSilver / Gray(Similar to PANTONE 431C)

EMC SHIELDED RUGGED ENCLOSURE - AUGE series:Silver / Gray(Similar to PANTONE 431C)

SNSilver / Navy(Similar to PANTONE 654CP)

EMC SHIELDED RUGGED ENCLOSURE - AUGE series:Silver / Navy(Similar to PANTONE 654CP)

SRSilver / Red(Similar to PANTONE 186C)

EMC SHIELDED RUGGED ENCLOSURE - AUGE series:Silver / Red(Similar to PANTONE 186C)
EMC SHIELDED RUGGED ENCLOSURE - AUGE series:Silver / Black(Similar to PANTONE ProcessBlack C)
EMC SHIELDED RUGGED ENCLOSURE - AUGE series:Silver / Gray(Similar to PANTONE 431C)
EMC SHIELDED RUGGED ENCLOSURE - AUGE series:Silver / Navy(Similar to PANTONE 654CP)
EMC SHIELDED RUGGED ENCLOSURE - AUGE series:Silver / Red(Similar to PANTONE 186C)

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (kg) PDF DXF DWG STP
W H D w h d
AUGE66-16-16-□□ 168 78 168 153 59 146 0.9
AUGE66-16-20-□□ 168 78 208 153 59 186 1.1
AUGE66-16-25-□□ 168 78 258 153 59 236 1.2
AUGE66-16-30-□□ 168 78 308 153 59 286 1.4
AUGE66-16-36-□□ 168 78 368 153 59 346 1.6
AUGE66-16-43-□□ 168 78 438 153 59 416 1.8
AUGE66-20-16-□□ 208 78 168 193 59 146 1.1
AUGE66-20-20-□□ 208 78 208 193 59 186 1.2
AUGE66-20-25-□□ 208 78 258 193 59 236 1.4
AUGE66-20-30-□□ 208 78 308 193 59 286 1.6
AUGE66-20-36-□□ 208 78 368 193 59 346 1.8
AUGE66-20-43-□□ 208 78 438 193 59 416 2.1
AUGE66-25-16-□□ 258 78 168 243 59 146 1.2
AUGE66-25-20-□□ 258 78 208 243 59 186 1.4
AUGE66-25-25-□□ 258 78 258 243 59 236 1.6
AUGE66-25-30-□□ 258 78 308 243 59 286 1.8
AUGE66-25-36-□□ 258 78 368 243 59 346 2
AUGE66-25-43-□□ 258 78 438 243 59 416 2.4
AUGE66-30-16-□□ 308 78 168 293 59 146 1.4
AUGE66-30-20-□□ 308 78 208 293 59 186 1.6
AUGE66-30-25-□□ 308 78 258 293 59 236 1.8
AUGE66-30-30-□□ 308 78 308 293 59 286 2
AUGE66-30-36-□□ 308 78 368 293 59 346 2.3
AUGE66-30-43-□□ 308 78 438 293 59 416 2.7
AUGE66-30-50-□□ 308 78 508 293 59 486 3
AUGE66-36-16-□□ 368 78 168 353 59 146 1.6
AUGE66-36-20-□□ 368 78 208 353 59 186 1.8
AUGE66-36-25-□□ 368 78 258 353 59 236 2.1
AUGE66-36-30-□□ 368 78 308 353 59 286 2.3
AUGE66-36-36-□□ 368 78 368 353 59 346 2.6
AUGE66-36-43-□□ 368 78 438 353 59 416 3
AUGE66-36-50-□□ 368 78 508 353 59 486 3.4
AUGE66-43-16-□□ 438 78 168 423 59 146 1.8
AUGE66-43-20-□□ 438 78 208 423 59 186 2.1
AUGE66-43-25-□□ 438 78 258 423 59 236 2.4
AUGE66-43-30-□□ 438 78 308 423 59 286 2.7
AUGE66-43-36-□□ 438 78 368 423 59 346 3
AUGE66-43-43-□□ 438 78 438 423 59 416 3.5
AUGE66-43-50-□□ 438 78 508 423 59 486 3.9
AUGE66-50-30-□□ 508 78 308 493 59 286 3
AUGE66-50-36-□□ 508 78 368 493 59 346 3.4
AUGE66-50-43-□□ 508 78 438 493 59 416 3.9
AUGE66-50-50-□□ 508 78 508 493 59 486 4.4
AUGE88-16-16-□□ 168 100 168 153 81 146 1
AUGE88-16-20-□□ 168 100 208 153 81 186 1.2
AUGE88-16-25-□□ 168 100 258 153 81 236 1.4
AUGE88-16-30-□□ 168 100 308 153 81 286 1.5
AUGE88-16-36-□□ 168 100 368 153 81 346 1.8
AUGE88-16-43-□□ 168 100 438 153 81 416 2
AUGE88-20-16-□□ 208 100 168 193 81 146 1.2
AUGE88-20-20-□□ 208 100 208 193 81 186 1.3
AUGE88-20-25-□□ 208 100 258 193 81 236 1.5
AUGE88-20-30-□□ 208 100 308 193 81 286 1.7
AUGE88-20-36-□□ 208 100 368 193 81 346 1.9
AUGE88-20-43-□□ 208 100 438 193 81 416 2.2
AUGE88-25-16-□□ 258 100 168 243 81 146 1.4
AUGE88-25-20-□□ 258 100 208 243 81 186 1.5
AUGE88-25-25-□□ 258 100 258 243 81 236 1.7
AUGE88-25-30-□□ 258 100 308 243 81 286 2
AUGE88-25-36-□□ 258 100 368 243 81 346 2.2
AUGE88-25-43-□□ 258 100 438 243 81 416 2.6
AUGE88-30-16-□□ 308 100 168 293 81 146 1.5
AUGE88-30-20-□□ 308 100 208 293 81 186 1.7
AUGE88-30-25-□□ 308 100 258 293 81 236 2
AUGE88-30-30-□□ 308 100 308 293 81 286 2.2
AUGE88-30-36-□□ 308 100 368 293 81 346 2.5
AUGE88-30-43-□□ 308 100 438 293 81 416 2.9
AUGE88-30-50-□□ 308 100 508 293 81 486 3.2
AUGE88-36-16-□□ 368 100 168 353 81 146 1.8
AUGE88-36-20-□□ 368 100 208 353 81 186 2
AUGE88-36-25-□□ 368 100 258 353 81 236 2.2
AUGE88-36-30-□□ 368 100 308 353 81 286 2.5
AUGE88-36-36-□□ 368 100 368 353 81 346 2.8
AUGE88-36-43-□□ 368 100 438 353 81 416 3.3
AUGE88-36-50-□□ 368 100 508 353 81 486 3.7
AUGE88-43-16-□□ 438 100 168 423 81 146 1.9
AUGE88-43-20-□□ 438 100 208 423 81 186 2.3
AUGE88-43-25-□□ 438 100 258 423 81 236 2.6
AUGE88-43-30-□□ 438 100 308 423 81 286 2.9
AUGE88-43-36-□□ 438 100 368 423 81 346 3.3
AUGE88-43-43-□□ 438 100 438 423 81 416 3.7
AUGE88-43-50-□□ 438 100 508 423 81 486 4.2
AUGE88-50-30-□□ 508 100 308 493 81 286 3.2
AUGE88-50-36-□□ 508 100 368 493 81 346 3.7
AUGE88-50-43-□□ 508 100 438 493 81 416 4.2
AUGE88-50-50-□□ 508 100 508 493 81 486 4.7
AUGE133-16-16-□□ 168 144.5 168 152 125.5 146 1.3
AUGE133-16-20-□□ 168 144.5 208 152 125.5 186 1.5
AUGE133-16-25-□□ 168 144.5 258 152 125.5 236 1.7
AUGE133-16-30-□□ 168 144.5 308 152 125.5 286 1.9
AUGE133-16-36-□□ 168 144.5 368 152 125.5 346 2.2
AUGE133-16-43-□□ 168 144.5 438 152 125.5 416 2.4
AUGE133-20-16-□□ 208 144.5 168 192 125.5 146 1.4
AUGE133-20-20-□□ 208 144.5 208 192 125.5 186 1.6
AUGE133-20-25-□□ 208 144.5 258 192 125.5 236 1.9
AUGE133-20-30-□□ 208 144.5 308 192 125.5 286 2.1
AUGE133-20-36-□□ 208 144.5 368 192 125.5 346 2.4
AUGE133-20-43-□□ 208 144.5 438 192 125.5 416 2.8
AUGE133-25-16-□□ 258 144.5 168 242 125.5 146 1.6
AUGE133-25-20-□□ 258 144.5 208 242 125.5 186 1.9
AUGE133-25-25-□□ 258 144.5 258 242 125.5 236 2.1
AUGE133-25-30-□□ 258 144.5 308 242 125.5 286 2.4
AUGE133-25-36-□□ 258 144.5 368 242 125.5 346 2.7
AUGE133-25-43-□□ 258 144.5 438 242 125.5 416 3.1
AUGE133-30-16-□□ 308 144.5 168 292 125.5 146 1.8
AUGE133-30-20-□□ 308 144.5 208 292 125.5 186 2.1
AUGE133-30-25-□□ 308 144.5 258 292 125.5 236 2.4
AUGE133-30-30-□□ 308 144.5 308 292 125.5 286 2.7
AUGE133-30-36-□□ 308 144.5 368 292 125.5 346 3
AUGE133-30-43-□□ 308 144.5 438 292 125.5 416 3.4
AUGE133-30-50-□□ 308 144.5 508 292 125.5 486 3.8
AUGE133-36-16-□□ 368 144.5 168 352 125.5 146 2.1
AUGE133-36-20-□□ 368 144.5 208 352 125.5 186 2.3
AUGE133-36-25-□□ 368 144.5 258 352 125.5 236 2.7
AUGE133-36-30-□□ 368 144.5 308 352 125.5 286 3
AUGE133-36-36-□□ 368 144.5 368 352 125.5 346 3.4
AUGE133-36-43-□□ 368 144.5 438 352 125.5 416 3.9
AUGE133-36-50-□□ 368 144.5 508 352 125.5 486 4.3
AUGE133-43-16-□□ 438 144.5 168 422 125.5 146 2.4
AUGE133-43-20-□□ 438 144.5 208 422 125.5 186 2.7
AUGE133-43-25-□□ 438 144.5 258 422 125.5 236 3
AUGE133-43-30-□□ 438 144.5 308 422 125.5 286 3.4
AUGE133-43-36-□□ 438 144.5 368 422 125.5 346 3.8
AUGE133-43-43-□□ 438 144.5 438 422 125.5 416 4.3
AUGE133-43-50-□□ 438 144.5 508 422 125.5 486 4.9
AUGE133-50-30-□□ 508 144.5 308 492 125.5 286 3.8
AUGE133-50-36-□□ 508 144.5 368 492 125.5 346 4.3
AUGE133-50-43-□□ 508 144.5 438 492 125.5 416 4.8
AUGE133-50-50-□□ 508 144.5 508 492 125.5 486 5.4
AUGE177-16-16-□□ 168 189 168 152 170 146 1.5
AUGE177-16-20-□□ 168 189 208 152 170 186 1.7
AUGE177-16-25-□□ 168 189 258 152 170 236 1.9
AUGE177-16-30-□□ 168 189 308 152 170 286 2.2
AUGE177-16-36-□□ 168 189 368 152 170 346 2.5
AUGE177-16-43-□□ 168 189 438 152 170 416 2.8
AUGE177-20-16-□□ 208 189 168 192 170 146 1.6
AUGE177-20-20-□□ 208 189 208 192 170 186 1.9
AUGE177-20-25-□□ 208 189 258 192 170 236 2.1
AUGE177-20-30-□□ 208 189 308 192 170 286 2.4
AUGE177-20-36-□□ 208 189 368 192 170 346 2.7
AUGE177-20-43-□□ 208 189 438 192 170 416 3.1
AUGE177-25-16-□□ 258 189 168 242 170 146 1.9
AUGE177-25-20-□□ 258 189 208 242 170 186 2.1
AUGE177-25-25-□□ 258 189 258 242 170 236 2.4
AUGE177-25-30-□□ 258 189 308 242 170 286 2.7
AUGE177-25-36-□□ 258 189 368 242 170 346 3.1
AUGE177-25-43-□□ 258 189 438 242 170 416 3.5
AUGE177-30-16-□□ 308 189 168 292 170 146 2.1
AUGE177-30-20-□□ 308 189 208 292 170 186 2.3
AUGE177-30-25-□□ 308 189 258 292 170 236 2.7
AUGE177-30-30-□□ 308 189 308 292 170 286 3
AUGE177-30-36-□□ 308 189 368 292 170 346 3.4
AUGE177-30-43-□□ 308 189 438 292 170 416 3.8
AUGE177-30-50-□□ 308 189 508 292 170 486 4.3
AUGE177-36-16-□□ 368 189 168 352 170 146 2.3
AUGE177-36-20-□□ 368 189 208 352 170 186 2.6
AUGE177-36-25-□□ 368 189 258 352 170 236 3
AUGE177-36-30-□□ 368 189 308 352 170 286 3.3
AUGE177-36-36-□□ 368 189 368 352 170 346 3.8
AUGE177-36-43-□□ 368 189 438 352 170 416 4.3
AUGE177-36-50-□□ 368 189 508 352 170 486 4.8
AUGE177-43-16-□□ 438 189 168 422 170 146 2.7
AUGE177-43-20-□□ 438 189 208 422 170 186 3
AUGE177-43-25-□□ 438 189 258 422 170 236 3.4
AUGE177-43-30-□□ 438 189 308 422 170 286 3.8
AUGE177-43-36-□□ 438 189 368 422 170 346 4.2
AUGE177-43-43-□□ 438 189 438 422 170 416 4.8
AUGE177-43-50-□□ 438 189 508 422 170 486 5.4
AUGE177-50-30-□□ 508 189 308 492 170 286 4.2
AUGE177-50-36-□□ 508 189 368 492 170 346 4.7
AUGE177-50-43-□□ 508 189 438 492 170 416 5.3
AUGE177-50-50-□□ 508 189 508 492 170 486 5.9
