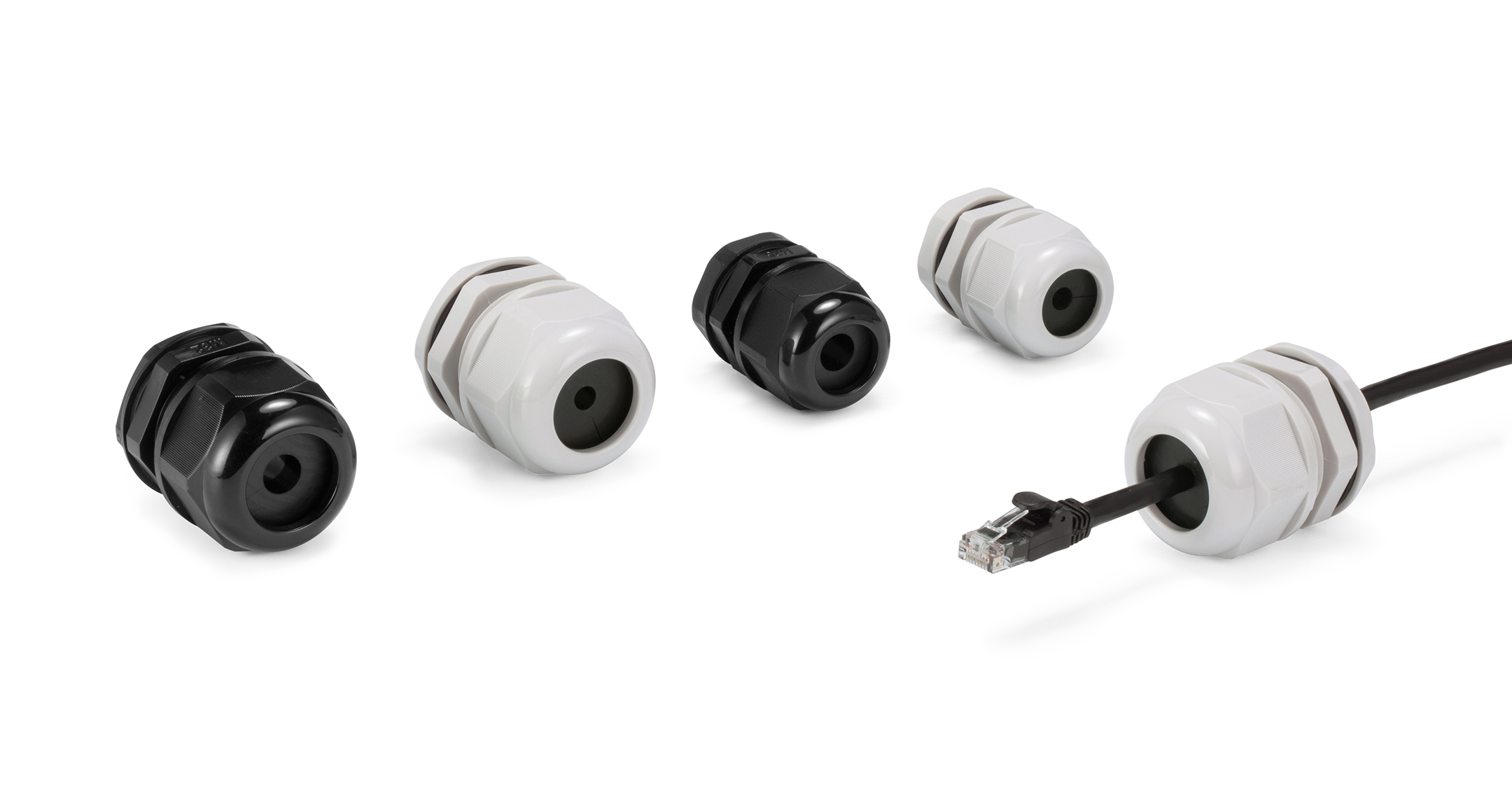

CATEGORY：Weatherproof cable gland, IP67 cable gland, Polyamide cable gland,

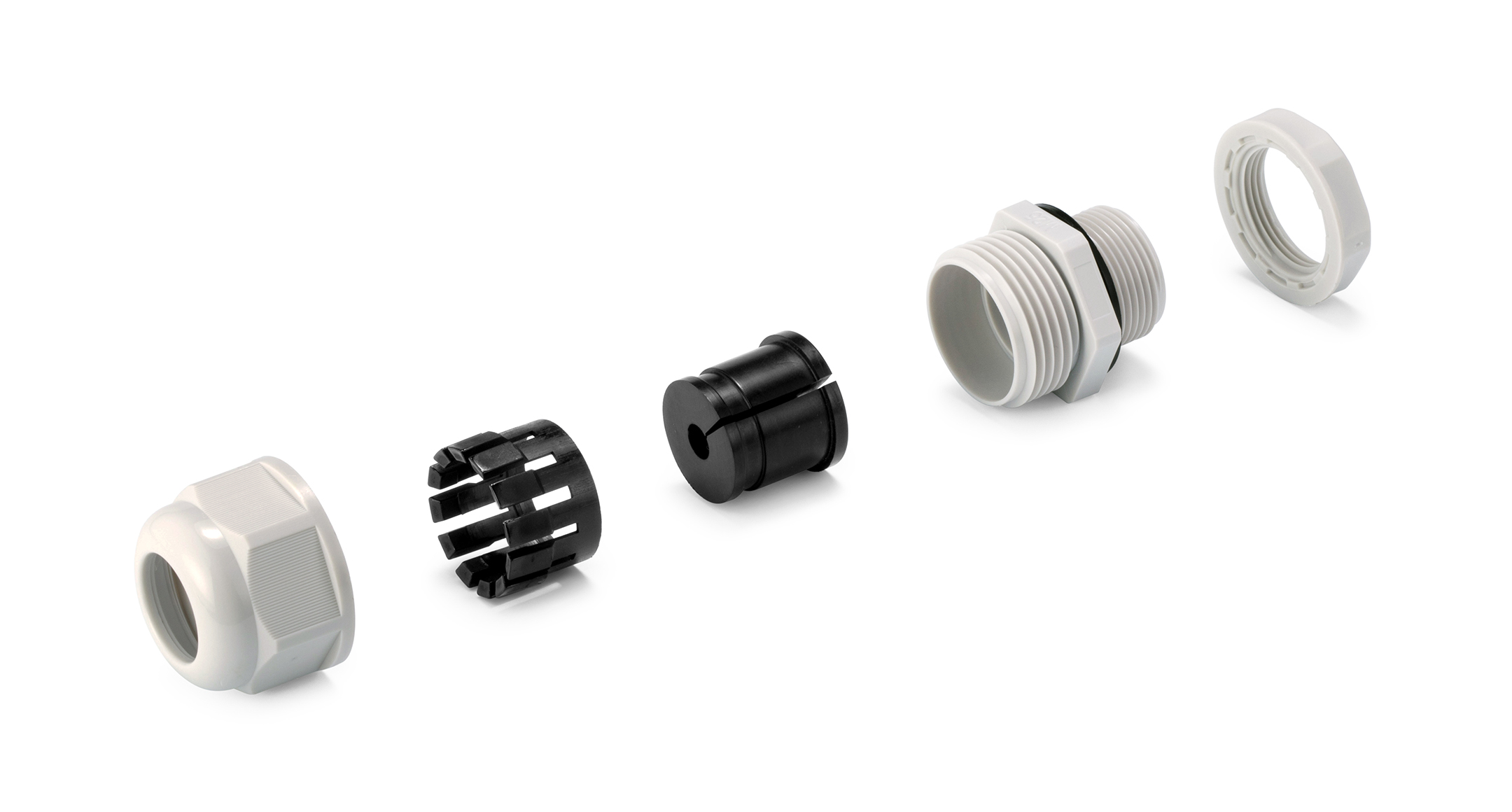

Split type sealing insert can protect cables with connector.
Selectable from M25 and M32 thread size.
Suitable for φ5mm～φ6.5mm and φ7.5mm～φ10.5mm cables
Color : Available from Black (B) and Light gray
Protection class : Equivalent to IP67 (In-house test)
Operating temperature : -20℃～＋80℃
Material：Cap・Connector・Lock Nut = PA66(UL94V-2)
Sealing Washer = Silicone
Sealing Insert = Silicone / PA66 (UL94V-2)
Selectable from M25 and M32 thread size.
Suitable for φ5mm～φ6.5mm and φ7.5mm～φ10.5mm cables
Color : Available from Black (B) and Light gray
Protection class : Equivalent to IP67 (In-house test)
Operating temperature : -20℃～＋80℃
Material：Cap・Connector・Lock Nut = PA66(UL94V-2)
Sealing Washer = Silicone
Sealing Insert = Silicone / PA66 (UL94V-2)
PRODUCT NO. / DIMENSIONS
| Product No. | Thread size | Mounting hole | Cable range | Weight (g) | Pack of | DXF | DWG | |
|---|---|---|---|---|---|---|---|---|
| RSC25-6.5B | M25×1.5 | φ25.2 | 5～6.5 | 33.5 | 1 | DXF | DWG | |
| RSC25-6.5S | M25×1.5 | φ25.2 | 5～6.5 | 33.5 | 1 | DXF | DWG | |
| RSC25-10.5B | M25×1.5 | φ25.2 | 7.5～10.5 | 32.5 | 1 | DXF | DWG | |
| RSC25-10.5S | M25×1.5 | φ25.2 | 7.5～10.5 | 32.5 | 1 | DXF | DWG | |
| RSC32-6.5B | M32×1.5 | φ32.3 | 5～6.5 | 58 | 1 | DXF | DWG | |
| RSC32-6.5S | M32×1.5 | φ32.3 | 5～6.5 | 58 | 1 | DXF | DWG | |
| RSC32-10.5B | M32×1.5 | φ32.3 | 7.5～10.5 | 56 | 1 | DXF | DWG | |
| RSC32-10.5S | M32×1.5 | φ32.3 | 7.5～10.5 | 56 | 1 | DXF | DWG |
SAMPLE REQUEST FORM
This product series is available as a free sample.
