DIN RAIL MOUNTING BRACKET - DRF series


DRF Series -PDF

CATEGORY：Economical DIN rail mounting bracket, DIN Rail mounting feet, DIN Rail adapter

DIN RAIL MOUNTING BRACKET - DRF series
DIN RAIL MOUNTING BRACKET - DRF series
DIN RAIL MOUNTING BRACKET - DRF series1
DIN RAIL MOUNTING BRACKET - DRF series2

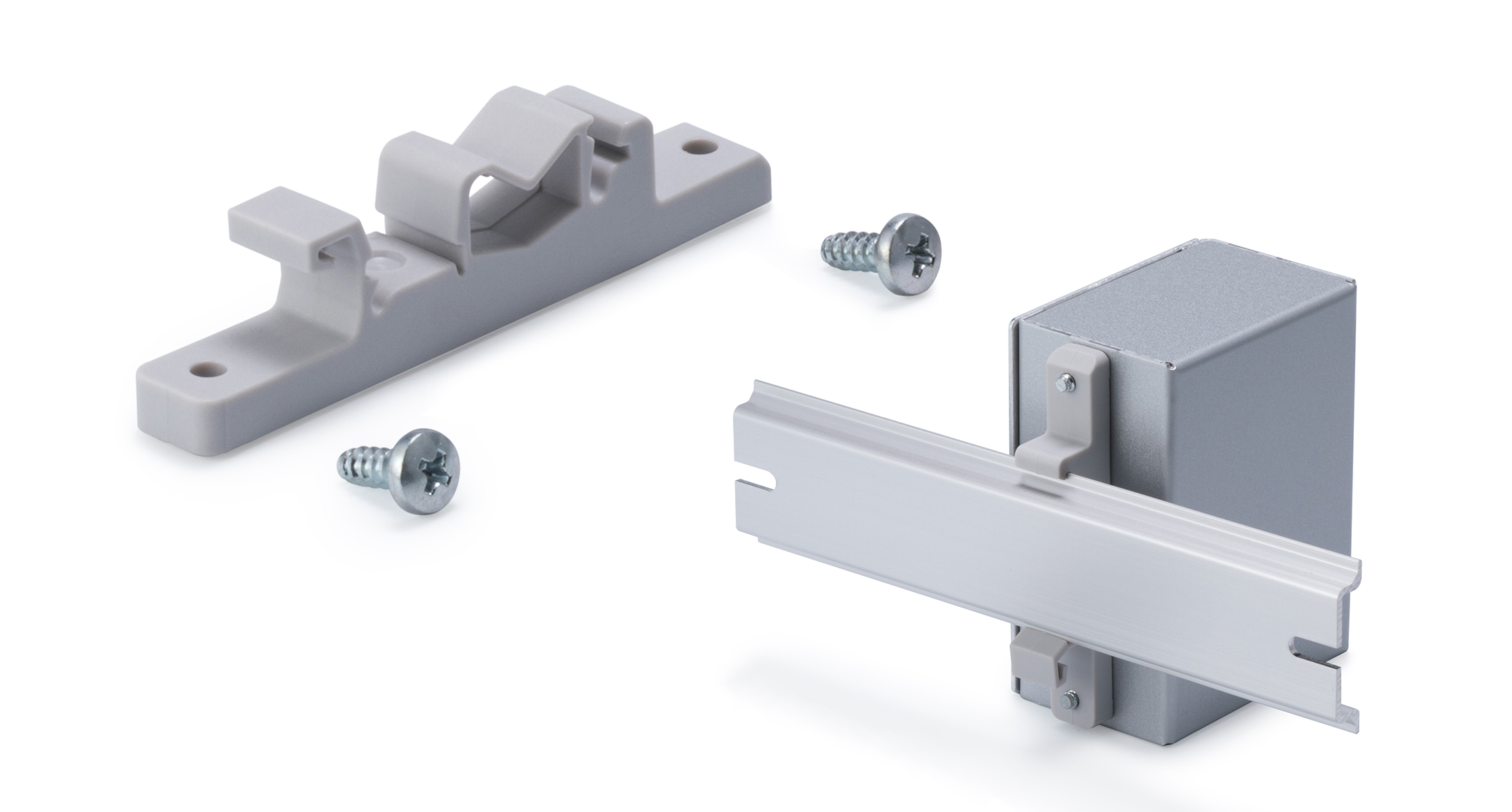

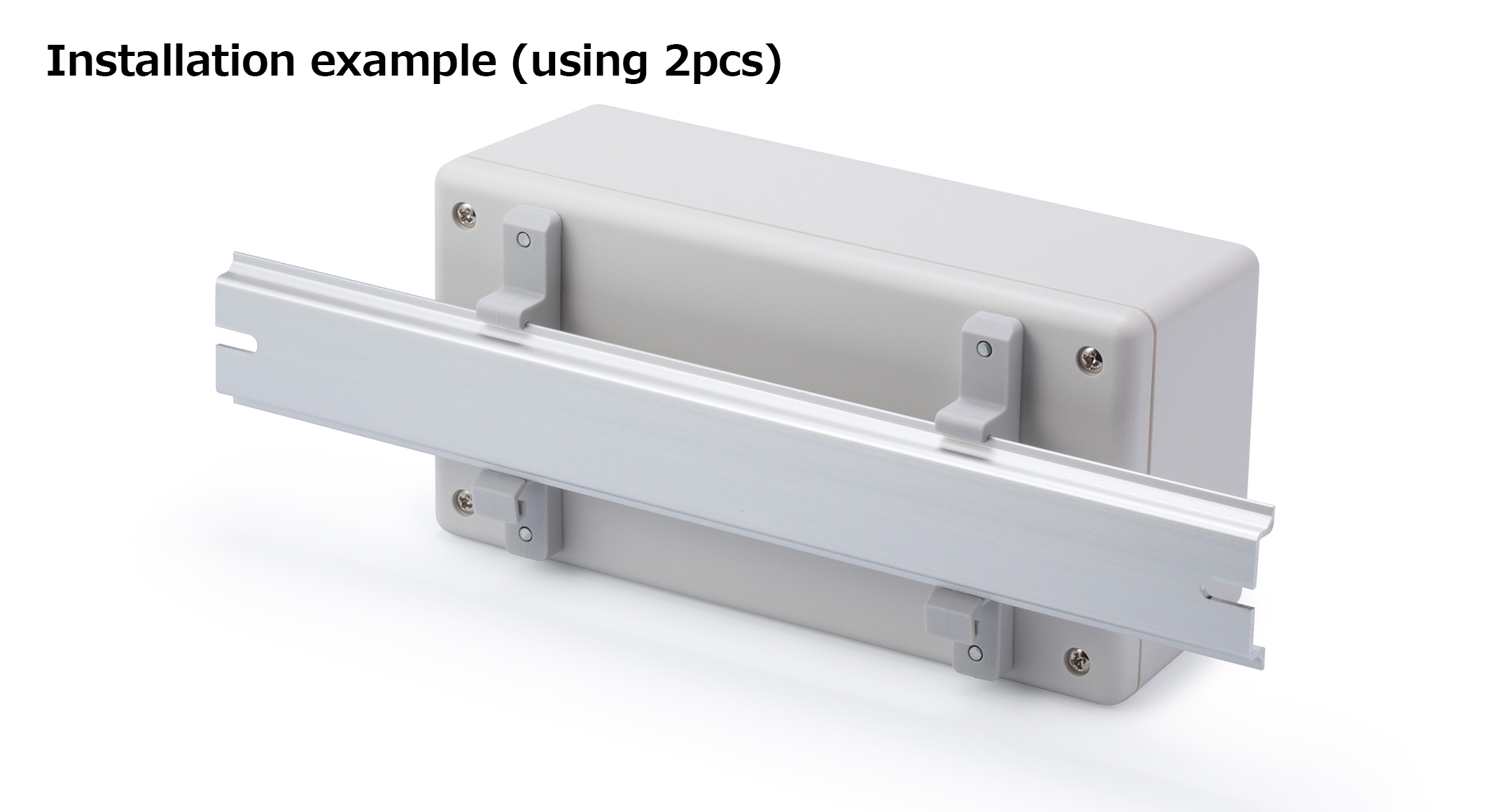

Mounting bracket for installation of enclosures, PCB and other parts onto 35mm DIN rail. Can be easily detached.
Bulk packaging is available.
Replacement product for the discontinuedCKD-80.

Max load : 1.5kg

PRODUCT NO. / DIMENSIONS

Product No. Bracket length Weight (g) / 2pcs Pack of PDF DXF DWG
DRF80-1 77mm 8.4 1 PDF DXF DWG
DRF80-1-P 77mm 168 20 PDF DXF DWG
