CATEGORY：Aluminum enclosure, Sheet metal enclosure, Aluminum project box, Universal aluminum enclosure, Multi purpose enclosure, DIY enclosure

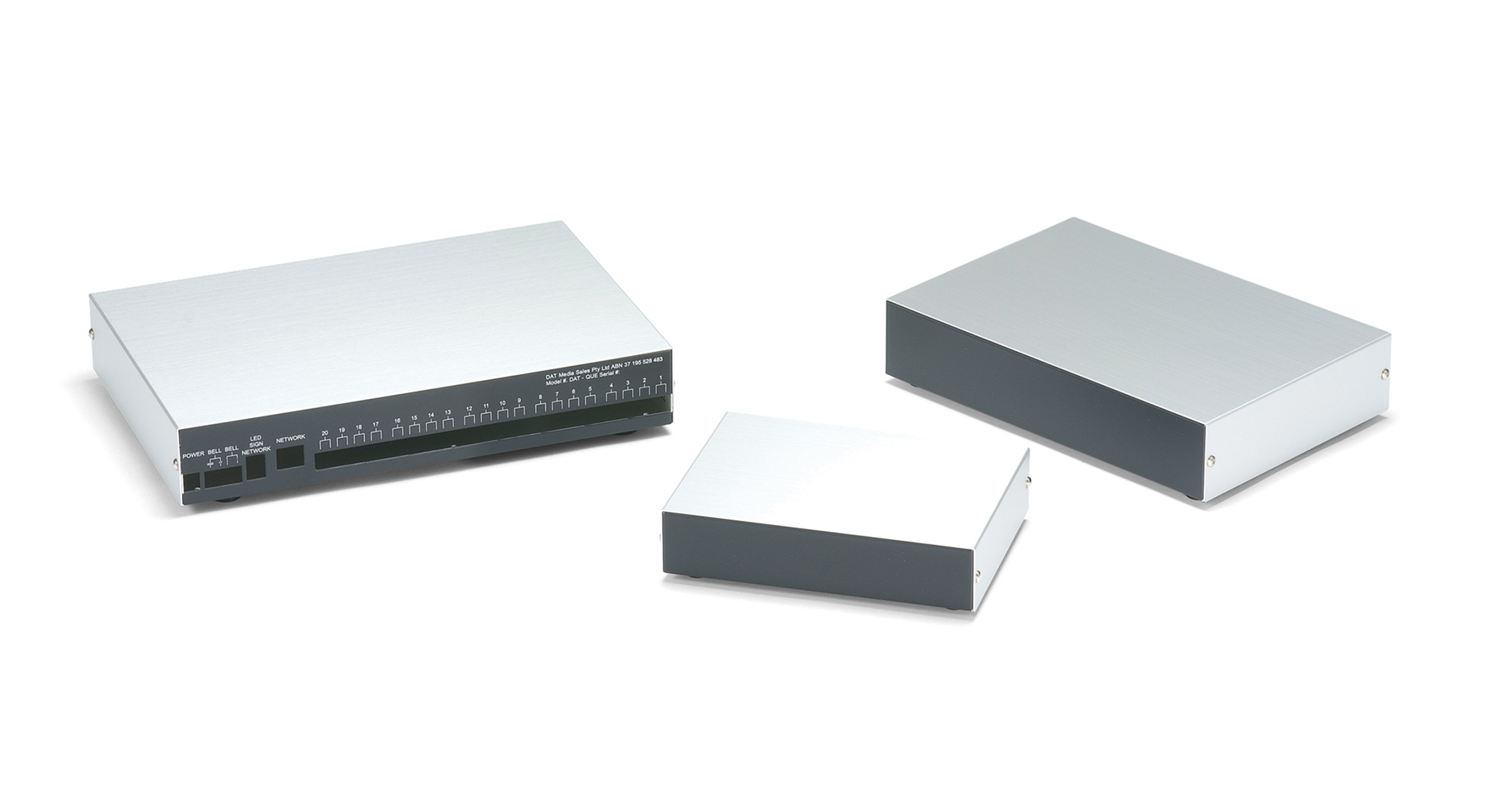

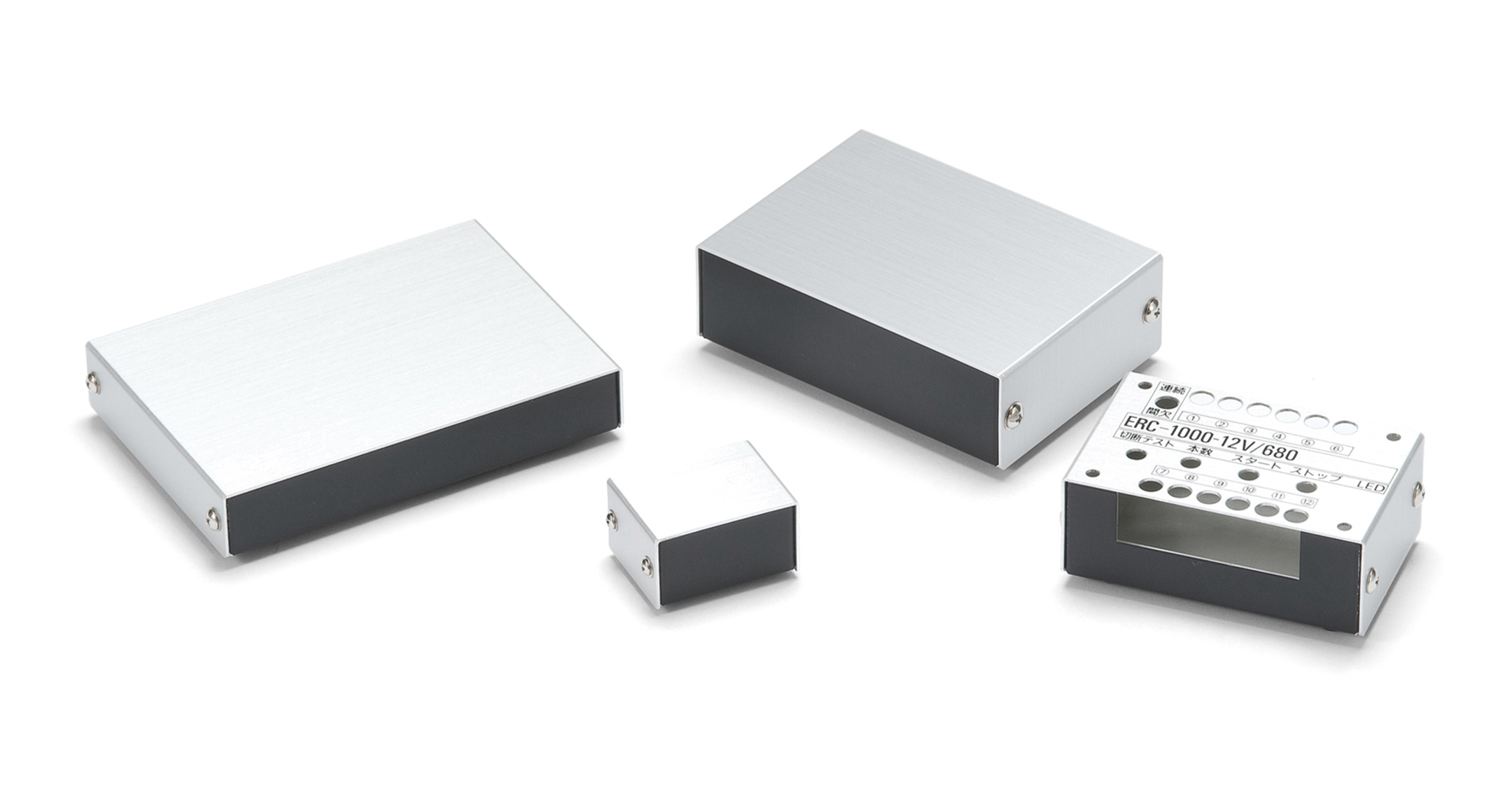

Flat, low profile aluminum case.
Simple, low-cost sheet metal enclosure.
Cover is silver hairline brushed & anodized finish.

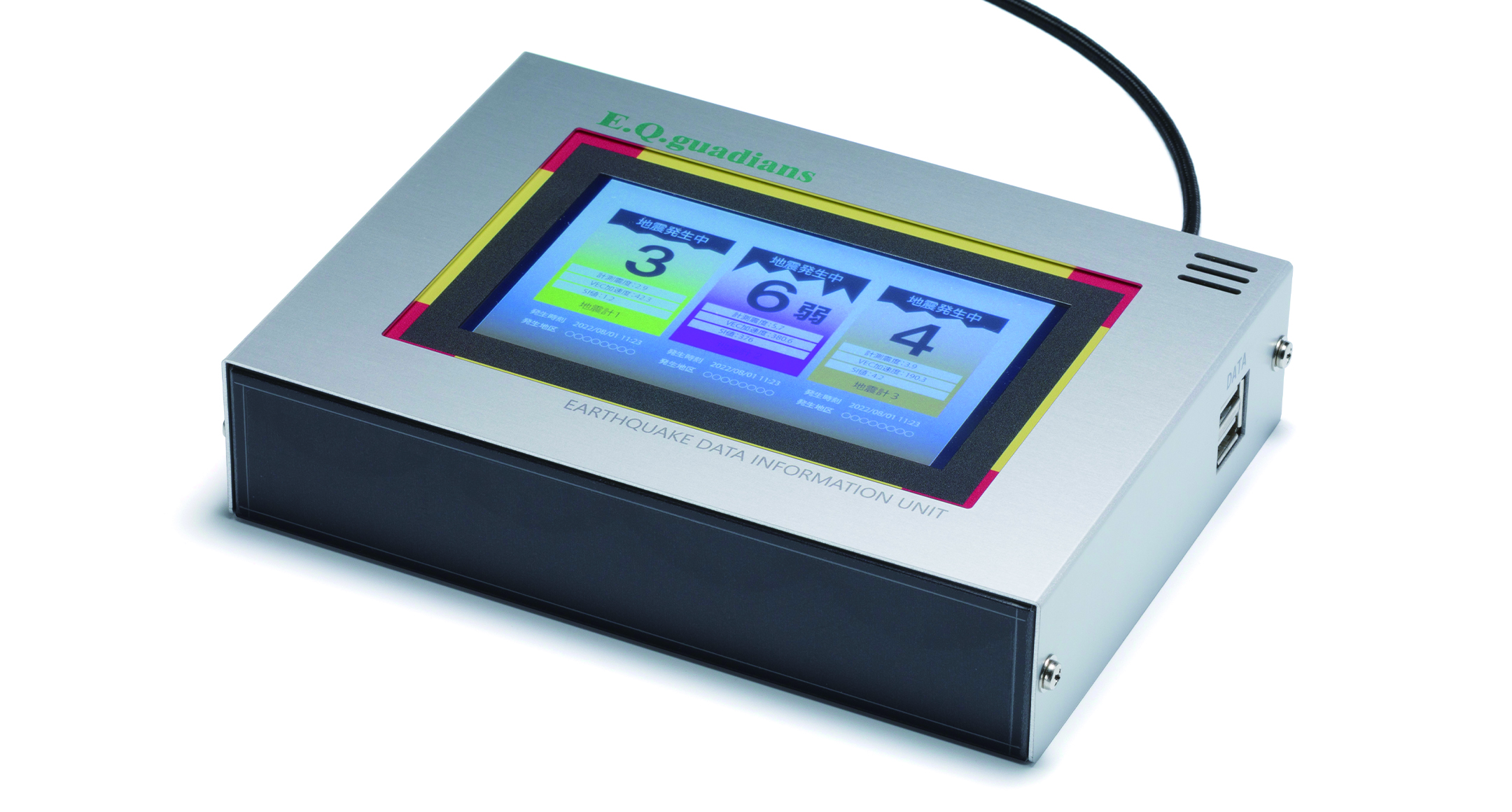

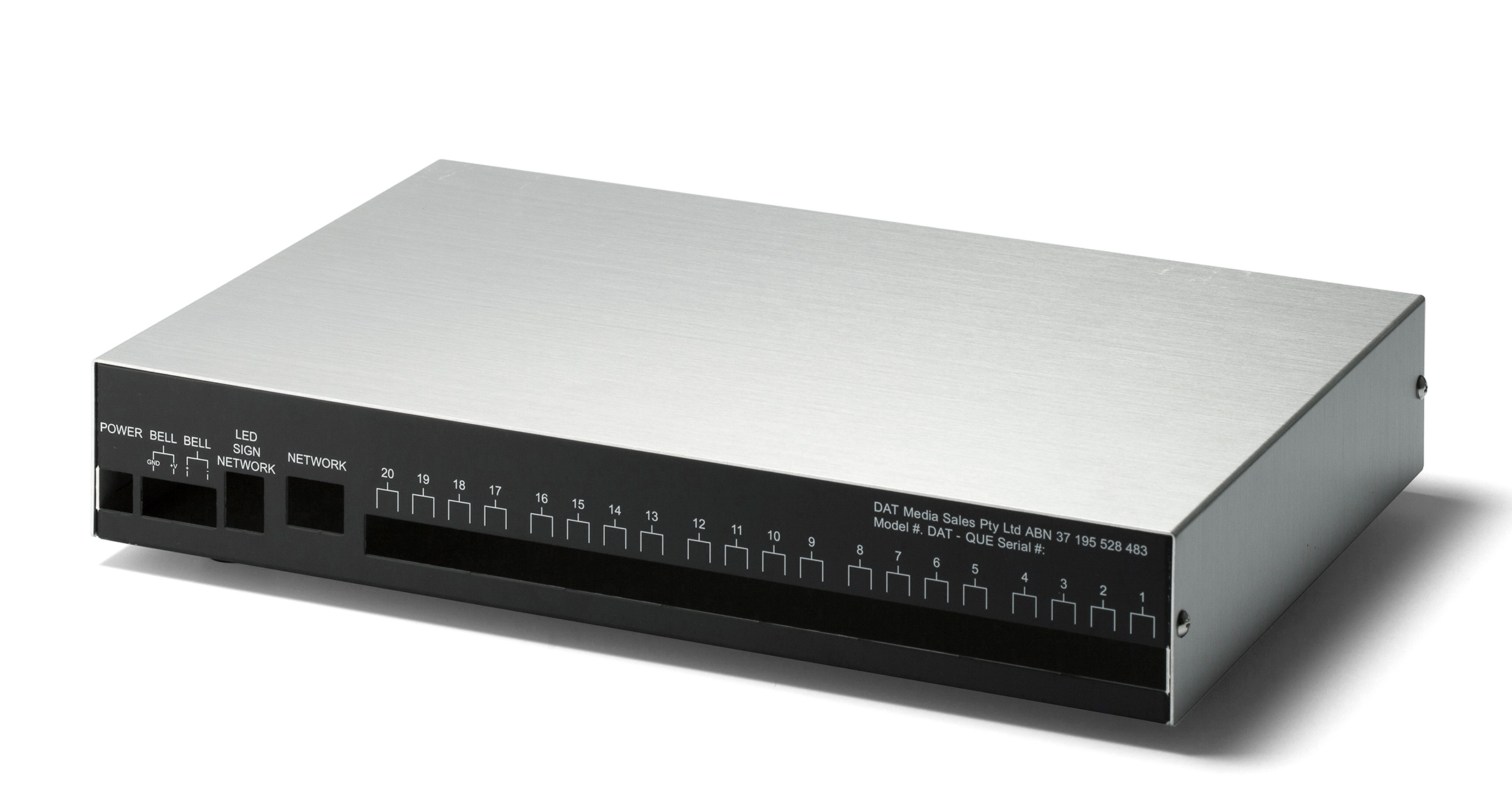

Suitable to be used for control box, HUB box, audio devices, electronics hobby or other various applications.
16 different sizes are available.
Simple, low-cost sheet metal enclosure.
Cover is silver hairline brushed & anodized finish.
Suitable to be used for control box, HUB box, audio devices, electronics hobby or other various applications.
16 different sizes are available.
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Internal dimensions | Weight (g) | Old Product No. | DXF | DWG | STP | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | |||||||
| YM5-3-5 | 50 | 30 | 45 | 48 | 28 | 43 | 36 | YM-50 | DXF | DWG | ||
| YM7-2-5 | 65 | 20 | 50 | 63 | 18 | 48 | 40 | YM-65 | DXF | DWG | ||
| YM8-3-5 | 80 | 30 | 50 | 78 | 28 | 48 | 53 | YM-80 | DXF | DWG | ||
| YM9-2-6 | 90 | 20 | 60 | 88 | 18 | 58 | 55 | YM-90 | DXF | DWG | ||
| YM10-3-7 | 100 | 30 | 70 | 98 | 28 | 68 | 80 | YM-100 | DXF | DWG | ||
| YM12-2-8 | 115 | 20 | 80 | 113 | 18 | 78 | 80 | YM-115 | DXF | DWG | ||
| YM13-3-9 | 130 | 30 | 90 | 128 | 28 | 88 | 115 | YM-130 | DXF | DWG | ||
| YM15-4-10 | 150 | 40 | 100 | 148 | 38 | 98 | 155 | YM-150 | DXF | DWG | ||
| YM18-4-13 | 180 | 40 | 130 | 178 | 38 | 128 | 230 | YM-180 | DXF | DWG | ||
| YM20-4-15 | 200 | 40 | 150 | 198 | 38 | 148 | 280 | YM-200 | DXF | DWG | ||
| YM25-5-17 | 250 | 50 | 170 | 248 | 48 | 168 | 395 | YM-250 | DXF | DWG | ||
| YM30-5-20 | 300 | 50 | 200 | 268 | 48 | 168 | 525 | YM-300 | DXF | DWG | ||
| YM35-6-23 | 350 | 55 | 230 | 348 | 53 | 228 | 680 | YM-350 | DXF | DWG | ||
| YM40-6-25 | 400 | 55 | 250 | 398 | 53 | 248 | 815 | YM-400 | DXF | DWG | ||

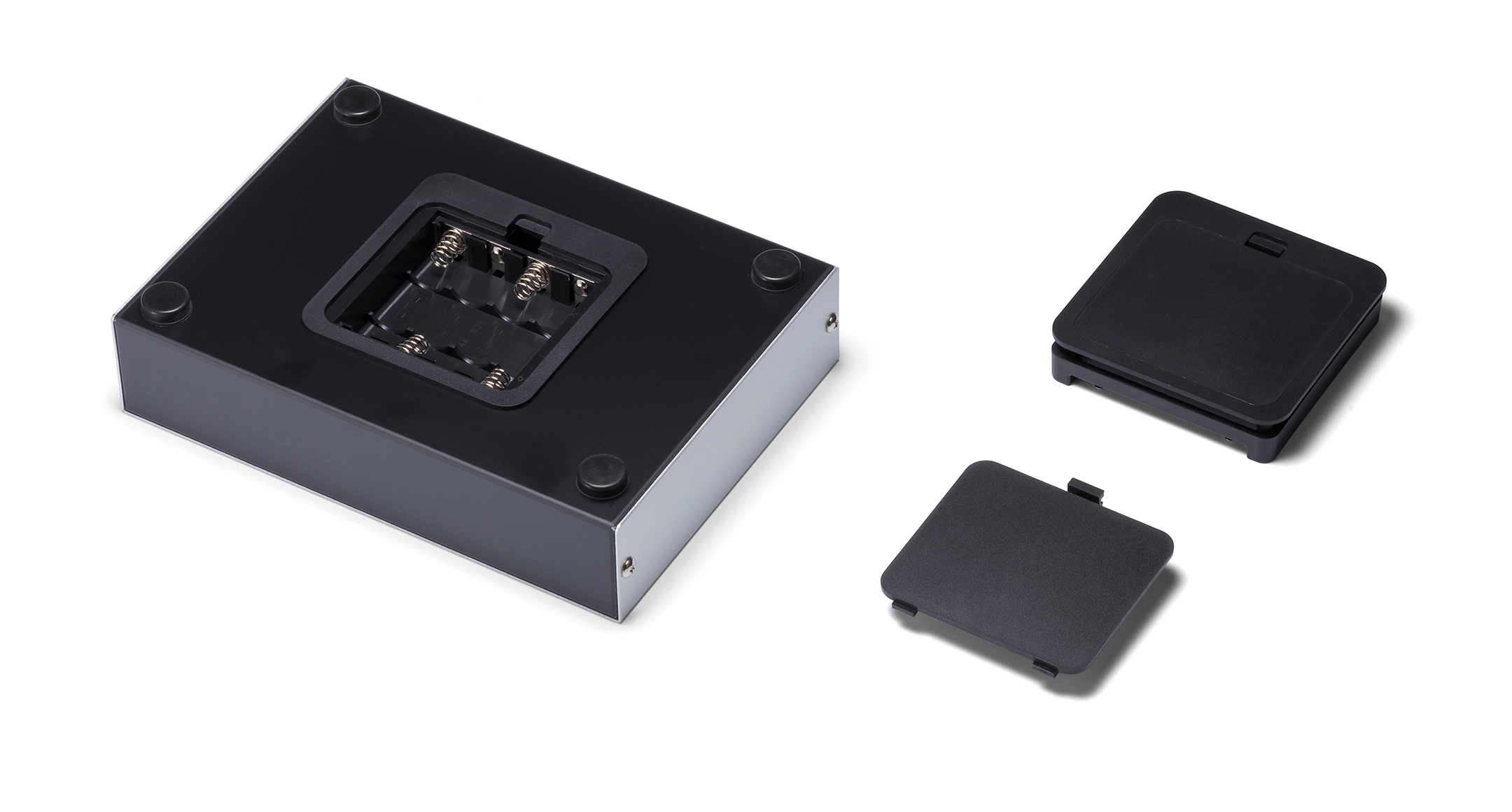

OPTIONAL PARTS
