CATEGORY：Plastic enclosure, Network enclosure, IOT enclosure, Wireless router enclosure, Access point box, Sensor box

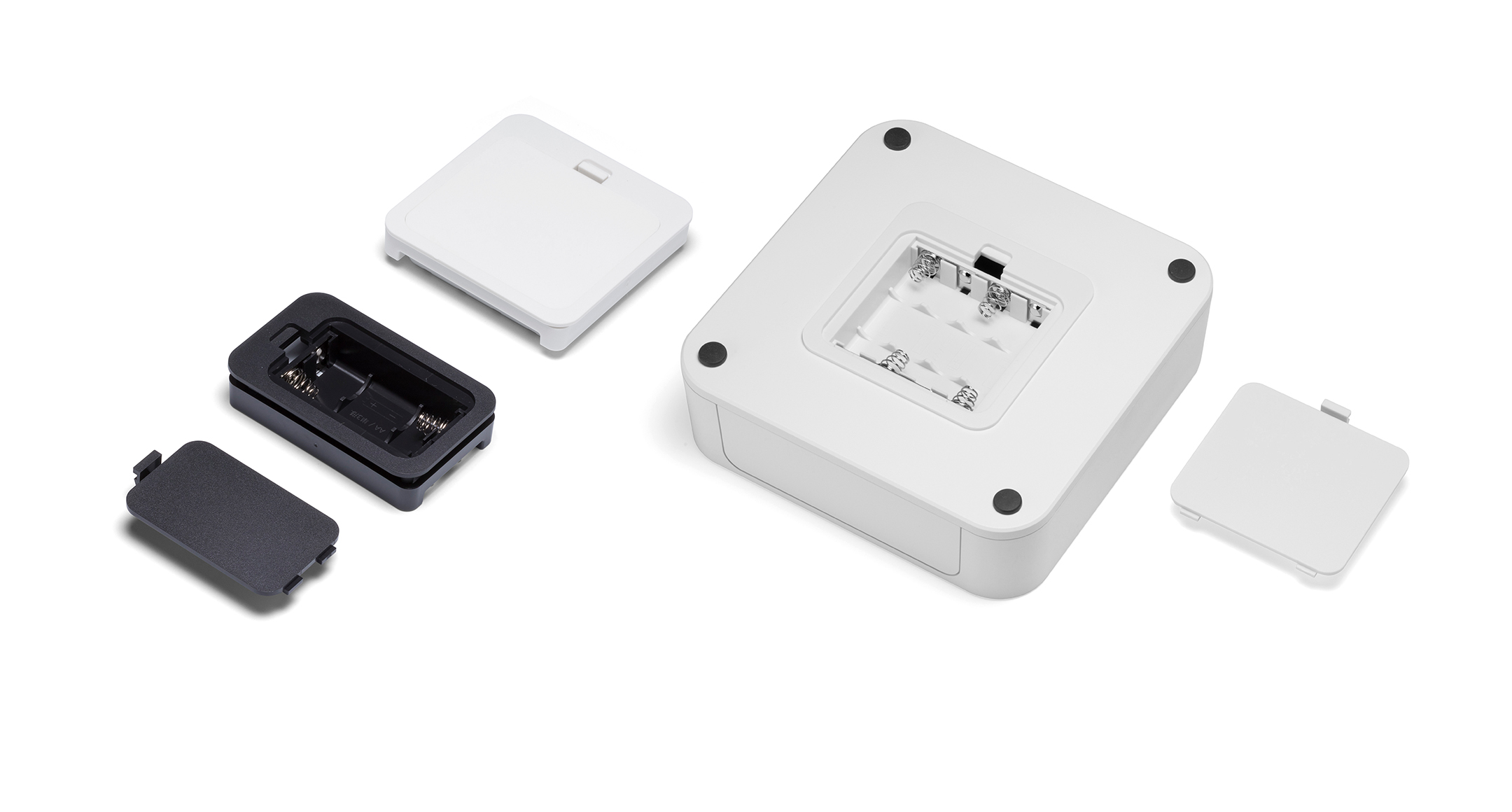

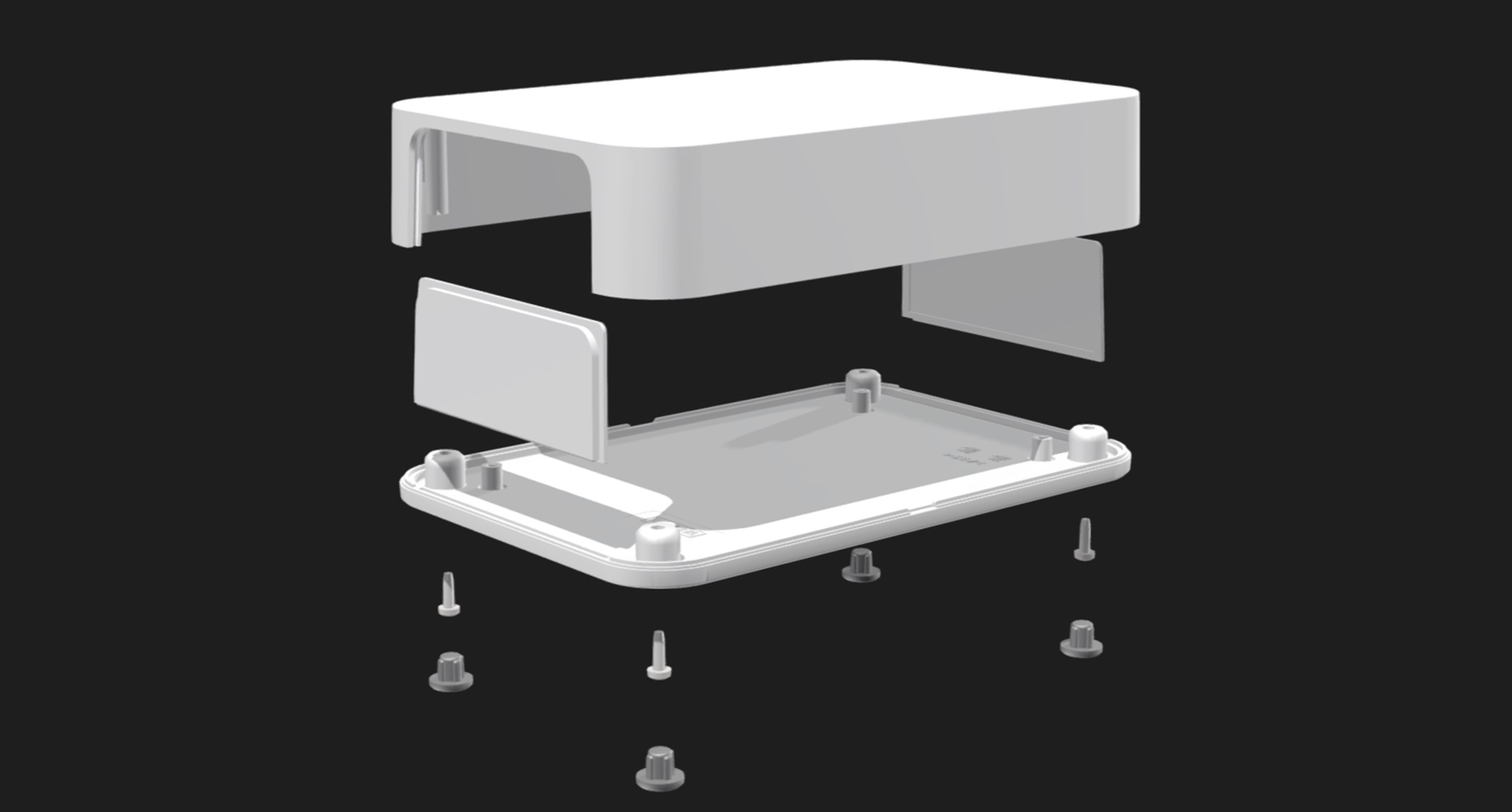

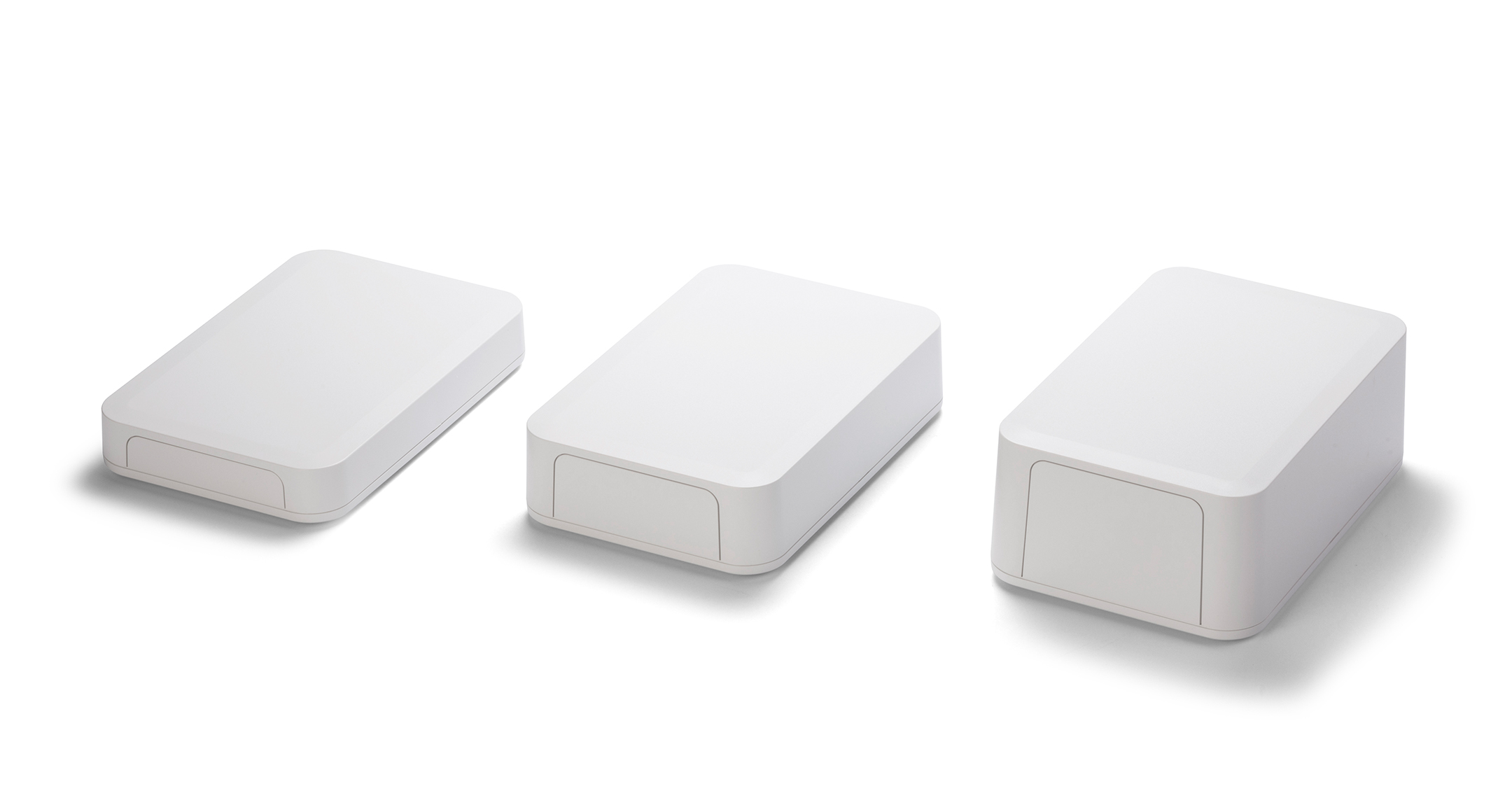

General purpose plastic enclosure with front and rear detachable panel construction.

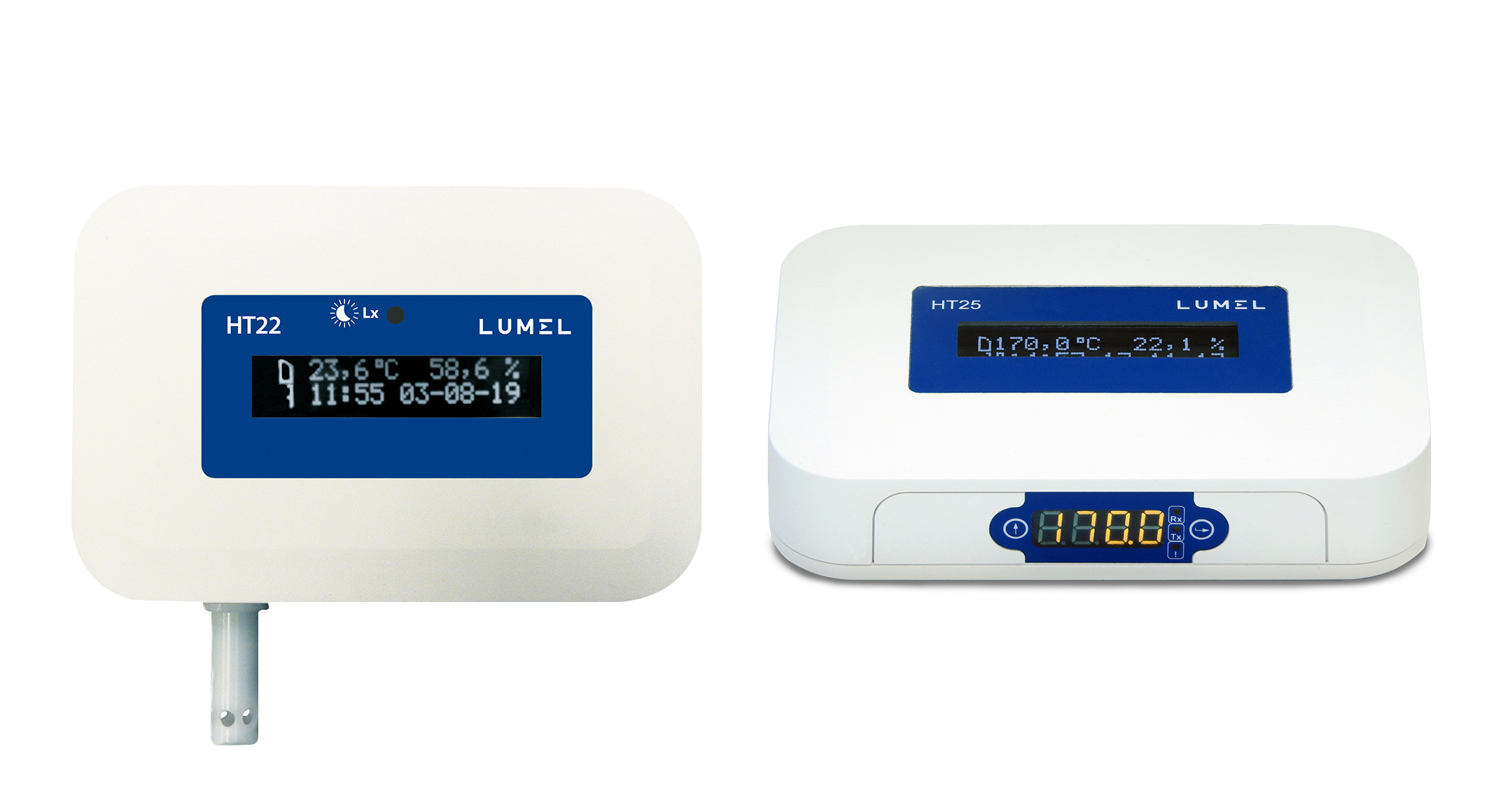

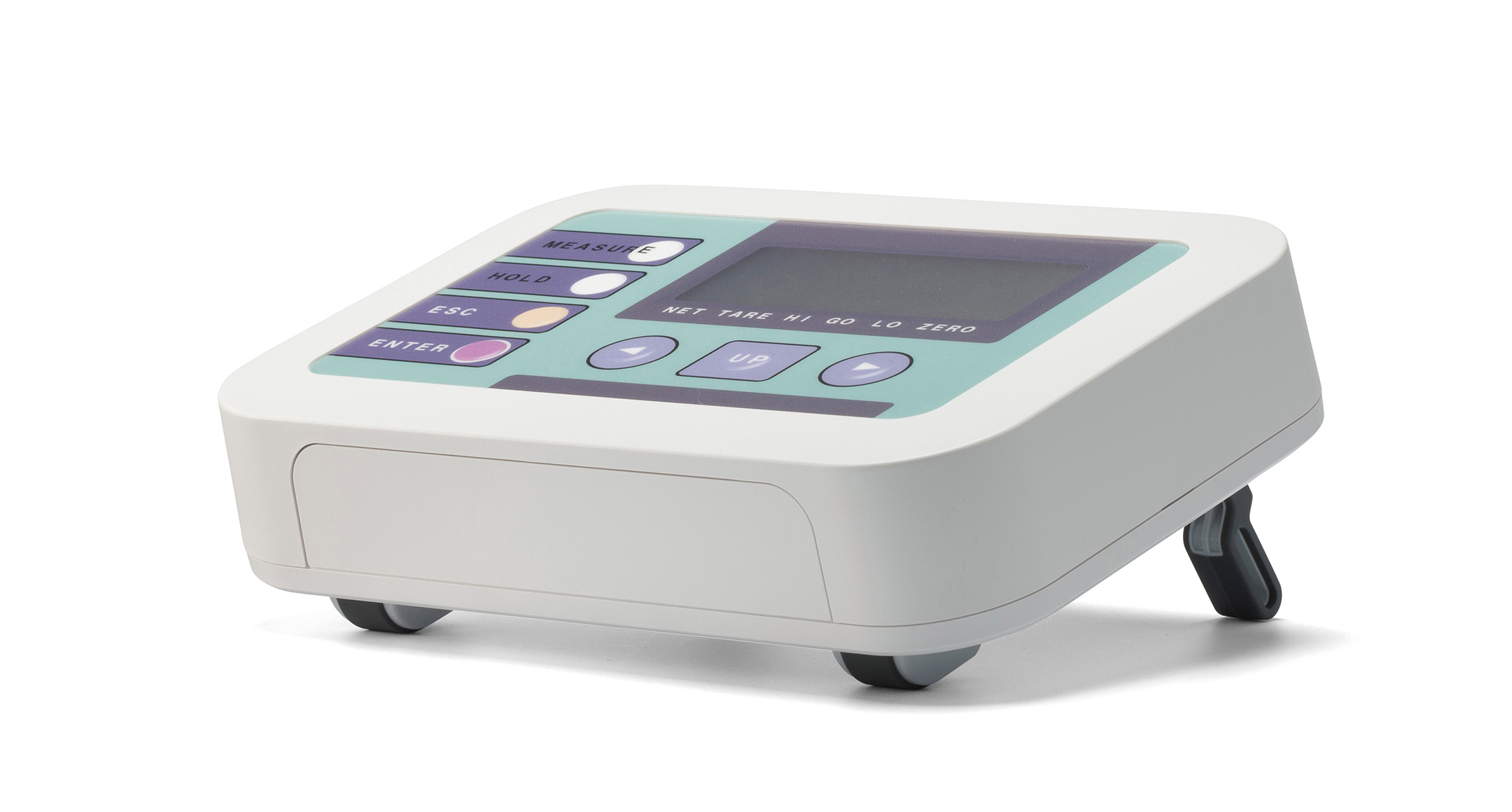

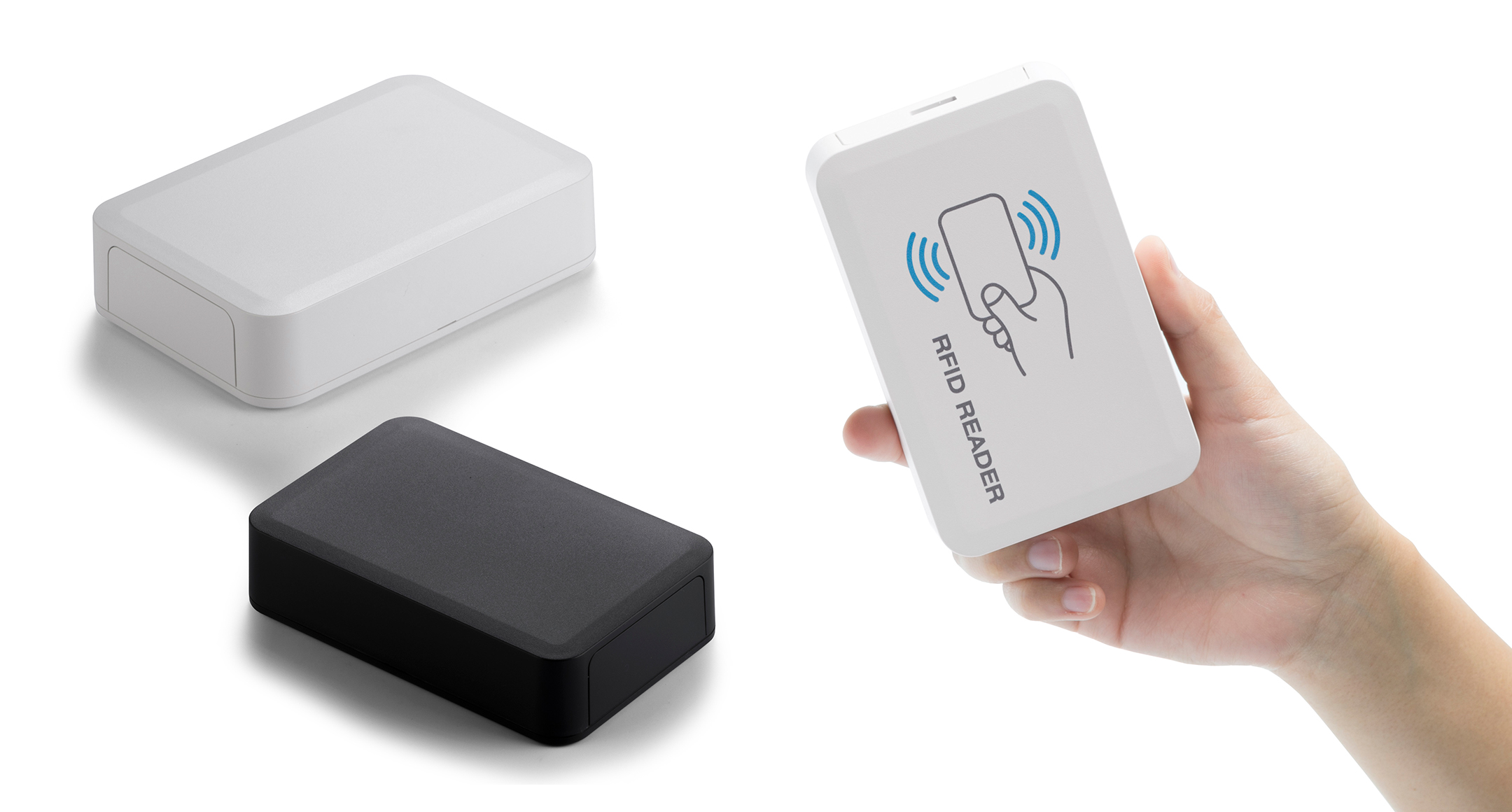

Flat and neat design can be used as a handheld gadget, as a desktop device, or for a variety of other uses.
A rich lineup of 41 sizes from small to large sizes in off-white and dark gray colors are available.

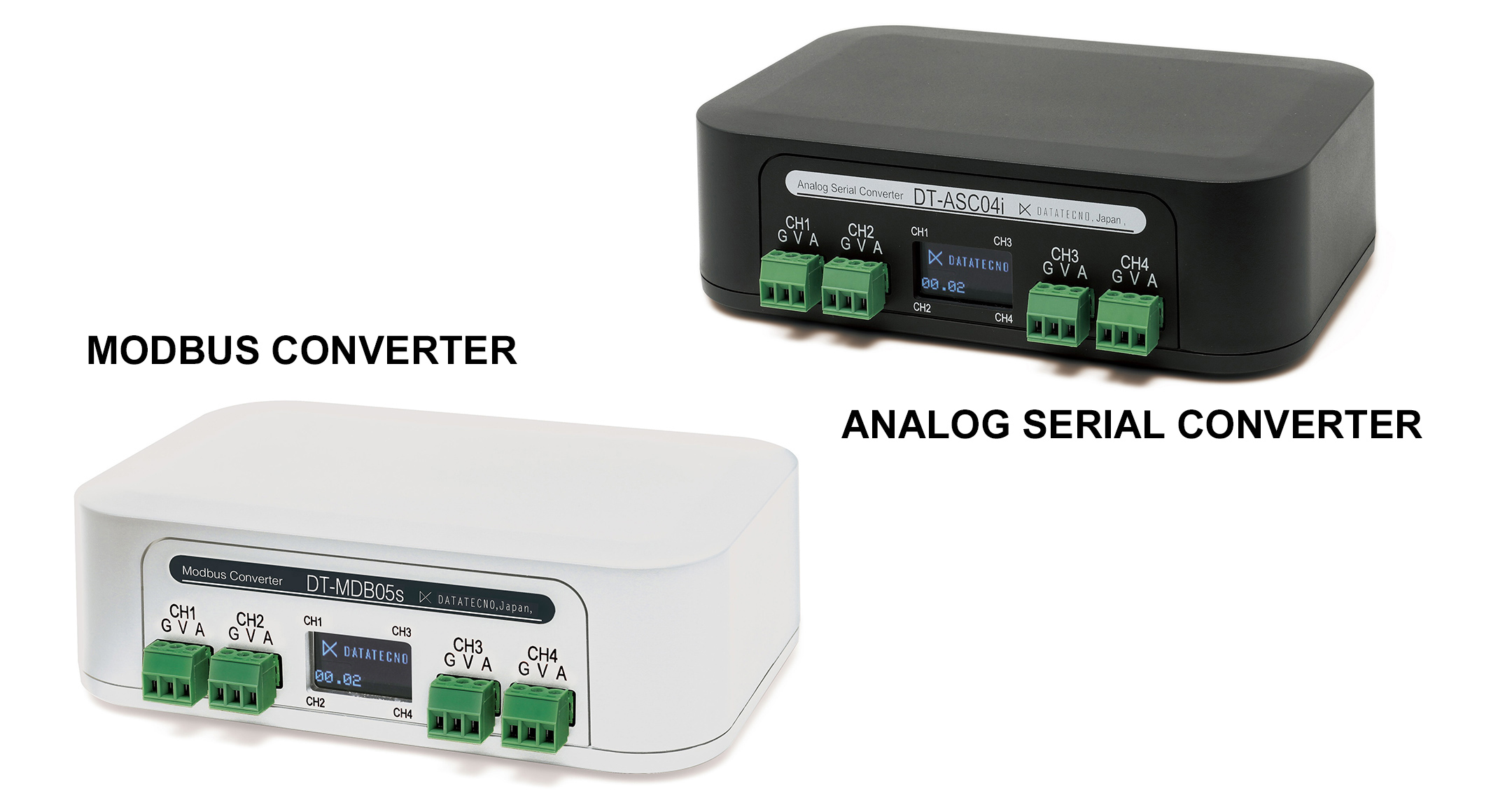

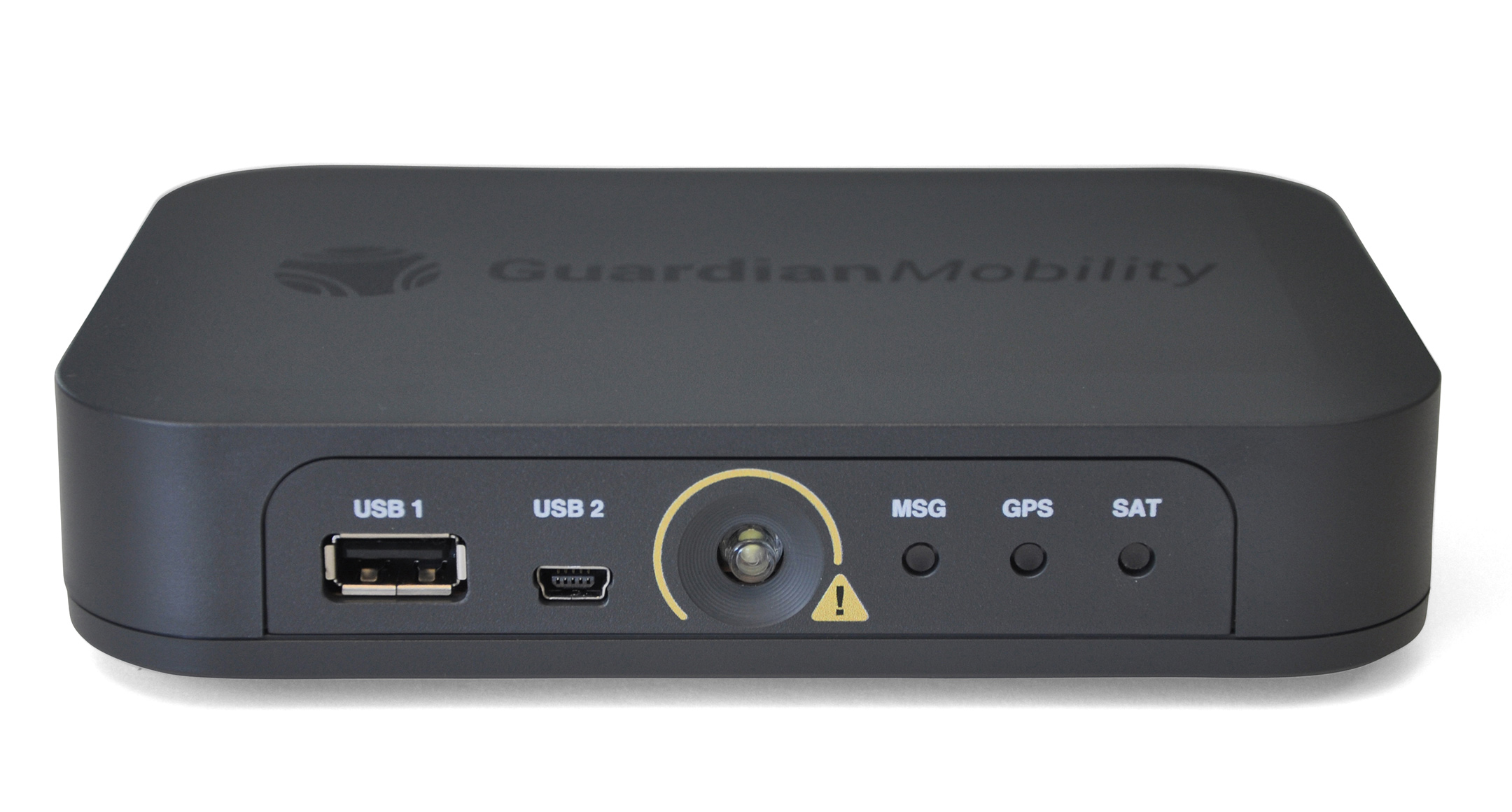

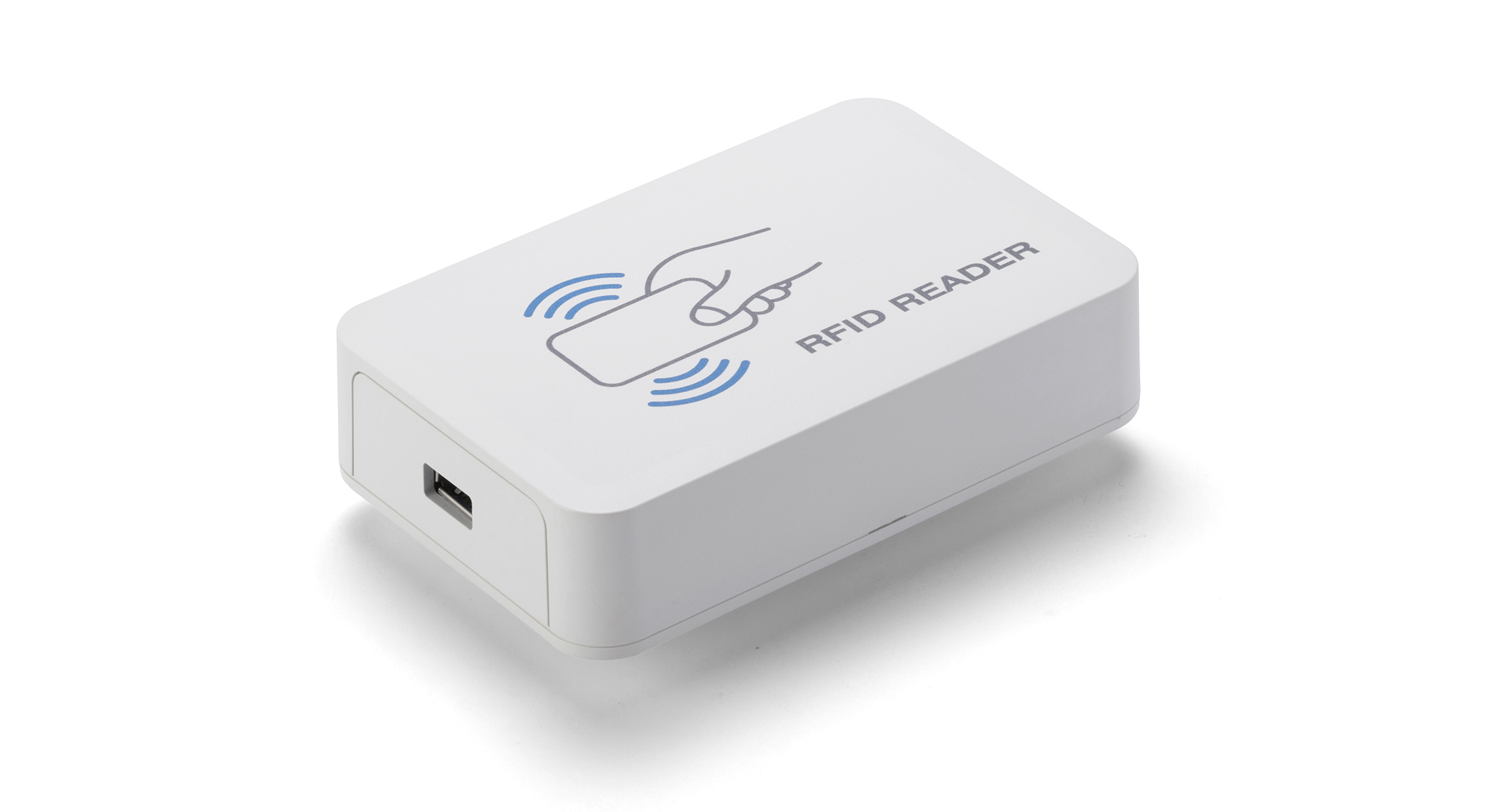

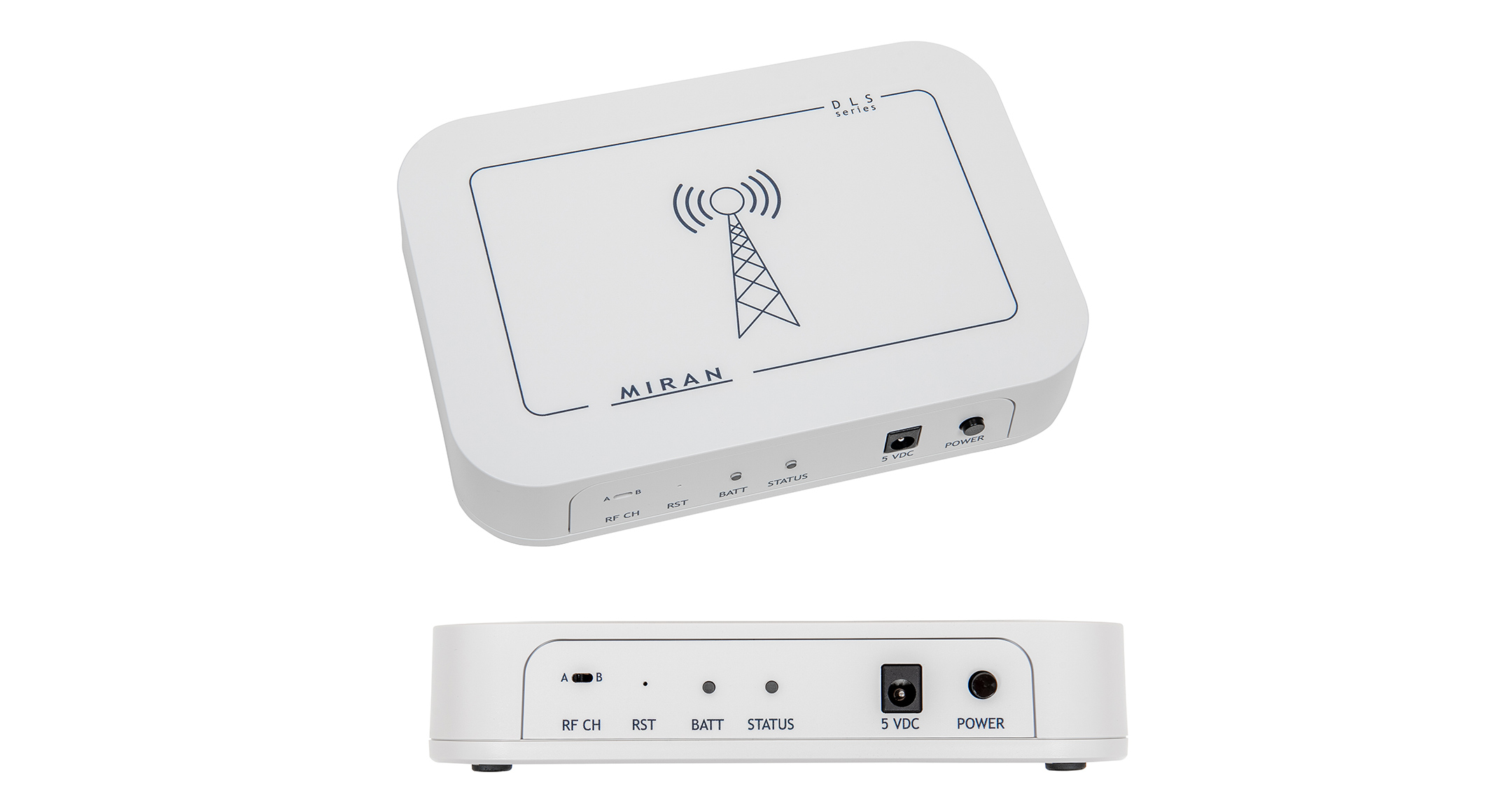

Suitable for communication equipment, network devices, wireless applications, LoRa gateways, access points, controllers, sensor boxes,
HUB boxes, data loggers and much more.
Protection class: IP40
Plastic material : Flame-resistant ABS UL94V-0
Operating temperature: -10℃ ~ +60℃
Flat and neat design can be used as a handheld gadget, as a desktop device, or for a variety of other uses.
A rich lineup of 41 sizes from small to large sizes in off-white and dark gray colors are available.
Suitable for communication equipment, network devices, wireless applications, LoRa gateways, access points, controllers, sensor boxes,
HUB boxes, data loggers and much more.
Protection class: IP40
Plastic material : Flame-resistant ABS UL94V-0
Operating temperature: -10℃ ~ +60℃
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Internal dimensions | Color | Weight (g) | DXF | DWG | STP | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | |||||||
| PF8-2-5 D | 80 | 22.5 | 50 | 55.5 | 13.5 | 42.8 | Dark gray | 36.2 | DXF | DWG | ||
| PF8-2-5 W | 80 | 22.5 | 50 | 55.5 | 13.5 | 42.8 | Off-white | 36.2 | DXF | DWG | ||
| PF8-2-8 D | 80 | 22.5 | 80 | 55.5 | 13.5 | 72.8 | Dark gray | 53.3 | DXF | DWG | ||
| PF8-2-8 W | 80 | 22.5 | 80 | 55.5 | 13.5 | 72.8 | Off-white | 53.3 | DXF | DWG | ||
| PF8-3-5 D | 80 | 30 | 50 | 55.5 | 21 | 42.3 | Dark gray | 41.6 | DXF | DWG | ||
| PF8-3-5 W | 80 | 30 | 50 | 55.5 | 21 | 42.3 | Off-white | 41.6 | DXF | DWG | ||
| PF8-3-8 D | 80 | 30 | 80 | 55.5 | 21 | 72.3 | Dark gray | 60.1 | DXF | DWG | ||
| PF8-3-8 W | 80 | 30 | 80 | 55.5 | 21 | 72.3 | Off-white | 60.1 | DXF | DWG | ||
| PF8-3-13 D | 80 | 30 | 125 | 55.5 | 21 | 117.3 | Dark gray | 87.3 | DXF | DWG | ||
| PF8-3-13 W | 80 | 30 | 125 | 55.5 | 21 | 117.3 | Off-white | 87.3 | DXF | DWG | ||
| PF10-2-7 D | 100 | 22.5 | 67 | 67.4 | 11.1 | 58.4 | Dark gray | 60 | DXF | DWG | ||
| PF10-2-7 W | 100 | 22.5 | 67 | 67.4 | 11.1 | 58.4 | Off-white | 60 | DXF | DWG | ||
| PF10-2-10 D | 100 | 22.5 | 100 | 67.4 | 11.1 | 91.4 | Dark gray | 82.9 | DXF | DWG | ||
| PF10-2-10 W | 100 | 22.5 | 100 | 67.4 | 11.1 | 91.4 | Off-white | 82.9 | DXF | DWG | ||
| PF10-2-15 D | 100 | 22.5 | 150 | 67.4 | 11.1 | 141.4 | Dark gray | 120.2 | DXF | DWG | ||
| PF10-2-15 W | 100 | 22.5 | 150 | 67.4 | 11.1 | 141.4 | Off-white | 120.2 | DXF | DWG | ||
| PF10-4-7 D | 100 | 35 | 67 | 67.4 | 23.6 | 57.5 | Dark gray | 65 | DXF | DWG | ||
| PF10-4-7 W | 100 | 35 | 67 | 67.4 | 23.6 | 57.5 | Off-white | 65 | DXF | DWG | ||
| PF10-4-10 D | 100 | 35 | 100 | 67.4 | 23.6 | 90.5 | Dark gray | 97.1 | DXF | DWG | ||
| PF10-4-10 W | 100 | 35 | 100 | 67.4 | 23.6 | 90.5 | Off-white | 97.1 | DXF | DWG | ||
| PF10-4-15 D | 100 | 35 | 150 | 67.4 | 23.6 | 140.5 | Dark gray | 132.6 | DXF | DWG | ||
| PF10-4-15 W | 100 | 35 | 150 | 67.4 | 23.6 | 140.5 | Off-white | 132.6 | DXF | DWG | ||
| PF10-6-15 D | 100 | 55 | 150 | 67.4 | 43.6 | 139.1 | Dark gray | 169.1 | DXF | DWG | ||
| PF10-6-15 W | 100 | 55 | 150 | 67.4 | 43.6 | 139.1 | Off-white | 169.1 | DXF | DWG | ||
| PF13-3-9 D | 125 | 25 | 85 | 92.4 | 13.5 | 76.2 | Dark gray | 90.8 | DXF | DWG | ||
| PF13-3-9 W | 125 | 25 | 85 | 92.4 | 13.5 | 76.2 | Off-white | 90.8 | DXF | DWG | ||
| PF13-3-13 D | 125 | 25 | 125 | 92.4 | 13.5 | 116.2 | Dark gray | 127.5 | DXF | DWG | ||
| PF13-3-13 W | 125 | 25 | 125 | 92.4 | 13.5 | 116.2 | Off-white | 127.5 | DXF | DWG | ||
| PF13-3-19 D | 125 | 25 | 190 | 92.4 | 13.5 | 181.2 | Dark gray | 186.8 | DXF | DWG | ||
| PF13-3-19 W | 125 | 25 | 190 | 92.4 | 13.5 | 181.2 | Off-white | 186.8 | DXF | DWG | ||
| PF13-4-9 D | 125 | 40 | 85 | 92.4 | 28.5 | 75.2 | Dark gray | 108.4 | DXF | DWG | ||
| PF13-4-9 W | 125 | 40 | 85 | 92.4 | 28.5 | 75.2 | Off-white | 108.4 | DXF | DWG | ||
| PF13-4-13 D | 125 | 40 | 125 | 92.4 | 28.5 | 115.2 | Dark gray | 151.4 | DXF | DWG | ||
| PF13-4-13 W | 125 | 40 | 125 | 92.4 | 28.5 | 115.2 | Off-white | 151.4 | DXF | DWG | ||
| PF13-4-19 D | 125 | 40 | 190 | 92.4 | 28.5 | 180.2 | Dark gray | 214.9 | DXF | DWG | ||
| PF13-4-19 W | 125 | 40 | 190 | 92.4 | 28.5 | 180.2 | Off-white | 214.9 | DXF | DWG | ||
| PF13-6-19 D | 125 | 60 | 190 | 92.4 | 48.5 | 178.8 | Dark gray | 250.4 | DXF | DWG | ||
| PF13-6-19 W | 125 | 60 | 190 | 92.4 | 48.5 | 178.8 | Off-white | 250.4 | DXF | DWG | ||
| PF15-3-10 D | 150 | 30 | 100 | 112.4 | 17.8 | 90 | Dark gray | 145.5 | DXF | DWG | ||
| PF15-3-10 W | 150 | 30 | 100 | 112.4 | 17.8 | 90 | Off-white | 145.5 | DXF | DWG | ||
| PF15-3-15 D | 150 | 30 | 150 | 112.4 | 17.8 | 140 | Dark gray | 207.5 | DXF | DWG | ||
| PF15-3-15 W | 150 | 30 | 150 | 112.4 | 17.8 | 140 | Off-white | 207.5 | DXF | DWG | ||
| PF15-5-10 D | 150 | 45 | 100 | 112.4 | 32.8 | 88.9 | Dark gray | 166 | DXF | DWG | ||
| PF15-5-10 W | 150 | 45 | 100 | 112.4 | 32.8 | 88.9 | Off-white | 166 | DXF | DWG | ||
| PF15-5-15 D | 150 | 45 | 150 | 112.4 | 32.8 | 138.9 | Dark gray | 233.5 | DXF | DWG | ||
| PF15-5-15 W | 150 | 45 | 150 | 112.4 | 32.8 | 138.9 | Off-white | 233.5 | DXF | DWG | ||
| PF18-4-12 D | 175 | 35 | 120 | 132.4 | 22.4 | 110.3 | Dark gray | 188.7 | DXF | DWG | ||
| PF18-4-12 W | 175 | 35 | 120 | 132.4 | 22.4 | 110.3 | Off-white | 188.7 | DXF | DWG | ||
| PF18-4-18 D | 175 | 35 | 175 | 132.4 | 22.4 | 165.3 | Dark gray | 266.8 | DXF | DWG | ||
| PF18-4-18 W | 175 | 35 | 175 | 132.4 | 22.4 | 165.3 | Off-white | 266.8 | DXF | DWG | ||
| PF18-5-12 D | 175 | 50 | 120 | 132.4 | 37.4 | 109.3 | Dark gray | 213.6 | DXF | DWG | ||
| PF18-5-12 W | 175 | 50 | 120 | 132.4 | 37.4 | 109.3 | Off-white | 213.6 | DXF | DWG | ||
| PF18-5-18 D | 175 | 50 | 175 | 132.4 | 37.4 | 164.3 | Dark gray | 302.1 | DXF | DWG | ||
| PF18-5-18 W | 175 | 50 | 175 | 132.4 | 37.4 | 164.3 | Off-white | 302.1 | DXF | DWG | ||
| PF20-4-13 D | 200 | 40 | 135 | 151.6 | 27.3 | 124.4 | Dark gray | 264 | DXF | DWG | ||
| PF20-4-13 W | 200 | 40 | 135 | 151.6 | 27.3 | 124.4 | Off-white | 264 | DXF | DWG | ||
| PF20-4-20 D | 200 | 40 | 200 | 151.6 | 27.3 | 189.4 | Dark gray | 368.5 | DXF | DWG | ||
| PF20-4-20 W | 200 | 40 | 200 | 151.6 | 27.3 | 189.4 | Off-white | 368.5 | DXF | DWG | ||
| PF20-6-13 D | 200 | 60 | 135 | 151.6 | 47.3 | 123 | Dark gray | 302.5 | DXF | DWG | ||
| PF20-6-13 W | 200 | 60 | 135 | 151.6 | 47.3 | 123 | Off-white | 302.5 | DXF | DWG | ||
| PF20-6-20 D | 200 | 60 | 200 | 151.6 | 47.3 | 188 | Dark gray | 417 | DXF | DWG | ||
| PF20-6-20 W | 200 | 60 | 200 | 151.6 | 47.3 | 188 | Off-white | 417 | DXF | DWG | ||
| PF24-4-17 D | 240 | 42.5 | 165 | 187.6 | 29.5 | 154.5 | Dark gray | 370.4 | DXF | DWG | ||
| PF24-4-17 W | 240 | 42.5 | 165 | 187.6 | 29.5 | 154.5 | Off-white | 370.4 | DXF | DWG | ||
| PF24-4-24 D | 240 | 42.5 | 240 | 187.6 | 29.5 | 229.5 | Dark gray | 521.4 | DXF | DWG | ||
| PF24-4-24 W | 240 | 42.5 | 240 | 187.6 | 29.5 | 229.5 | Off-white | 521.4 | DXF | DWG | ||
| PF24-6-17 D | 240 | 60 | 165 | 187.6 | 47 | 153.2 | Dark gray | 408.8 | DXF | DWG | ||
| PF24-6-17 W | 240 | 60 | 165 | 187.6 | 47 | 153.2 | Off-white | 408.8 | DXF | DWG | ||
| PF24-6-24 D | 240 | 60 | 240 | 187.6 | 47 | 228.2 | Dark gray | 568.7 | DXF | DWG | ||
| PF24-6-24 W | 240 | 60 | 240 | 187.6 | 47 | 228.2 | Off-white | 568.7 | DXF | DWG | ||
| PF28-5-20 D | 280 | 45 | 200 | 223.6 | 31.4 | 189.3 | Off-white | 564.1 | DXF | DWG | ||
| PF28-5-20 W | 280 | 45 | 200 | 223.6 | 31.4 | 189.3 | Dark gray | 564.1 | DXF | DWG | ||
| PF28-7-20 D | 280 | 65 | 200 | 223.6 | 51.4 | 187.9 | Off-white | 618.4 | DXF | DWG | ||
| PF28-7-20 W | 280 | 65 | 200 | 223.6 | 51.4 | 187.9 | Dark gray | 618.4 | DXF | DWG | ||
| PF28-9-20 D | 280 | 90 | 200 | 223.6 | 76.4 | 186.2 | Off-white | 709.2 | DXF | DWG | ||
| PF28-9-20 W | 280 | 90 | 200 | 223.6 | 76.4 | 186.2 | Dark gray | 709.2 | DXF | DWG | ||
| PF32-5-23 D | 320 | 45 | 225 | 259.6 | 31.3 | 214.3 | Off-white | 697.1 | DXF | DWG | ||
| PF32-5-23 W | 320 | 45 | 225 | 259.6 | 31.3 | 214.3 | Dark gray | 697.1 | DXF | DWG | ||
| PF32-7-23 D | 320 | 70 | 225 | 259.6 | 56.3 | 212.6 | Off-white | 782.1 | DXF | DWG | ||
| PF32-7-23 W | 320 | 70 | 225 | 259.6 | 56.3 | 212.6 | Dark gray | 782.1 | DXF | DWG | ||
| PF32-10-23 D | 320 | 100 | 225 | 259.6 | 86.3 | 210.5 | Off-white | 899.8 | DXF | DWG | ||
| PF32-10-23 W | 320 | 100 | 225 | 259.6 | 86.3 | 210.5 | Dark gray | 899.8 | DXF | DWG | ||
SAMPLE REQUEST FORM
This product series is available as a free sample.
