IP65 STAINLESS STEEL ENCLOSURES・SUS304 WATERPROOF STAINLESS STEEL BOXES
IP65 STAINLESS STEEL ENCLOSURES・SUS304 WATERPROOF STAINLESS STEEL BOXES -PDFCATEGORY： WATERPROOF STAINLESS STEEL ENCLOSURE・SUS304 ENCLOSURE・STAINLESS STEEL CABINET
IP65 robust stainless steel (SUS304) enclosures for superior weather and corrosion resistance.
Suitable to be used in machine industry, industry plant, food plant or chemical plant.
Easy opening latch/hinged models and screw closing models are available.
- IP65 STAINLESS STEEL BOX - SSB series
- IP65 stainless steel enclosure with screw fixing cover.
- SUS304 stainless steel for weather and corrosion resistance.
- Conductive box for EMC shielding.
- 9 different sizes are available.
- IP65 WALL MOUNT STAINLESS STEEL BOX - SLB series
- IP65 stainless steel enclosure with screw fixing cover.
- Equipped with wall mounting bracket.
- SUS304 stainless steel for weather and corrosion resistance.
- 9 different sizes are available.
- IP65 HINGED STAINLESS STEEL BOX - SSM series
- IP65 hinged stainless steel enclosure with key lock latch.
- SUS304 stainless steel for weather and corrosion resistance.
- Conductive box for EMC shielding.
- 9 different sizes are available.
- IP65 WALLMOUNT HINGED STAINLESS STEEL BOX - SLM series
- IP65 hinged stainless steel enclosure with key lock latch.
- Equipped with wall mounting brackets.
- SUS304 stainless steel for weather and corrosion resistance.
- 9 different sizes are available.

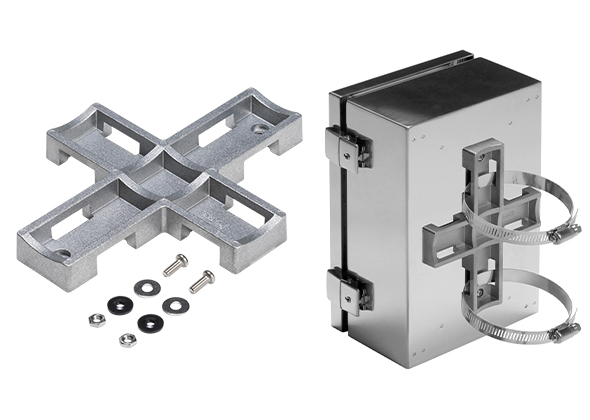

- POLE MOUNT BRACKET for STAINLESS STEEL BOX
- Stainless steel pole mount bracket for SSB・SSM series.
- Use optional mounting belt to install onto a pole. (PKB series)
- POLE MOUNTING BELT- PKB series
- Universal pole mounting belt for outdoor enclosures.
- Stainless steel type and plastic type are available.
- Use SSK mounting bracket for installation onto a pole.
- IP68 METAL CABLE GLAND - AGM series
- High water protection IP68 metal cable gland.
- Protection class: IP68 1bar / 30min
- Wide selection, for M6 ~ M50 and PG7 ~ PG16.
- Suitable in 19 sizes. (Φ2 mm ~ Φ42 mm cable)
- EMC CABLE GLAND - AGE series
- Easy installation EMC shielding metal cable gland.
- EMC spring provides for good contact of shielding cables.
- Protection class : IP68 2bar / 30min, IP69K
- 6 different sizes for cable range φ3.5mm ~ 25.0mm.
- HEAT RESISTANT CABLE GLAND - AGH series
- Heat resistant sealing insert made of FPM material.
- Operating temperature : -40℃ ~ +200℃
- Protection class : IP68 1bar / 30min
- 6 different sizes available for cable range φ4~φ25.5mm.
- IP68 WATER PROTECTION CABLE GLAND - AG series
- High water protection IP68 cable gland.
- Tough and heat resistant PA6FG material. (-20°C to +100°C)
- Wide selection for M8 ~ M50 thread
- Selectable in 15 sizes. (Φ2.5mm ~ Φ42 mm cable.)
- POLYAMIDE CABLE GLAND - RM series
- Low cost cable glands made from polyamide material.
- Wide selection, for M8 ~ M63 and Φ1mm ~ Φ44 mm cable.
- Protection class : IP67
- High oil resistant NBR rubber sealing and O-ring.
- WEATHERPROOF CABLE GLAND - RMW series
- Weatherproof cable glands for long-term outdoor use.
- High degradation resistant silicone sealing insert and O-ring.
- Protection class : IP67
- Thread size M8 ~ M50, Cable range Φ1mm ~ Φ38 mm.
- STRAIN RELIEF CABLE GLAND - RSP series
- Strain relief cable gland for protecting cables.
- Protecting class : IP67
- 4 sizes for M12・M16・M20・M25 in light gray and black.
- Cable range : φ3.5mm～φ16mm
- GORETEX PROTECTIVE VENT - PMF series
- Screw in protective vent plugs.
- Built-in membrane filter plugs with IP68 waterproof and airflow.
- Equalize pressure and reduce condensation.
- Ｍ6, M12, and M32 models are available.
- WATERPROOF SEALING WASHER SZ series
- Waterproof washer for screwing onto waterproof boxes.
- Oil resistant NBR sealing material on N models.
- Superior water resistant silicone sealing material on S models.
- 8 sizes in M3, M4, M5, M6, M8, M10, M12, and M16.
- DIN RAIL for STAINLESS STEEL BOXES
- 35mm width aluminium DIN rail.
- Suitable for SSM・SLM・SSB・SLB series.
- For installation of terminal blocks, circuit breakers, or devices.
- DIN-RAIL TERMINAL BLOCK END STOPPER - TKR series
- Stopper bracket for use with 35mm DIN-rail.
- Can be used to fix terminal blocks or modules.
