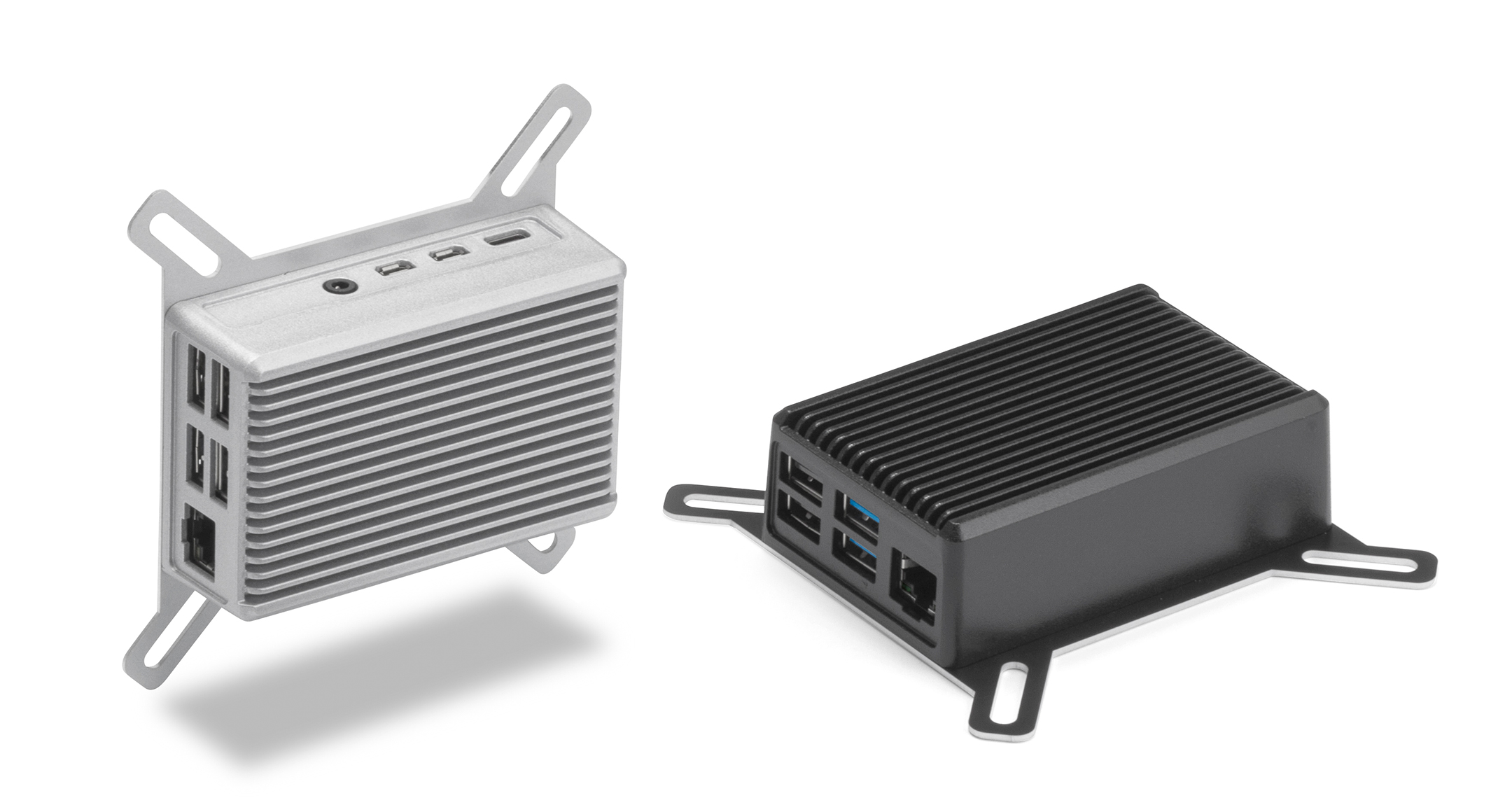

VESA mont Raspberry Pi heatsink case - RPH-F series
CATEGORY：Raspberry Pi 4B heatsink case, Raspberry Pi cooling case, Raspberry Pi VESA mount case, Raspberry Pi enclosure, Raspberry Pi 4 Model B Case.
Heatsink top cover case exclusively for use with the Raspberry Pi 4 Model B.

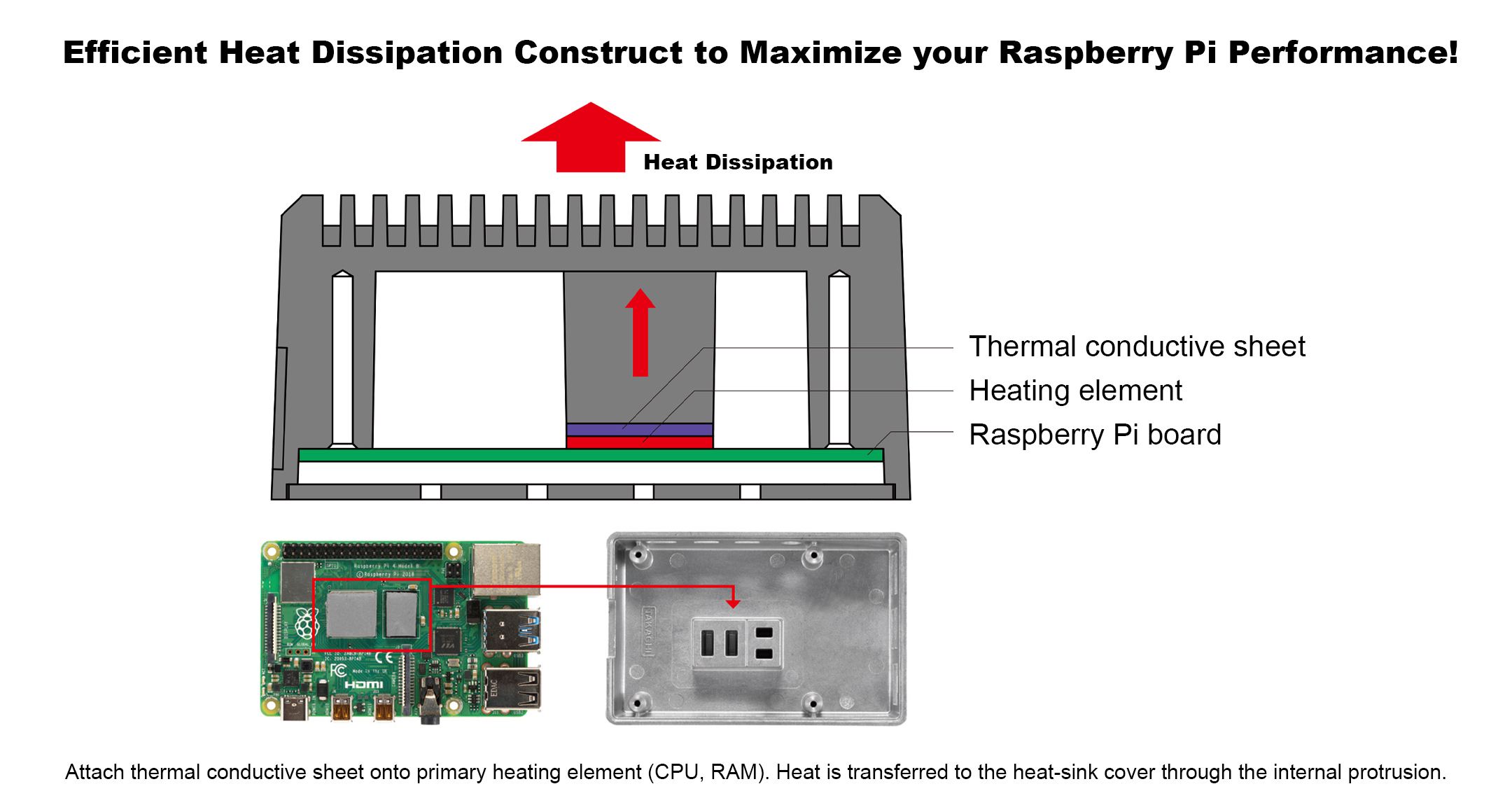

Equipped with highly efficient heat-sink top cover.
Constructed using diecast aluminium for strength and rigidity.

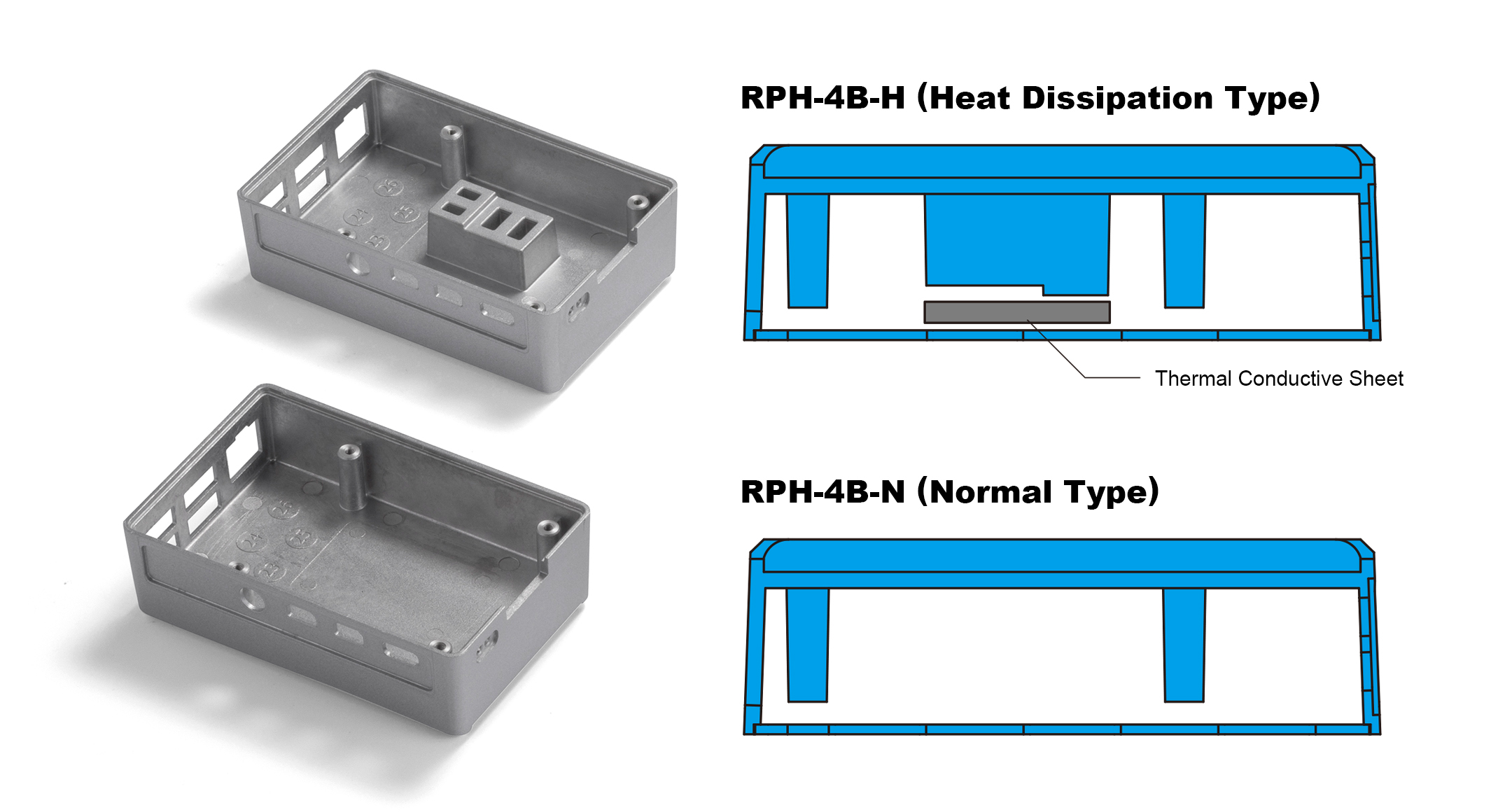

2 types are available : a efficient heat dissipation type, and a normal type.

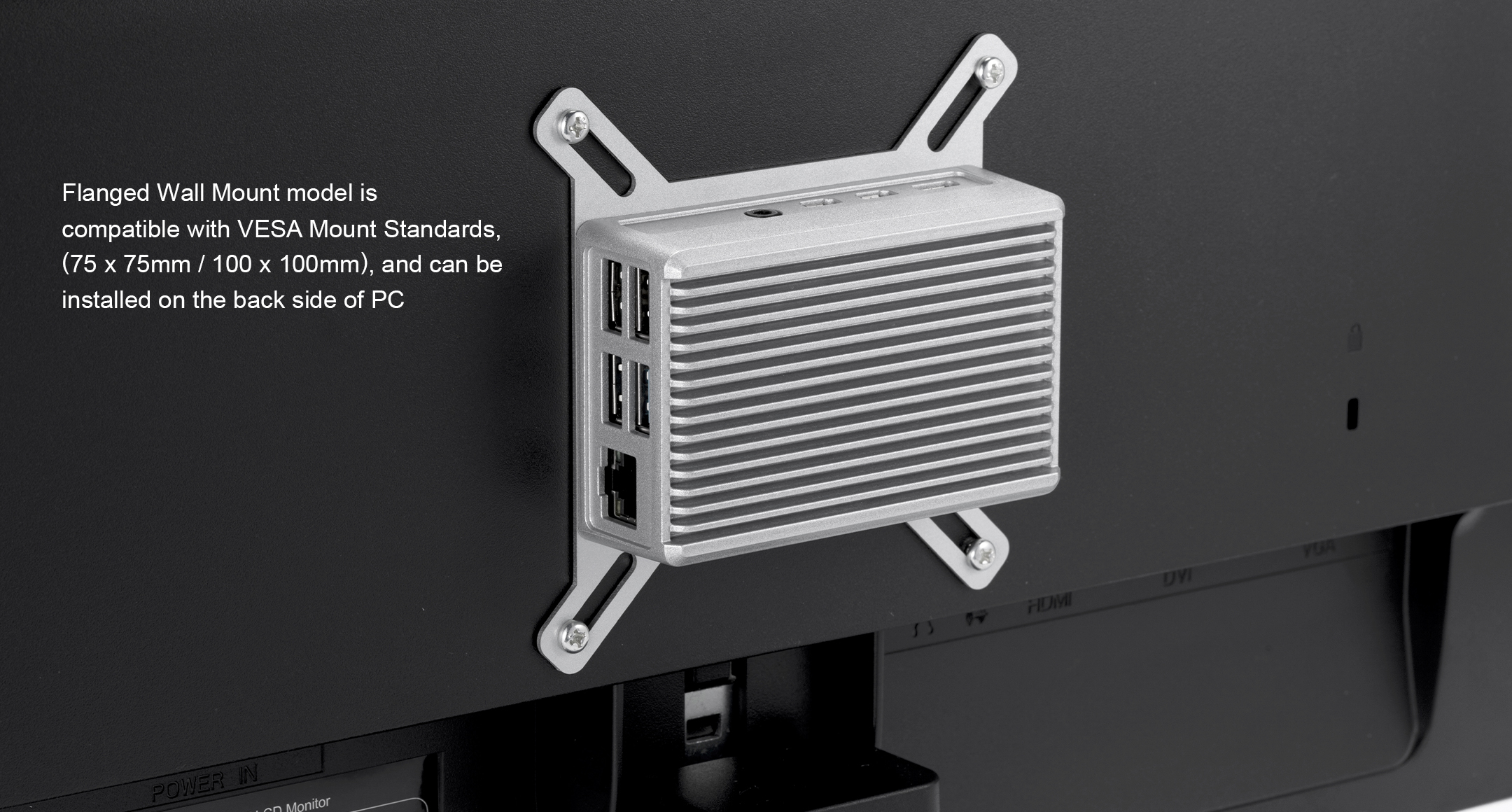

Wall mount flange is compatible with VESA mount standards,(75 x 75mm / 100 x 100mm),
and can be installed on the back side of PC displays, etc.
Equipped with highly efficient heat-sink top cover.
Constructed using diecast aluminium for strength and rigidity.
2 types are available : a efficient heat dissipation type, and a normal type.
Wall mount flange is compatible with VESA mount standards,(75 x 75mm / 100 x 100mm),
and can be installed on the back side of PC displays, etc.
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Type | Color | Weight (g) | DXF | DWG | STP | |||
|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | ||||||||
| RPH-4B-FH- S | 63 | 31.5 | 98 | VESA mount, Heat dissipation type | Silver | 168.2 | DXF | DWG | ||
| RPH-4B-FH- B | 63 | 31.5 | 98 | VESA mount, Heat dissipation type | Black | 168.2 | DXF | DWG | ||
| RPH-4B-FN- S | 63 | 31.5 | 98 | VESA mount, Normal type | Silver | 150.3 | DXF | DWG | ||
| RPH-4B-FN- B | 63 | 31.5 | 98 | VESA mount, Normal type | Black | 150.3 | DXF | DWG | ||
