New RPH-5-H ・FH model compatible with Raspberry Pi 5 is now available.
Heatsink top cover case exclusively for use with the Raspberry Pi.

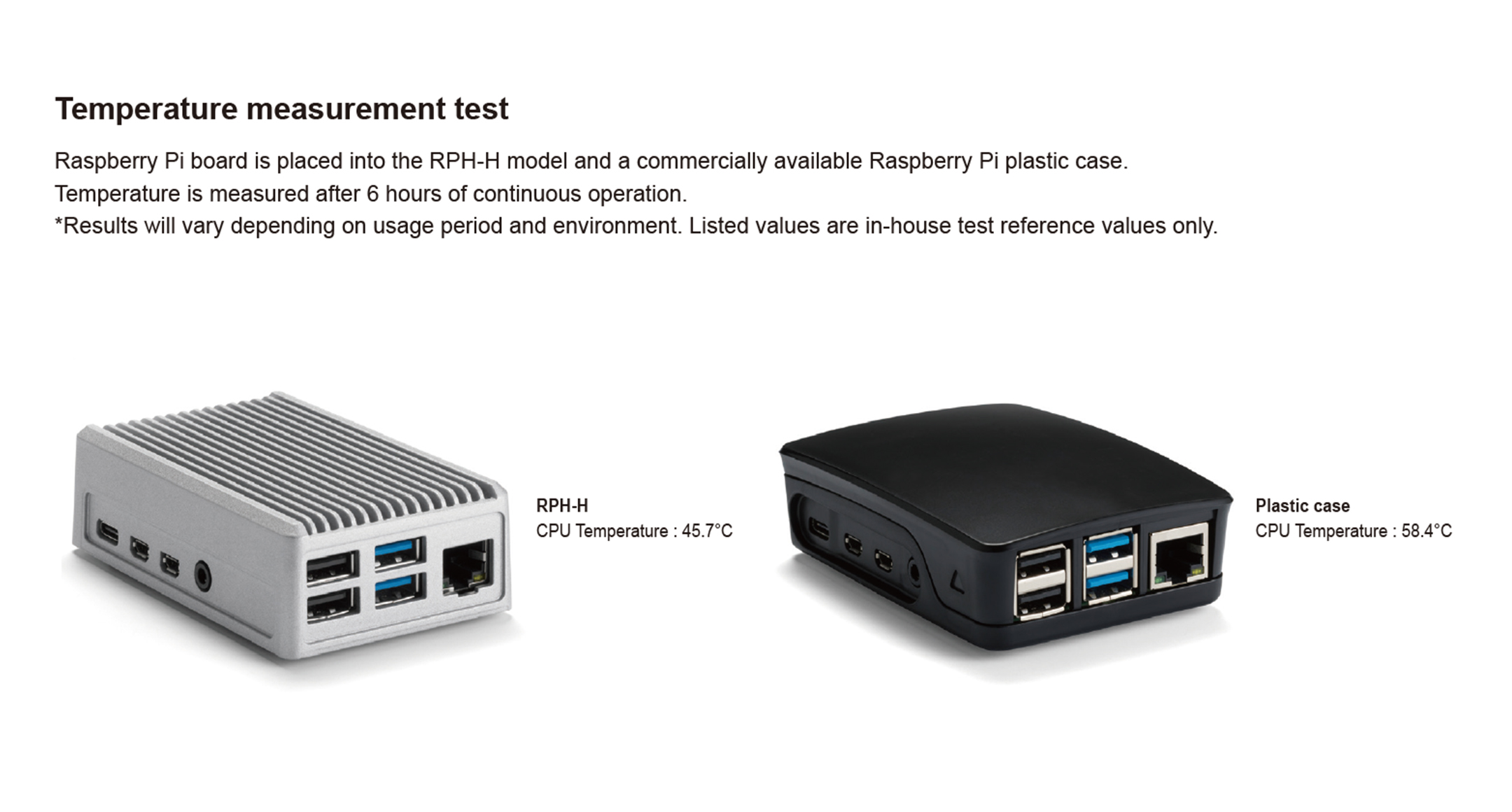

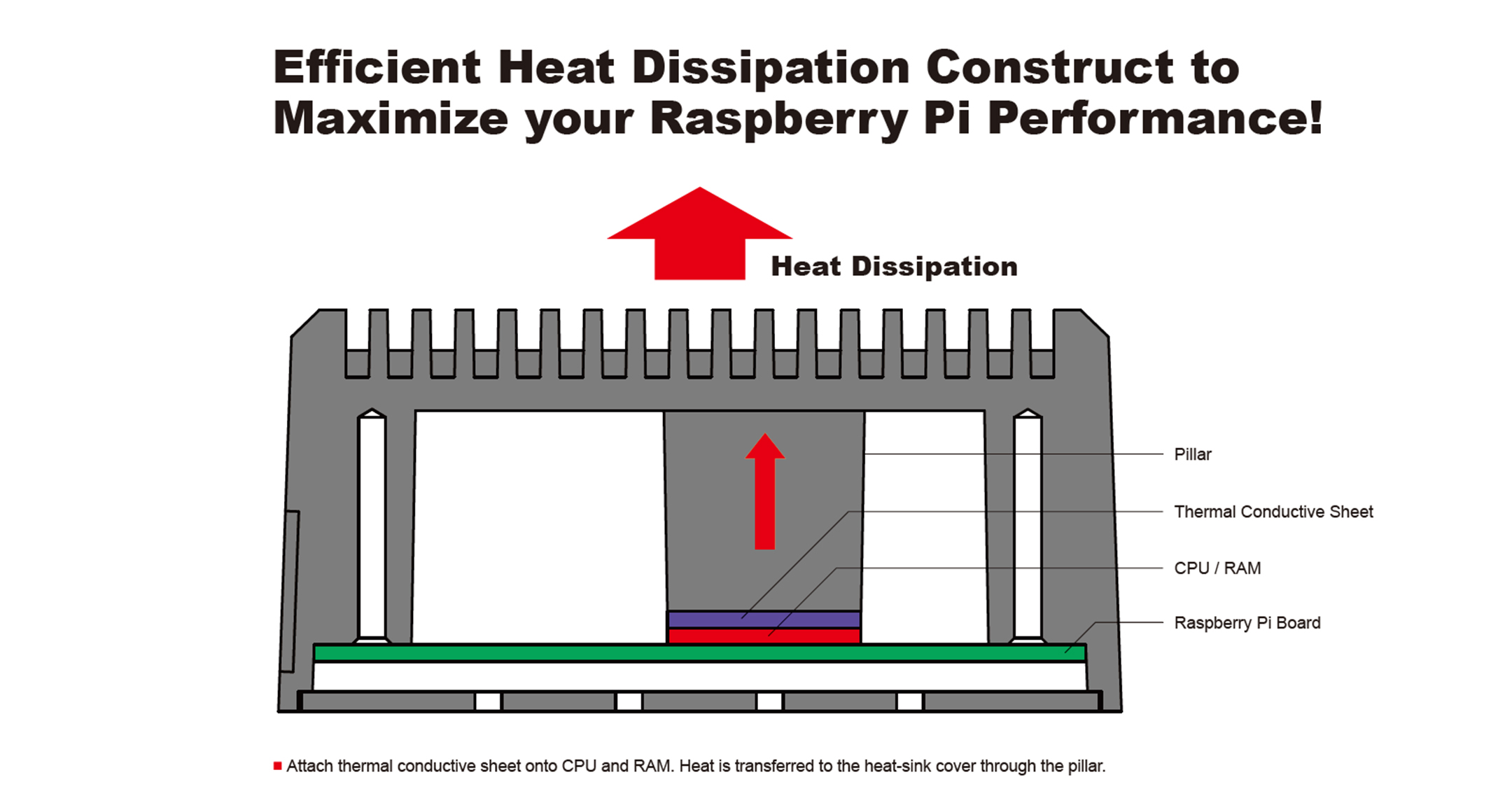

Equipped with highly efficient heat-sink top cover.
Constructed using diecast aluminium for strength and rigidity.
2 types are available : a efficient heat dissipation type, and a normal type.
It is a high-performance case yet low-price.

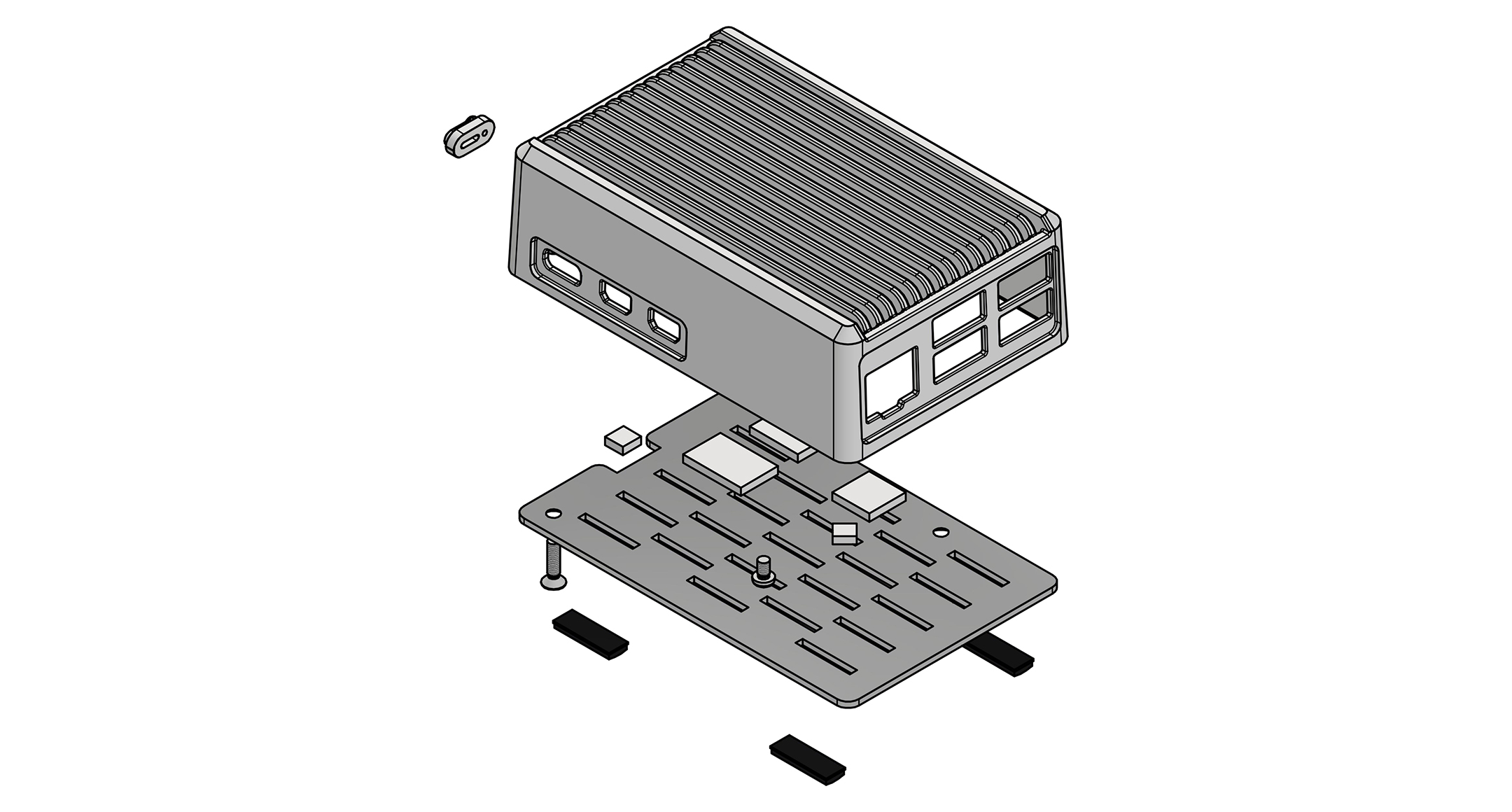

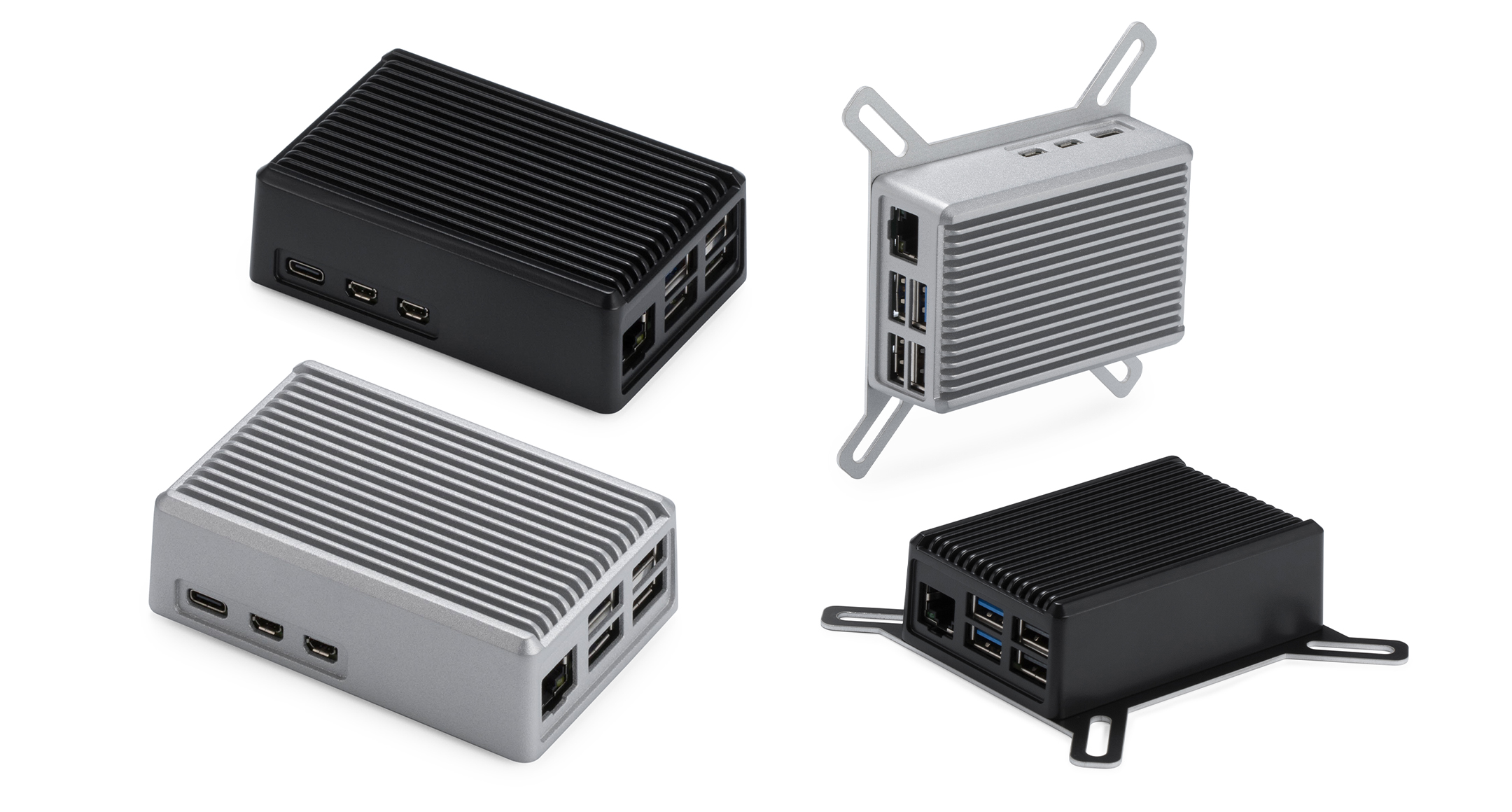

Available in 2 different models : Desktop and Flanged wall mount.

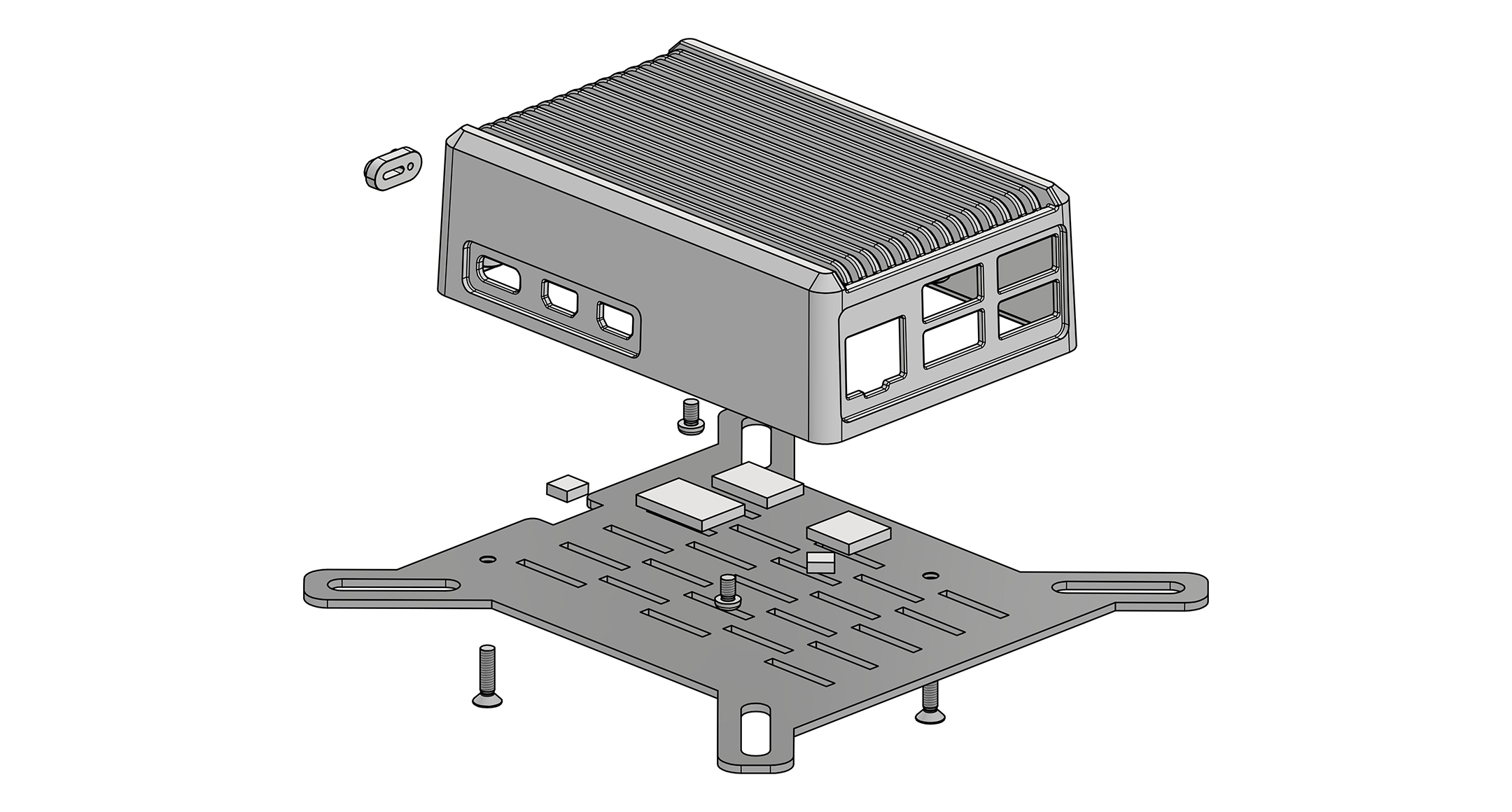

Flanged wall mount model is compatible with VESA mount standards,(75 x 75mm / 100 x 100mm),
and can be installed on the back side of PC displays, etc.
Heatsink top cover case exclusively for use with the Raspberry Pi.
Equipped with highly efficient heat-sink top cover.
Constructed using diecast aluminium for strength and rigidity.
2 types are available : a efficient heat dissipation type, and a normal type.
It is a high-performance case yet low-price.
Available in 2 different models : Desktop and Flanged wall mount.
Flanged wall mount model is compatible with VESA mount standards,(75 x 75mm / 100 x 100mm),
and can be installed on the back side of PC displays, etc.
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Type | Color | Weight (g) | DXF | DWG | STP | |||
|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | ||||||||
| RPH-5-H-S | 63 | 30 | 96 | Desktop, Heat dissipation type | Silver | 165.5 | DXF | DWG | ||
| RPH-5-H-B | 63 | 30 | 96 | Desktop, Heat dissipation type | Black | 165.5 | DXF | DWG | ||
| RPH-5-FH-S | 63 | 31.5 | 96 | VESA mount, Heat dissipation type | Silver | 174.2 | DXF | DWG | ||
| RPH-5-FH-B | 63 | 31.5 | 96 | VESA mount, Heat dissipation type | Black | 174.2 | DXF | DWG | ||
