ALUMINIUM CONTROL BOX - AUX series


AUX- Series -PDF

CATEGORY：Aluminum box, Aluminium enclosure, Control box, Command panel enclosure, Universal enclosure, Amplifier chassis

ALUMINIUM CONTROL BOX - AUX series
ALUMINIUM CONTROL BOX - AUX series
ALUMINIUM CONTROL BOX - AUX series
ALUMINIUM CONTROL BOX - AUX series
ALUMINIUM CONTROL BOX - AUX series
ALUMINIUM CONTROL BOX - AUX series
ALUMINIUM CONTROL BOX - AUX series
ALUMINIUM CONTROL BOX - AUX series
ALUMINIUM CONTROL BOX - AUX series
ALUMINIUM CONTROL BOX - AUX series
ALUMINIUM CONTROL BOX - AUX series
ALUMINIUM CONTROL BOX - AUX series
ALUMINIUM CONTROL BOX - AUX series1
ALUMINIUM CONTROL BOX - AUX series2
ALUMINIUM CONTROL BOX - AUX series3
ALUMINIUM CONTROL BOX - AUX series4
ALUMINIUM CONTROL BOX - AUX series5
ALUMINIUM CONTROL BOX - AUX series6
ALUMINIUM CONTROL BOX - AUX series7
ALUMINIUM CONTROL BOX - AUX series8
ALUMINIUM CONTROL BOX - AUX series9
ALUMINIUM CONTROL BOX - AUX series10
ALUMINIUM CONTROL BOX - AUX series11
ALUMINIUM CONTROL BOX - AUX series12

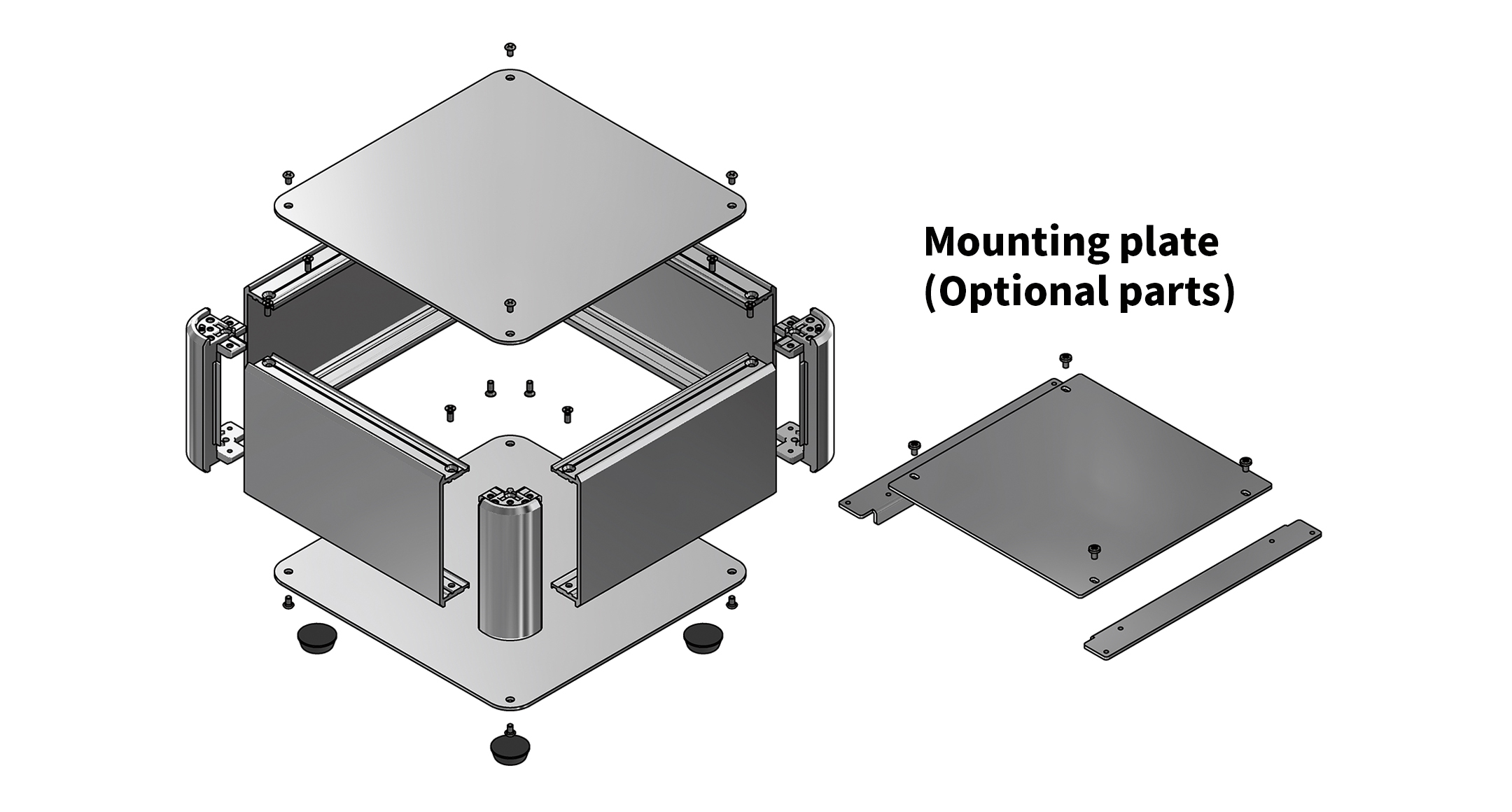

Roundedge designed aluminium enclosure with 4 extruded aluminium frames.

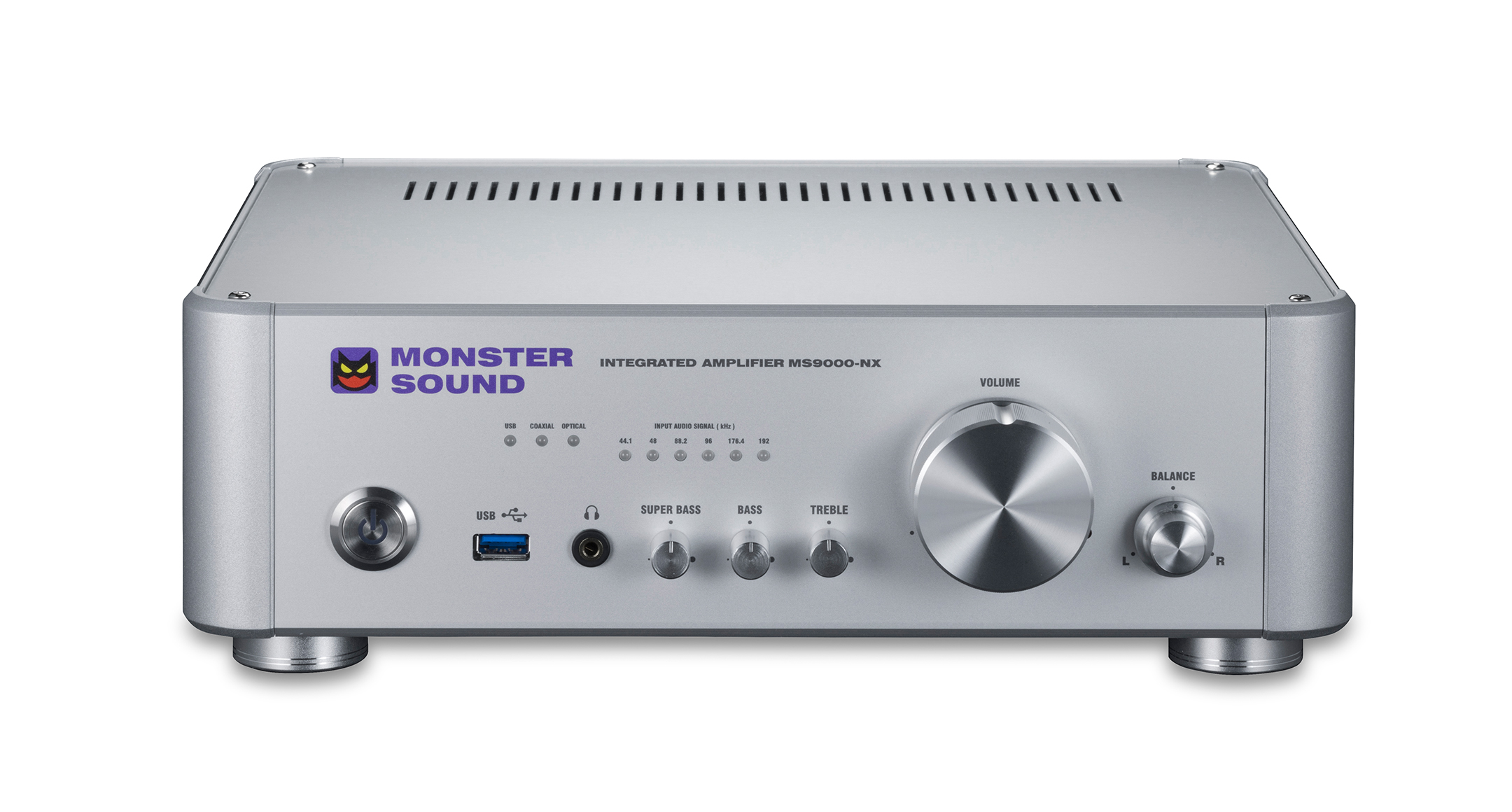

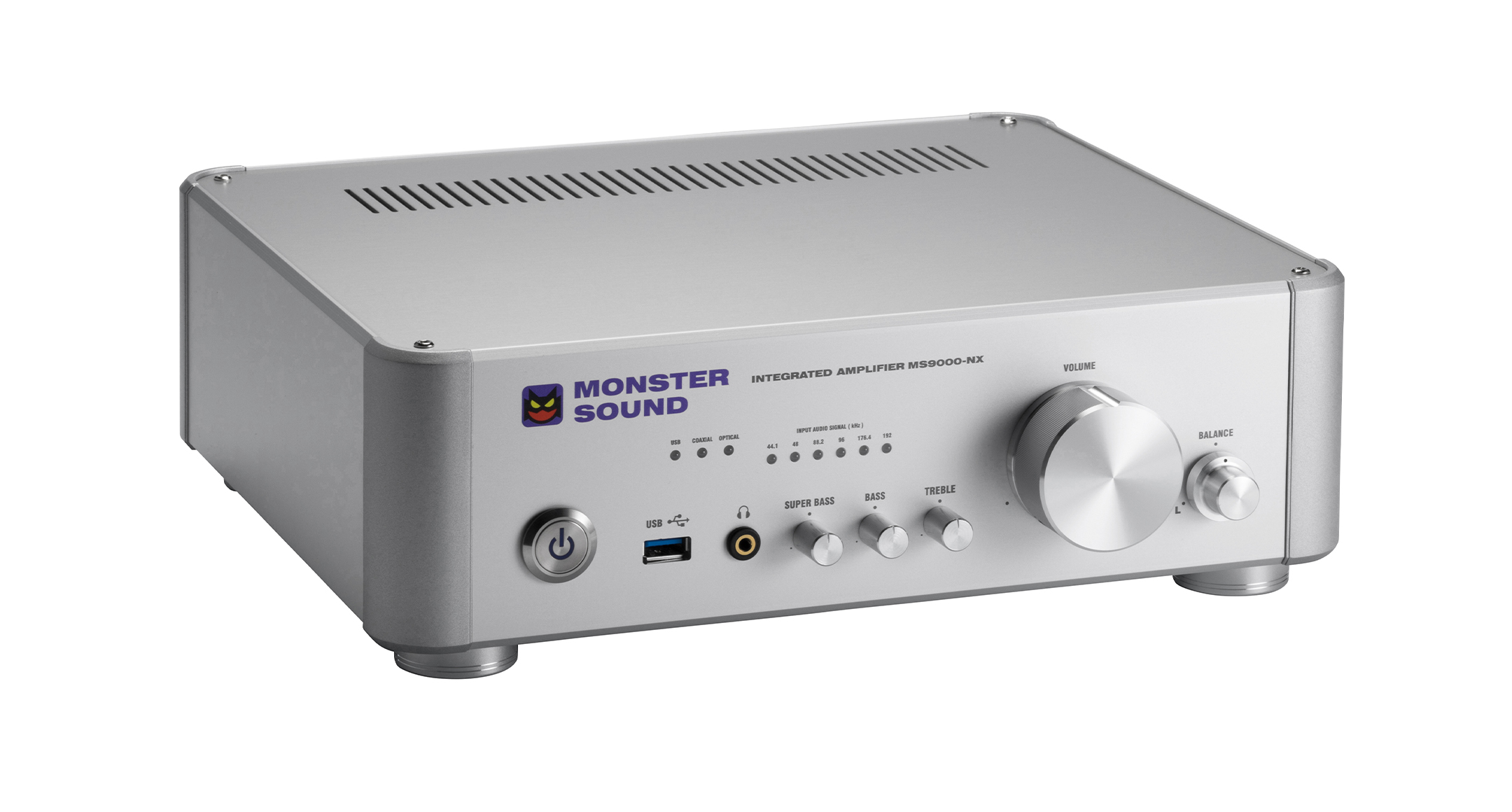

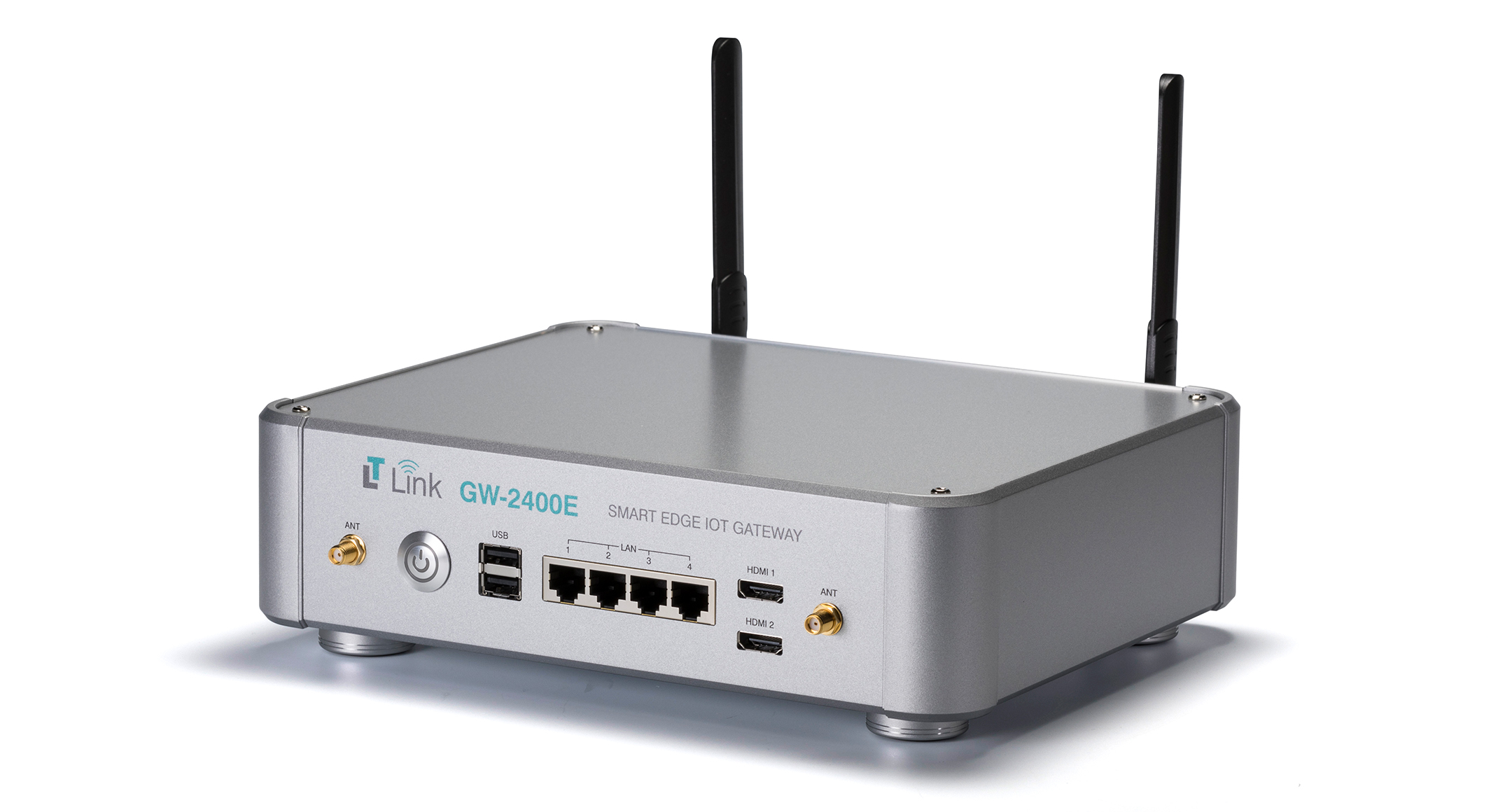

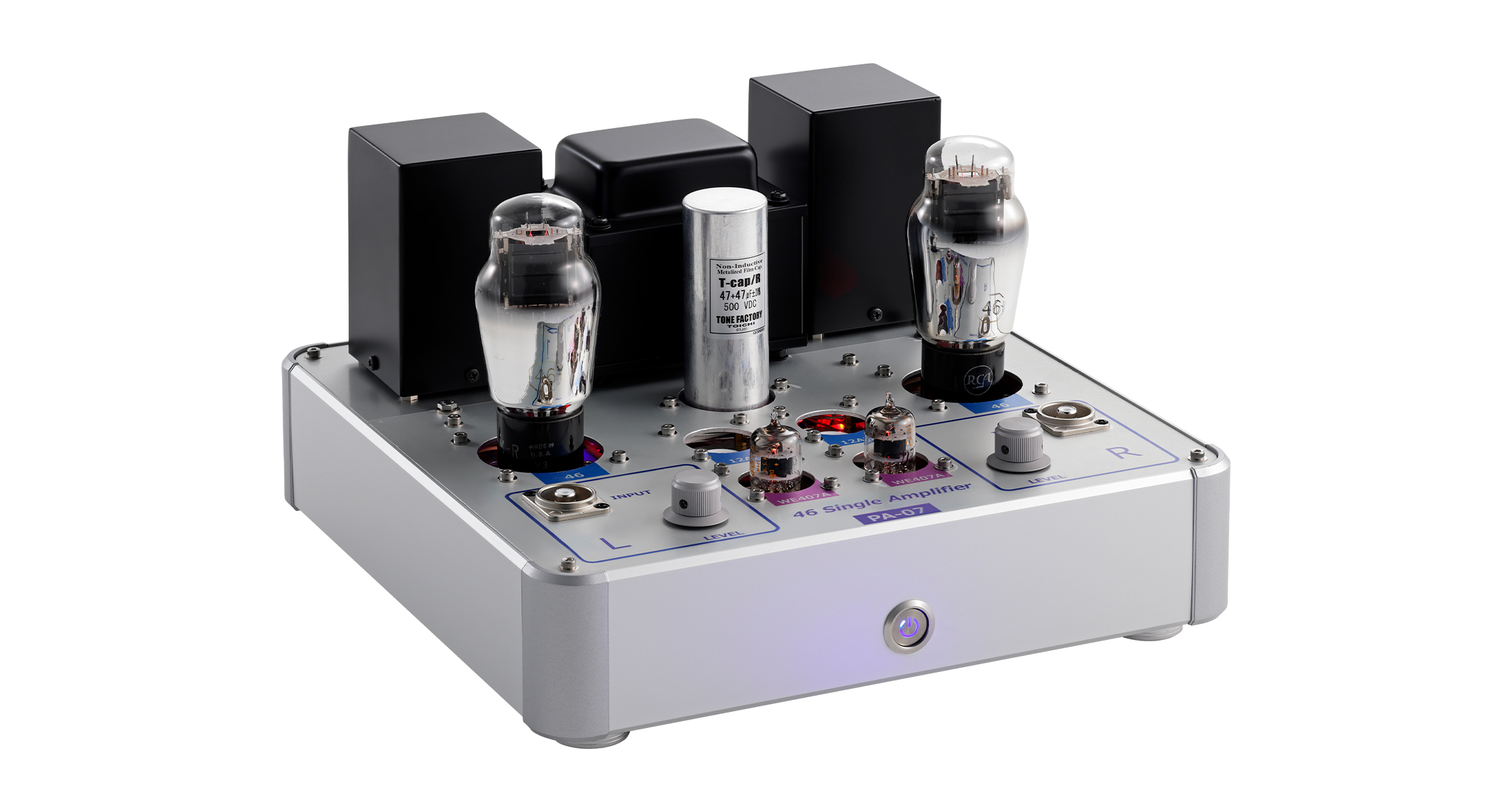

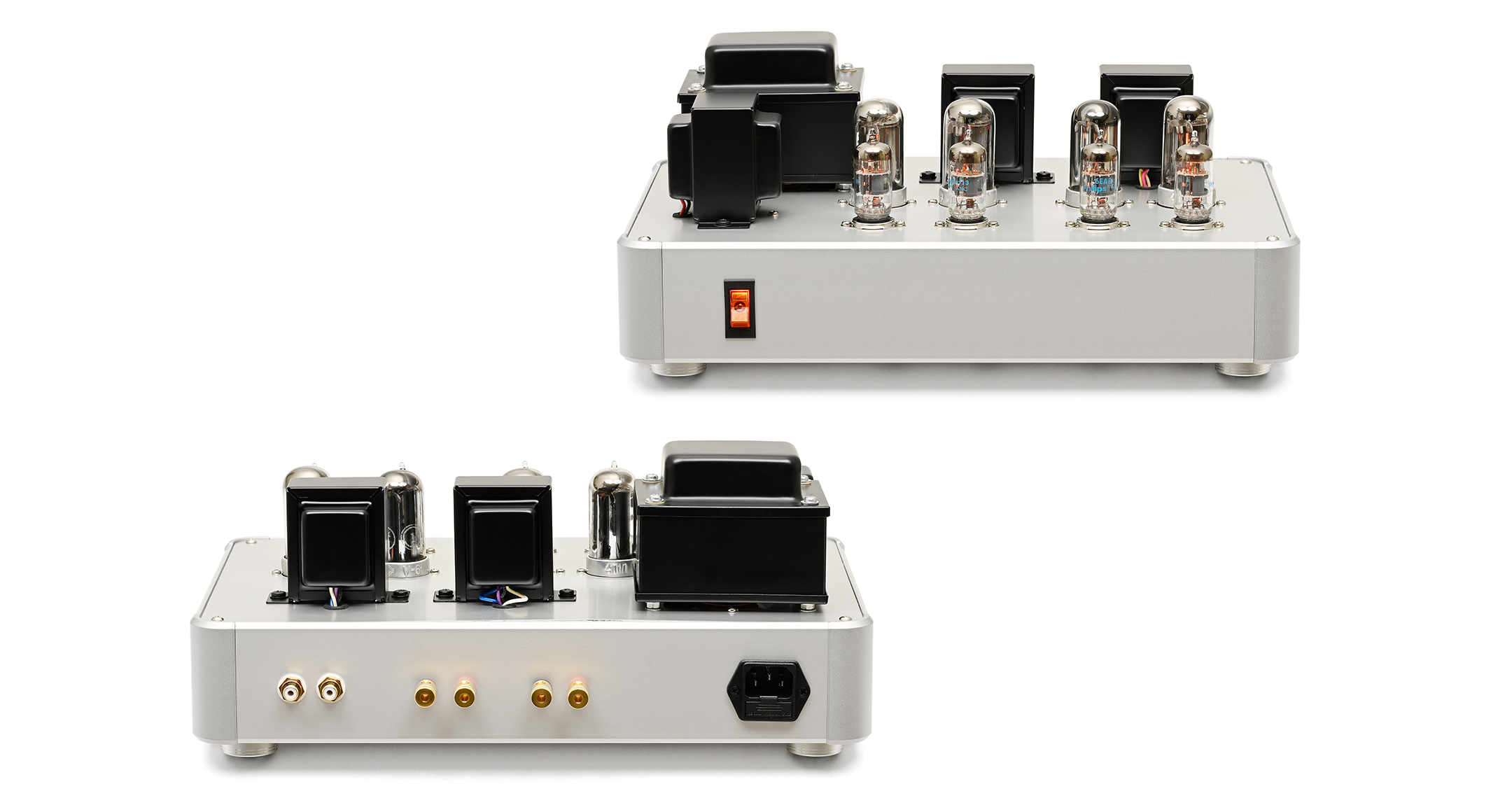

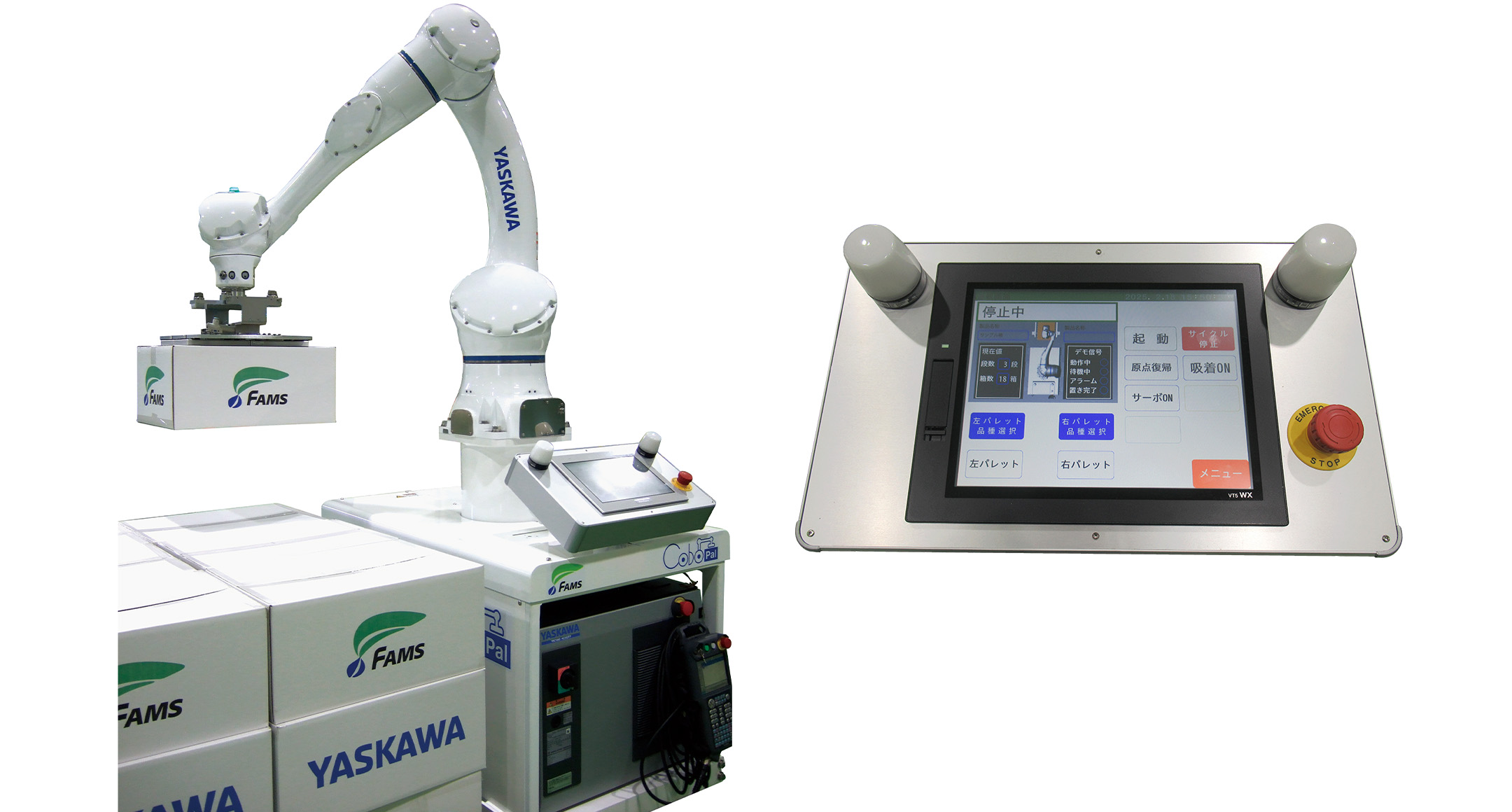

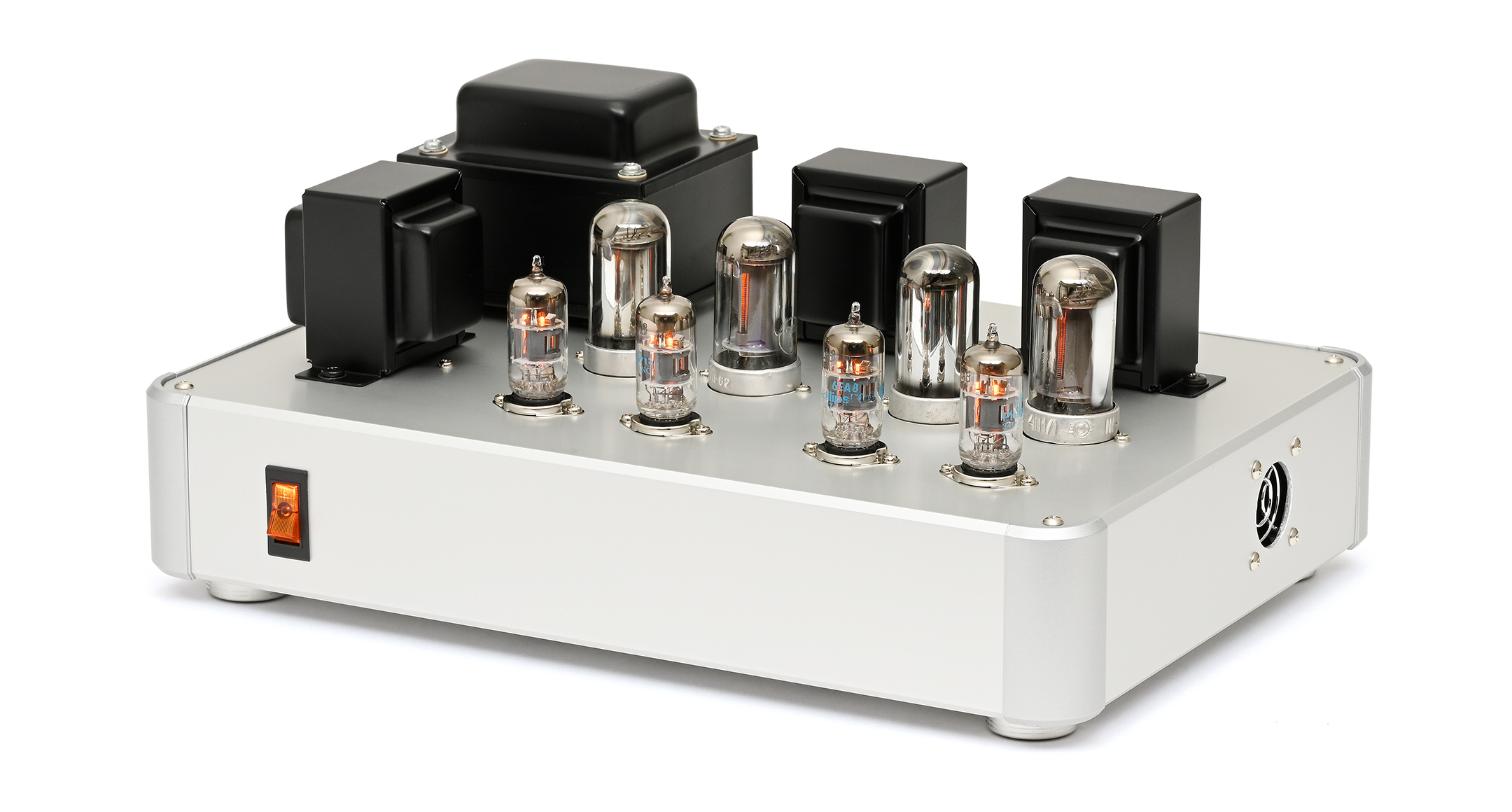

Suitable for use as industrial control box, command panel, audio amplifier, power supply, and so on.

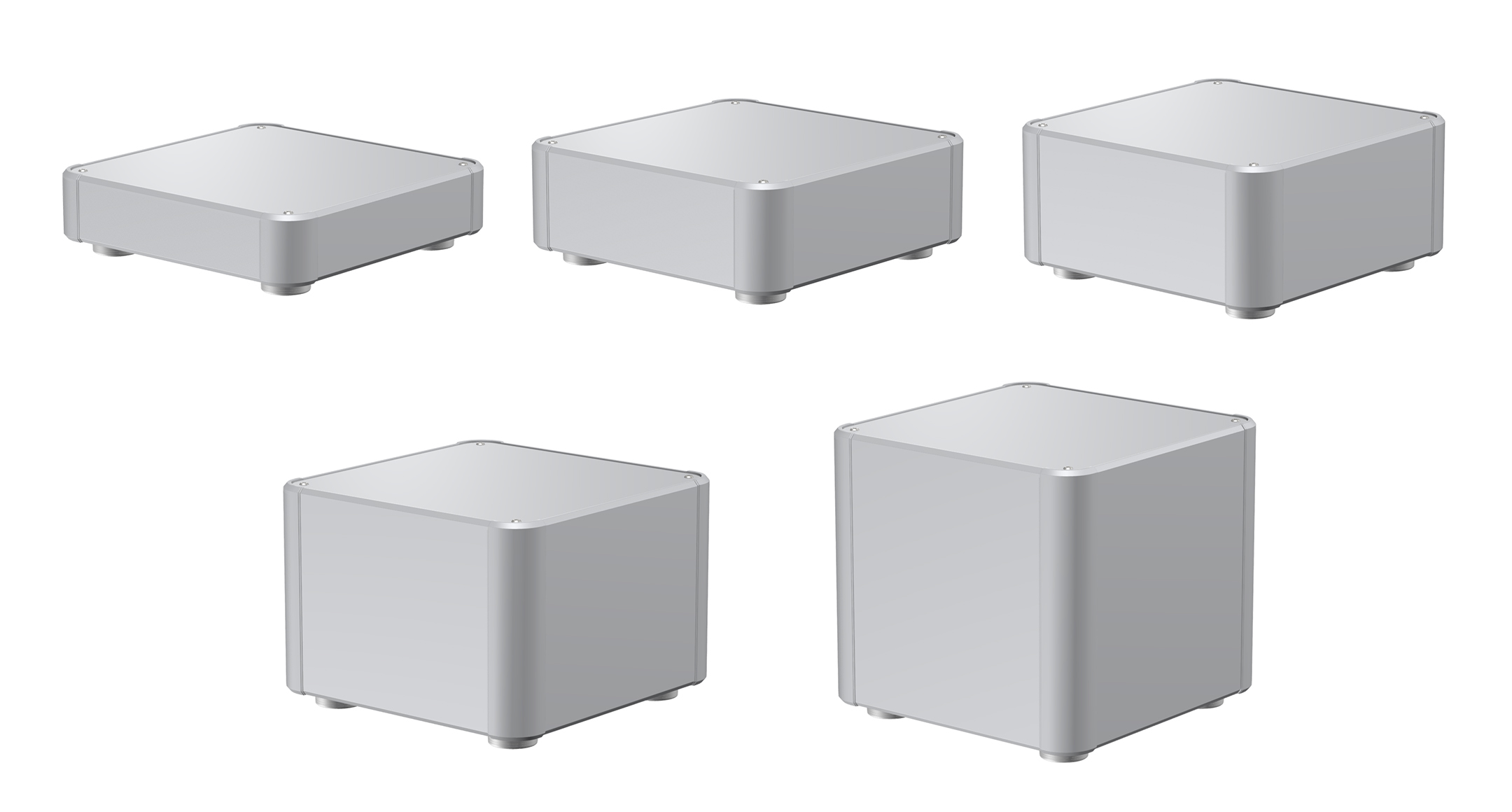

A wide selection of 135 different sizes to choose from.
Feet is selectable between adhesive rubber or aluminium type.
Cover screw is selectable Plus head or Hex head.

COLOR TYPE

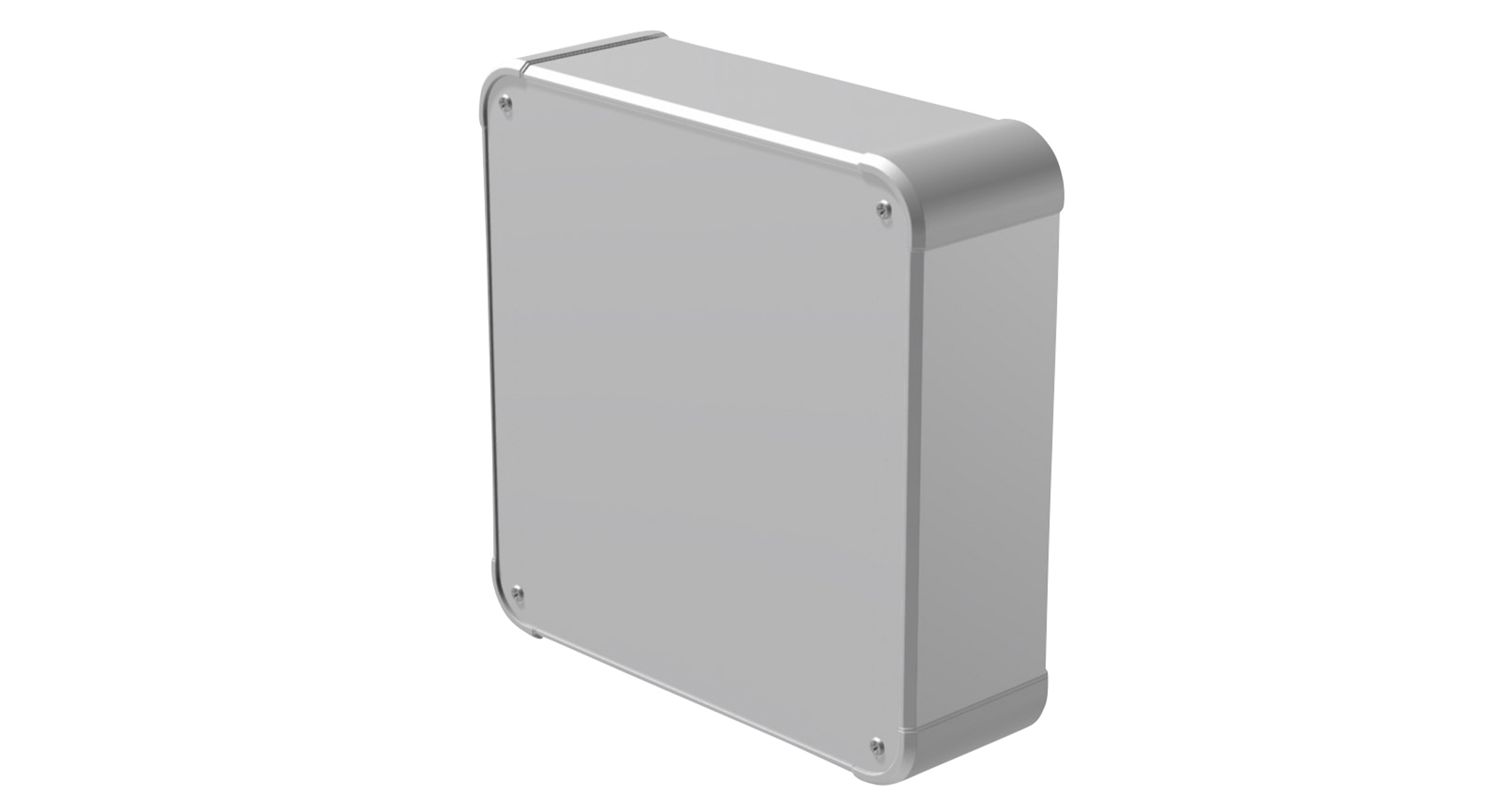

SSSilver

ALUMINIUM CONTROL BOX - AUX series:Silver

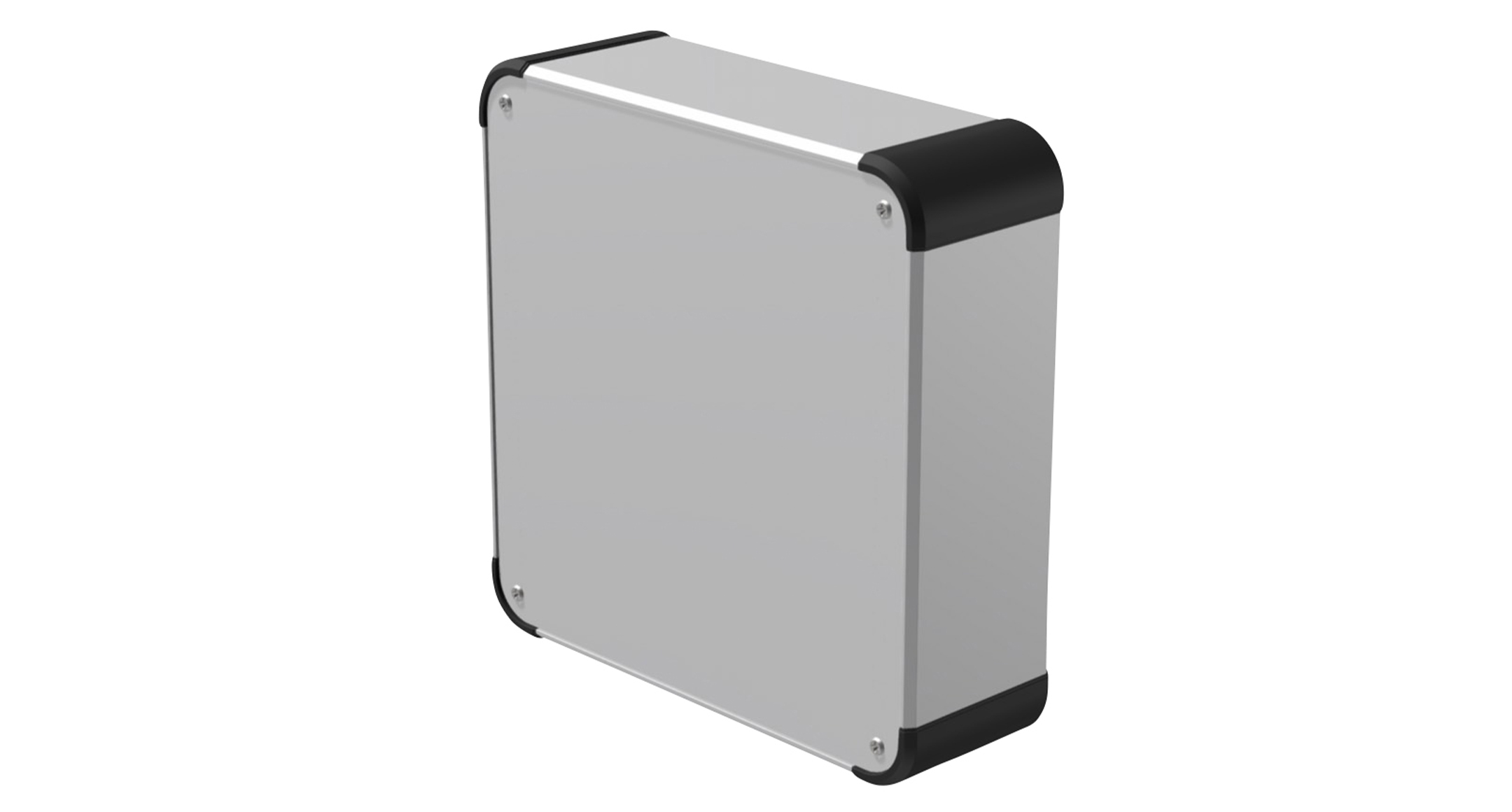

SBSilver / Corner : Black

ALUMINIUM CONTROL BOX - AUX series:Silver / Corner : Black

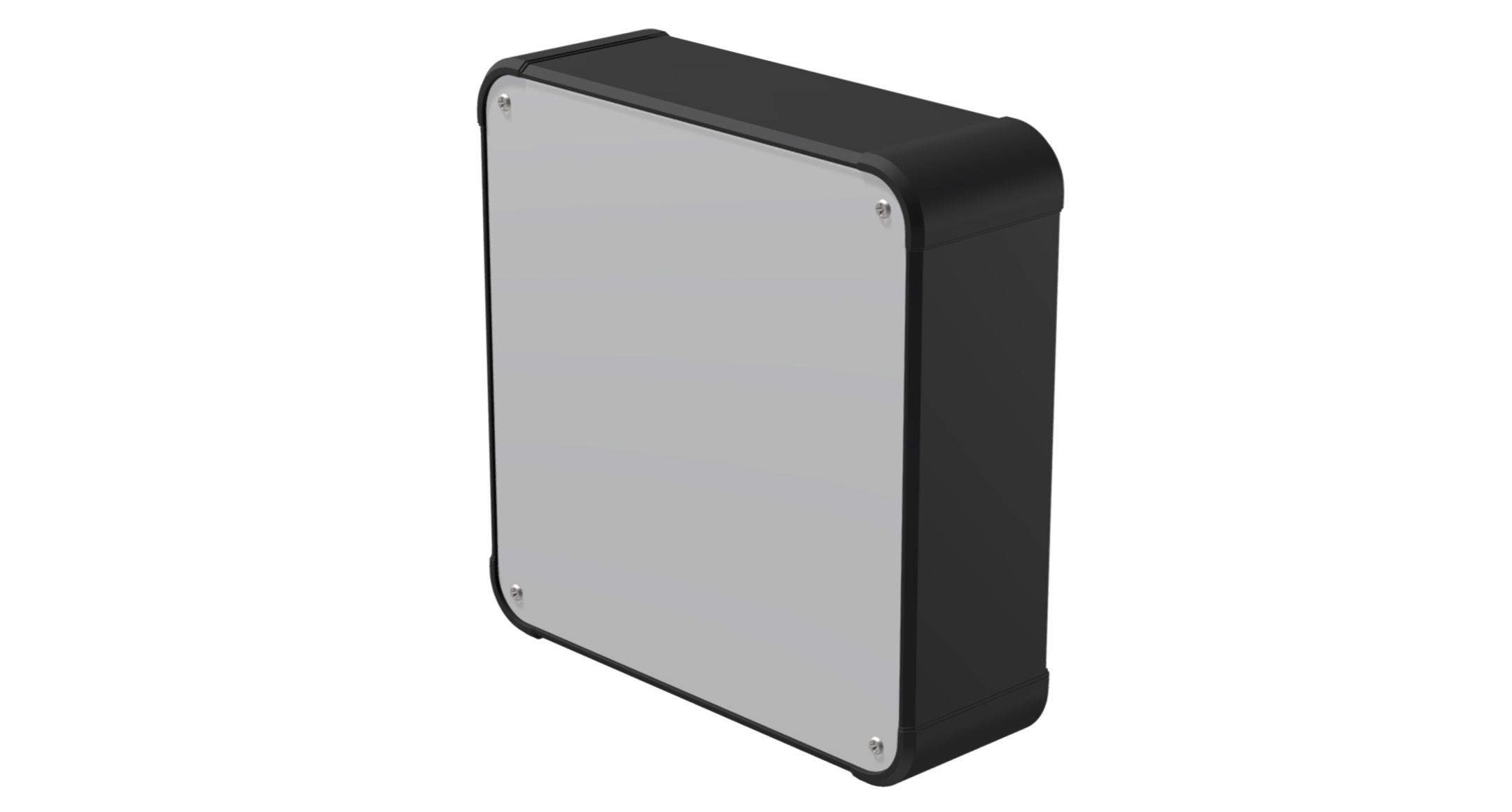

BXSilver / Side : Black

ALUMINIUM CONTROL BOX - AUX series:Silver / Side : Black

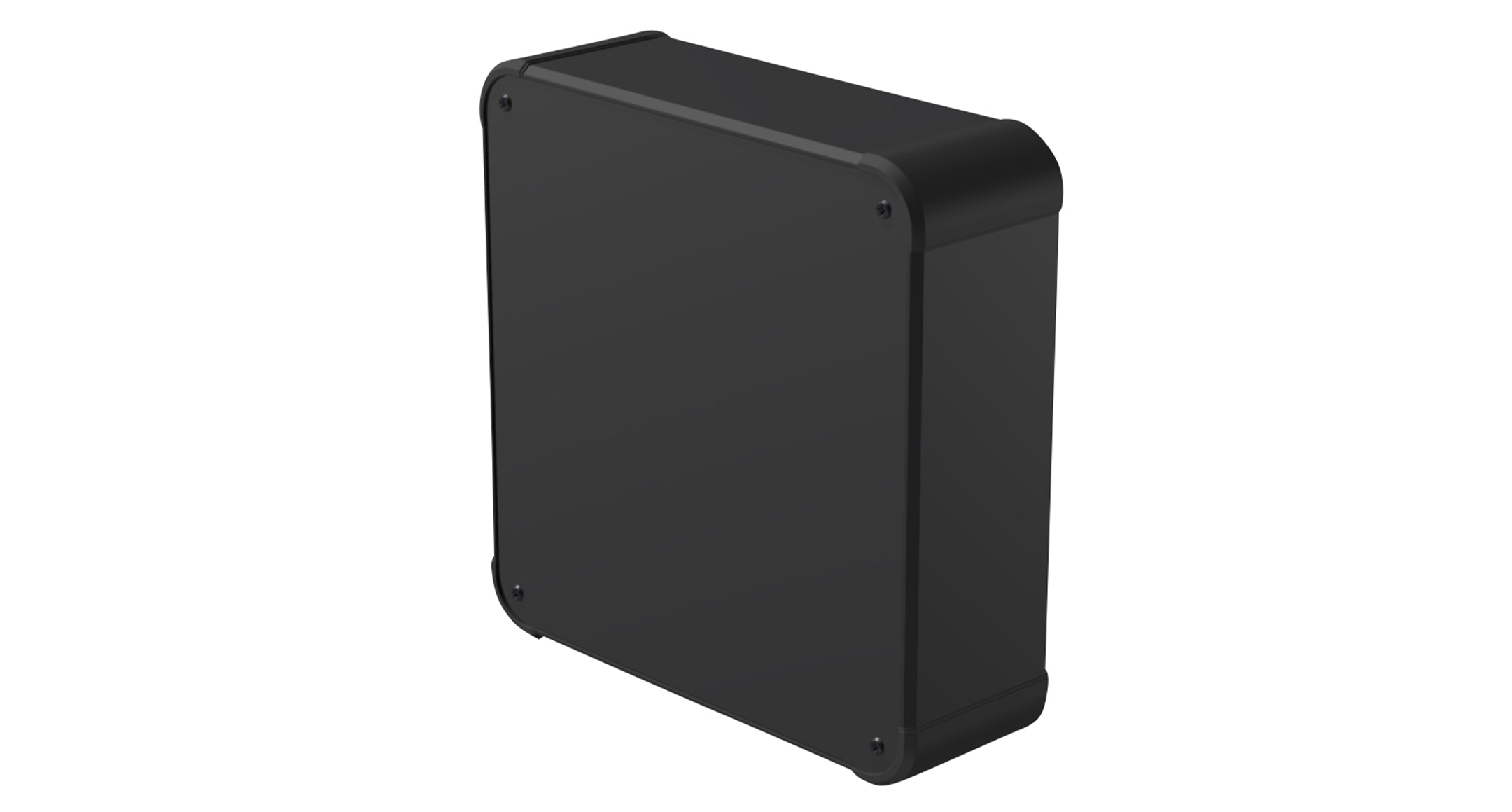

BBBlack

ALUMINIUM CONTROL BOX - AUX series:Black
ALUMINIUM CONTROL BOX - AUX series:Silver
ALUMINIUM CONTROL BOX - AUX series:Silver / Corner : Black
ALUMINIUM CONTROL BOX - AUX series:Silver / Side : Black
ALUMINIUM CONTROL BOX - AUX series:Black

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Feet Weight (kg) PDF DXF DWG STP
W H D w h d
AUX44-16-16A□-□□ 160 44 160 153 37 153 Aluminium feet 0.7
AUX44-16-16R□-□□ 160 44 160 153 37 153 Rubber feet 0.7
AUX44-20-16A□-□□ 200 44 160 193 37 153 Aluminium feet 0.8
AUX44-20-16R□-□□ 200 44 160 193 37 153 Rubber feet 0.8
AUX44-20-20A□-□□ 200 44 200 193 37 193 Aluminium feet 0.9
AUX44-20-20R□-□□ 200 44 200 193 37 193 Rubber feet 0.9
AUX44-25-16A□-□□ 250 44 160 243 37 153 Aluminium feet 1
AUX44-25-16R□-□□ 250 44 160 243 37 153 Rubber feet 1
AUX44-25-20A□-□□ 250 44 200 243 37 193 Aluminium feet 1.1
AUX44-25-20R□-□□ 250 44 200 243 37 193 Rubber feet 1.1
AUX44-25-25A□-□□ 250 44 250 243 37 243 Aluminium feet 1.3
AUX44-25-25R□-□□ 250 44 250 243 37 243 Rubber feet 1.3
AUX44-30-16A□-□□ 300 44 160 293 37 153 Aluminium feet 1.1
AUX44-30-16R□-□□ 300 44 160 293 37 153 Rubber feet 1.1
AUX44-30-20A□-□□ 300 44 200 293 37 193 Aluminium feet 1.3
AUX44-30-20R□-□□ 300 44 200 293 37 193 Rubber feet 1.3
AUX44-30-25A□-□□ 300 44 250 293 37 243 Aluminium feet 1.5
AUX44-30-25R□-□□ 300 44 250 293 37 243 Rubber feet 1.5
AUX44-30-30A□-□□ 300 44 300 293 37 293 Aluminium feet 1.7
AUX44-30-30R□-□□ 300 44 300 293 37 293 Rubber feet 1.7
AUX44-36-16A□-□□ 360 44 160 353 37 153 Aluminium feet 1.3
AUX44-36-16R□-□□ 360 44 160 353 37 153 Rubber feet 1.3
AUX44-36-20A□-□□ 360 44 200 353 37 193 Aluminium feet 1.5
AUX44-36-20R□-□□ 360 44 200 353 37 193 Rubber feet 1.5
AUX44-36-25A□-□□ 360 44 250 353 37 243 Aluminium feet 1.7
AUX44-36-25R□-□□ 360 44 250 353 37 243 Rubber feet 1.7
AUX44-36-30A□-□□ 360 44 300 353 37 293 Aluminium feet 2
AUX44-36-30R□-□□ 360 44 300 353 37 293 Rubber feet 2
AUX44-36-36A□-□□ 360 44 360 353 37 353 Aluminium feet 2.2
AUX44-36-36R□-□□ 360 44 360 353 37 353 Rubber feet 2.2
AUX44-43-16A□-□□ 430 44 160 423 37 153 Aluminium feet 1.5
AUX44-43-16R□-□□ 430 44 160 423 37 153 Rubber feet 1.5
AUX44-43-20A□-□□ 430 44 200 423 37 193 Aluminium feet 1.7
AUX44-43-20R□-□□ 430 44 200 423 37 193 Rubber feet 1.7
AUX44-43-25A□-□□ 430 44 250 423 37 243 Aluminium feet 2
AUX44-43-25R□-□□ 430 44 250 423 37 243 Rubber feet 2
AUX44-43-30A□-□□ 430 44 300 423 37 293 Aluminium feet 2.3
AUX44-43-30R□-□□ 430 44 300 423 37 293 Rubber feet 2.3
AUX44-43-36A□-□□ 430 44 360 423 37 353 Aluminium feet 2.6
AUX44-43-36R□-□□ 430 44 360 423 37 353 Rubber feet 2.6
AUX44-43-43A□-□□ 430 44 430 423 37 423 Aluminium feet 3
AUX44-43-43R□-□□ 430 44 430 423 37 423 Rubber feet 3
AUX44-50-30A□-□□ 500 44 300 493 37 293 Aluminium feet 2.6
AUX44-50-30R□-□□ 500 44 300 493 37 293 Rubber feet 2.6
AUX44-50-36A□-□□ 500 44 360 493 37 353 Aluminium feet 3
AUX44-50-36R□-□□ 500 44 360 493 37 353 Rubber feet 3
AUX44-50-43A□-□□ 500 44 430 493 37 423 Aluminium feet 3.4
AUX44-50-43R□-□□ 500 44 430 493 37 423 Rubber feet 3.4
AUX44-50-50A□-□□ 500 44 500 493 37 493 Aluminium feet 3.9
AUX44-50-50R□-□□ 500 44 500 493 37 493 Rubber feet 3.9
AUX44-60-36A□-□□ 600 44 360 593 37 353 Aluminium feet 3.5
AUX44-60-36R□-□□ 600 44 360 593 37 353 Rubber feet 3.5
AUX44-60-43A□-□□ 600 44 430 593 37 423 Aluminium feet 4
AUX44-60-43R□-□□ 600 44 430 593 37 423 Rubber feet 4
AUX66-16-16A□-□□ 160 66 160 153 59 153 Aluminium feet 0.9
AUX66-16-16R□-□□ 160 66 160 153 59 153 Rubber feet 0.9
AUX66-20-16A□-□□ 200 66 160 193 59 153 Aluminium feet 1
AUX66-20-16R□-□□ 200 66 160 193 59 153 Rubber feet 1
AUX66-20-20A□-□□ 200 66 200 193 59 193 Aluminium feet 1.1
AUX66-20-20R□-□□ 200 66 200 193 59 193 Rubber feet 1.1
AUX66-25-16A□-□□ 250 66 160 243 59 153 Aluminium feet 1.2
AUX66-25-16R□-□□ 250 66 160 243 59 153 Rubber feet 1.2
AUX66-25-20A□-□□ 250 66 200 243 59 193 Aluminium feet 1.3
AUX66-25-20R□-□□ 250 66 200 243 59 193 Rubber feet 1.3
AUX66-25-25A□-□□ 250 66 250 243 59 243 Aluminium feet 1.5
AUX66-25-25R□-□□ 250 66 250 243 59 243 Rubber feet 1.5
AUX66-30-16A□-□□ 300 66 160 293 59 153 Aluminium feet 1.3
AUX66-30-16R□-□□ 300 66 160 293 59 153 Rubber feet 1.3
AUX66-30-20A□-□□ 300 66 200 293 59 193 Aluminium feet 1.5
AUX66-30-20R□-□□ 300 66 200 293 59 193 Rubber feet 1.5
AUX66-30-25A□-□□ 300 66 250 293 59 243 Aluminium feet 1.7
AUX66-30-25R□-□□ 300 66 250 293 59 243 Rubber feet 1.7
AUX66-30-30A□-□□ 300 66 300 293 59 293 Aluminium feet 2
AUX66-30-30R□-□□ 300 66 300 293 59 293 Rubber feet 2
AUX66-36-16A□-□□ 360 66 160 353 59 153 Aluminium feet 1.4
AUX66-36-16R□-□□ 360 66 160 353 59 153 Rubber feet 1.4
AUX66-36-20A□-□□ 360 66 200 353 59 193 Aluminium feet 1.7
AUX66-36-20R□-□□ 360 66 200 353 59 193 Rubber feet 1.7
AUX66-36-25A□-□□ 360 66 250 353 59 243 Aluminium feet 2
AUX66-36-25R□-□□ 360 66 250 353 59 243 Rubber feet 2
AUX66-36-30A□-□□ 360 66 300 353 59 293 Aluminium feet 2.2
AUX66-36-30R□-□□ 360 66 300 353 59 293 Rubber feet 2.2
AUX66-36-36A□-□□ 360 66 360 353 59 353 Aluminium feet 2.6
AUX66-36-36R□-□□ 360 66 360 353 59 353 Rubber feet 2.6
AUX66-43-16A□-□□ 430 66 160 423 59 153 Aluminium feet 1.7
AUX66-43-16R□-□□ 430 66 160 423 59 153 Rubber feet 1.7
AUX66-43-20A□-□□ 430 66 200 423 59 193 Aluminium feet 2
AUX66-43-20R□-□□ 430 66 200 423 59 193 Rubber feet 2
AUX66-43-25A□-□□ 430 66 250 423 59 243 Aluminium feet 2.3
AUX66-43-25R□-□□ 430 66 250 423 59 243 Rubber feet 2.3
AUX66-43-30A□-□□ 430 66 300 423 59 293 Aluminium feet 2.6
AUX66-43-30R□-□□ 430 66 300 423 59 293 Rubber feet 2.6
AUX66-43-36A□-□□ 430 66 360 423 59 353 Aluminium feet 3
AUX66-43-36R□-□□ 430 66 360 423 59 353 Rubber feet 3
AUX66-43-43A□-□□ 430 66 430 423 59 423 Aluminium feet 3.4
AUX66-43-43R□-□□ 430 66 430 423 59 423 Rubber feet 3.4
AUX66-50-30A□-□□ 500 66 300 493 59 293 Aluminium feet 2.9
AUX66-50-30R□-□□ 500 66 300 493 59 293 Rubber feet 2.9
AUX66-50-36A□-□□ 500 66 360 493 59 353 Aluminium feet 3.3
AUX66-50-36R□-□□ 500 66 360 493 59 353 Rubber feet 3.3
AUX66-50-43A□-□□ 500 66 430 493 59 423 Aluminium feet 3.8
AUX66-50-43R□-□□ 500 66 430 493 59 423 Rubber feet 3.8
AUX66-50-50A□-□□ 500 66 500 493 59 493 Aluminium feet 4.3
AUX66-50-50R□-□□ 500 66 500 493 59 493 Rubber feet 4.3
AUX66-60-36A□-□□ 600 66 360 593 59 353 Aluminium feet 3.8
AUX66-60-36R□-□□ 600 66 360 593 59 353 Rubber feet 3.8
AUX66-60-43A□-□□ 600 66 430 593 59 423 Aluminium feet 4.4
AUX66-60-43R□-□□ 600 66 430 593 59 423 Rubber feet 4.4
AUX88-16-16A□-□□ 160 88 160 153 81 153 Aluminium feet 1
AUX88-16-16R□-□□ 160 88 160 153 81 153 Rubber feet 1
AUX88-20-16A□-□□ 200 88 160 193 81 153 Aluminium feet 1.1
AUX88-20-16R□-□□ 200 88 160 193 81 153 Rubber feet 1.1
AUX88-20-20A□-□□ 200 88 200 193 81 193 Aluminium feet 1.3
AUX88-20-20R□-□□ 200 88 200 193 81 193 Rubber feet 1.3
AUX88-25-16A□-□□ 250 88 160 243 81 153 Aluminium feet 1.3
AUX88-25-16R□-□□ 250 88 160 243 81 153 Rubber feet 1.3
AUX88-25-20A□-□□ 250 88 200 243 81 193 Aluminium feet 1.5
AUX88-25-20R□-□□ 250 88 200 243 81 193 Rubber feet 1.5
AUX88-25-25A□-□□ 250 88 250 243 81 243 Aluminium feet 1.7
AUX88-25-25R□-□□ 250 88 250 243 81 243 Rubber feet 1.7
AUX88-30-16A□-□□ 300 88 160 293 81 153 Aluminium feet 1.5
AUX88-30-16R□-□□ 300 88 160 293 81 153 Rubber feet 1.5
AUX88-30-20A□-□□ 300 88 200 293 81 193 Aluminium feet 1.7
AUX88-30-20R□-□□ 300 88 200 293 81 193 Rubber feet 1.7
AUX88-30-25A□-□□ 300 88 250 293 81 243 Aluminium feet 1.9
AUX88-30-25R□-□□ 300 88 250 293 81 243 Rubber feet 1.9
AUX88-30-30A□-□□ 300 88 300 293 81 293 Aluminium feet 2.2
AUX88-30-30R□-□□ 300 88 300 293 81 293 Rubber feet 2.2
AUX88-36-16A□-□□ 360 88 160 353 81 153 Aluminium feet 1.6
AUX88-36-16R□-□□ 360 88 160 353 81 153 Rubber feet 1.6
AUX88-36-20A□-□□ 360 88 200 353 81 193 Aluminium feet 1.9
AUX88-36-20R□-□□ 360 88 200 353 81 193 Rubber feet 1.9
AUX88-36-25A□-□□ 360 88 250 353 81 243 Aluminium feet 2.2
AUX88-36-25R□-□□ 360 88 250 353 81 243 Rubber feet 2.2
AUX88-36-30A□-□□ 360 88 300 353 81 293 Aluminium feet 2.4
AUX88-36-30R□-□□ 360 88 300 353 81 293 Rubber feet 2.4
AUX88-36-36A□-□□ 360 88 360 353 81 353 Aluminium feet 2.8
AUX88-36-36R□-□□ 360 88 360 353 81 353 Rubber feet 2.8
AUX88-43-16A□-□□ 430 88 160 423 81 153 Aluminium feet 1.9
AUX88-43-16R□-□□ 430 88 160 423 81 153 Rubber feet 1.9
AUX88-43-20A□-□□ 430 88 200 423 81 193 Aluminium feet 2.2
AUX88-43-20R□-□□ 430 88 200 423 81 193 Rubber feet 2.2
AUX88-43-25A□-□□ 430 88 250 423 81 243 Aluminium feet 2.5
AUX88-43-25R□-□□ 430 88 250 423 81 243 Rubber feet 2.5
AUX88-43-30A□-□□ 430 88 300 423 81 293 Aluminium feet 2.8
AUX88-43-30R□-□□ 430 88 300 423 81 293 Rubber feet 2.8
AUX88-43-36A□-□□ 430 88 360 423 81 353 Aluminium feet 3.2
AUX88-43-36R□-□□ 430 88 360 423 81 353 Rubber feet 3.2
AUX88-43-43A□-□□ 430 88 430 423 81 423 Aluminium feet 3.6
AUX88-43-43R□-□□ 430 88 430 423 81 423 Rubber feet 3.6
AUX88-50-30A□-□□ 500 88 300 493 81 293 Aluminium feet 3.2
AUX88-50-30R□-□□ 500 88 300 493 81 293 Rubber feet 3.2
AUX88-50-36A□-□□ 500 88 360 493 81 353 Aluminium feet 3.6
AUX88-50-36R□-□□ 500 88 360 493 81 353 Rubber feet 3.6
AUX88-50-43A□-□□ 500 88 430 493 81 423 Aluminium feet 4.1
AUX88-50-43R□-□□ 500 88 430 493 81 423 Rubber feet 4.1
AUX88-50-50A□-□□ 500 88 500 493 81 493 Aluminium feet 4.6
AUX88-50-50R□-□□ 500 88 500 493 81 493 Rubber feet 4.6
AUX88-60-36A□-□□ 600 88 360 593 81 353 Aluminium feet 4.1
AUX88-60-36R□-□□ 600 88 360 593 81 353 Rubber feet 4.1
AUX88-60-43A□-□□ 600 88 430 593 81 423 Aluminium feet 4.7
AUX88-60-43R□-□□ 600 88 430 593 81 423 Rubber feet 4.7
AUX133-16-16A□-□□ 160 132.5 160 152 125.5 152 Aluminium feet 1.3
AUX133-16-16R□-□□ 160 132.5 160 152 125.5 152 Rubber feet 1.3
AUX133-20-16A□-□□ 200 132.5 160 192 125.5 152 Aluminium feet 1.5
AUX133-20-16R□-□□ 200 132.5 160 192 125.5 152 Rubber feet 1.5
AUX133-20-20A□-□□ 200 132.5 200 192 125.5 192 Aluminium feet 1.7
AUX133-20-20R□-□□ 200 132.5 200 192 125.5 192 Rubber feet 1.7
AUX133-25-16A□-□□ 250 132.5 160 242 125.5 152 Aluminium feet 1.7
AUX133-25-16R□-□□ 250 132.5 160 242 125.5 152 Rubber feet 1.7
AUX133-25-20A□-□□ 250 132.5 200 242 125.5 192 Aluminium feet 1.9
AUX133-25-20R□-□□ 250 132.5 200 242 125.5 192 Rubber feet 1.9
AUX133-25-25A□-□□ 250 132.5 250 242 125.5 242 Aluminium feet 2.2
AUX133-25-25R□-□□ 250 132.5 250 242 125.5 242 Rubber feet 2.2
AUX133-30-16A□-□□ 300 132.5 160 292 125.5 152 Aluminium feet 1.9
AUX133-30-16R□-□□ 300 132.5 160 292 125.5 152 Rubber feet 1.9
AUX133-30-20A□-□□ 300 132.5 200 292 125.5 192 Aluminium feet 2.1
AUX133-30-20R□-□□ 300 132.5 200 292 125.5 192 Rubber feet 2.1
AUX133-30-25A□-□□ 300 132.5 250 292 125.5 242 Aluminium feet 2.4
AUX133-30-25R□-□□ 300 132.5 250 292 125.5 242 Rubber feet 2.4
AUX133-30-30A□-□□ 300 132.5 300 292 125.5 292 Aluminium feet 2.7
AUX133-30-30R□-□□ 300 132.5 300 292 125.5 292 Rubber feet 2.7
AUX133-36-16A□-□□ 360 132.5 160 352 125.5 152 Aluminium feet 2.2
AUX133-36-16R□-□□ 360 132.5 160 352 125.5 152 Rubber feet 2.2
AUX133-36-20A□-□□ 360 132.5 200 352 125.5 192 Aluminium feet 2.4
AUX133-36-20R□-□□ 360 132.5 200 352 125.5 192 Rubber feet 2.4
AUX133-36-25A□-□□ 360 132.5 250 352 125.5 242 Aluminium feet 2.7
AUX133-36-25R□-□□ 360 132.5 250 352 125.5 242 Rubber feet 2.7
AUX133-36-30A□-□□ 360 132.5 300 352 125.5 292 Aluminium feet 3.1
AUX133-36-30R□-□□ 360 132.5 300 352 125.5 292 Rubber feet 3.1
AUX133-36-36A□-□□ 360 132.5 360 352 125.5 352 Aluminium feet 3.4
AUX133-36-36R□-□□ 360 132.5 360 352 125.5 352 Rubber feet 3.4
AUX133-43-16A□-□□ 430 132.5 160 422 125.5 152 Aluminium feet 2.5
AUX133-43-16R□-□□ 430 132.5 160 422 125.5 152 Rubber feet 2.5
AUX133-43-20A□-□□ 430 132.5 200 422 125.5 192 Aluminium feet 2.8
AUX133-43-20R□-□□ 430 132.5 200 422 125.5 192 Rubber feet 2.8
AUX133-43-25A□-□□ 430 132.5 250 422 125.5 242 Aluminium feet 3.1
AUX133-43-25R□-□□ 430 132.5 250 422 125.5 242 Rubber feet 3.1
AUX133-43-30A□-□□ 430 132.5 300 422 125.5 292 Aluminium feet 3.5
AUX133-43-30R□-□□ 430 132.5 300 422 125.5 292 Rubber feet 3.5
AUX133-43-36A□-□□ 430 132.5 360 422 125.5 352 Aluminium feet 3.9
AUX133-43-36R□-□□ 430 132.5 360 422 125.5 352 Rubber feet 3.9
AUX133-43-43A□-□□ 430 132.5 430 422 125.5 422 Aluminium feet 4.4
AUX133-43-43R□-□□ 430 132.5 430 422 125.5 422 Rubber feet 4.4
AUX133-50-30A□-□□ 500 132.5 300 492 125.5 292 Aluminium feet 3.9
AUX133-50-30R□-□□ 500 132.5 300 492 125.5 292 Rubber feet 3.9
AUX133-50-36A□-□□ 500 132.5 360 492 125.5 352 Aluminium feet 4.4
AUX133-50-36R□-□□ 500 132.5 360 492 125.5 352 Rubber feet 4.4
AUX133-50-43A□-□□ 500 132.5 430 492 125.5 422 Aluminium feet 4.9
AUX133-50-43R□-□□ 500 132.5 430 492 125.5 422 Rubber feet 4.9
AUX133-50-50A□-□□ 500 132.5 500 492 125.5 492 Aluminium feet 5.5
AUX133-50-50R□-□□ 500 132.5 500 492 125.5 492 Rubber feet 5.5
AUX133-60-36A□-□□ 600 132.5 360 592 125.5 352 Aluminium feet 5
AUX133-60-36R□-□□ 600 132.5 360 592 125.5 352 Rubber feet 5
AUX133-60-43A□-□□ 600 132.5 430 592 125.5 422 Aluminium feet 5.7
AUX133-60-43R□-□□ 600 132.5 430 592 125.5 422 Rubber feet 5.7
AUX177-16-16A□-□□ 160 177 160 152 170 152 Aluminium feet 1.5
AUX177-16-16R□-□□ 160 177 160 152 170 152 Rubber feet 1.5
AUX177-20-16A□-□□ 200 177 160 192 170 152 Aluminium feet 1.7
AUX177-20-16R□-□□ 200 177 160 192 170 152 Rubber feet 1.7
AUX177-20-20A□-□□ 200 177 200 192 170 192 Aluminium feet 1.9
AUX177-20-20R□-□□ 200 177 200 192 170 192 Rubber feet 1.9
AUX177-25-16A□-□□ 250 177 160 242 170 152 Aluminium feet 1.9
AUX177-25-16R□-□□ 250 177 160 242 170 152 Rubber feet 1.9
AUX177-25-20A□-□□ 250 177 200 242 170 192 Aluminium feet 2.2
AUX177-25-20R□-□□ 250 177 200 242 170 192 Rubber feet 2.2
AUX177-25-25A□-□□ 250 177 250 242 170 242 Aluminium feet 2.5
AUX177-25-25R□-□□ 250 177 250 242 170 242 Rubber feet 2.5
AUX177-30-16A□-□□ 300 177 160 292 170 152 Aluminium feet 2.2
AUX177-30-16R□-□□ 300 177 160 292 170 152 Rubber feet 2.2
AUX177-30-20A□-□□ 300 177 200 292 170 192 Aluminium feet 2.4
AUX177-30-20R□-□□ 300 177 200 292 170 192 Rubber feet 2.4
AUX177-30-25A□-□□ 300 177 250 292 170 242 Aluminium feet 2.8
AUX177-30-25R□-□□ 300 177 250 292 170 242 Rubber feet 2.8
AUX177-30-30A□-□□ 300 177 300 292 170 292 Aluminium feet 3.1
AUX177-30-30R□-□□ 300 177 300 292 170 292 Rubber feet 3.1
AUX177-36-16A□-□□ 360 177 160 352 170 152 Aluminium feet 2.5
AUX177-36-16R□-□□ 360 177 160 352 170 152 Rubber feet 2.5
AUX177-36-20A□-□□ 360 177 200 352 170 192 Aluminium feet 2.8
AUX177-36-20R□-□□ 360 177 200 352 170 192 Rubber feet 2.8
AUX177-36-25A□-□□ 360 177 250 352 170 242 Aluminium feet 3.1
AUX177-36-25R□-□□ 360 177 250 352 170 242 Rubber feet 3.1
AUX177-36-30A□-□□ 360 177 300 352 170 292 Aluminium feet 3.5
AUX177-36-30R□-□□ 360 177 300 352 170 292 Rubber feet 3.5
AUX177-36-36A□-□□ 360 177 360 352 170 352 Aluminium feet 3.9
AUX177-36-36R□-□□ 360 177 360 352 170 352 Rubber feet 3.9
AUX177-43-16A□-□□ 430 177 160 422 170 152 Aluminium feet 2.9
AUX177-43-16R□-□□ 430 177 160 422 170 152 Rubber feet 2.9
AUX177-43-20A□-□□ 430 177 200 422 170 192 Aluminium feet 3.2
AUX177-43-20R□-□□ 430 177 200 422 170 192 Rubber feet 3.2
AUX177-43-25A□-□□ 430 177 250 422 170 242 Aluminium feet 3.6
AUX177-43-25R□-□□ 430 177 250 422 170 242 Rubber feet 3.6
AUX177-43-30A□-□□ 430 177 300 422 170 292 Aluminium feet 4
AUX177-43-30R□-□□ 430 177 300 422 170 292 Rubber feet 4
AUX177-43-36A□-□□ 430 177 360 422 170 352 Aluminium feet 4.5
AUX177-43-36R□-□□ 430 177 360 422 170 352 Rubber feet 4.5
AUX177-43-43A□-□□ 430 177 430 422 170 422 Aluminium feet 5
AUX177-43-43R□-□□ 430 177 430 422 170 422 Rubber feet 5
AUX177-50-30A□-□□ 500 177 300 492 170 292 Aluminium feet 4.4
AUX177-50-30R□-□□ 500 177 300 492 170 292 Rubber feet 4.4
AUX177-50-36A□-□□ 500 177 360 492 170 352 Aluminium feet 5
AUX177-50-36R□-□□ 500 177 360 492 170 352 Rubber feet 5
AUX177-50-43A□-□□ 500 177 430 492 170 422 Aluminium feet 5.6
AUX177-50-43R□-□□ 500 177 430 492 170 422 Rubber feet 5.6
AUX177-50-50A□-□□ 500 177 500 492 170 492 Aluminium feet 6.2
AUX177-50-50R□-□□ 500 177 500 492 170 492 Rubber feet 6.2
AUX177-60-36A□-□□ 600 177 360 592 170 352 Aluminium feet 5.7
AUX177-60-36R□-□□ 600 177 360 592 170 352 Rubber feet 5.7
AUX177-60-43A□-□□ 600 177 430 592 170 422 Aluminium feet 6.4
AUX177-60-43R□-□□ 600 177 430 592 170 422 Rubber feet 6.4
Mounting plate (Option) PDF DXF DWG STP
AUC16-16 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC60-43 PDF DXF DWG
AUC60-43 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC60-43 PDF DXF DWG
AUC60-43 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC60-43 PDF DXF DWG
AUC60-43 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC60-43 PDF DXF DWG
AUC60-43 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC60-43 PDF DXF DWG
AUC60-43 PDF DXF DWG

OPTIONAL PARTS

１
MOUNTING PLATE for AU□ series (for AU・AUG・AUGE・AUP・AUPE・AUX・AUXE)
DETAILS
１
MONITOR ARM for AU□ series - MAR series
DETAILS
１
ELASTOMER CARRYING HANDLE - FM200 series
DETAILS
１
ALUMINIUM HANDLE - OH series
DETAILS
１
ALUMINIUM ISOLATION FEET - AFM・AFS series
DETAILS
１
CORNER GUARD for AU□ series (for AU・AUP・AUPE・AUX・AUXE)
DETAILS

SIMILAR PRODUCT

１
EMC SHIELDED ALUMINIUM BOX - AUXE series
DETAILS
１
ALUMINIUM ENCLOSURE - AU series
DETAILS
１
ALUMINIUM CONTROL BOX - FC series
DETAILS
１
CUSTOM SIZED ALUMINIUM CONTROL BOX - FCS series
DETAILS
１
ALUMINIUM CONTROL BOX - CH series
DETAILS
１
CUSTOM SIZED ALUMINUM FRAME BOX - ALSF series
DETAILS

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

Fiber laser cutting

DETAILS

CNC punch pressing

DETAILS

High speed CNC milling

DETAILS

Clinching standoff pressing

DETAILS

Digital inkjet printing

DETAILS

Graphic overlay making

DETAILS
